DC12V/13.8V/15V 8A 8CH Outdoor Weatherproof Power Adaptor
share
- Input: AC 100-240V, 50-60Hz
- Output: DC12V/13.8V/15V, Max.8A, 8CH
- The output voltage can be adjusted in three gears
- Each output voltage comes with a separate LED
- Output: DC12V/13.8V/15V, Max.8A, 8CH
- The output voltage can be adjusted in three gears
- Each output voltage comes with a separate LED
DetailSpecificationsDownloads
Description:
PS-DC8A8P is a DC12V/13.8V/15V 8A8CH outdoor rainproof power adaptor, DC12V output can be compatible with most security equipment on the market.Features:

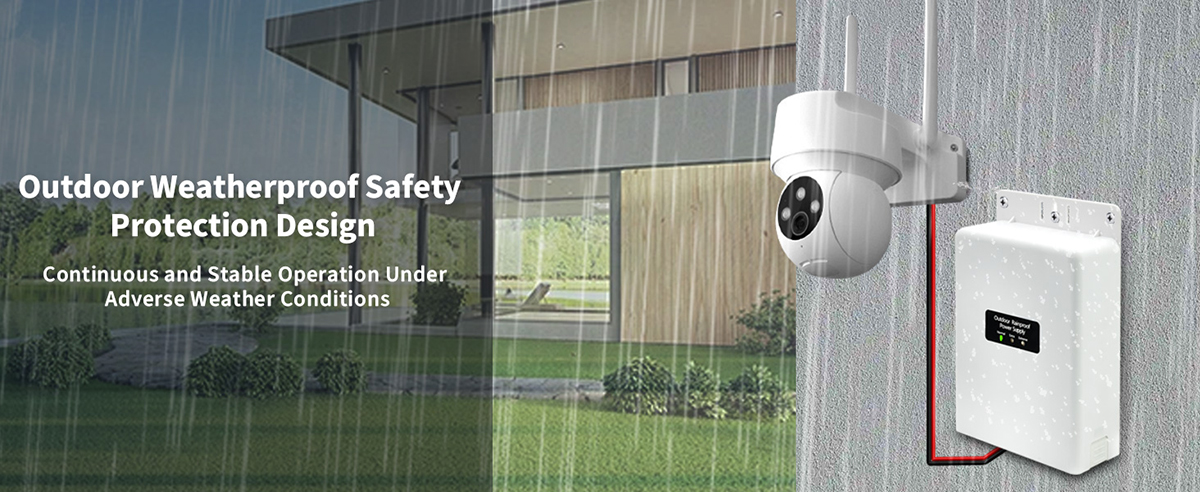

Outdoor Rainproof Power Adaptor
Input AC 100V ~ 240V, 50~60Hz
Adjustable output voltage, switch control
Each voltage has LED indications
DC 12V / 13.8V / 15V 8A 8CH power supply

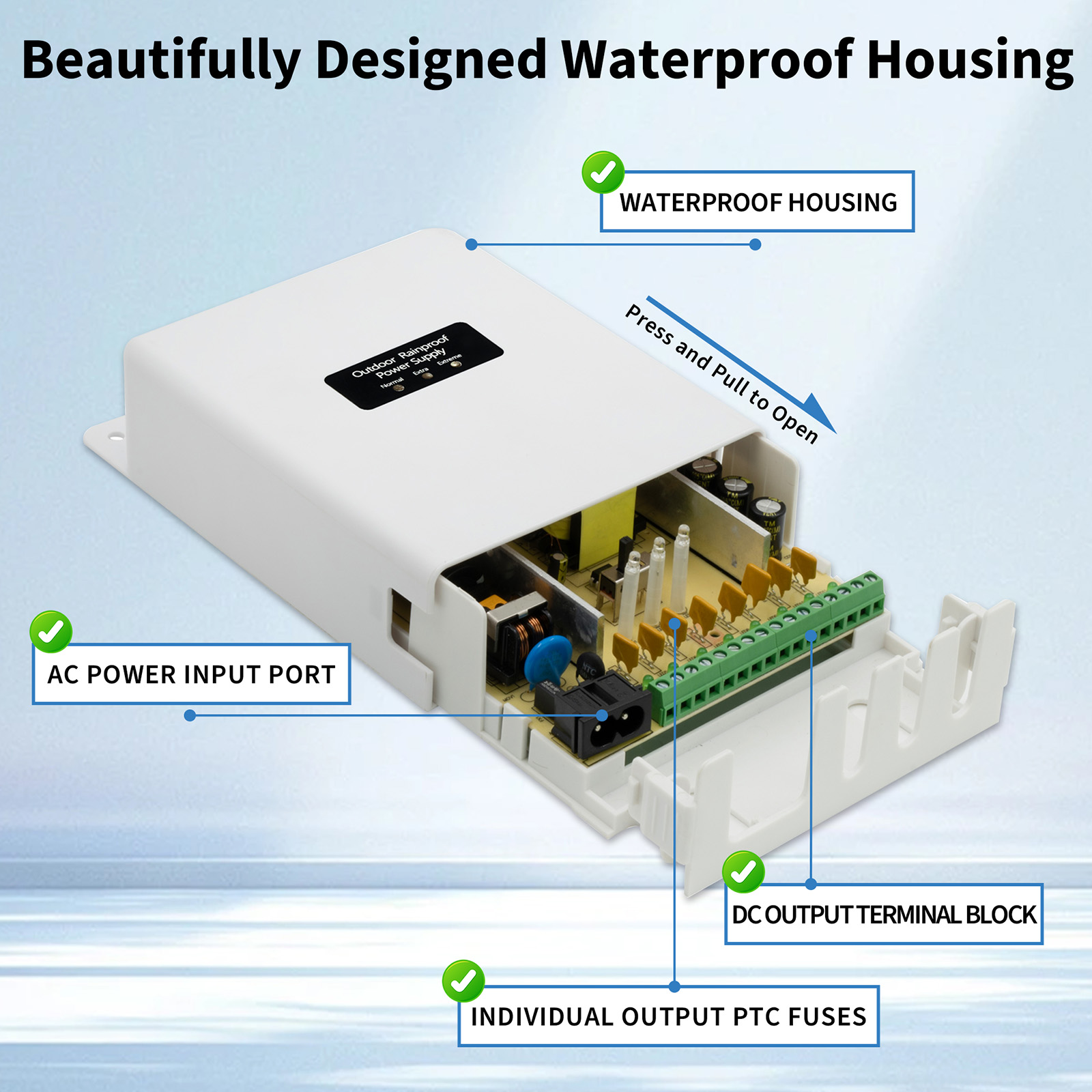

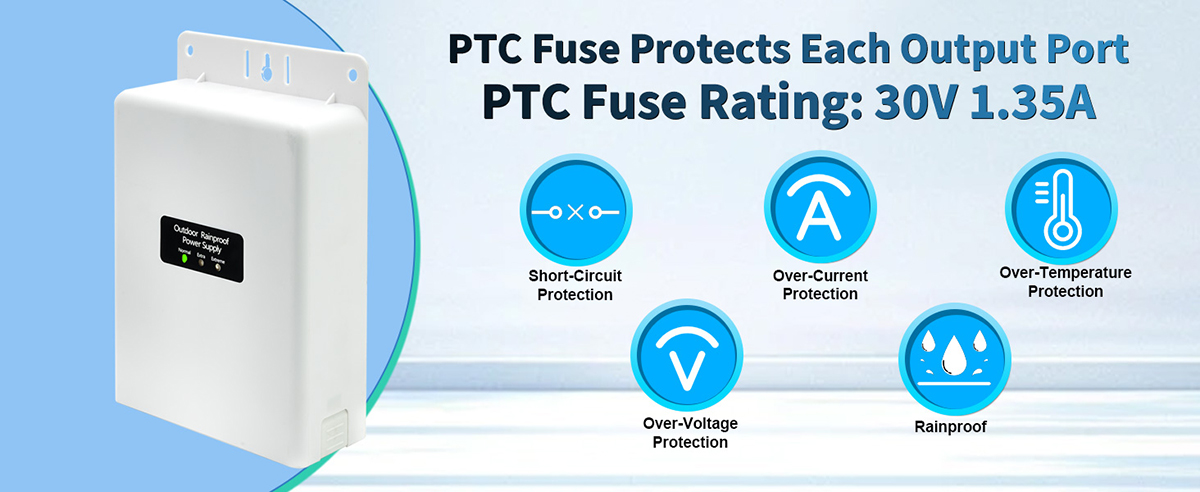

PTC fuse output protection for each port
PTC rated value: 30V1.35A
Individual status LED indicator for each output
Short circuit protection
Over-temperature protection
Overcurrent and overload protection
Overvoltage and undervoltage protection
Auto-reset on all fault conditions
Wide operating temperature range
Specifications:
| Item | Description | ||
Power Input | Input Voltage | AC input, 100V ~ 240V, 50~60Hz | |
| Input Fuse Rating | 3.15A250V | ||
| Consumption | <0.6W | ||
| Power Output | Output Voltage | DC 12V or 13.8V or 15V,switch control, Each voltage has LED indications | |
| Total Output Current | 8A | ||
| Output channel number | 8 channel | ||
| Each ch output current | 1.35A max, PTC fuse output protection for each port | ||
| Product quality | Efficiency | Efficiency larger than 80% when DC output full loading with 230VAC input voltage | |
| Over temperature protection | When the inside temperature of PSU rise to100~120℃,The PSU will shutdown and latch off until inside temperature of PSU drop to 70℃，then it will restart automatically. | ||
Short Circuited Protection | When the output terminal is short circuit, the power supply will be protected, will not result in fire, electric shock or damage the power supply | ||
| Over load Protection | When the load rate of PSU is up to 105 to 150% ,The PSU will be in the hiccup mode, then it will recover automatically while the load is down to the standard | ||
| Feature | High efficiency, long life and high practicality, natural cooling | ||
| Efficiency | >80% | ||
| Noise & ripple | <200mV | ||
| MTBF | >10000 hours | ||
| Load regulation | A ±5% | ||
| Environmental | Operating temperature | -10℃to 45℃ | |
| Storage temperature | -20℃to 75℃ | ||
| Operating humidity | 20% to 80% relative humidity, non-condensing | ||
| Storage humidity | 10% to 90% relative humidity, non-condensing | ||

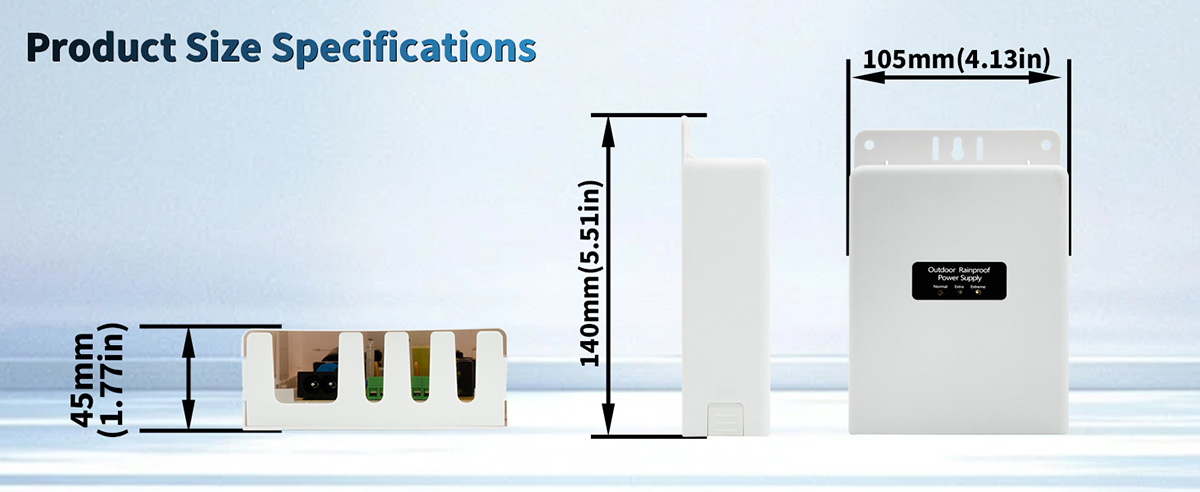

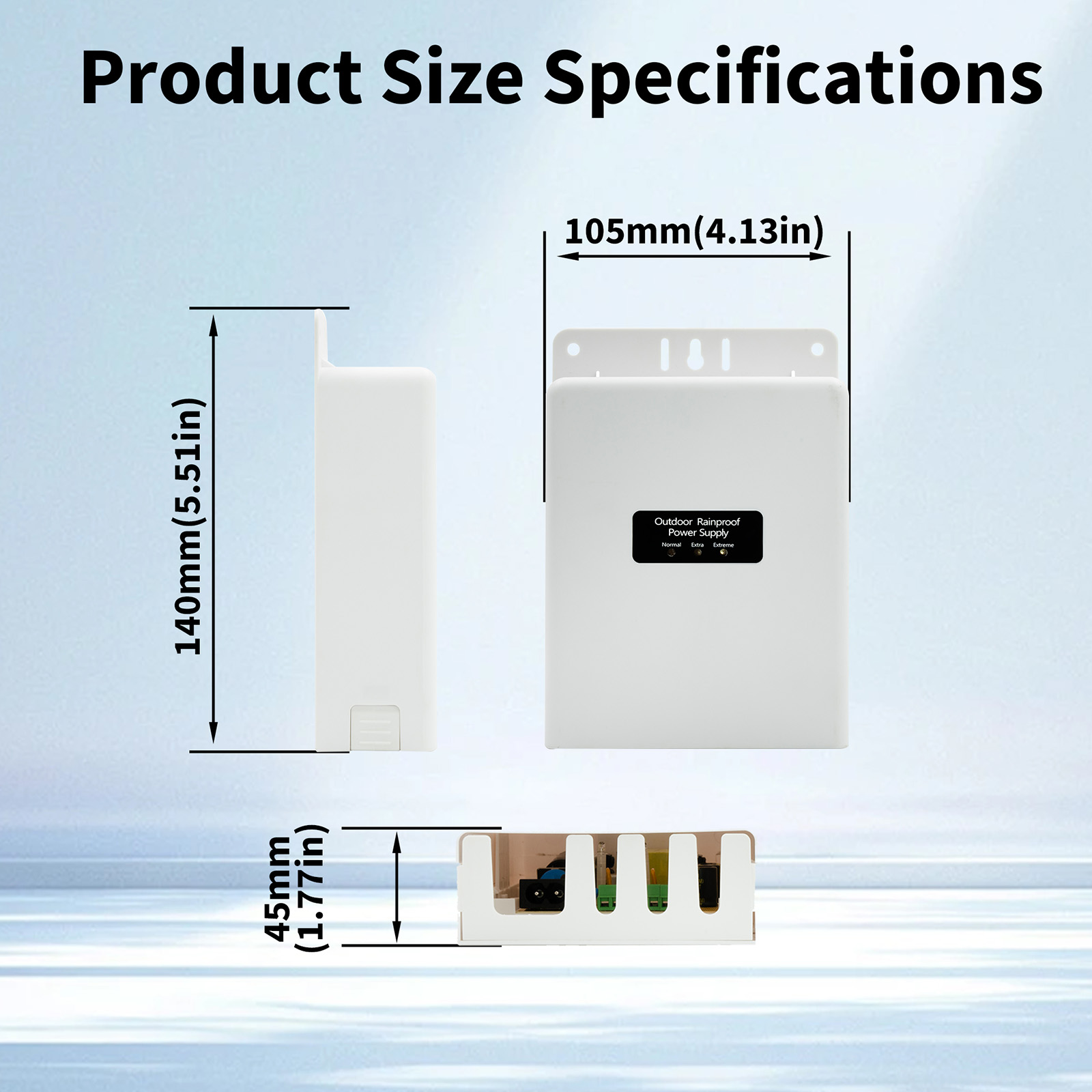

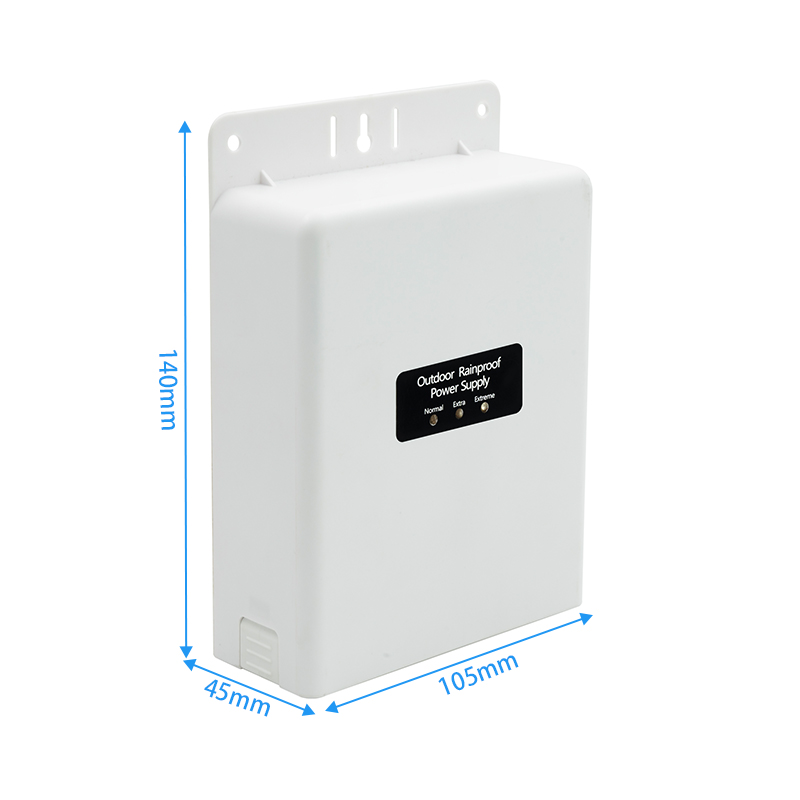

| Physical | Case dimensions | 140mm(5.51in) X 105mm(4.13in) X 45mm(1.77in) | |
| Case Color | White Rainproof Shell | ||
Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
