RV Trailer Solar-boosted industrial PoE Switch, 8 standard PoE Port

WeChat

Sina Weibo

copy Link

Facebook

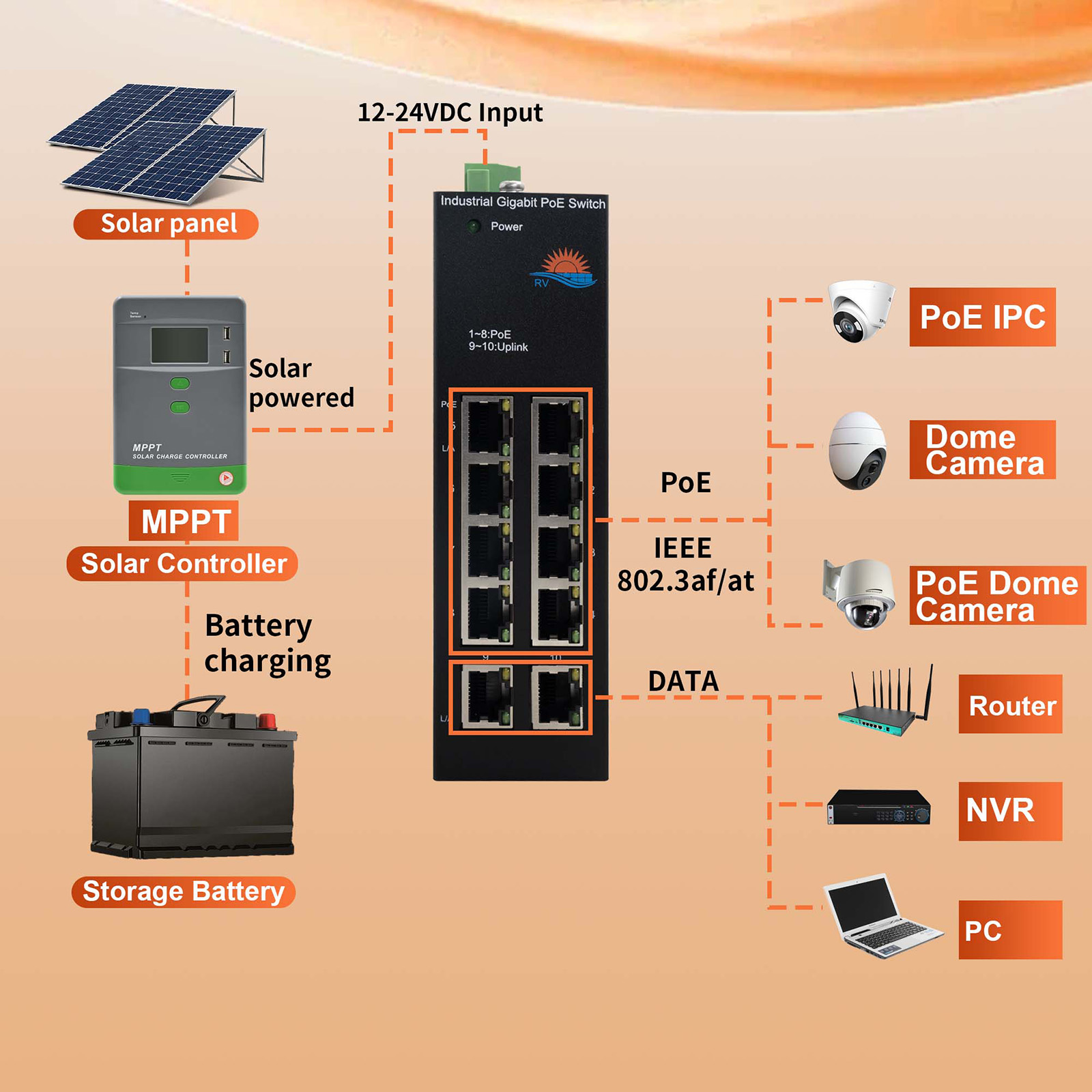

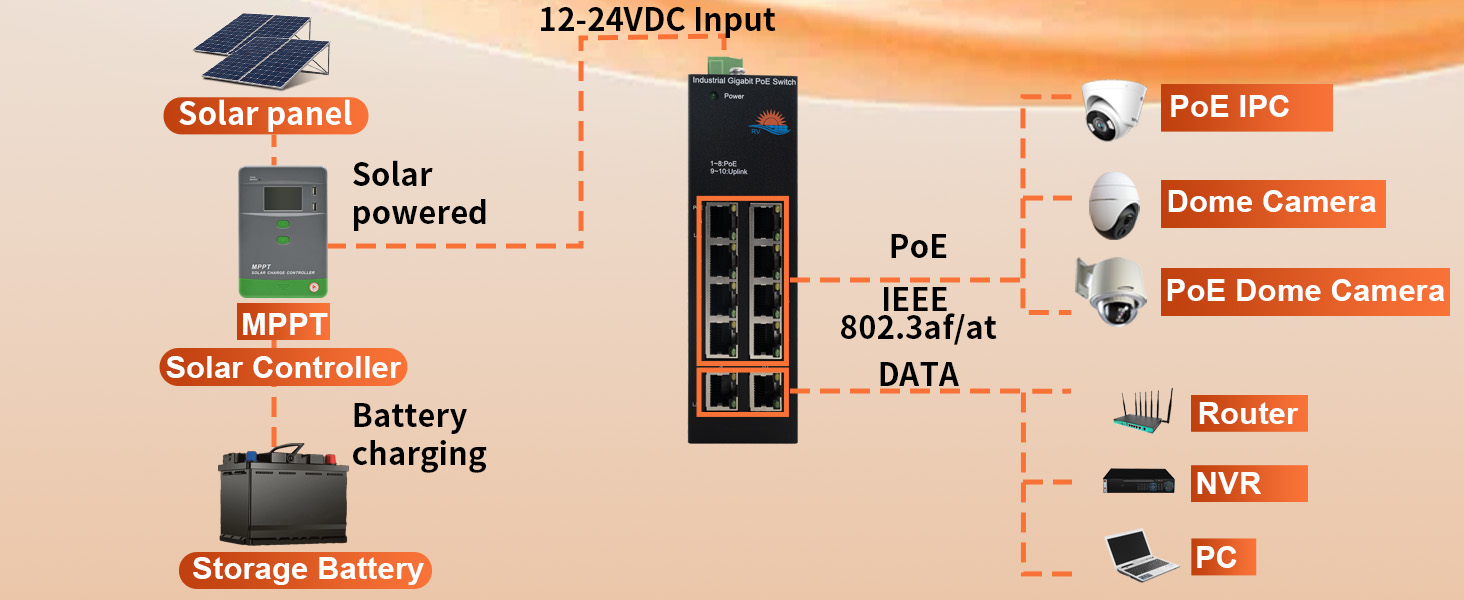

- Input DC 12-30V boost to 53V PoE output

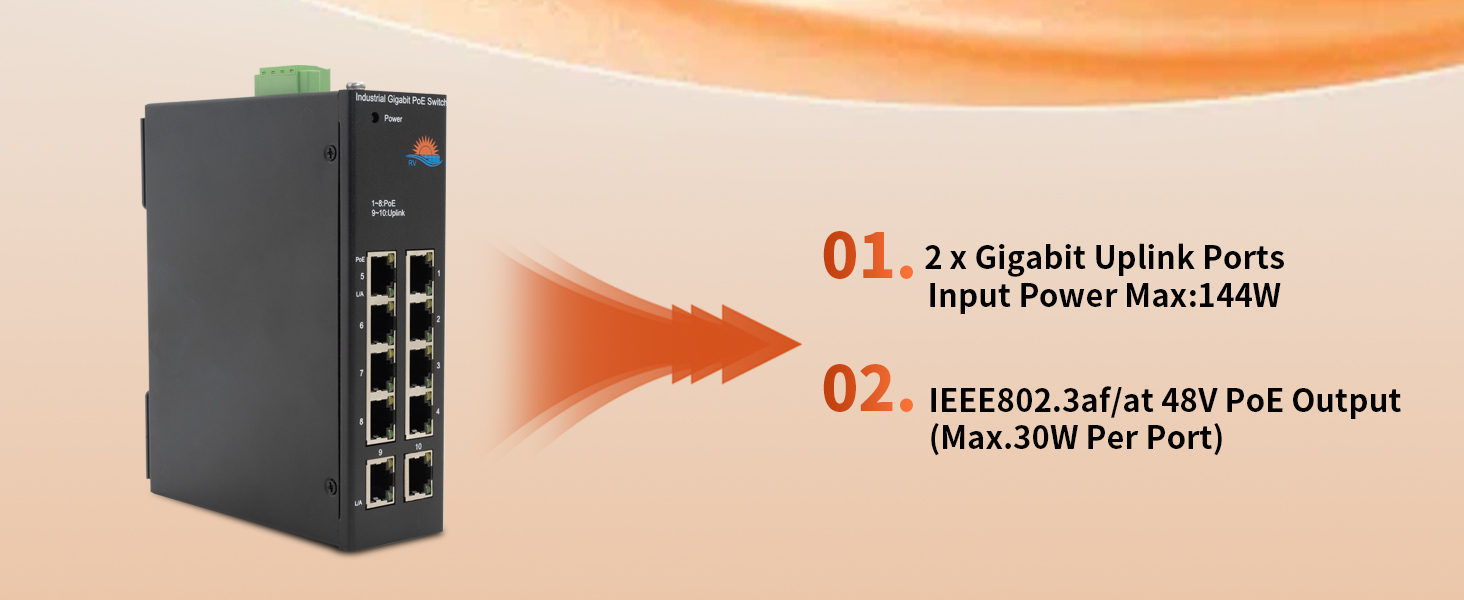

- PoE Port: 8 10/100/1000Mbps RJ45 Port
- Uplink: 2 Gigabit RJ45 Port
- PoE ports support IEEE 802.3af/at
- Each PoE Port Output Max.30W
- Input current Max.6A
- Working Temperature: -10℃ to 60℃
- 6KV lightning protection

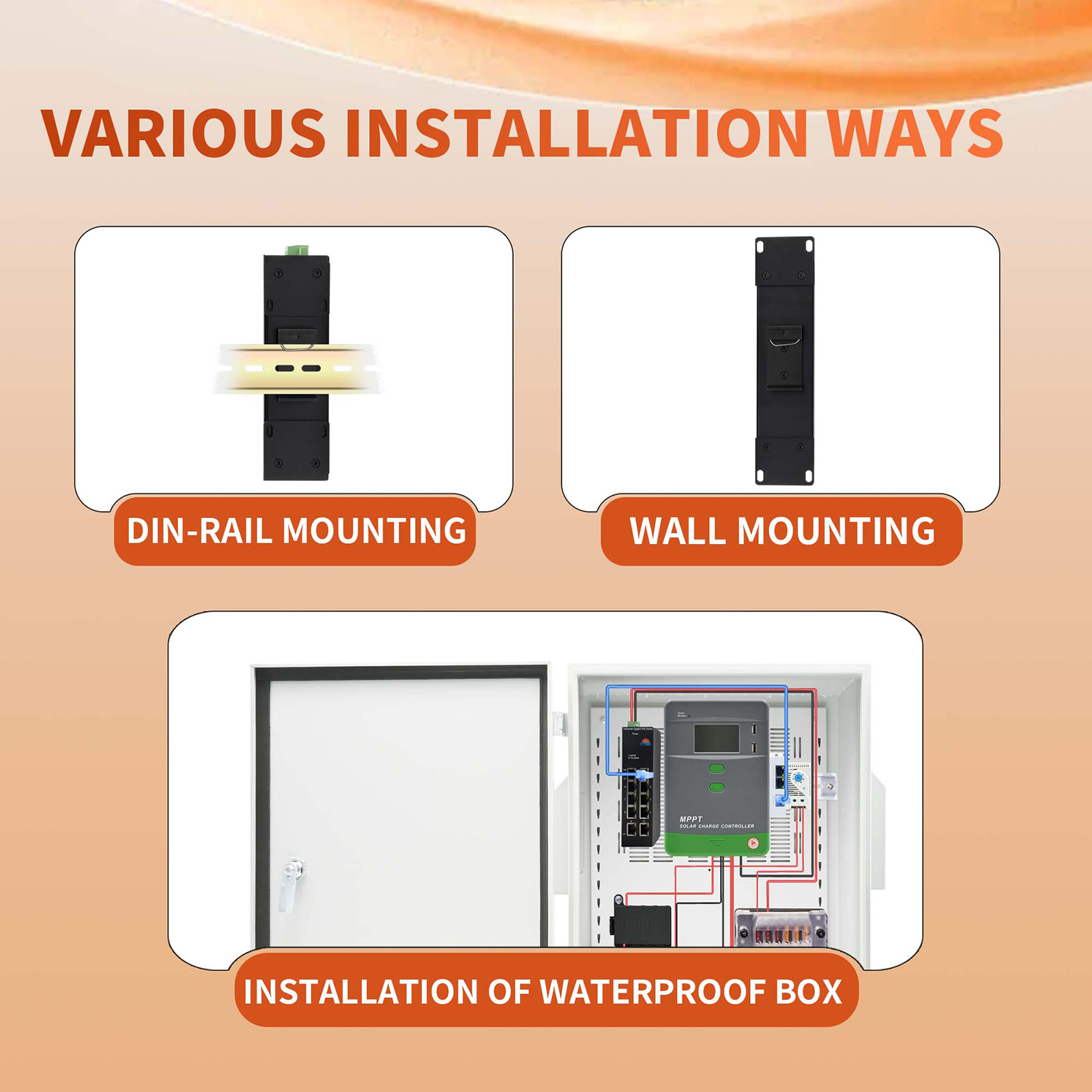

- Din-Rail Mount or Wall Mount
- Enclosure size: 150mm*120mm*44mm
- Not included power

Brand CENTROPOWER

Model PoE-3610-8B

Color Black

WhatsApp Contact

DetailSpecificationsDownloads

Solar Boost PoE Switch

Description:

PoE-36108B Power Over Ethernet (PoE) greatlysimplifies the line deployment of IPcameras and wireless access points,requiring only a single network cableto power and transmit signals.

Features:

10 Port Gigabit Boost industrial PoE Switch

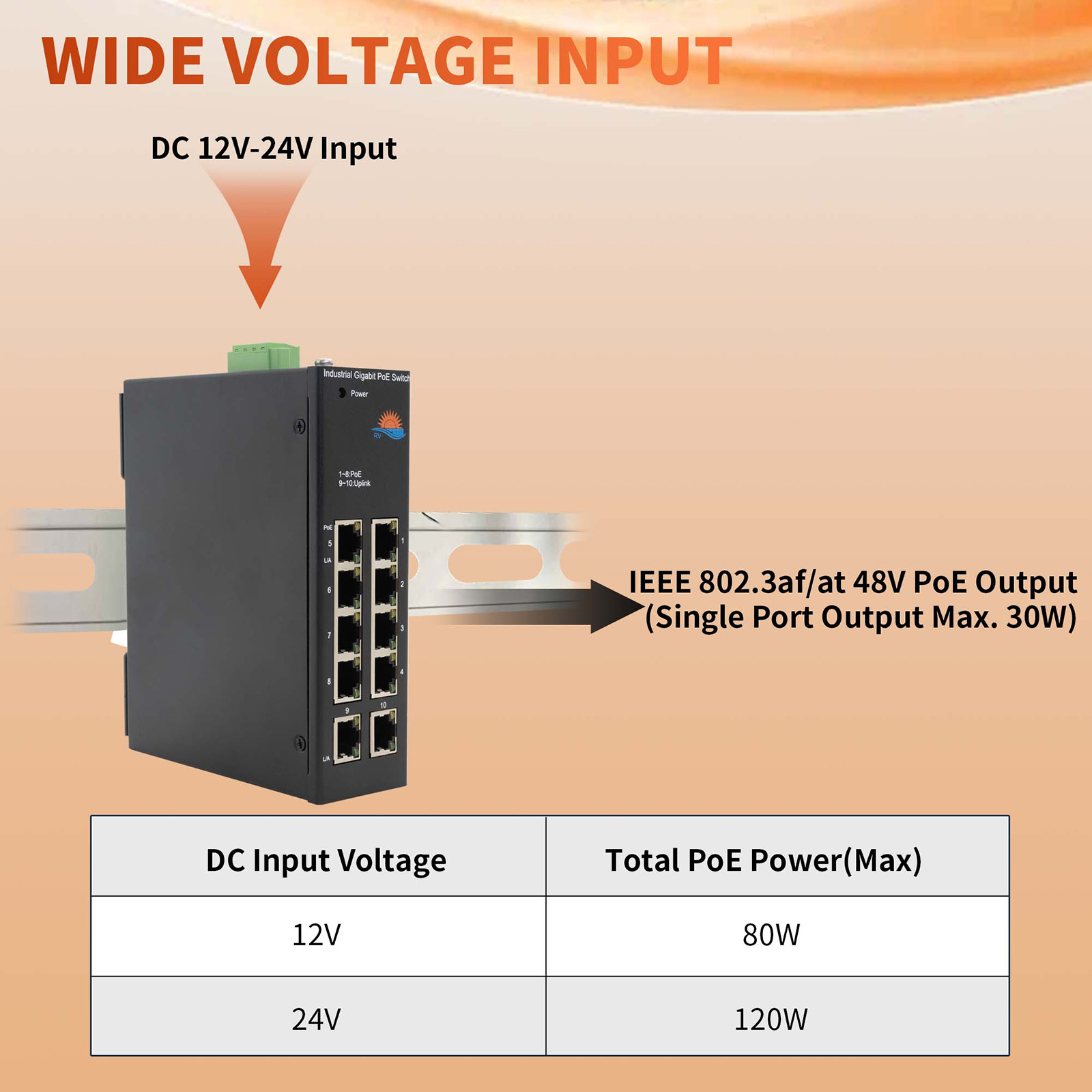

Support 12VDC or 24VDC Powered supply
Support 8 Port lEEE 802.3af/at PoE Output
Built in boost function (DC12/24V boost to DC53Vboost)
Fan less cooling design
Supports rate self-negotiation and MDlMDl-X adaptation
Storage and forwarding processing method
IP30

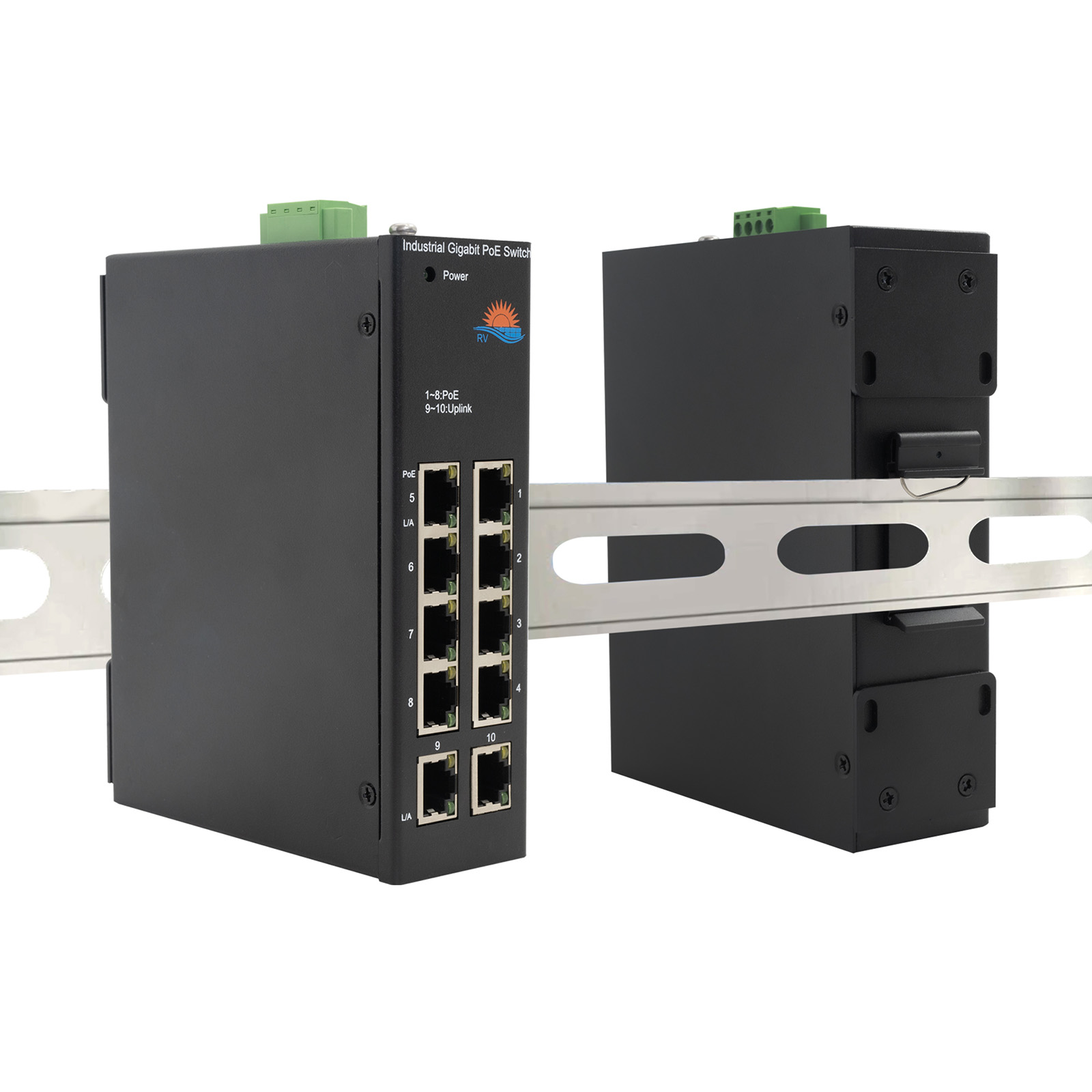

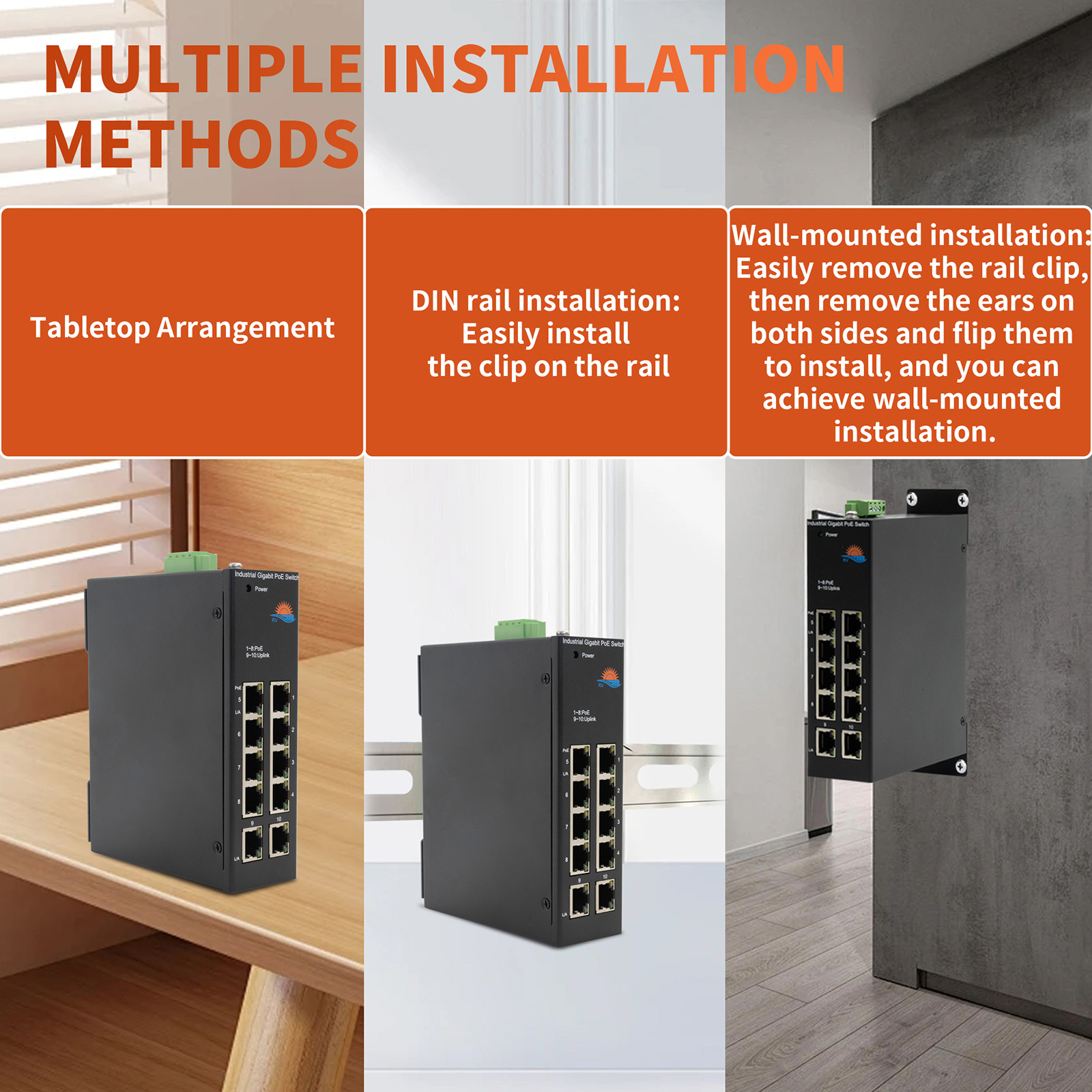

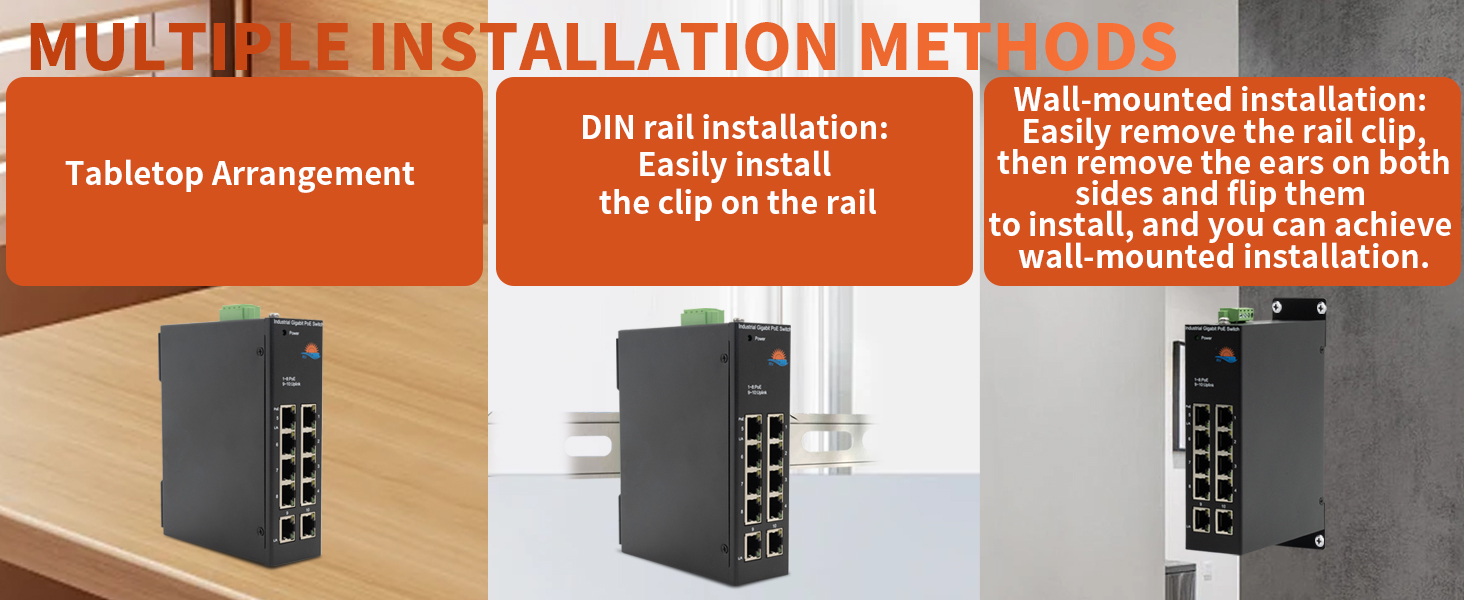

Rail mounted'wall mounted installation method
Wide temperature working ability: -10℃ to +60℃

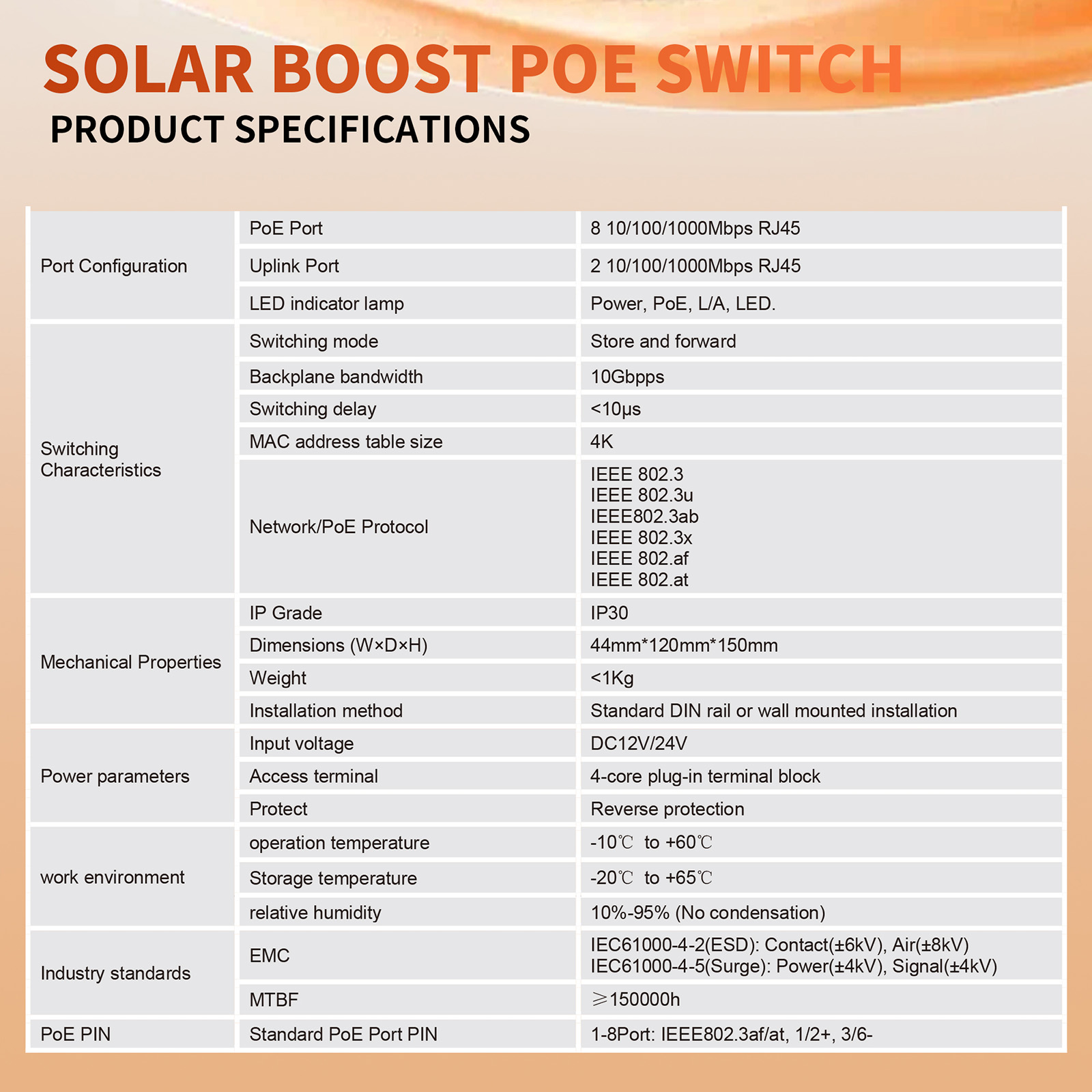

Specifications:

Item	Description

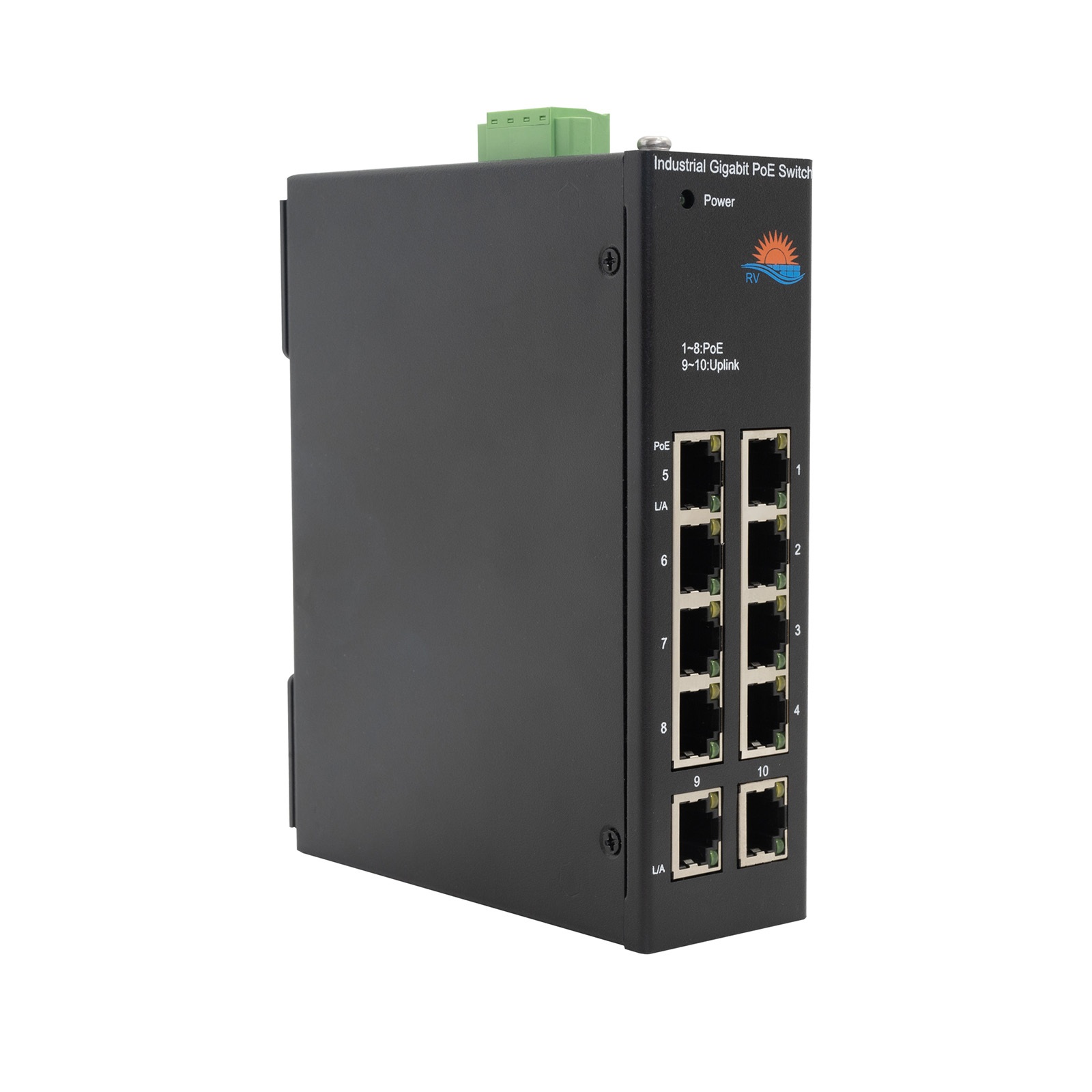

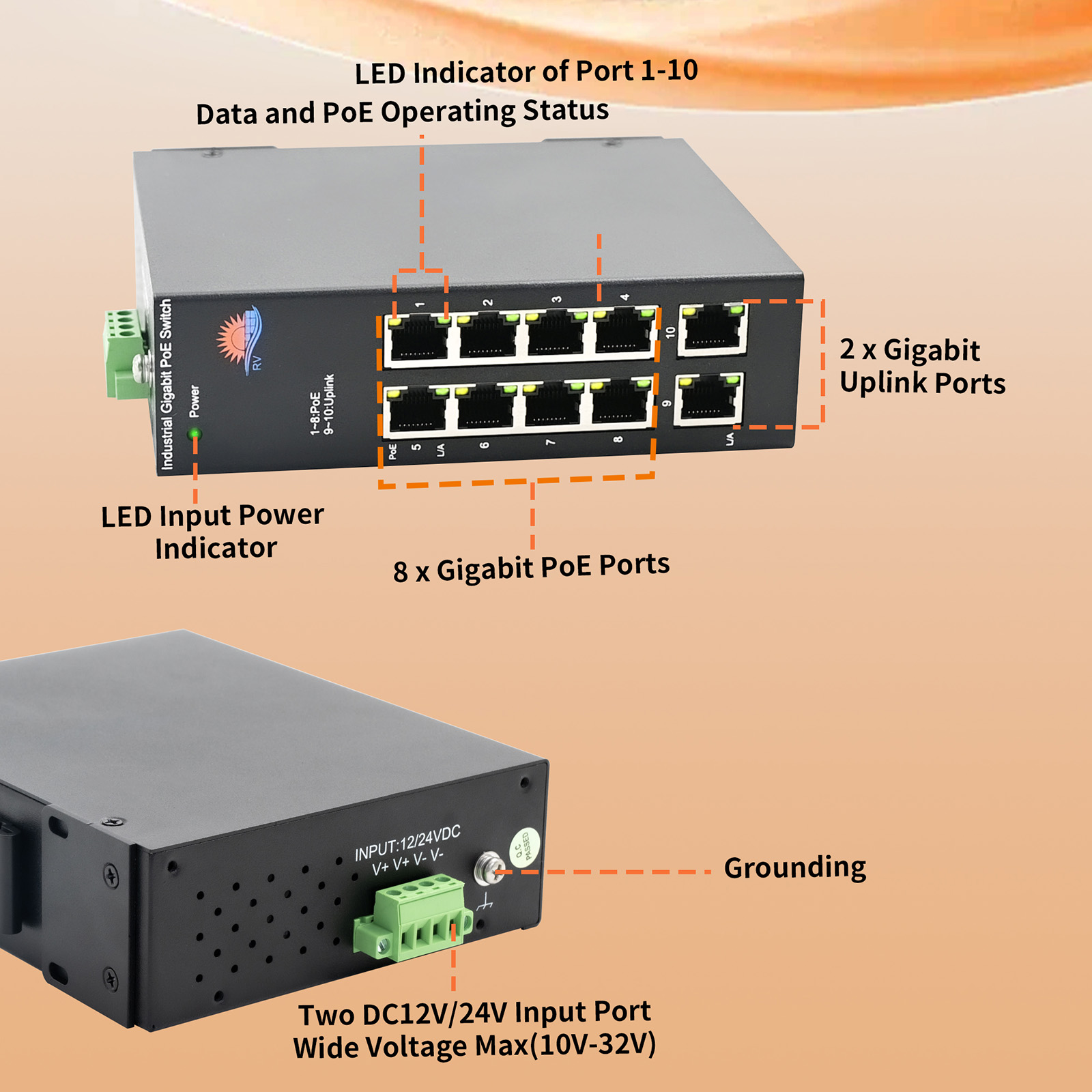

Port Configuration	PoE Port： 8 10/100/1000Mbps RJ45 Uplink Port ：2 10/100/1000Mbps RJ45 LED indicator lamp ： Power, PoE, L/A, LED.
Switching Characteristics	Switching mode ：Store and forward Backplane bandwidth ：10Gbpps Switching delay ：<10μs MAC address table size ：4K Network/PoE Protocol：IEEE 802.3 IEEE 802.3u IEEE802.3ab IEEE 802.3x IEEE 802.af IEEE 802.at
Protocols	IEEE 802.1Q, IEEE 802.1x, IEEE 802.1w, IEEE 802.3af/at
Network media	10BASE-T: Unshielded Category 3, 4, 5 twisted pair (up to 100m) 100BASE-TX/100BASE-T: Unshielded Category 5, Category 5 or more twisted pair (up to 100m) 1000BASE-TX/1000BASE-T: Twisted pair above 6 categories (up to 100m)
Mechanical Properties	IP Grade ：IP30 Dimensions (W×D×H) ：44mm120mm150mm Weight： <1Kg Installation method： Standard DIN rail or wall mounted installation

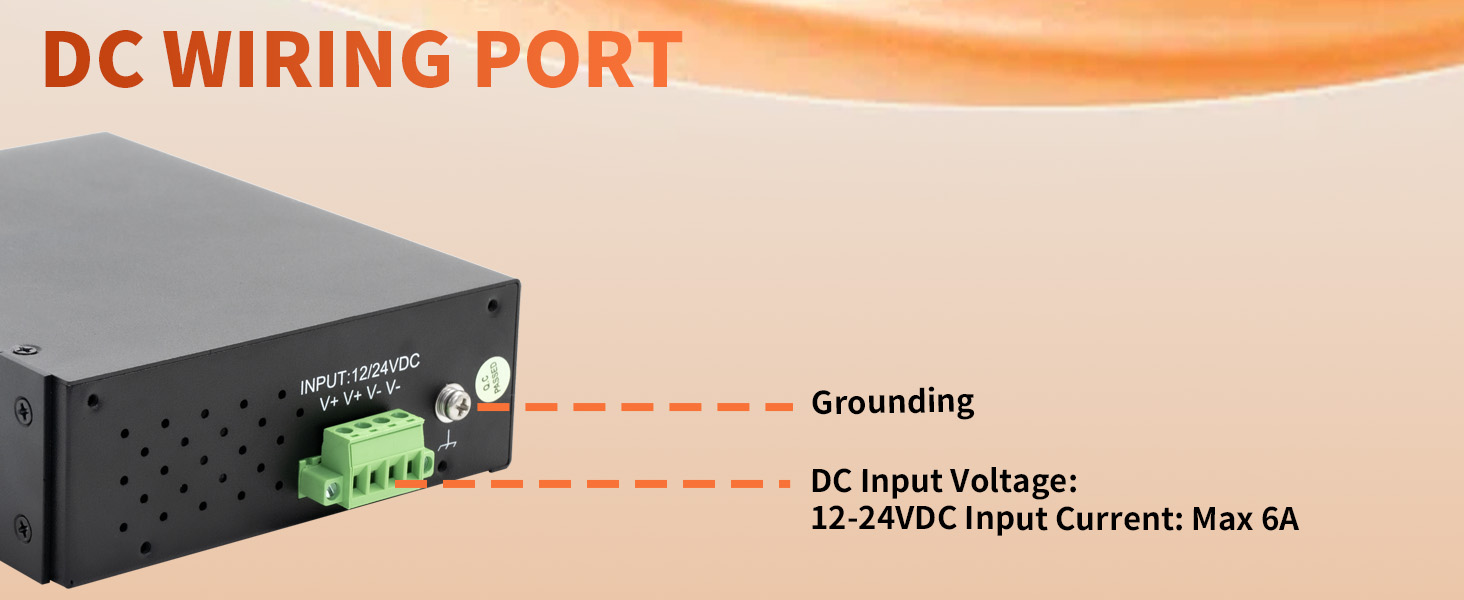

Power parameters	Input voltage： DC12V/24V Access terminal：4-core plug-in terminal block Protect：Reverse protection
work environment	operation temperature：-10℃ to +60℃ Storage temperature：-20℃ to +65℃ relative humidity ：10%-95% (No condensation)
Industry standards	EMC ：IEC61000-4-2(ESD): Contact(±6kV), Air(±8kV) IEC61000-4-5(Surge): Power(±4kV), Signal(±4kV) MTBF： ≥150000h
PoE PIN	Standard PoE Port PIN : 1-8Port: IEEE802.3af/at, 1/2+, 3/6-
