90W Gigabit PoE Splitter With PoE Output

WeChat

Sina Weibo

copy Link

Facebook

- Comply with IEEE 802.3i/u/ab
- 1 RJ45 PoE Input, 1 RJ45 PoE Output

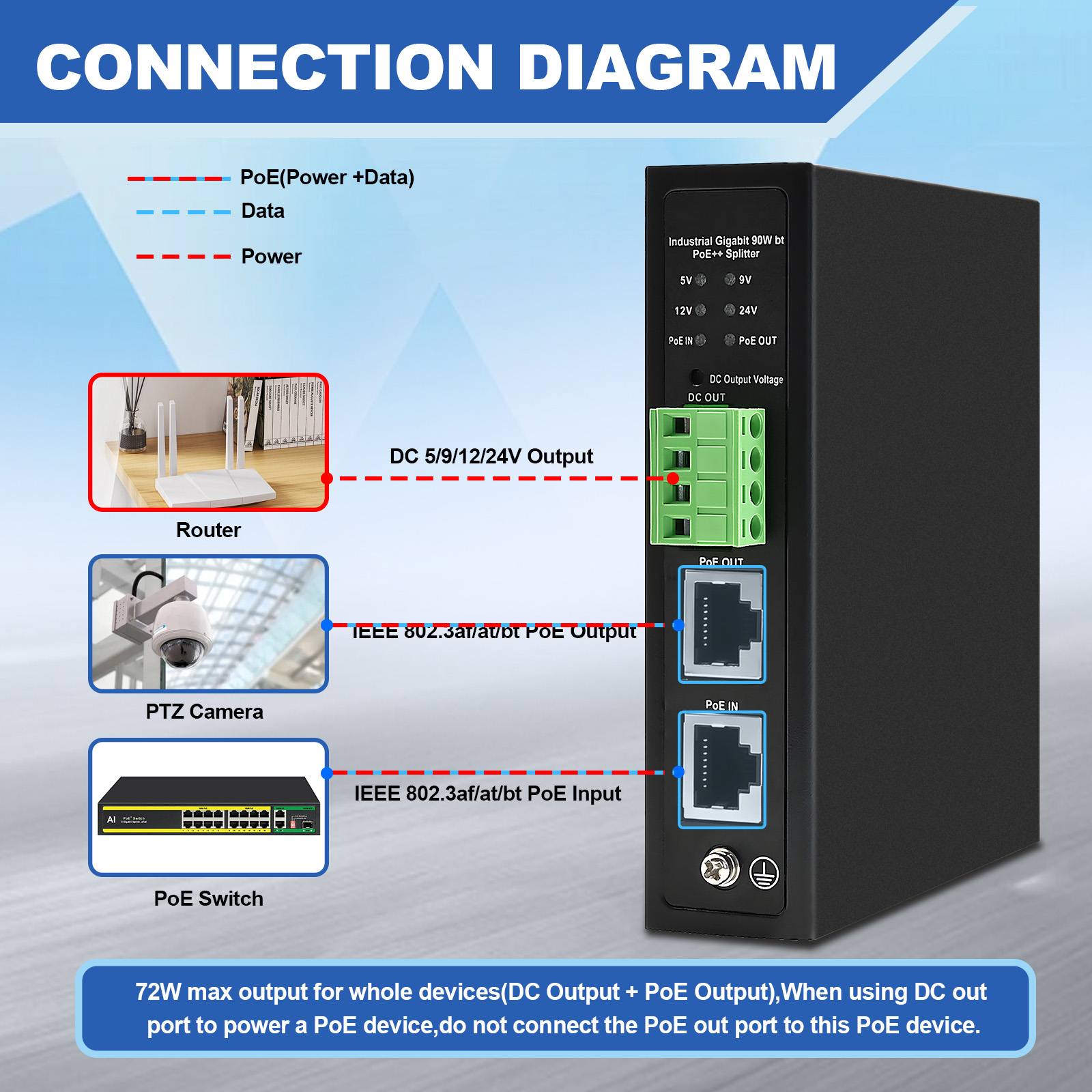

- 4 PIN phoenix terminal, splits PoE over into DC Output
- 5V/9V/12V/24VDC power output
- Support IEEE 802.3af/at/bt
- Output Total Power Max.72W

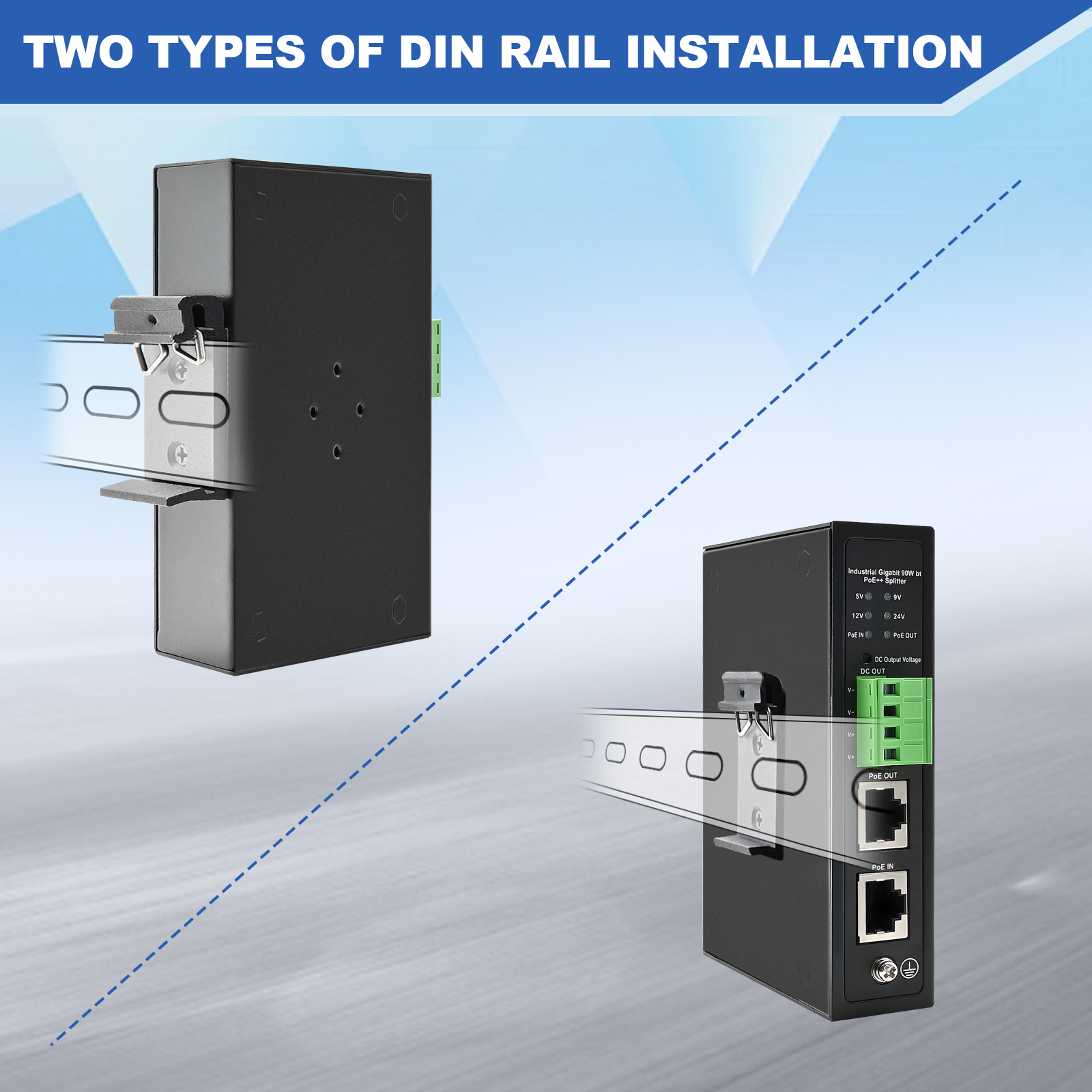

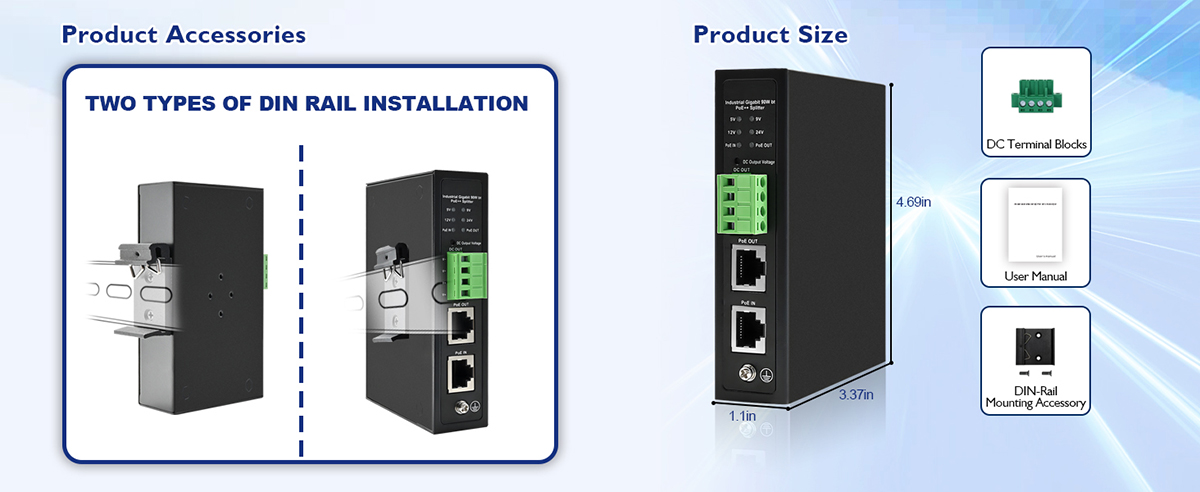

- Three rail-mounted designs
- Operating Ambient Temperature: -40 to 75℃

Brand CENTROPOWER

Model PoE-S931-90W

Color Black

Spec Gigabit PoE splitter, 2 10/100/1000Mbps RJ45(1 PoE IN and 1 PoE OUT, support IEEE 802.3af/at/bt) + DC output port(4 PIN phoenix terminal, splits the 48VDC over the RJ45 Ethernet cable into 5V/9V/12V/24VDC power output)

WhatsApp Contact

DetailSpecificationsDownloads

S931A+ (1).jpg S931A+ (3).jpg

S931A+ (5).jpg

S931A+ (2).jpg

S931A+ (6).jpg

S931A+ (4).jpg

Description:

PoE-S931-90W splits 48VDC into 5V/9V/12V/24VDC power outputs via RJ45 Ethernet cable. Support for PoE applications in Gigabit Ethernet environments. Complies with IEEE 802.3af/at/bt power classification and supports conversion to DC output and PoE direct output. BT has a maximum output power of 72W.

Features

Complies with IEEE802.3af, IEEE802.3at, IEEE802.3bt.
Support PoE applications in Gigabit Ethernet environments.
Auto-Sensing Algorithm enables taking power from IEEE802.3af/at/bt PSE.
Splits the 48VDC power over RJ45 Ethernet cable into different DC output.
Support wide input voltage range 44Vdc to 57Vdc.
Maximum power output up to 72W.
Support for the POE output of IEEE 802.3af/at/bt.
Adjustable output 5VDC/14A or 9VDC/7.8A or 12VDC/5.9A,24VDC/3A.
Thermal cut off.
Short-circuit protection.
High efficiency DC/DC converter.

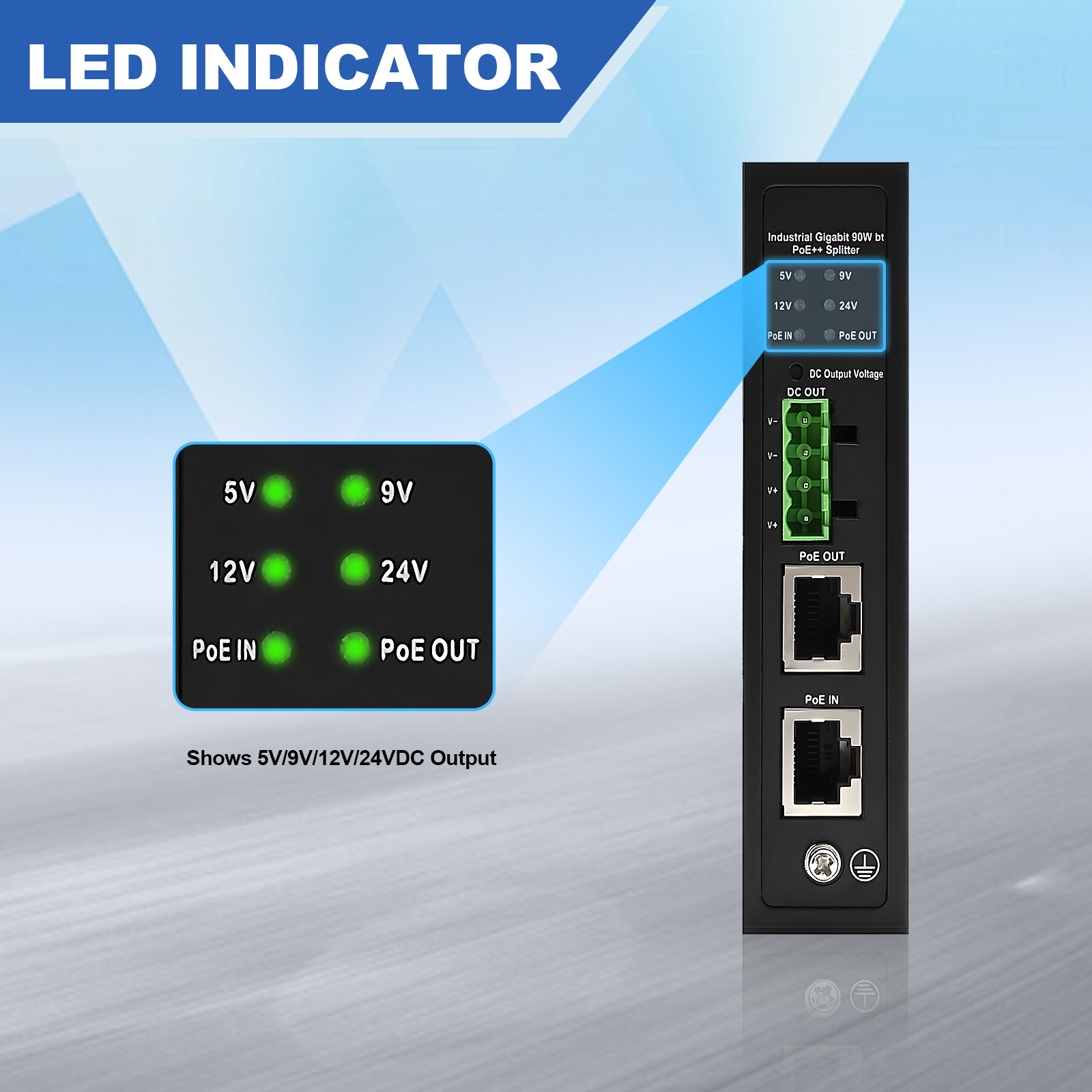

LED indicators for power input indication.
Plug-and-Play.

Specifications:

Item	Description

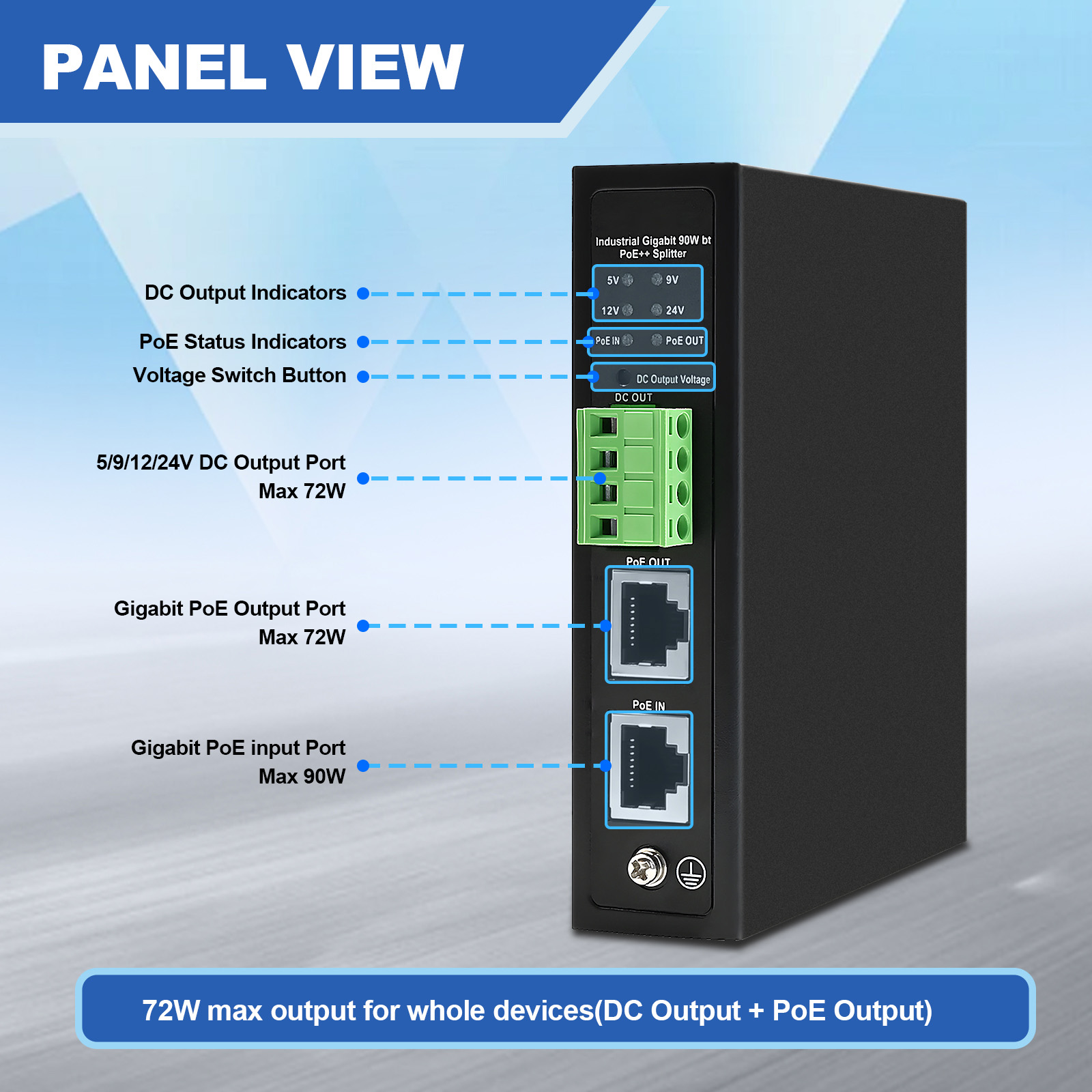

port	1 10/100/1000M RJ45 PoE Port (DATA + POWER IN) 1 10/100/1000M RJ45 PoE Port (DATA + POWER OUT) 1 DC interface (DC OUT)
Network Media	10Mbps: Cat 3,4,5 Unshielded Cable 100Mbps: Cat 5,5E Unshielded Cable 1000Mbps: Cat 5E, 6 Unshielded Cable
Pass Through Data Rates	10/100/1000 Mbps
Power Output	Adjustable 5VDC/14A max, 9VDC/7.8A max, 12VDC/5.9A max, 24VDC/3A max
PoE Output	IEEE 802.3af/at/bt, Max.72W
Input Power Requirements	DC Input Voltage: 44 to 57 VDC
Indicators	PoE Indicators / DC out Voltage Indicators
Connectors	Shielded RJ-45, EIA 568A and 568B

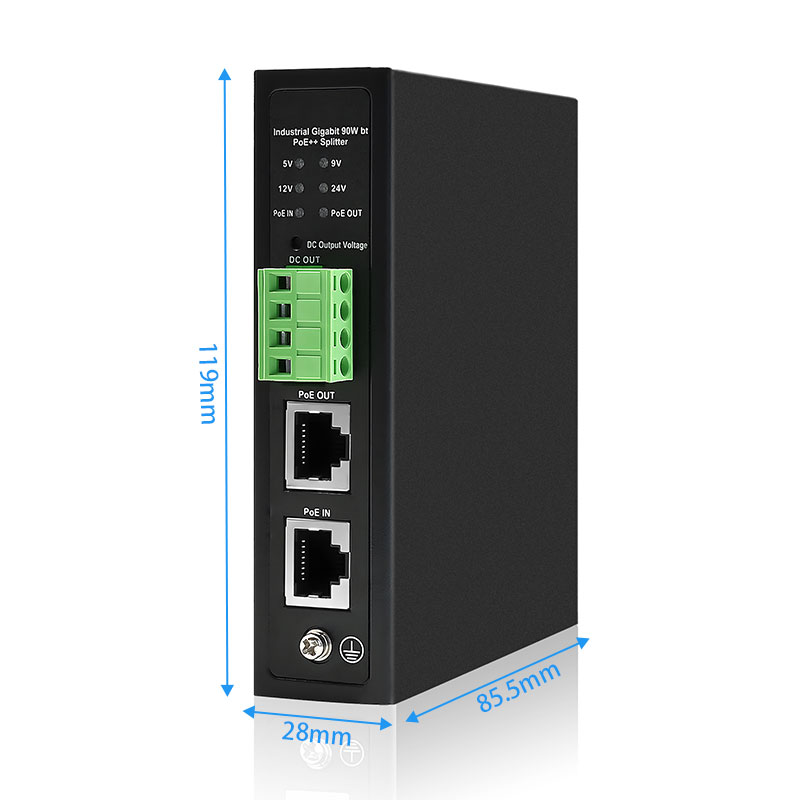

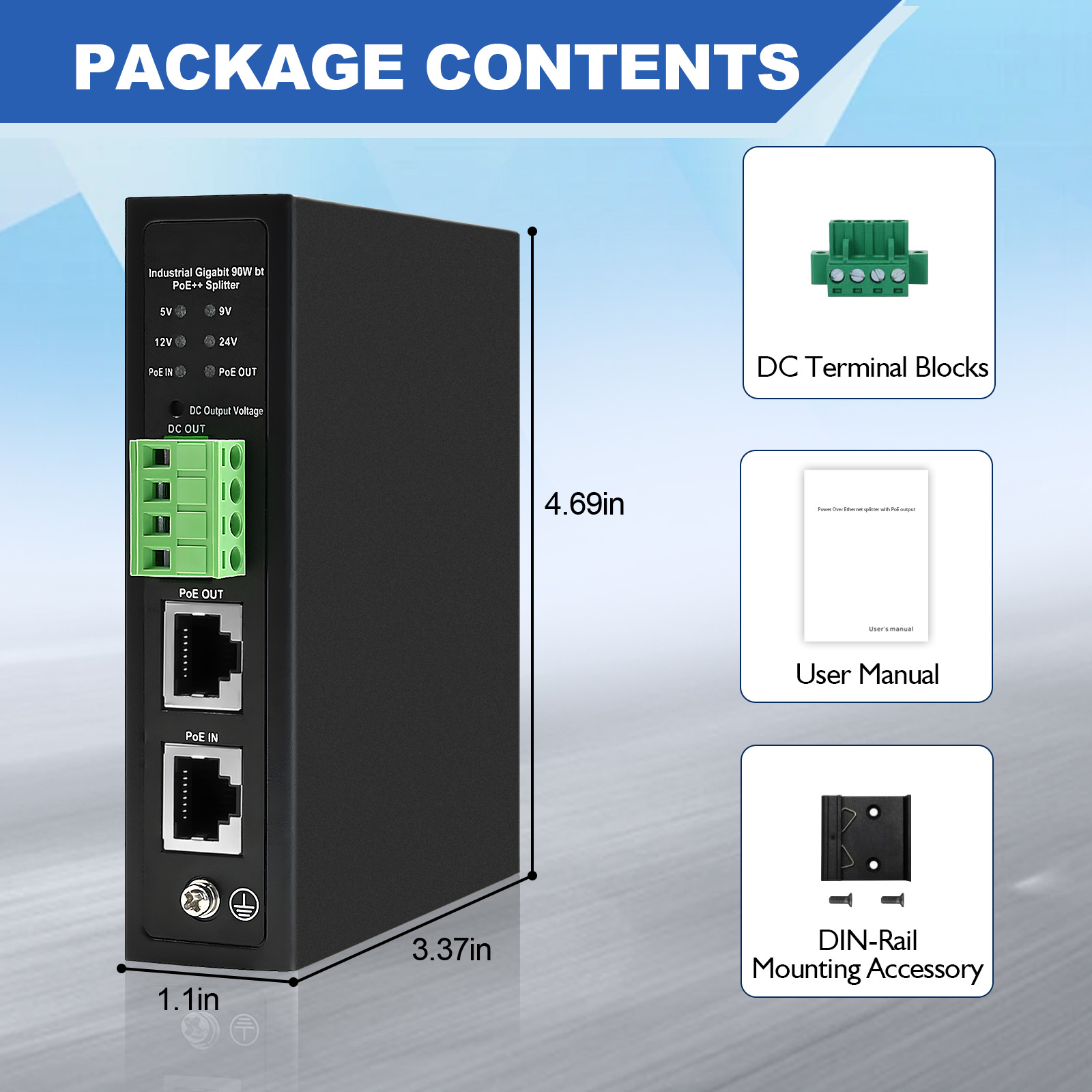

Dimensions	119x85.5x28mm
Environmental Conditions	Operating Ambient Temperature: -40 to 75℃ Operating Humidity: Maximum 90%, non-condensing Storage Temperature: -40 to 75℃ Storage Humidity: Maximum 95%, non-condensing
Regulatory Compliance	IEEE 802.3af (PoE) IEEE 802.3at (PoE) IEEE 802.3bt (PoE) IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) RoHS Compliant, CE, FCC
Electromagnetic	FCC Part15, Class B
