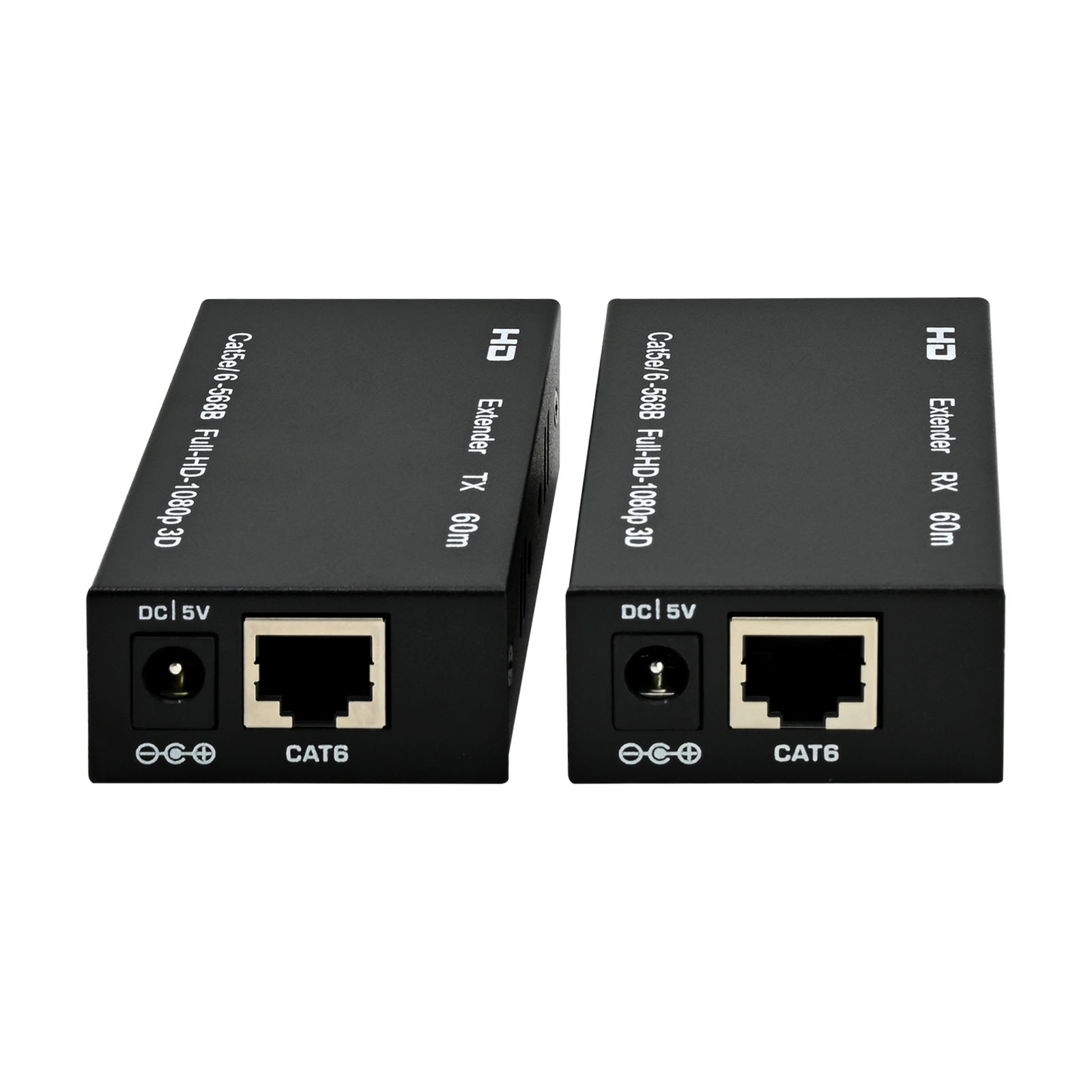

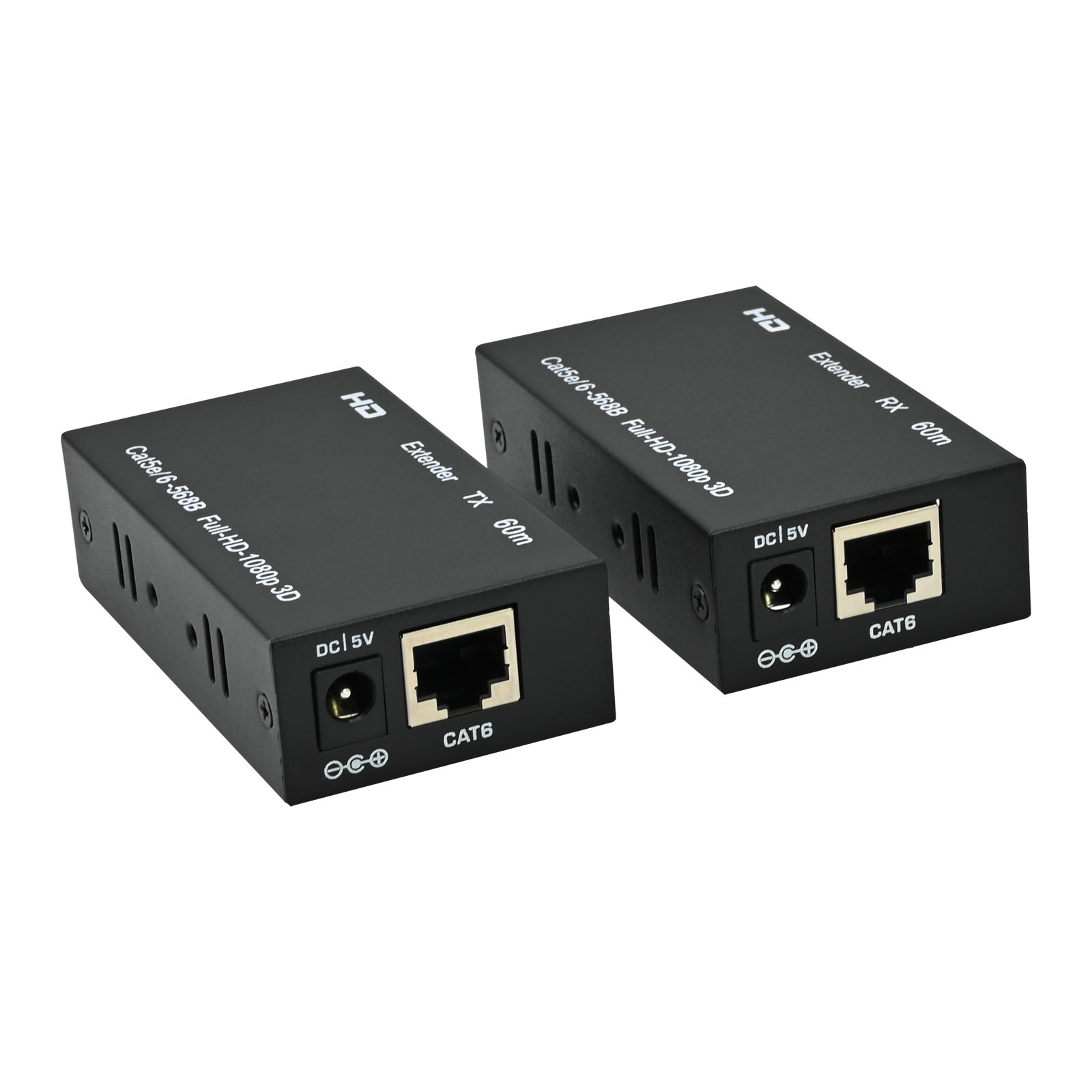

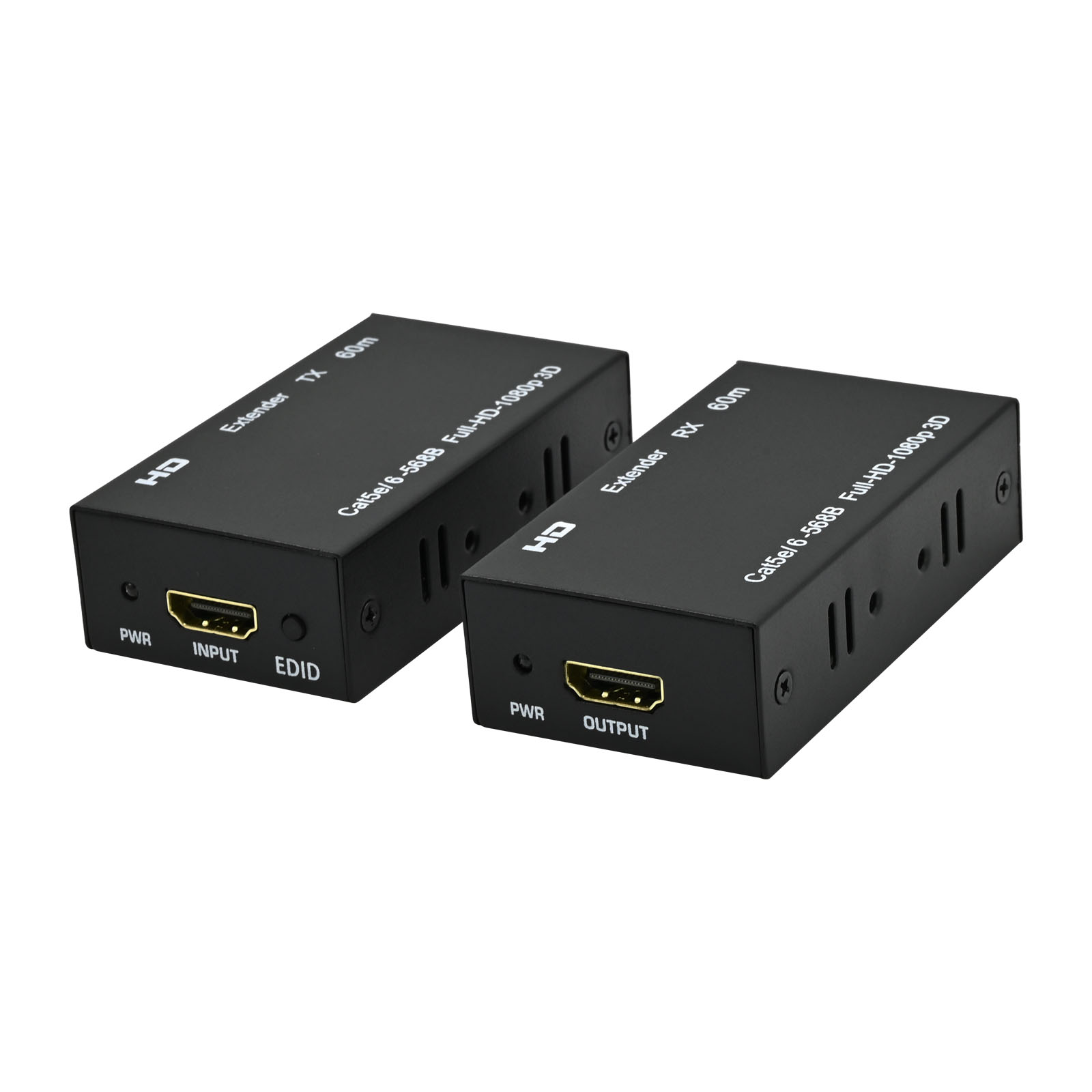

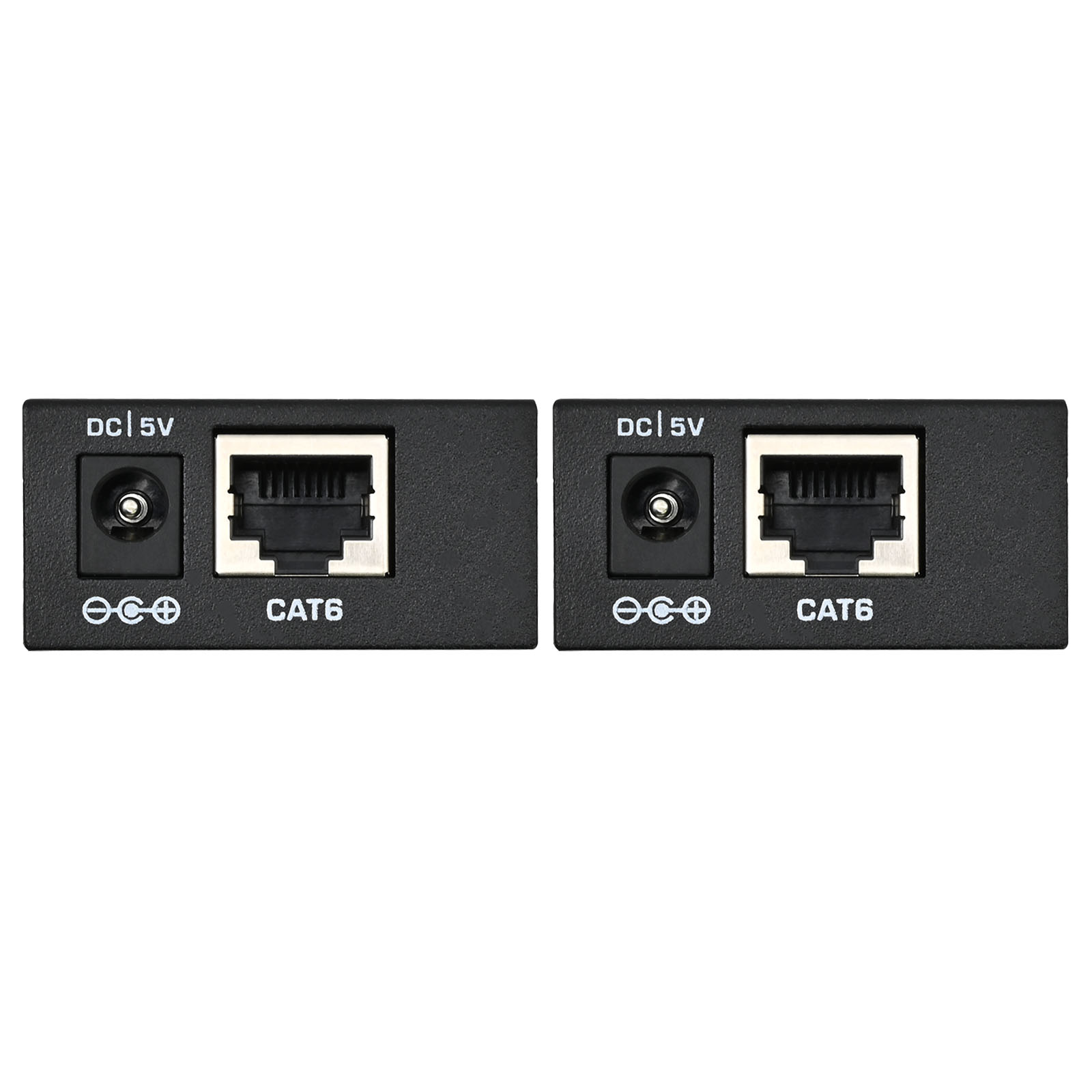

HDMI Extender (60M)
Description：
The Extender uses single cat 5E or cat6(recommended) cables instead of HDMl cable totransmit high definition signal up to 60 meters, cuing down the cost The Extender is designed tosupply for long distance transmission of high definition signal.
Features:
Support HDMI1.4a
Support 3D
Support highestvideo resolution 1080p/60Hz
Support1.65Gbps data rate and tmds clock up to 165MHz
Support 8/10/12bit deep color
Support AWG26HDMI standard cable, input up to 15 metres, output up to 20 metres
Signaltransmission: By using single cat-5e or cat-6(recommended) cable instead ofHDMI cable, it can extend the distance up to 60 meters between TX and RX.
Losslesslytransfer images
Simpleinstallation
Need DC5V/1Apower supply
Specifications:
| Item | Description |
| HDTV Resolutions | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
| Audio | DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
Lengthof CAT-6/CAT-5Ecable between Rx and TX | Up to 60 meters |
HDMI | HDMI 1.4a |
Power adapter | Input:100V-240V(50-60Hz) Output:5V/1A |
| Power consumption | HDMI Sender:510mA HDMI receiver:100mA |
| Size(L-W-H) | 81x43x22mm |
| Weight | TX:100g RX:120g |
| Operating Temperature/Humidity | 0℃-70℃/10%-80%RH(no condensation) |
| Storage Temperature/Humidity | -10℃-80℃/5%-90%RH(no condensation) |
| Color | Black |
