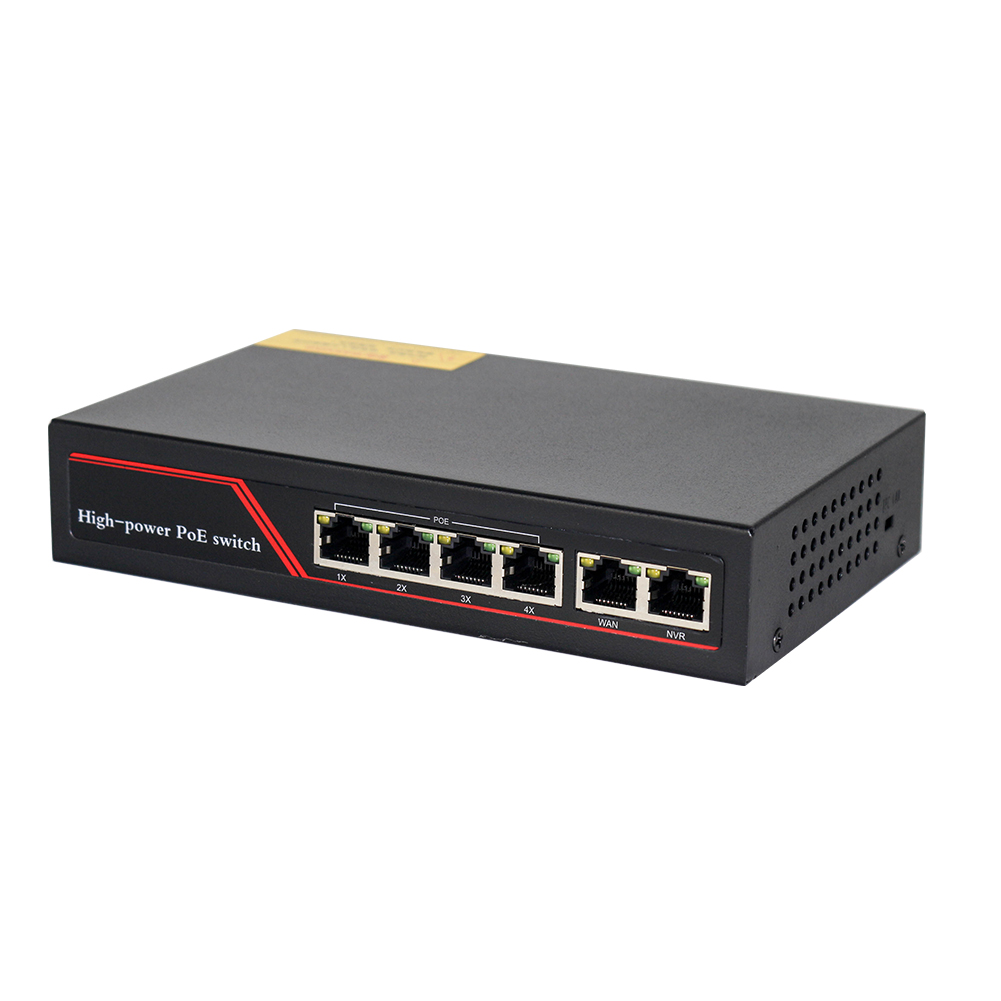

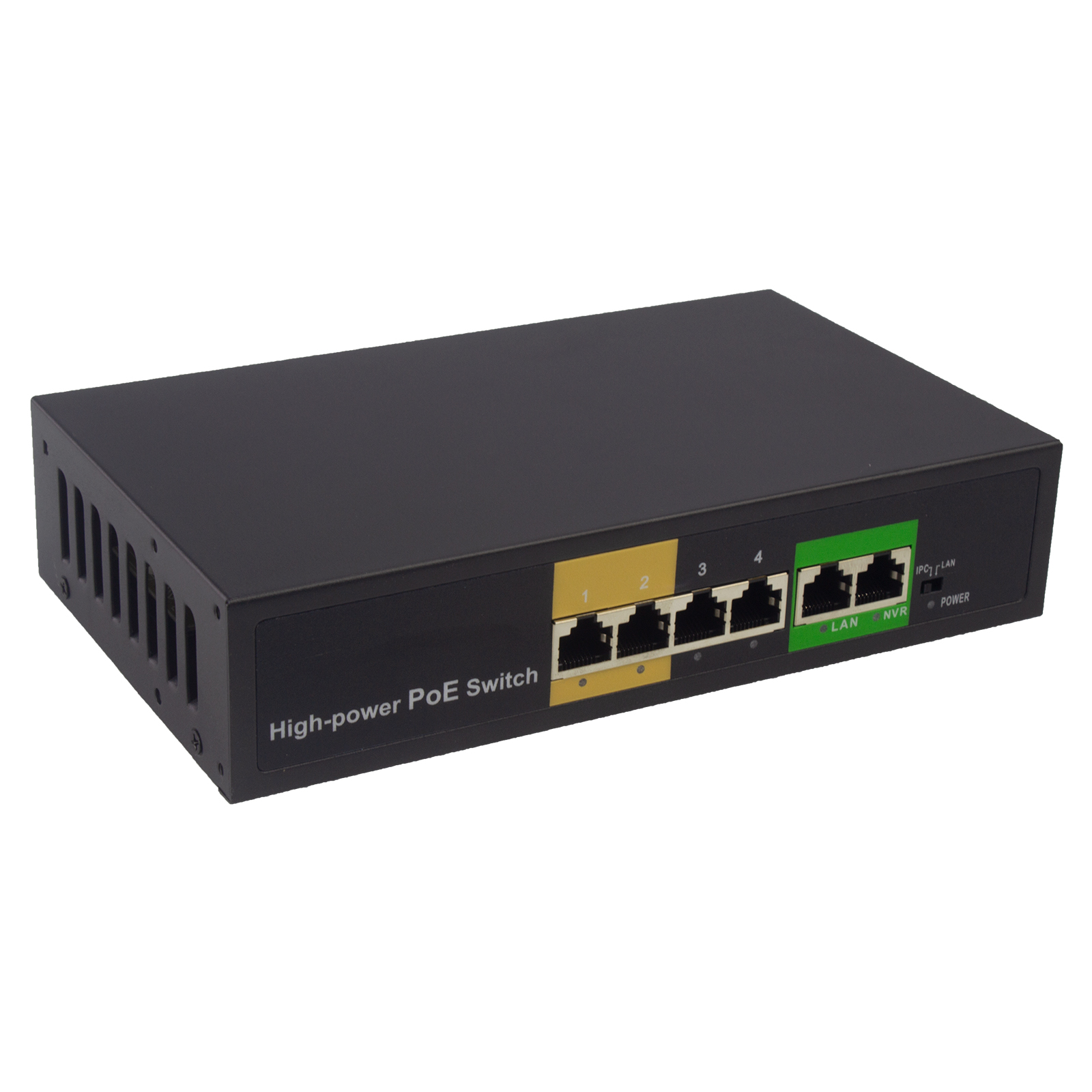

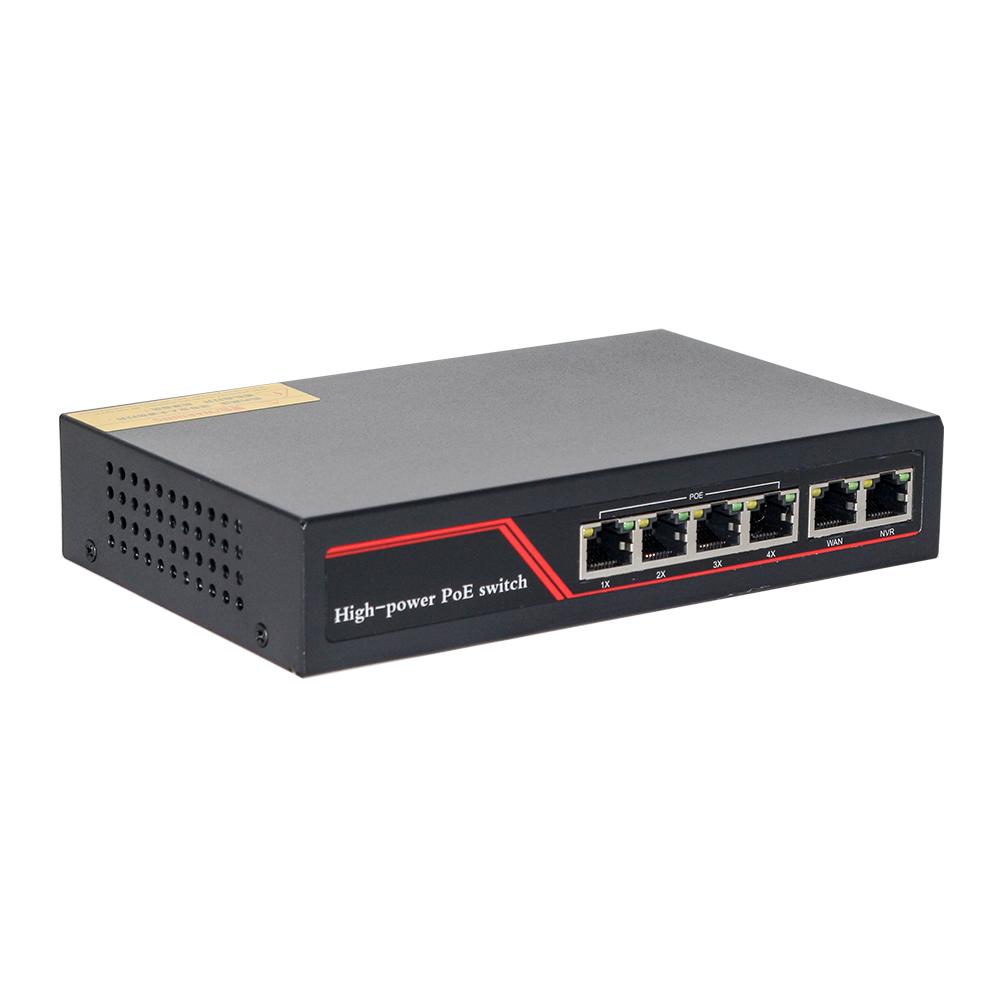

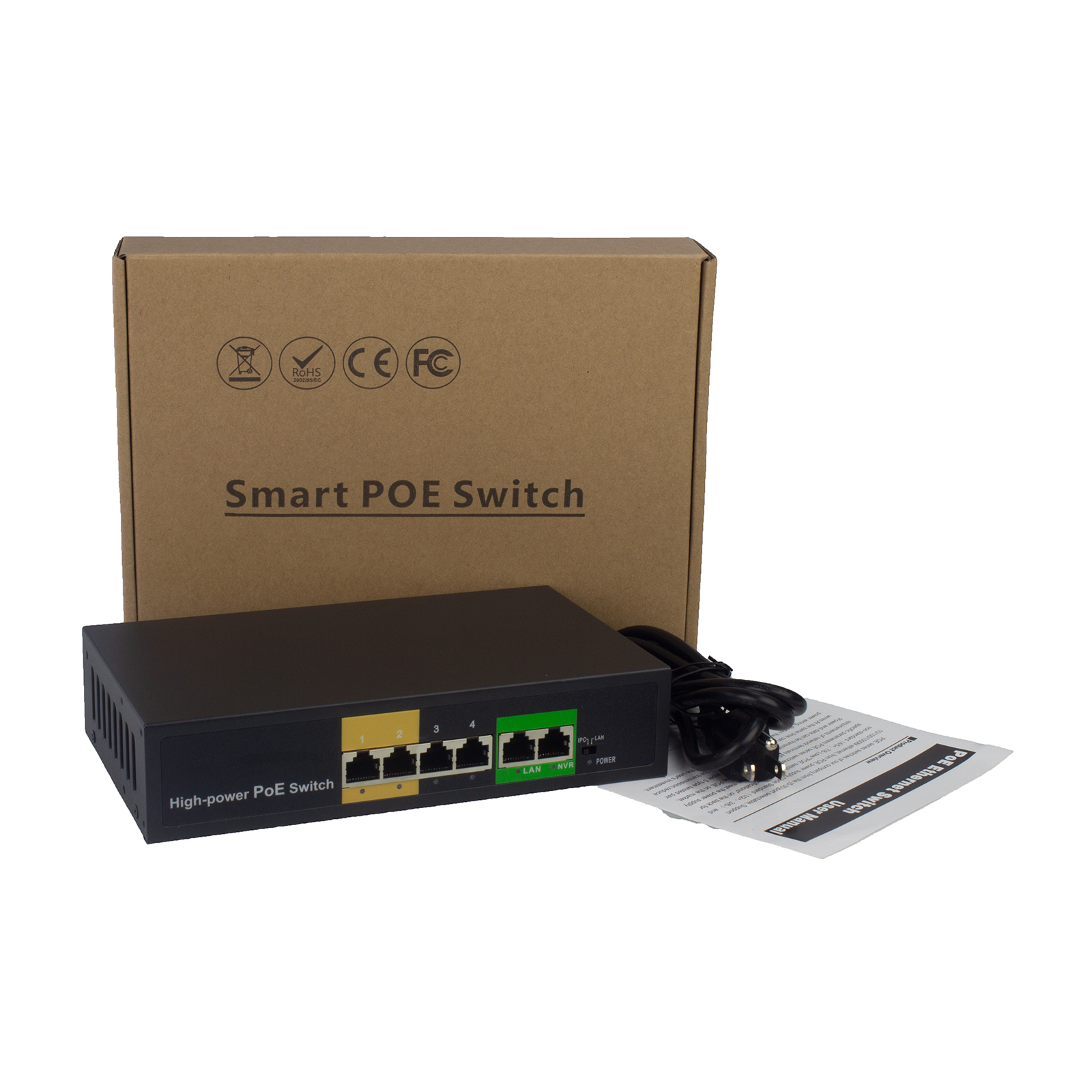

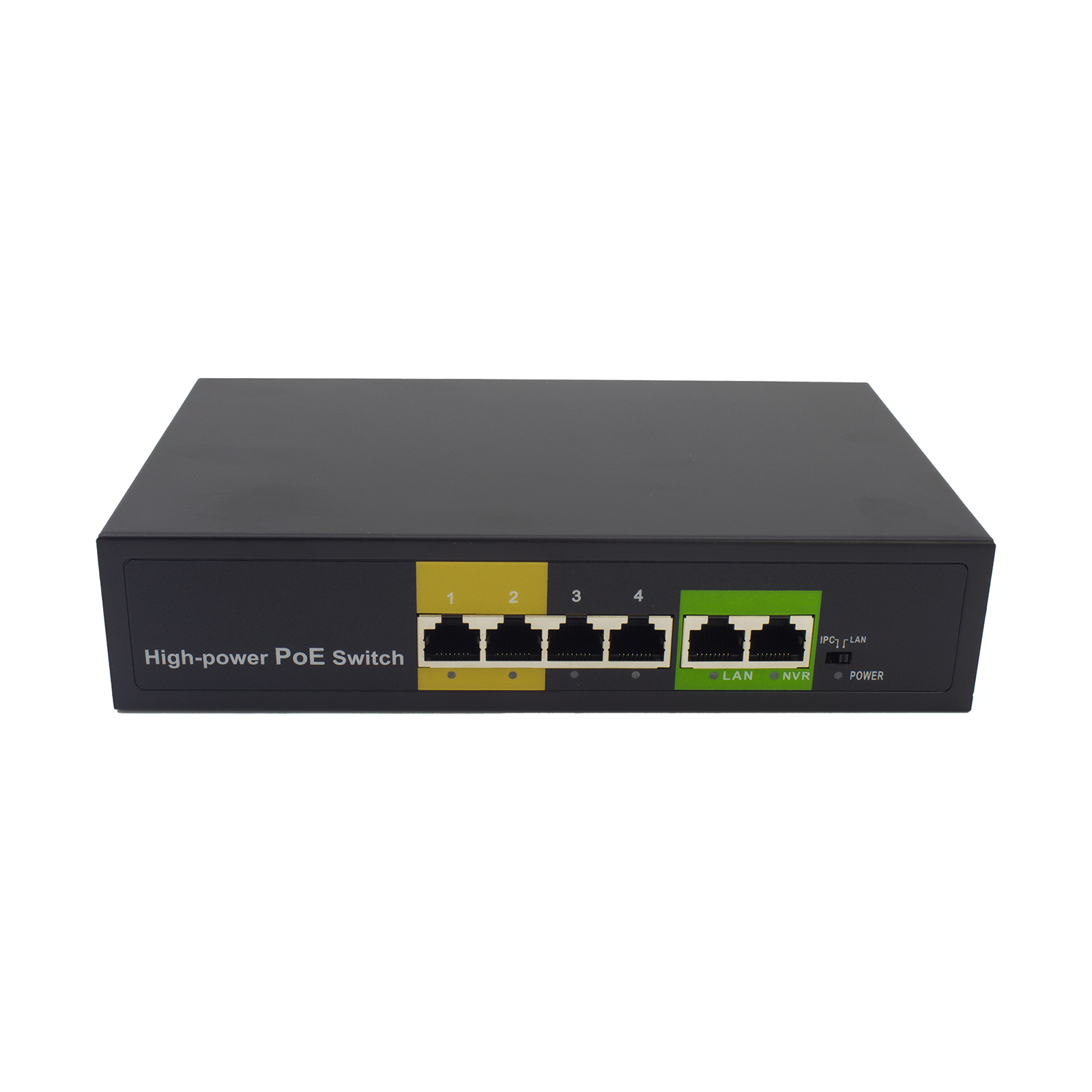

4 PoE Port +2RJ45 10/100Mbps Unmanaged Desktop PoE Switch

Brand CENTROPOWER
Model PoE-2006-4E-65W
Color Black
Spec 10/100mbps Poe Switch
0755-23200933
DetailFile

4 PoE Port +2RJ45 10/100Mbps Unmanaged Desktop PoE Switch


Description:

    PoE-2006-4E-65W support IEEE802.3af/at POE standard, using advanced sensing algorithm, only for the terminal device which support the IEEE802.3af/at power over Ethernet standard.


    Design of high performance to price ratio, compact, flexible, E series is the ideal chioce of small business network to economical use of PoE deployment ofwireless access point (AP) and IP camera.


Features


  • Complies with 10BASE-T, 100BASE-T

  • 4-Port 10/100Mbps supports 50V DC output

  • 2-Port 10/100Mbps RJ45 uplink

  • Complies with IEEE 802.3af/802.3at Power over Ethernet

  • 65-watt POE total output power

  • Half duplex flow control and full duplex back pressure mode

  • All ports support 2KV lightning protection

  • Support switch speed limit, extend to 250m

  • 10/100Mbps auto-negotiation and auto MDI/MDI-X

  • Store-and-Forward: wire-speed filtering & forwarding rates

  • Supporting 2K absolute MAC addresses

  • Automatic address learning and address aging

  • Made of metal, wall-mount and rack-mount design


Specifications:

ItemDescription

Power Supply Voltage

AC 100-240V
Power ConsumptionThe device <5W, POE power supply <65W
Network Ports

1~4 Ports: 10/100Mbps Ethernet port, adaptive control

2-Port 10/100/1000Mbps nterface for RJ45 uplink

Transmission DistanceAll Port:0~100m; 1~4 PoE Port: 0~250m for 10Mbps
Transmission MediaAll Ethernet Port:Cat5e/6 standard UTP cable
PoE AgreementIEEE802.3 af/at standards
PoE Power Supply WattageEach PoE port≤30W, Whole device<65W
Network StandardIEEE 802.3i, IEEE 802.3u, IEEE802.3x
Swap ModeStore-and- forward
Switch Capacity1.2Gbps
Packet Forwarding Rate0.89Mpps
MAC Address List1K
Power Indicator LightOne power light (red)
Network Port Light

Green light on: The port is connecting

Green light blinks: The port is receiving or transmittin gdata

Off light: The port is not linked successfully with the device

Surge protectionAll ports support 2KV lightning protection
Working Temperature-10℃~40℃
Storage Temperature-40℃-70℃
Humidity(non-congeal)0~95%

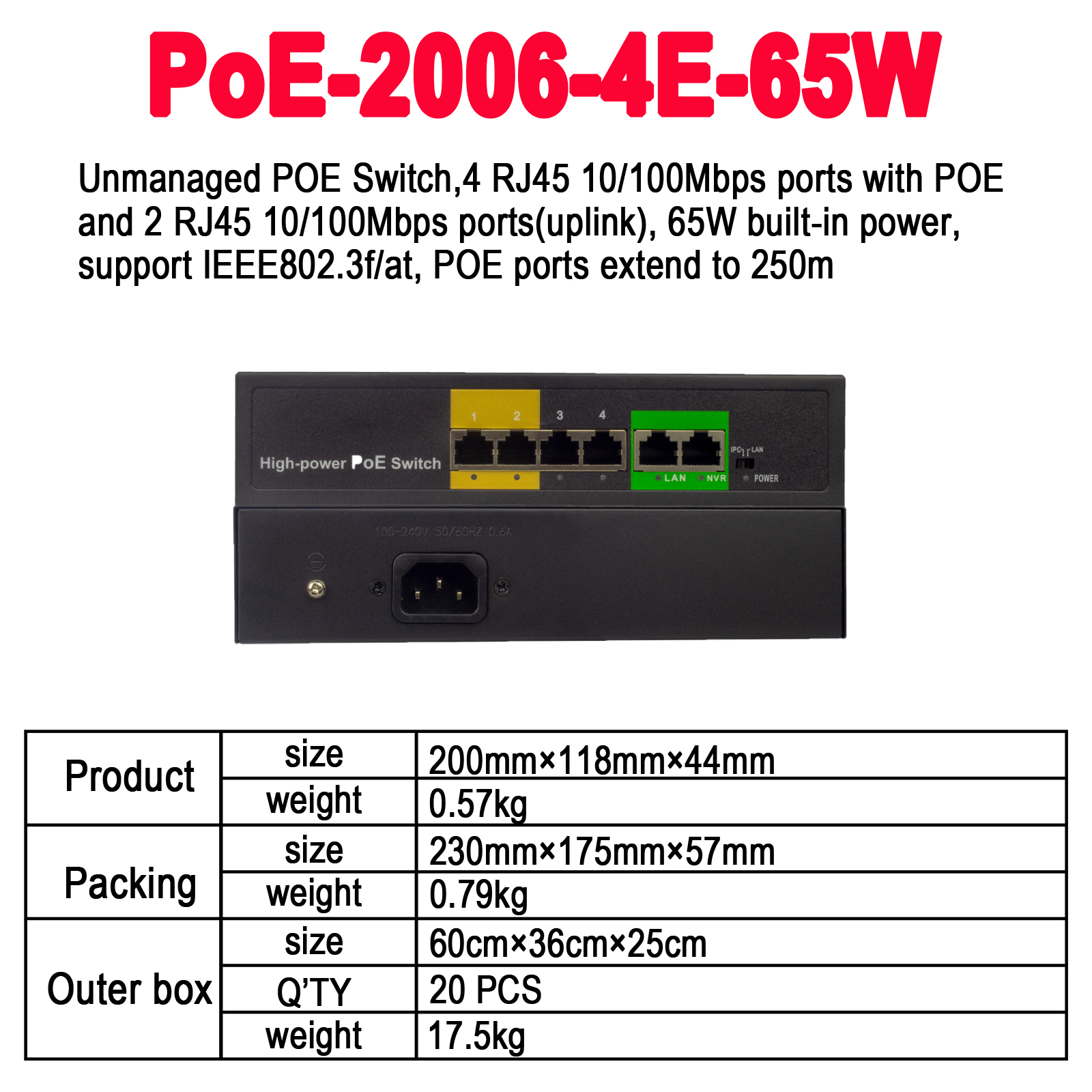

Enclosure Dimensions (L*W*H)200mm×118mm×44mm
Enclosure ColorBlack
Enclosure Weight570g


Application:




Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
