Brand CENTROPOWER
Model PoE-EX2005-4P-60W
Color Black
Spec Gigabit PoE extender,5 RJ45 ports(1 in 4 out),support IEEE802.3af/at,total power 60W
0755-23200933
DetailFile

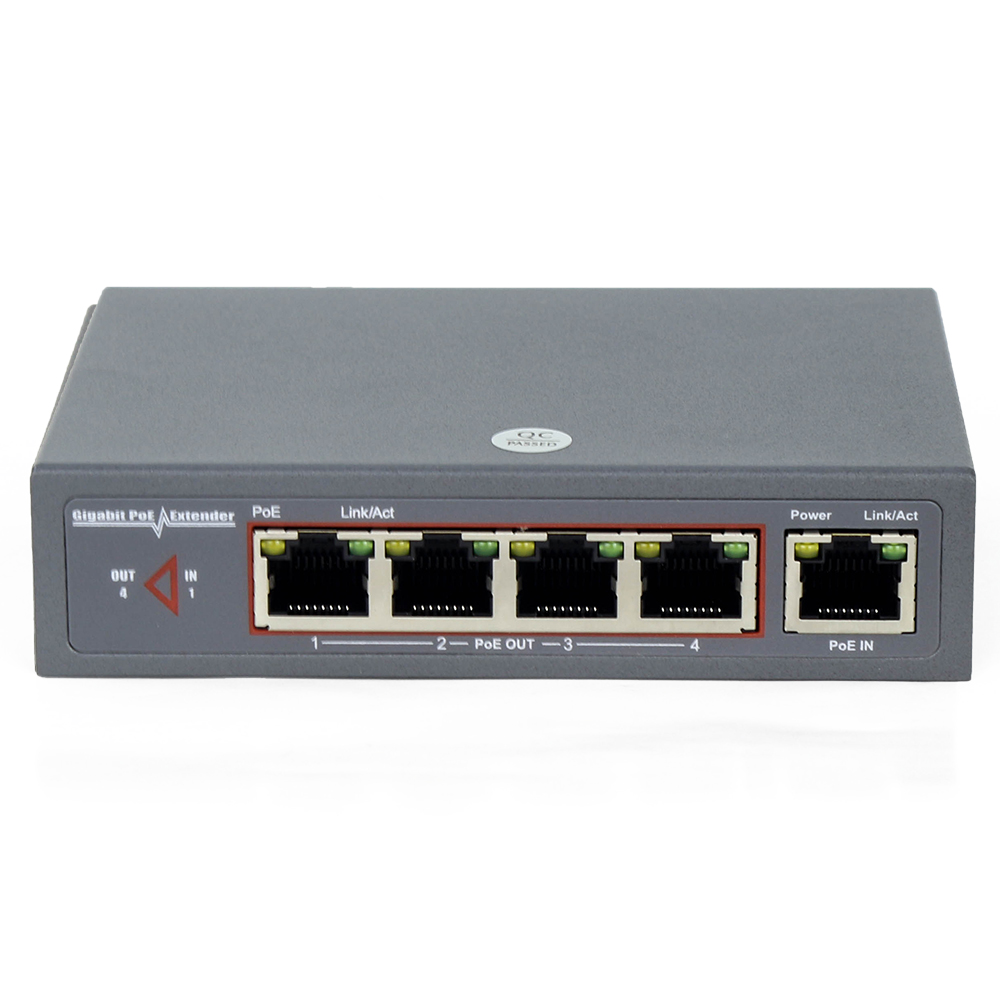

Gigabit Power-over-Ethernet Extender


Description:

    PoE-EX2005-4P-60W is Gigabit Power-over-Ethernet Extender, with 5 Gigabit adaptive RJ45 ports, 1PoE input and 4PoE output.


    Features

  • Compatible with IEEE802.3af and IEEE802.3at and IEEE802.3at 4Pairs

  • Extends the range of PoE and Ethernet an additional 100 meters

  • No additional power supply is required

  • Automatically detects and protects PoE equipments from being damaged

    by incorrect installation

  • Full-rate network throughout the whole extended distance

  • Wall-Mountable design

  • Easy plug-and-play installation

  • EMI standards complies with FCC, CE class B

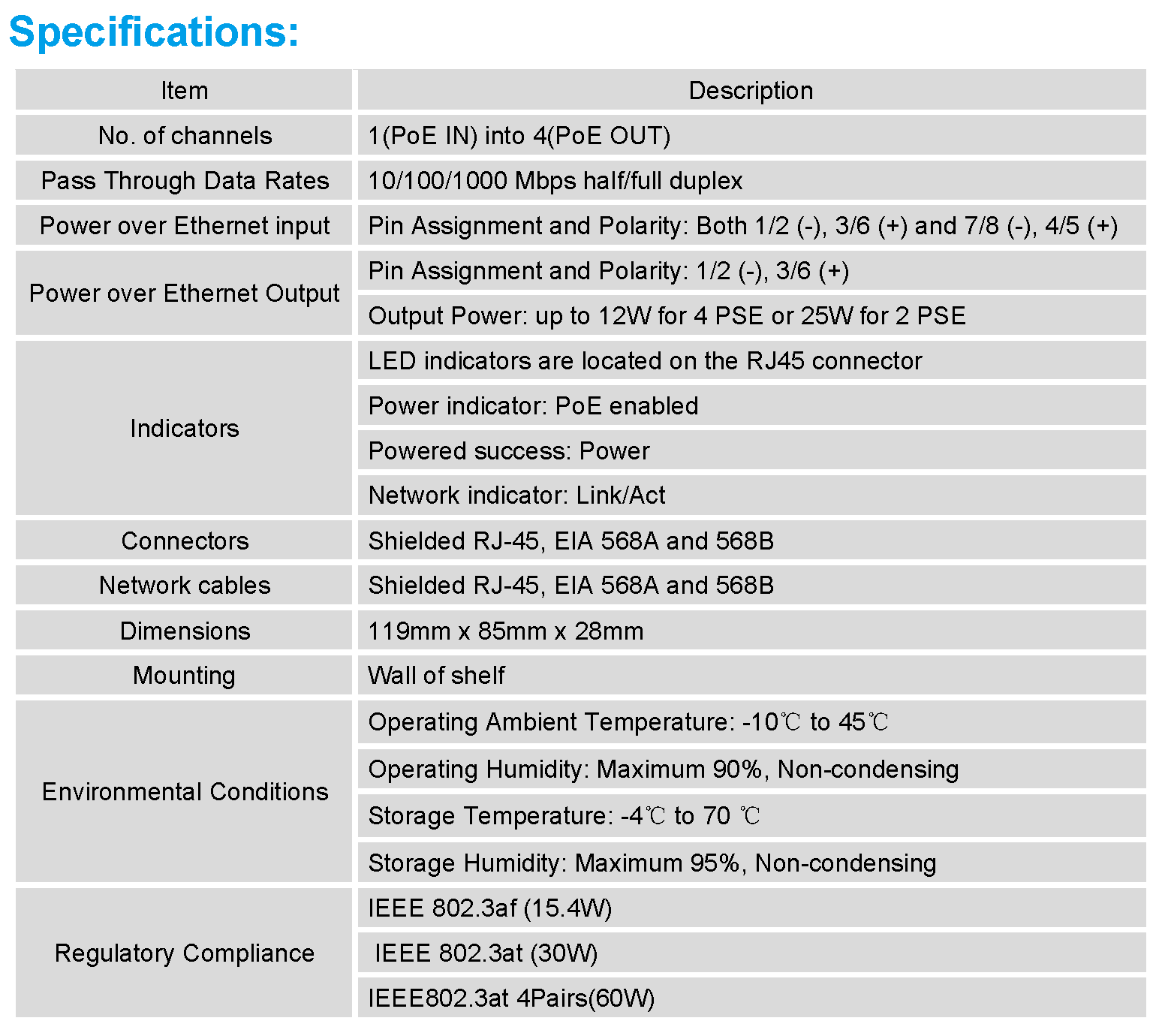

Specifications:

ItemDescription
No. of channels1(PoE IN) into 4(PoE OUT)
Pass Through Data Rates10/100/1000 Mbps half/full duplex
Power over Ethernet inputPin Assignment and Polarity: Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+)
Power over Ethernet Output

Pin Assignment and Polarity：1/2 (-), 3/6 (+)

Output Power: up to 25W for 2 PSE

Indicators

LED indicators are located on the RJ45 connector

Power indicator: PoE enabled

Powered success: Power

Network indicator: Link/Act

ConnectorsShielded RJ-45, EIA 568A and 568B
Network cablesShielded category 5 (or higher)
Product size119x85x28mm
Package size40PCS/350x320x210mm
MountingWall of shelf
EnvironmentIndoor or Outdoor
Environmental Conditions

Operating Ambient Temperature: -1 0 to 45 ℃

Operating Humidity：Maximum 90%, Non-condensing

Storage Temperature: -40 to 70 ℃

Storage Humidity：Maximum 95%, Non-condensing

Regulatory Compliance

IEEE 802.3af (15.4W)

IEEE 802.3at (30W)

IEEE802.3at 4Pairs(60W)





Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
