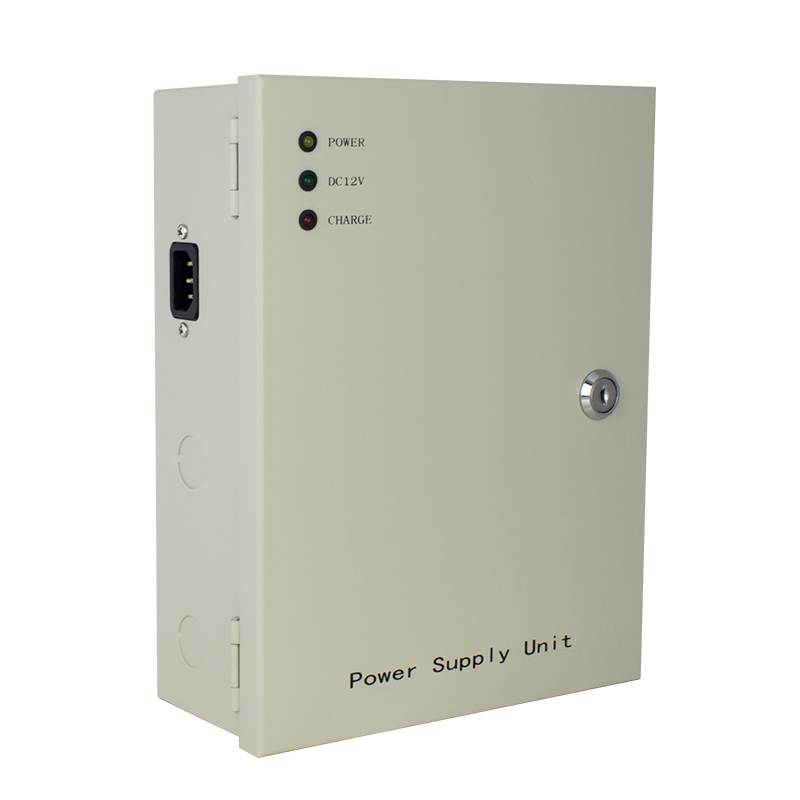

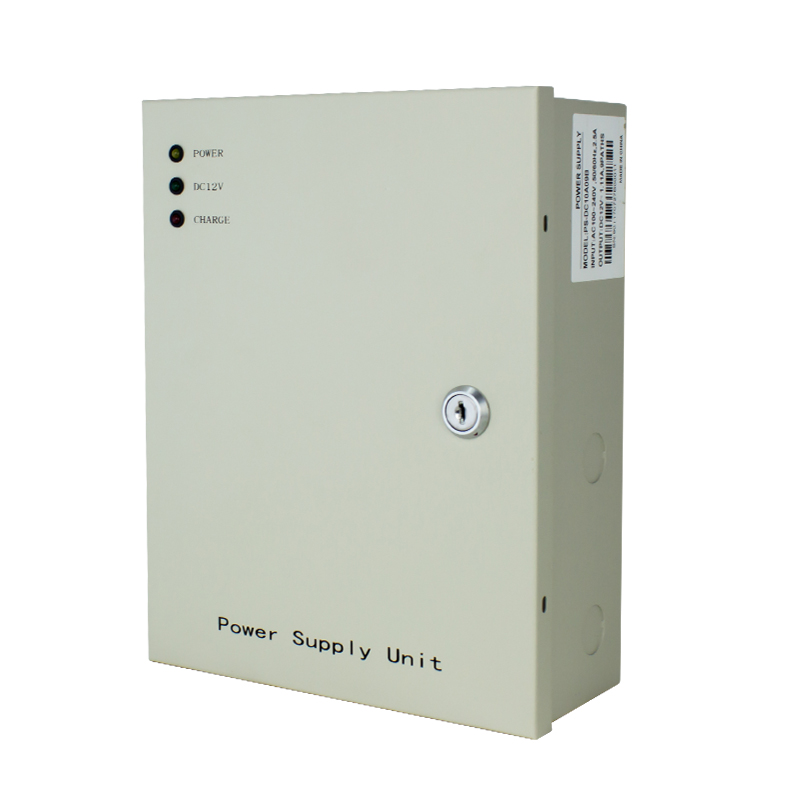

DC12V 10A 9CH UPS Power Supply Box without Battery

share
WeChat
Sina Weibo
QQ
copy Link
Facebook
Twitter
LinkedIn
Brand CENTROPOWER
Model PS-DC10A09B
Color White
Spec DC12V 10A 9CH UPS Power Supply Box
0755-23200933
DetailFile

DC12V 10A 9CH UPS Power Supply Box without Battery

Description：


Feature:

  • Universal AC Input Range.

  • Convection Cooled Operation.

  • Low power consumption high reliability

  • Short/Over Voltage/Over Current/Over Temp Protection

  • Class 2 PTC output protection for each port

  • Iindividual status LED indicator for each output

Specifications:

ItemDescription
Model NumberPS-DC10A09B
Input VoltageAC100 -240V 50/60HZ
Output VoltageDC 12V 10A 9Channel
Efficiency≥82%
Fuse TypePTC Fuse
Fuse Rating1.6A
Operating Temperature-10~40℃
Carton Dimension210x100x270mm
Carton Weight5pcs/carton
Size/Net Weight265x206x90mm
ColorWhite
ApplicationCCTV Camera, IPCamera, PTZ, IR Illuminator, Video process,DVR, Access Control , etc.
CertificationUL




Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
