800M POE/EOC Converter

Description:

    PoE-EOC01 is a PoE/EOC converter for ultra-long distance data transmission and power supply, which converts the input PoE to coaxial cable transmission

Features:

  • Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3X standards

  • Supports IEEEB02.3af and IEEE802.3at power supply standards

  • Port：1 RJ45 10/100Mbps, 1 BNC

  • Supports RG59 coaxial cable: 400m/100Mbps, 800m/10Mbps

  • Supports MDI/MDIX self- adaption

  • Supports long range power supply transmission via coaxial cable

  • Operating temperature: -10℃ to 45℃


Specifications:


ePOE TransmitterePOE Receiver
Function Port1 10/100Mbps Port + 1 Coaxial cable Port
Transmission BandwidthRG59 coaxial cable: 400m/100Mbps, 800m/10Mbps
PoE ProtocolIEEE8023af, IEEE802.3at
Network StandardIEEE802.3, IEEE802.3u, IEEE802.3x

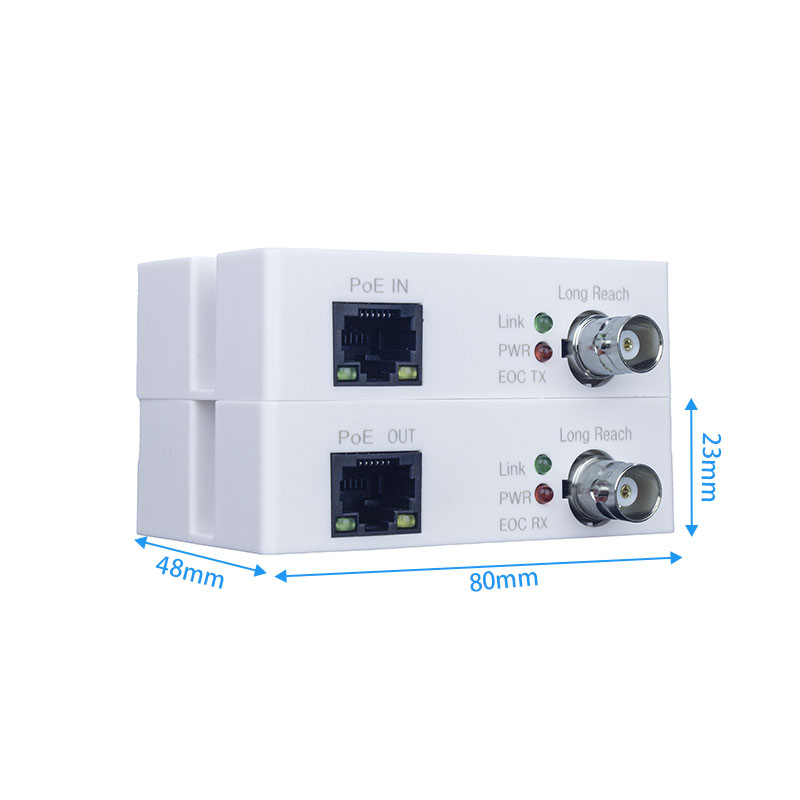

Dimensions80mm x 48mm x 23 mm (3.15" x 1.89" x 0.91")
Weight115g
EnclosureWhite Polycarbonate
Operating Temperature-10℃ to 45℃ (14℉ to 113℉)
Operating Humidity5 to 95% Not condensing
PoE pin assignment12/36, 45/78
Power Consumption<2W








Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
