4 PoE Ports Outdoor Waterproof Box PoE Switch

share
WeChat
Sina Weibo
QQ
copy Link
Facebook
Twitter
LinkedIn
Brand CENTROPOWER
Model PoE-200X/260X-4WP
Color White grey
Spec Outdoor waterproof box POE switch, optional full 100Mbps or full Gigabit, 4 RJ45 POE ports + optional uplink (2RJ45 or 1RJ45 or 1RJ45+1SFP), support IEEE802.3af/at, 100Mbps has extend version, max 250m
0755-23200933
DetailFile

8+N Outdoor waterproof box PoE switch


Description:

This is a high-performance. ow-power 4 POE ports Outdoor Waterproof BOX Switch. is the primary choice forsmall and medium-sized LANs. it is full 100Mbps or full gigabit switch, uplink ports optional 2RJ45 or 1RJ45 or1RJ45+1SFP.

Features:

  • Meet IEEE 802.3i, IEEE 802.3u and IEEE 802.3ab standards

  • 4 10m100/1000Mbps and 10/100Mbps adaptive, supporting auto MDI / mdix

  • Support 1-4K MAC address

  • Support EEPROM configuration

  • Support IEEE 802.3af/at PoE protocol

  • Support switch speed limit function

  • All ports support 3KV lightning protection

  • Support stack and Qos

  • Line speed forwarding, inte1ligent recognition

  • Optical and electrical uplink port

  • All ports support IEEE 802.3x half-duplex flow control and full-duplex back pressure mode

  • Non-blocking switching architecture, full line speed forwarding and maximum throughput filtering packets

  • Support MAC address learning, automatically adjust transmission mode and transmission rate

  • LED indicates power supply, link and activity, provides simple working status prompt and troubleshooting

Specifications:

ItemDescription
4 10/100Mbps PoE port Waterproof box Ethernet Switch

4 10/100/1000Mbps PoE port Waterproof box Ethernet Switch

PowerPower SupplyBuilt DC 52V 65W powerBuilt DC 52V 65W power
Voltage Range100VAC to 240VAC, 50/60Hz100VAC to 240VAC, 50/60Hz
Switch Consumption< 6W< 6W
Ethernet

Speed

4 10/100Mbps RJ45 port

Optional uplink:

① 2 10/100Mbps RJ45 port

② 1 10/100Mbps RJ45 port

4 10/100/1000Mbps RJ45 port

Optional uplink:

① 1 gigabit RJ45 port

② 2 gigabit RJ45 port

③ 3 gigabit port: 2RJ45 + 1SFP

Transmission DistanceRJ45 port: 100meter

RJ45 port: 100meter

SFP port: Depending on the

fiber module used

Ethenet StandardIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3at, IEEE 802.3af
Switching capacity1 or 1.2Gbps10 or 12 or 14Gbps
Transfer Rate10Mbps: 14880pps

100Mbps: 148800pps

10Mbps: 14880pps

100Mbps: 148800pps

1000Mbps: 1488000pps

Network Switch

MAC Address1K ~ 4K
FunctionExtend switch on

PoE port is forced to 10Mpbs extend to 250 meters

Optional
Link/ActGreen onThe port is connecting
Green blinksThe port is receiving or transmitting data
Green offThe port is not linked successfully with the device
PoE(12,36)Orange onPD is connected
Orange offNo PD is connected or power forwarding fails

Working

Environment

working Temperature-10℃ ~ 45℃ (14℉ ~ 113℉)
Storage Temperature-30℃ ~ 70℃ (-22℉ ~ 158℉)
Humidity10% ~ 90%(Non condesing)

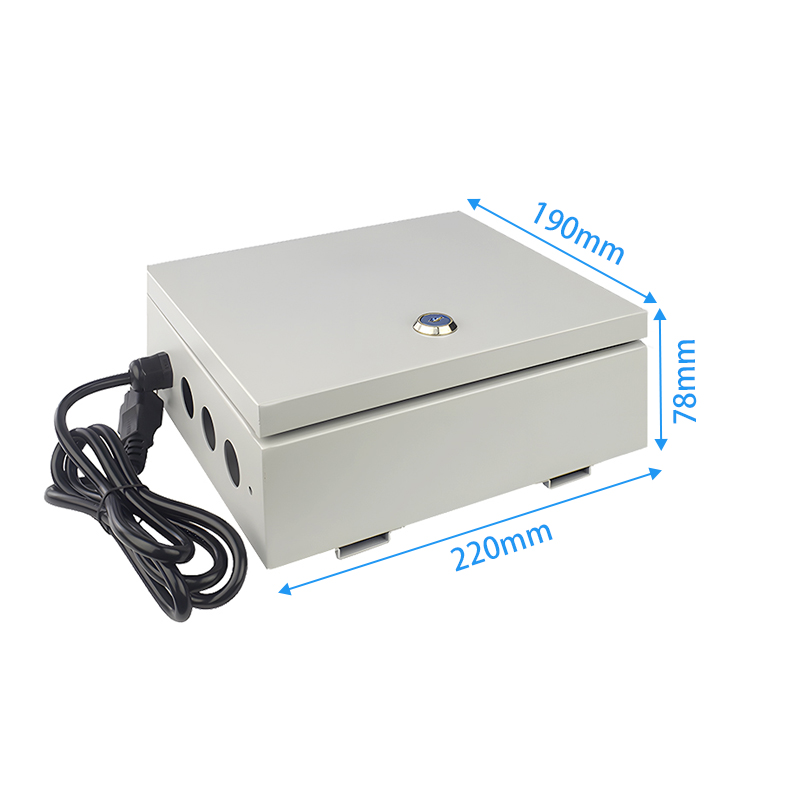

MechanicalDimension L*W*H220x190x78mm
ColorWhite grey











Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
