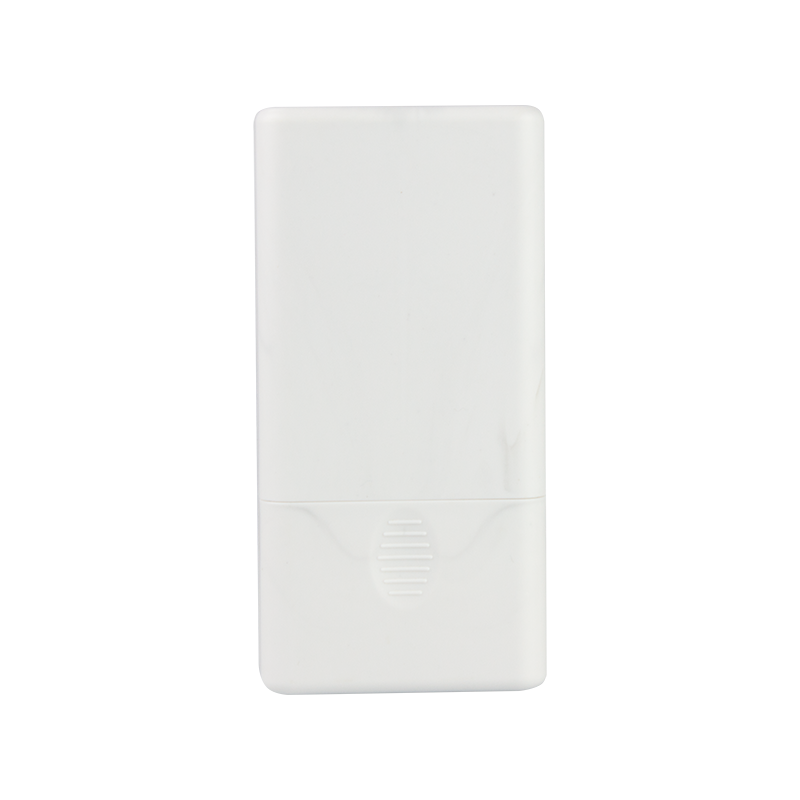

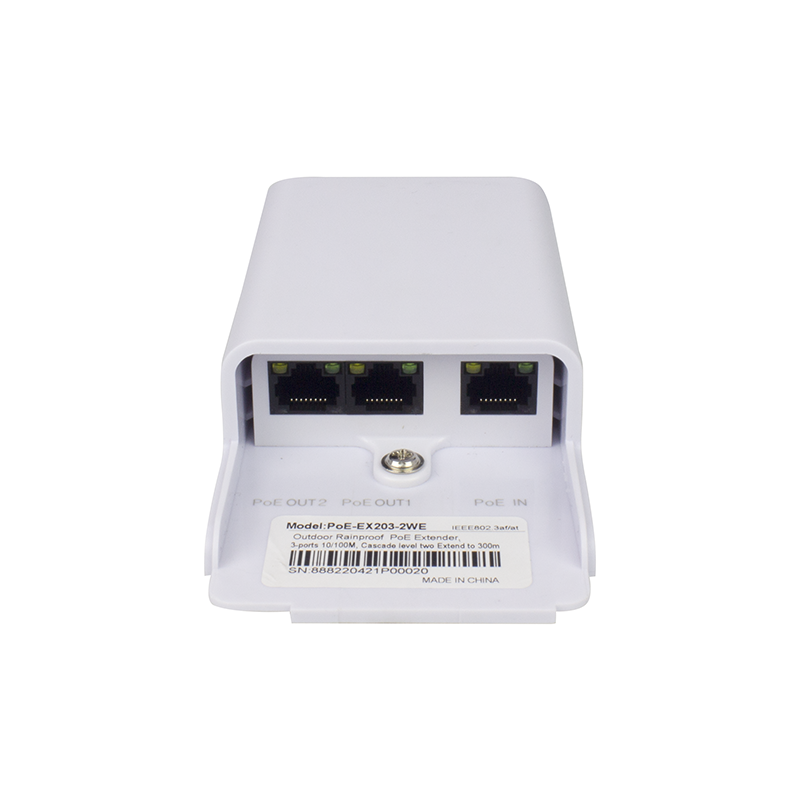

100Mbps Outdoor Rainproof Passive POE Extender

Brand CENTROPOWER
Model PoE-EX203-2WE
Color White
Spec 3 ports outdoor rainproof 100Mbps POE extender, 1/2 ports Passive POE out, max 15W
0755-23200933
DetailFile

100Mbps Outdoor Rainproof Passive POE Extender


Description:

PoE-EX203-2WE only needs to be connected with network cable,1 in and 2 out, each downstream port re-extended by 100 meters

Feature:

  • Outdoor rainproof PoE extender

  • PoE Output support IEEE 802.3af

  • total power 30W

  • From one connection to twe connections

  • Ethernet range extended by another 100 meters

  • No additional power supply is required.

  • 10/100Mbps adaptive

  • Pole mountable and wall mountable

  • Compact size weatherproof enclosure

Specifications:

Item3-Port
Networking Interfaces10/100 Mbps Ethernet RJ45
Network medium100 Meter (328ft), cascade level two extender
Ethernet StandardPassive, No.1/2 port maximum output 15W
Dimensions150 x 74 x 40 mm (5.91 x 2.91 x 1.57")
Weight300g
EnclosureWhite Polycarbonate
Operating Temperature-30 to 70℃(-20 to 158℉)
Operating Humidity5 to 95%Non condensing
PoE pin assignmnentV+(Rj45 Pin 12,45) V-(Rj45 Pin 36,78)
Switching capacity600Mbps
Typical Power Consumption3W
Max. power Consumption30W





Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
