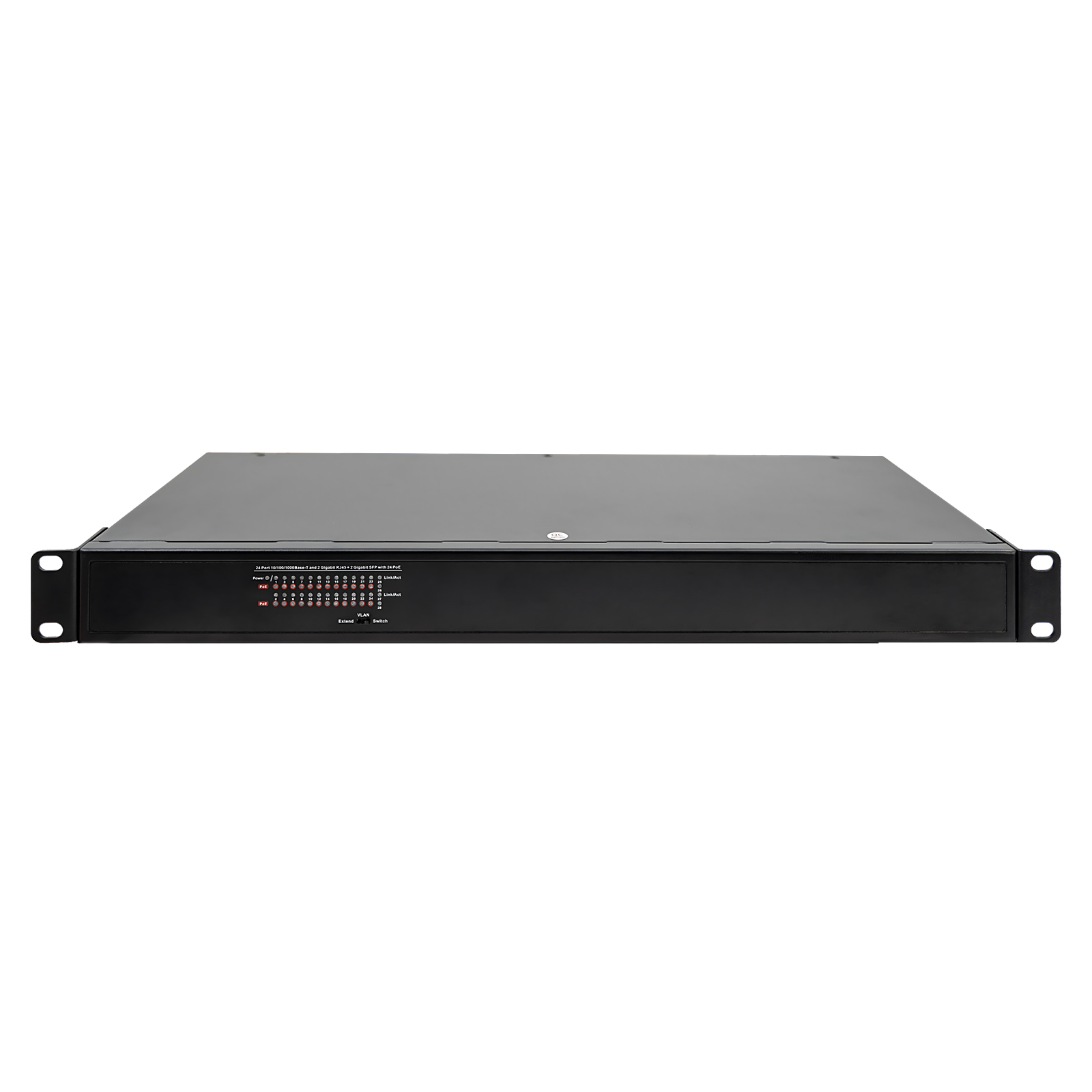

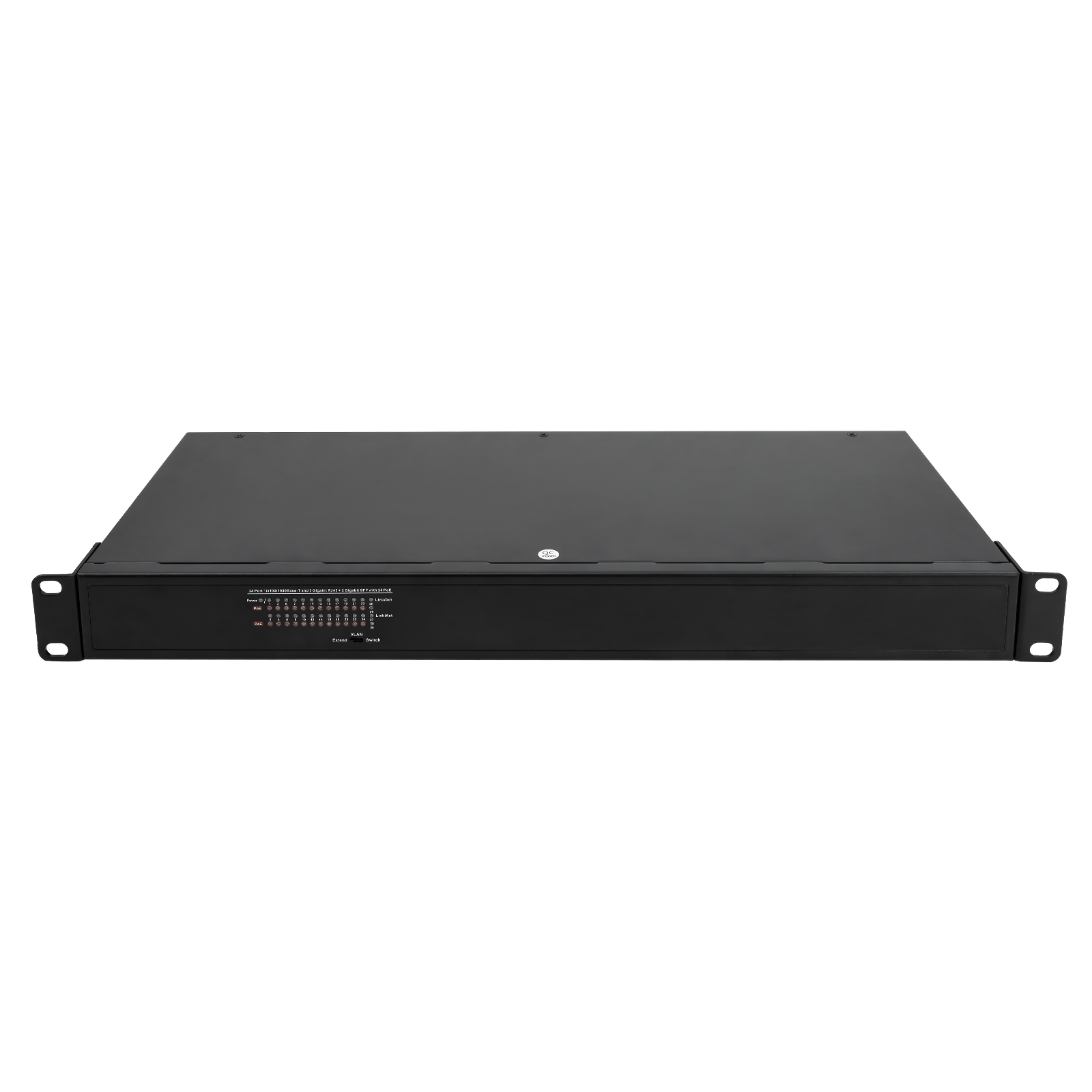

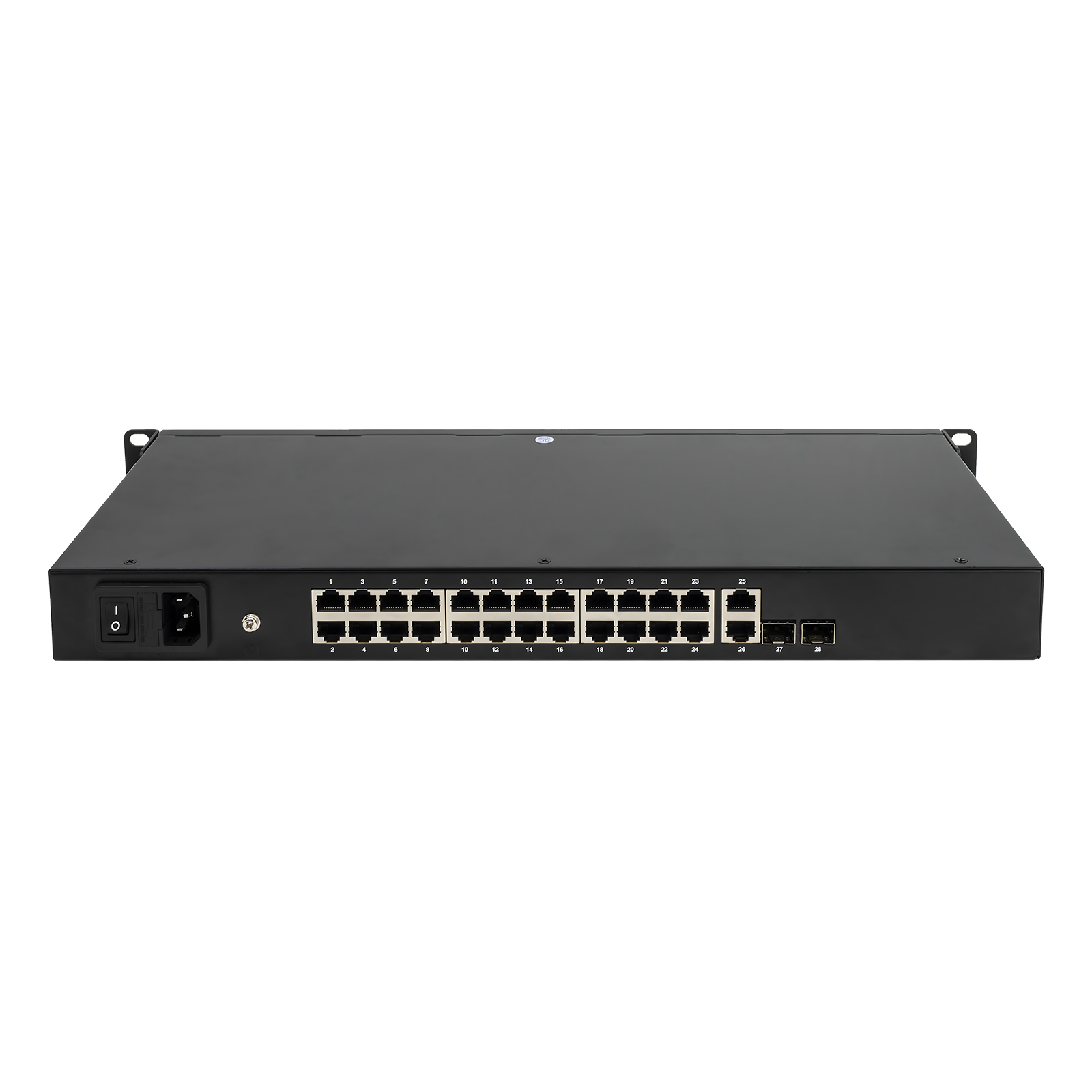

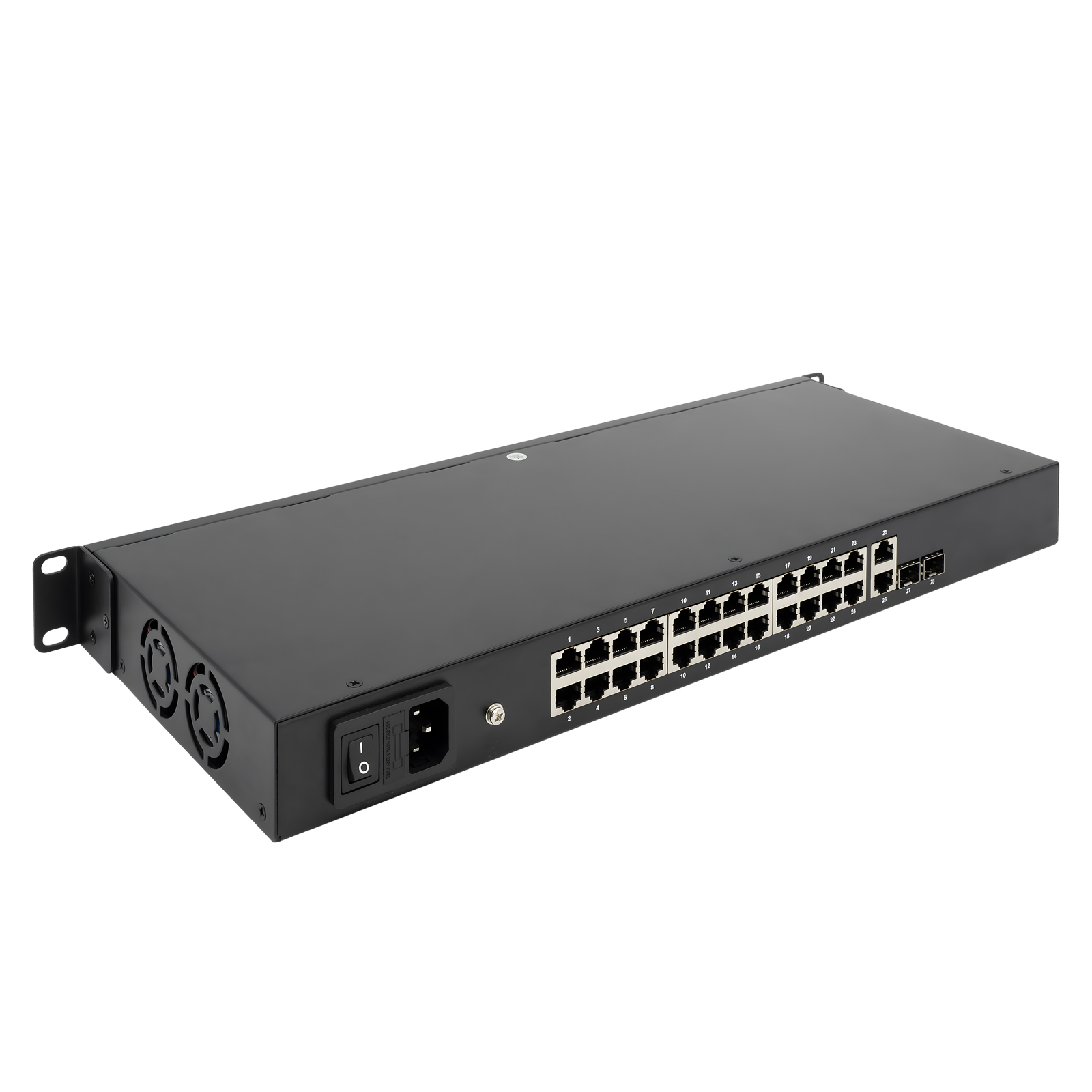

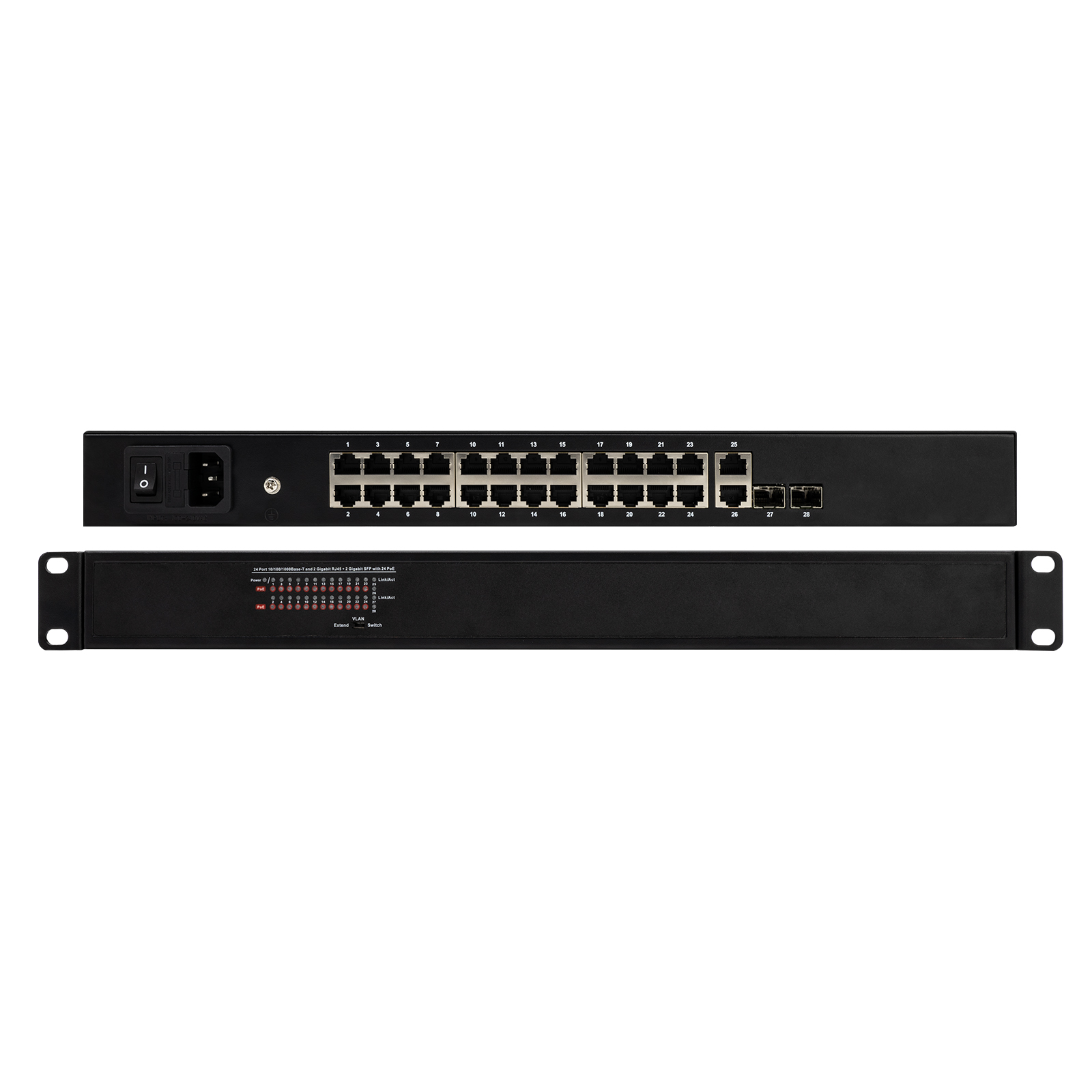

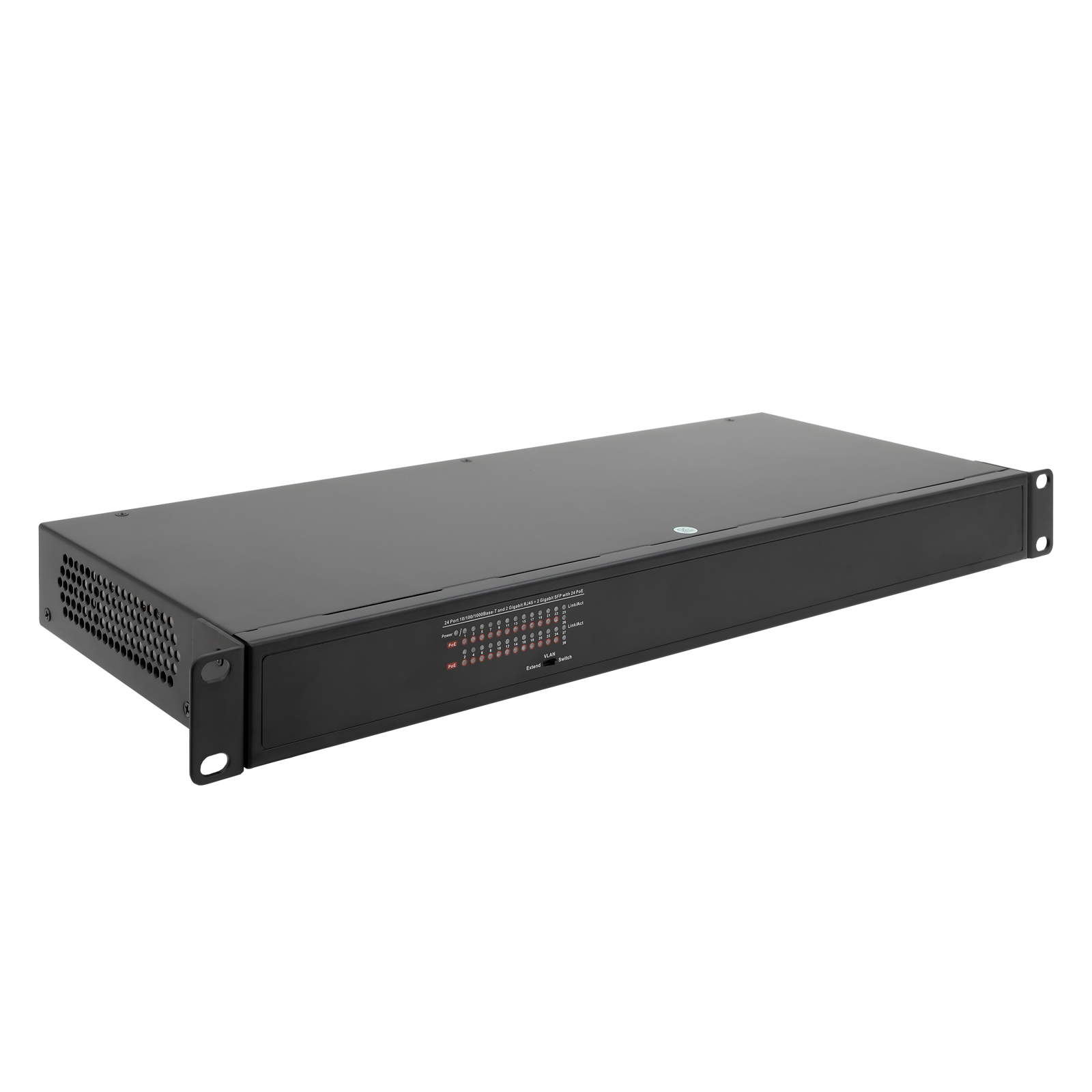

26 RJ-45 10/100M/1000Mbps+2 Gigabit SFP rear wiring PoE Switch

Model PoE-2628-24L-370WRF
Color Black
Spec 26 RJ-45 10/100M/1000M+2 Gigabit SFP ports with 24 POE Ports Switch with Built-in power supply, rear wiring

26 RJ-45 10/100M/1000Mbps+2 Gigabit SFP rear wiring PoE Switch


    The PoE-2628-24L-370WRF, an unmanaged Gigabit-Ethernet switch, is designed for residential building in the corridor-level broadband switching equipment, for the edge of the access and LAN to provide high-quality network connections.

    The PoE-2628-24L-370WRF provides 26 10/100/1000Base-T ports and 2 Gigabit SFP,   It provides 24 PoE Injector.


  • Conforms to IEEE802.3, IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE802.3af, IEEE802.3at

  • Provides 26 10/100/1000Base-T ports,2 Gigabit SFP

  • Provides 24 PoE injector and 370W Built-in power supply

  • High back-plane bandwidth 56 Gbps

  • IEEE802.3x Flow control

  • Surge protection for power port and data ports

  • The switch supports one-key function conversion, currently supports three modes, Normal mode, VLAN mode, Extend mode

  • Normal mode: Normal mode, no special function

  • VLAN mode: 1-24 port will not communicate with each other only communicate with uplink port. It will control the Net storm, protect the information security.

  • Extend mode: 1-24 port can transmit 250 meters, when using Cat5e/6 network cable or better network cable, uplink port has no special function



Fixed port

26 10/100/1000Base-T ports and 2 Gigabit SFP

LED Indicators

PWR, PoE, Link/Act LED

Input voltage

100V~240V AC,50/60Hz
Power consumption370W MAX
Operating temperature0℃~40℃.
Storage temperature-40℃~70℃.
Relative humidity0%~90% (non-condensing)
Thermal methodsBuilt-in fan
Switching capacity56G
MAC address table8K
Traffic controlIEEE 802.3x full-duplex flow control

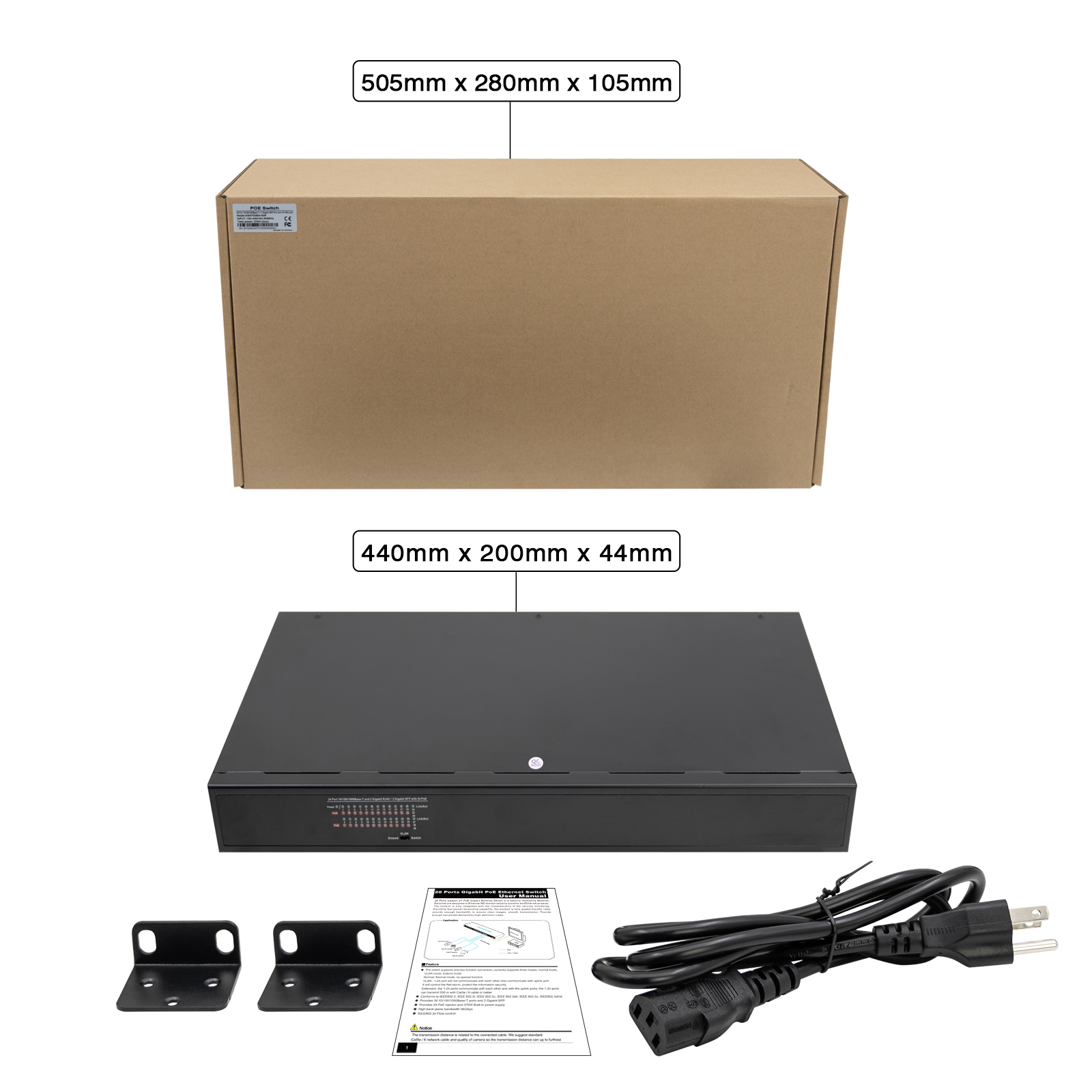

Size440 x 180 x 44mm(1U)
PoE port24 10/100/1000Base-T ports
PoE StandardIEE802.3af, IEEE802.3at, per port 30W(MAX)
PoE pin assignmentV+ (RJ45 Pin 1, 2), V-(RJ45 Pin 3, 6)

PoE-2628-24L-370WRF Instructions.pdf

Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
