Brand CENTROPOWER
Model PoE-M922-40W
Color Black
Spec The PoE Injector is 12/24V to 53V Gigabit PoE injector ,that it is flexible and convenient to be powered by DC connetor and Terminal block as redundant dual-input design
+86 0755 23200933
DetailSpecificationsDownloads

2 CH IEEE 802.af/at PoE Injector


Description:

PoE-M922-40W is 12/24V to 53V Gigabit PoE injector ,that it is flexible and convenient to be powered by DC connetor and Terminal block as redundant dual-input design


Features:

  • +/-12V/24V DC input; IEEE802.3af/at   PoE output

  • Supports 100/1000 Base-T applications

  • Power-in/Power-out LED display

  • Easy plug-and-play installation

  • Dual input power (DC Jack(2.1/5.5) or Terminal block(5.08) 2 input methods, select 1 input

Specifications:


ItemDescription
No. of channels2CH
Pass Through Data Rates10/100/1000Mbps
Power over Ethernet OutputPin Assignment and Polarity: 1/2(-),3/6(+)
Output Power Voltage: 53V 40W
RJ-45 Port -1 :IEEE802 .3af/at
RJ-45 Port -2 :IEEE802.3af/at
Input Power RequirementsDC Jack(2.1/5.5) Terminal block(5.08)
DC Input 1 /2: DC12 @5A
DC Input 1 /2: DC 24 @2.5A

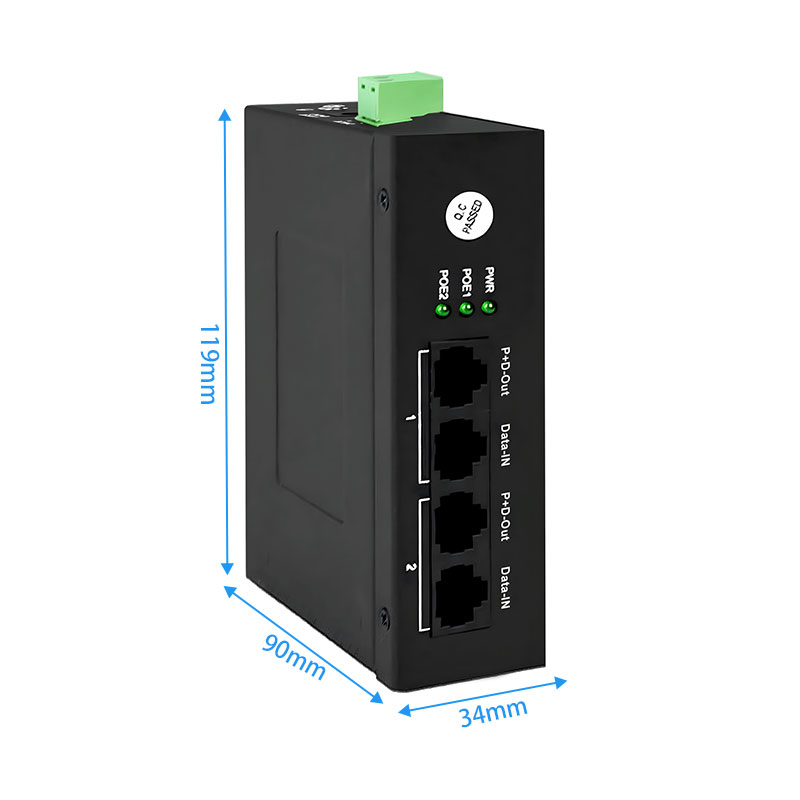

Dimensions119mm x 90 mm x 34 mm
IndicatorsDC in Power
POE OUT
ConnectorsRJ-45, EIA 568A and 568B
Special attentionInput cannot be reversed(Overcurrent)
Environmental ConditionsOperating Ambient Temperature: -20~50℃
Operating Humidity: Maximum 90%, Non-condensing
Storage Temperature: - 35~ 75℃
Storage Humidity: Maximum 90%, Non-condensing






Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
