Outdoor Rain-proof Powered Wireless Bridge / CPE

WeChat

Sina Weibo

copy Link

Facebook

Brand CENTROPOWER

Model Net-WB004

Color White

Spec Net-WB004 set adopts professional hardware configuration, the wireless transmission rate can reach 300Mbps, and the wireless transmission distance can reach 1 km.

WhatsApp Contact

DetailSpecificationsDownloads

Outdoor Rain-proof Powered Wireless Bridge / CPE

Description：

Net-WB004 set adopts professional hardware configuration, the wireless transmission rate can reach 300Mbps, and the wireless transmission distance can reach 1 km.

Features:

300Mbps Powered Wireless Bridge / CPE

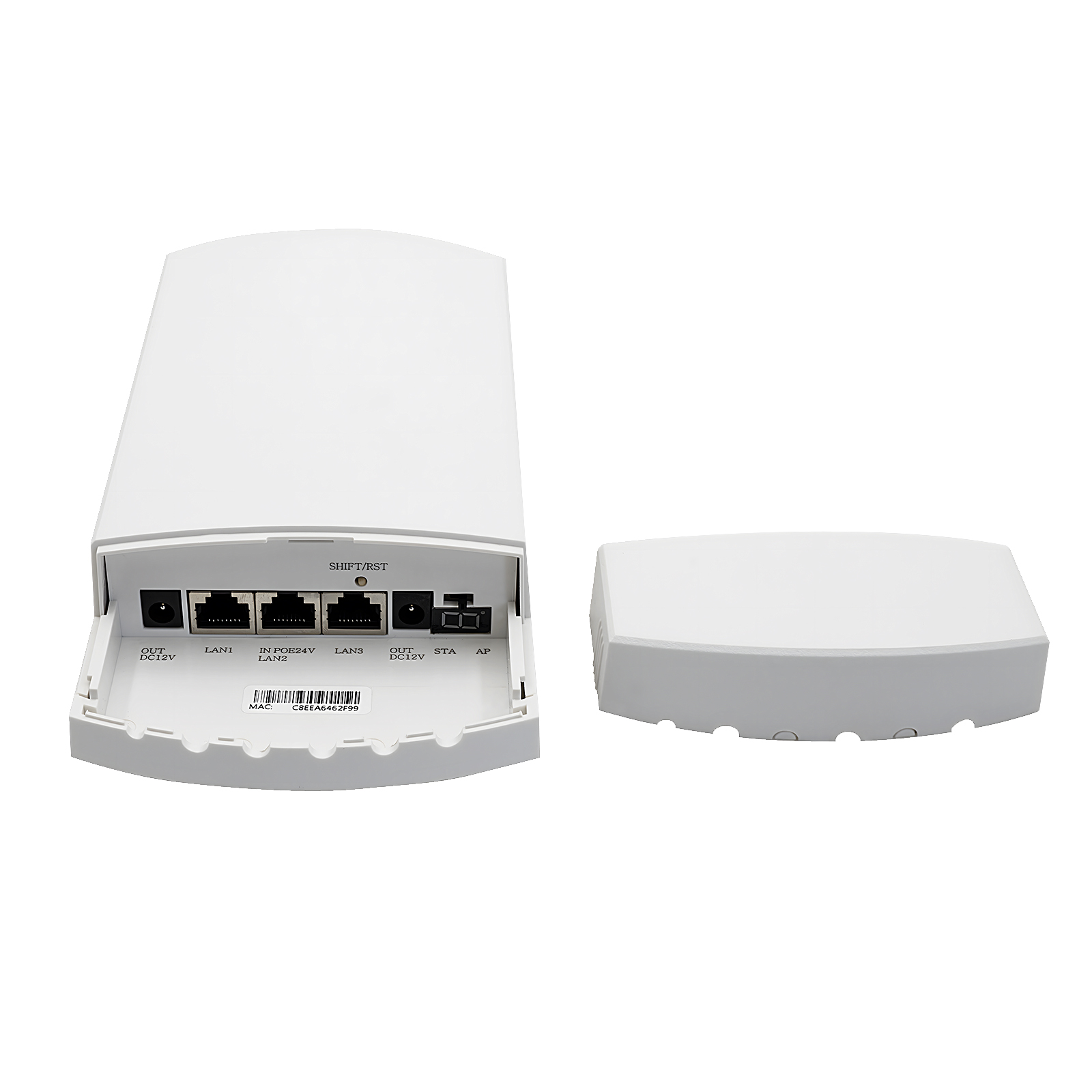

10/100Mbps LAN port*3 (The middle one supports PoE input 48V/POE 24V)
Displays the channel pairing number
Input PoE 48V/POE 24V(Choose one of the two, confirm advance)
2 DC output 12V

Specifications:

Item		Description
Hardware	CPU	Qualcomm AR9344
	storage	Flash: 8MB; DDR: 64MB
	Wired standard	IEEE802.3, IEEE802.3u
	Ethernet interface	10/100Mbps LAN port*3 (middle one supports PoE input 48V or 24V)
	Antenna	Built-in directional antenna 14dBi
	Dip switch	Client, AP Switching mode pairing
	Digital display	Displays the channel pairing number
	Key	Reset Button * 1
	Power supply	Input PoE 48V/POE 24V (Choose one of the two, confirm advance)
	DC	2 P C S DC output 12V

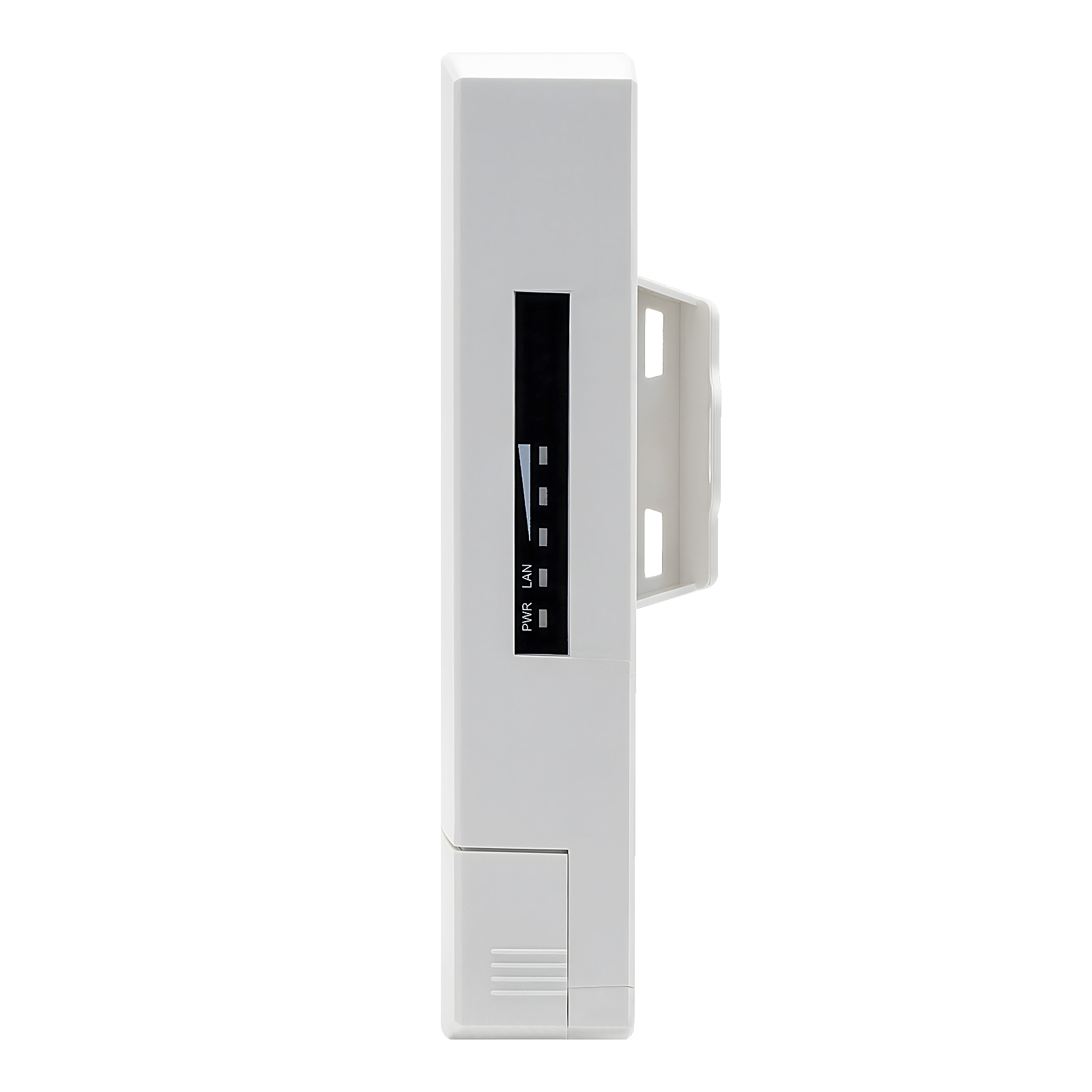

	Panel indicator	LED* [5SYS, LAN, S1, S2, S3(Signal strength)]
Wireless	Wireless standard	IEEE 802.11a/n
	Wireless speed	300Mbps
	Wireless power	23dBm
	Wireless Acceptance Sensitivity	-90dBm
	Wireless frequency band	5.8GHz
Environment	Operating temperature	-30℃~70℃
	Operating humidity	10% ~ 90% RH (Condensation free)
	Storage temperature	40℃ ~ 80℃
	Storage humidity	5%~90% RH (Condensation free)

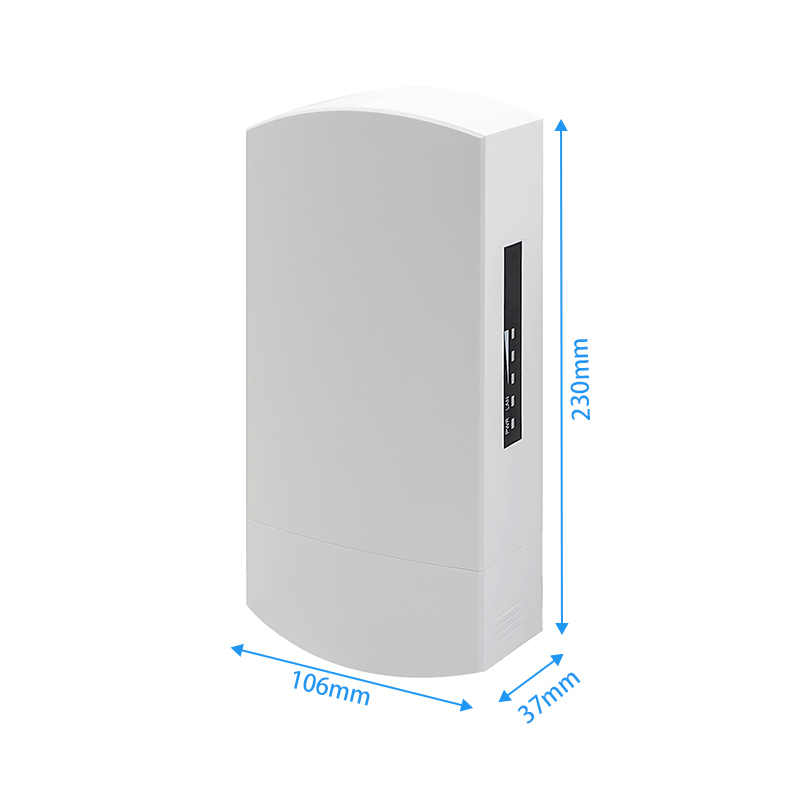

Other	Product size	23010637mm

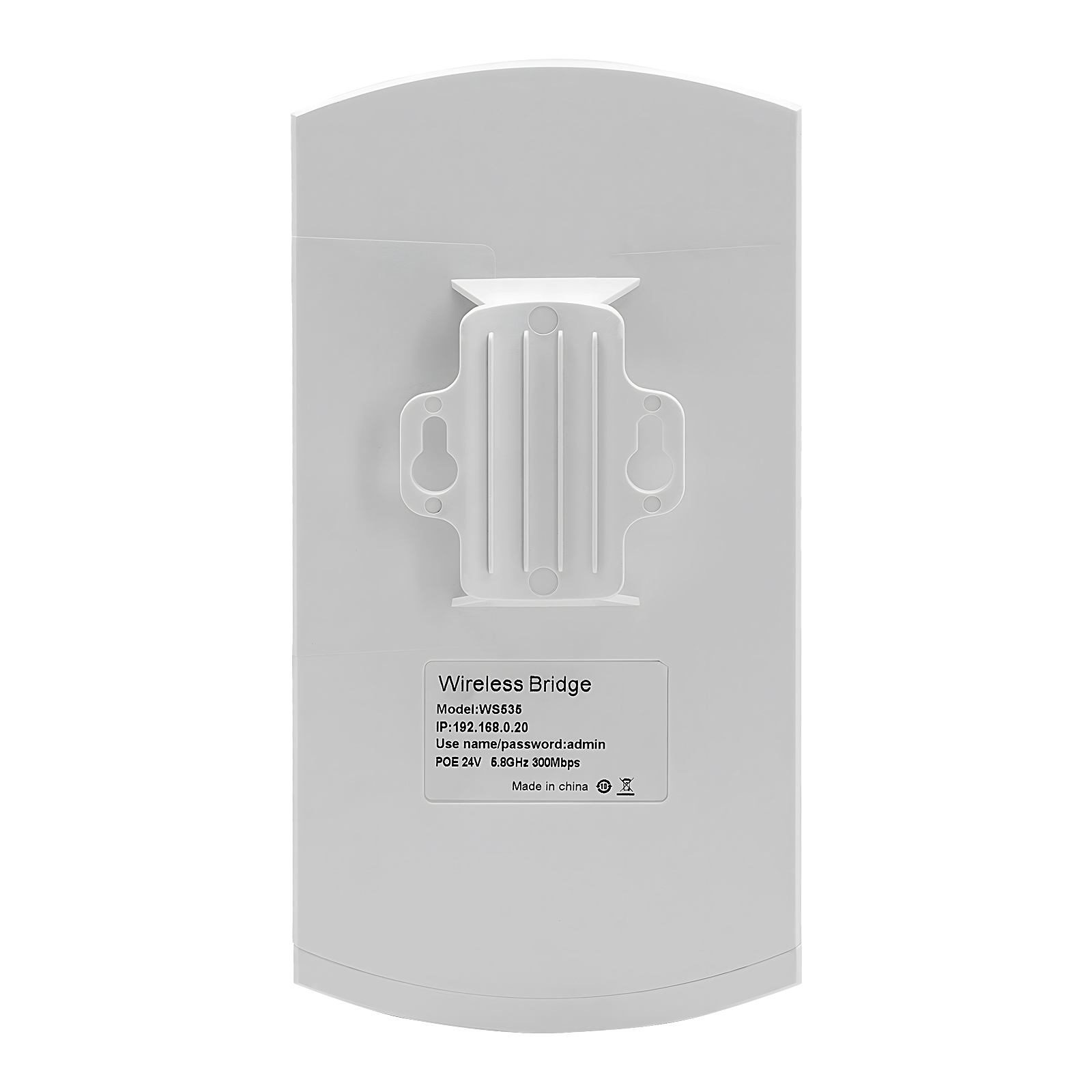

	Installation method	Holding pole, wall hanging

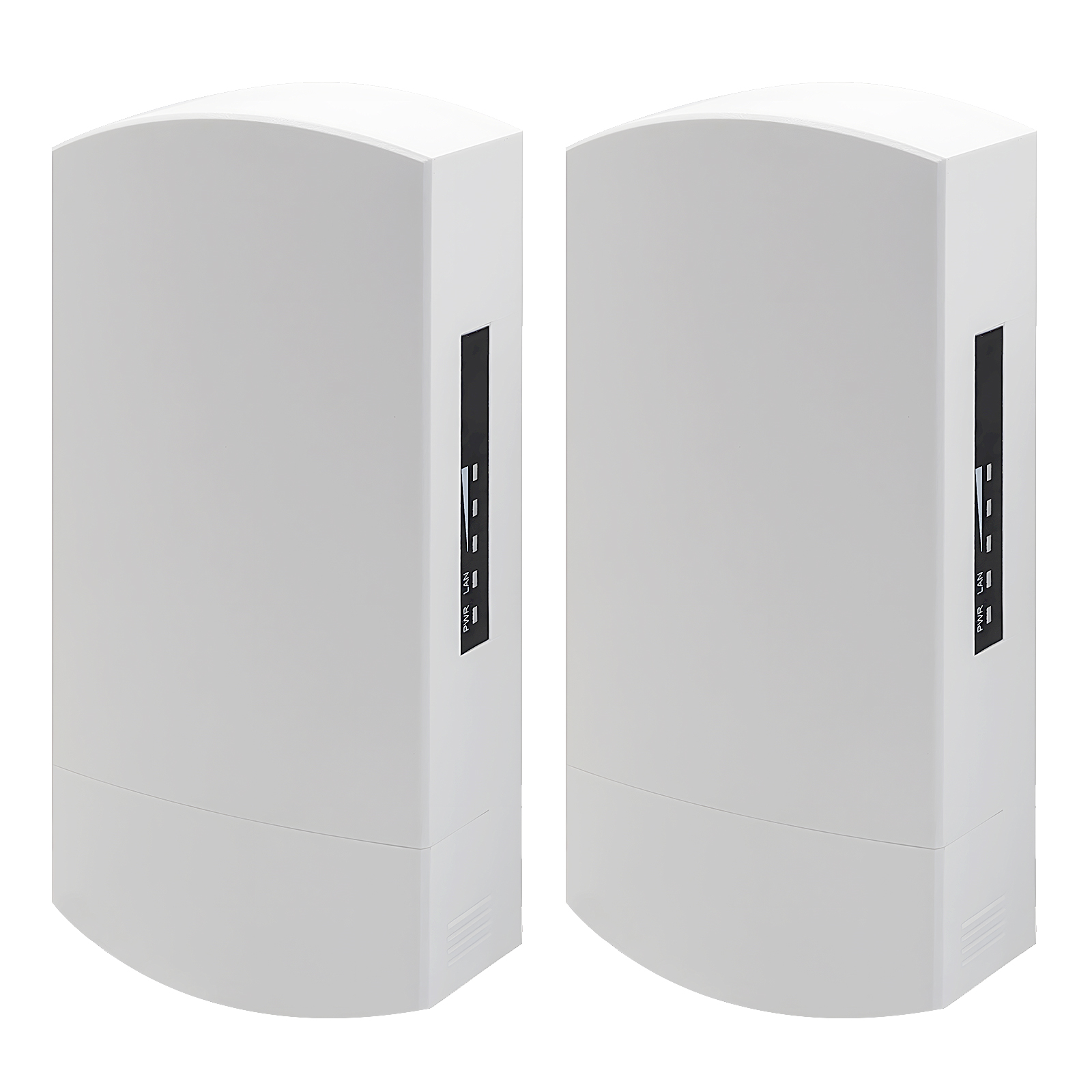

	Packaging content	Wireless bridge/CPE 2 pcs 4 pcs of packing tape Product instruction manual
