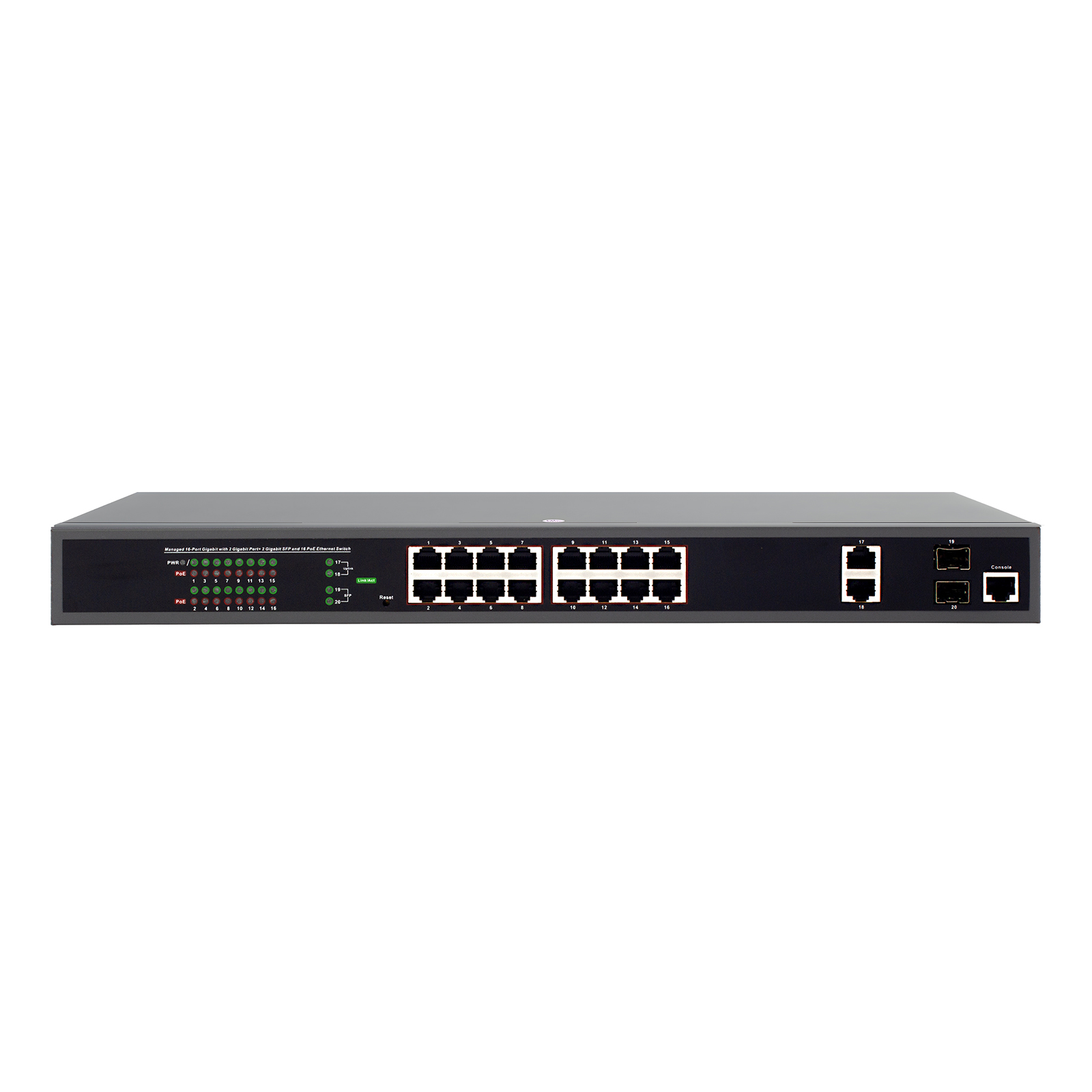

16 Port 10/100/1000 with 2-Port 1Gbps RJ45 + 2-Port 1.25Gbps SFP + 1-Port Console Ethernet Switch
    • 1/6

16 Port 10/100/1000 with 2-Port 1Gbps RJ45 + 2-Port 1.25Gbps SFP + 1-Port Console Ethernet Switch

share
WeChat
Sina Weibo
QQ
copy Link
Facebook
X
LinkedIn
Brand CENTROPOWER
Model PoE-7320-16P-250W
Color Grey
Spec 16 Port 10/100/1000Mbps PoE switch
0755-23200933
DetailSpecifications

16 Port 10/100/1000 with 2-Port 1Gbps RJ45 + 2-Port 1.25Gbps SFP + 1-Port Console Ethernet Switch

Description:

PoE-7320-16P-250W is 16 Port 10/100/1000 with 2-Port 1Gbps RJ45 + 2-Port 1.25Gbps SFP + 1-Port Console Ethernet Switch

Features:

  • Layer 2 Managed PoE Switch

  • IP address: 192.168.1.1

  • Username/Password: admin/admin

  • With PoE Auto Checking and DHCP functions

  • Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab

  • Conforms to IEEE 802.3i, IEEE 802.3z, IEEE 802.3x

  • 16-Port 10/100/1000Mbps supports 50V DC output

  • 2-Port 1Gbps RJ45 + 2-Port 1.25Gbps SFP + 1-Port Console

  • Complies with IEEE 802.3af/802.3at Power over Ethernet

  • 250W Built-in power supply

  • Auto detects powered device (PD)

  • Remote power feeding up to 100m

  • Supporting 8K absolute MAC addresses

  • High back-plane bandwidth 40 Gbps

  • Made of metal, rack-mount design

  • EMI standards complies with FCC, CE class A

Specifications:

ItemDescription

Power

Power supplyBuilt-in power supply
Voltage RangeAC100~240V
Consumption250W for 16 PoE
EthernetSpeed

1~16 Port:10/100/1000Mbps

17~18:10/100/1000Mbps Ethernet Port

19~20:1000Mbps SFP port (SFP support optical module rates:1.25Gbps)

Transmission Distance

100Meter(328ft) for RJ-45

SFP module is optional, transmission distance depends of optical module

Network SwitchEthernet StandardIEEE 802.3 / 802.3i / 802.3u / 802.3ab / 802.3z / 802.3af/at
Switching capacity40Gbps
Transfer Rate

14880pps for 10Mbps

148800pps for 100Mbps

1488000pps for 1000Mbps

MAC Address8K MAC address table
LINK/ACTLight on

The port is connected

On Green: The port connection speed is 1000Mbps

On Orange: The port connection speed is 10/100Mbps

Light blinksThe port is receiving or transmitting data
Light off   The port is not linked successfully with the device
POELight onPD is connected
Light offNo PD is connected or power forwarding fails
PoE pin assignmentPoE pin assignment: V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6)
EnvironmentWorking Temperature0~40℃
Storage Temperature-40~70℃
Humidity Non condesing0~85%

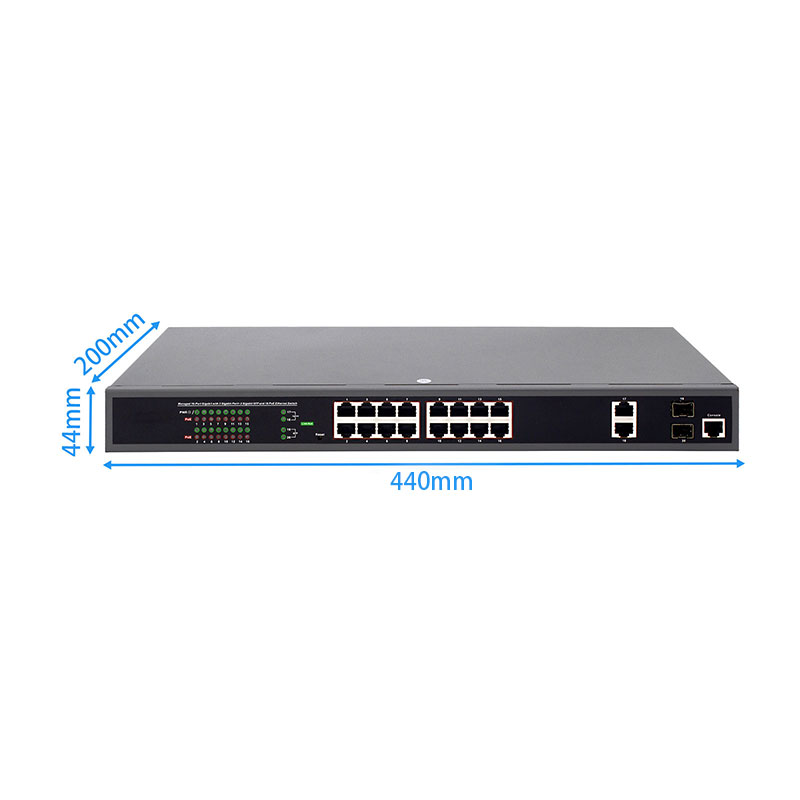

MechanicalDimension440mm×200mm×44mm
ColorGray
Weight3.0kg
Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
