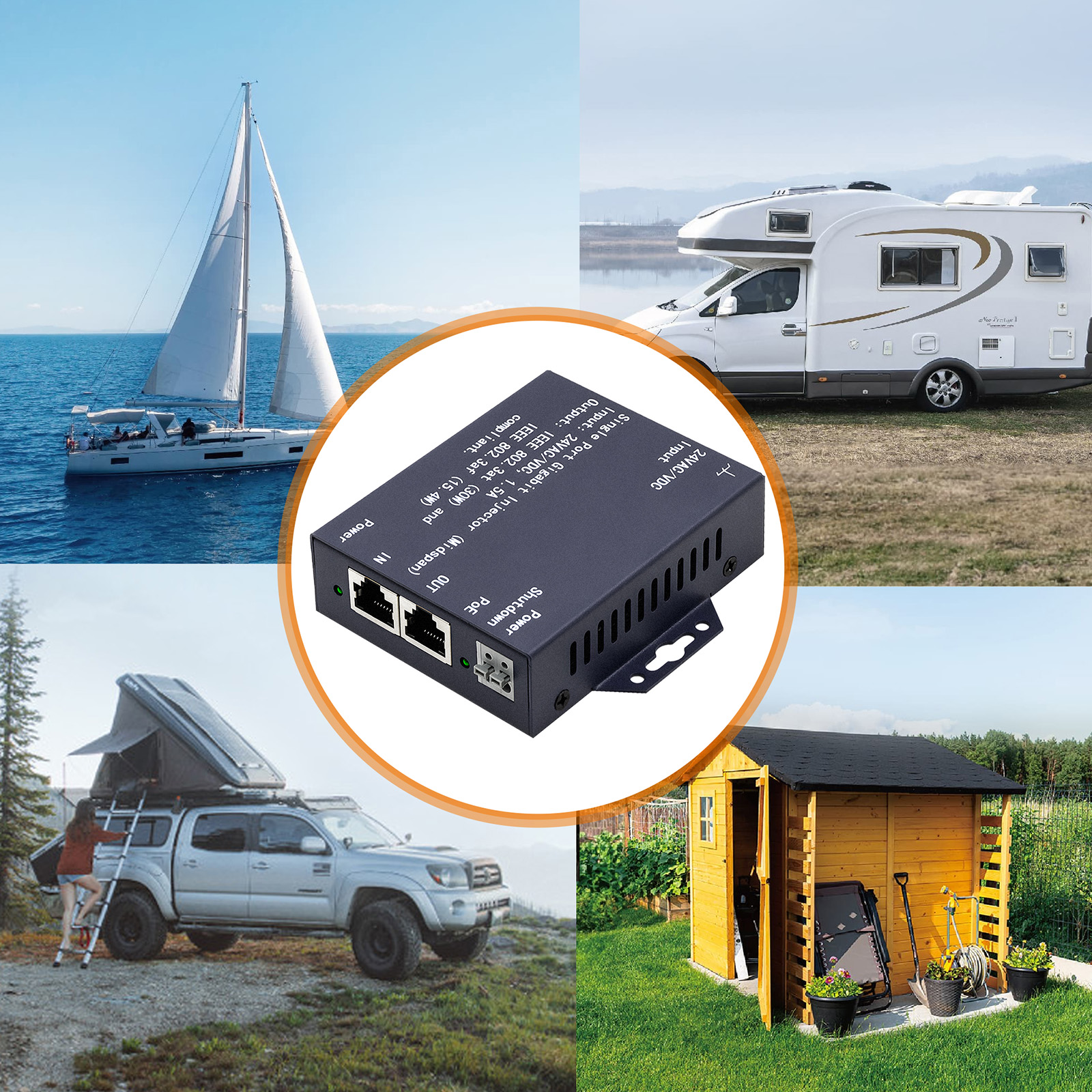

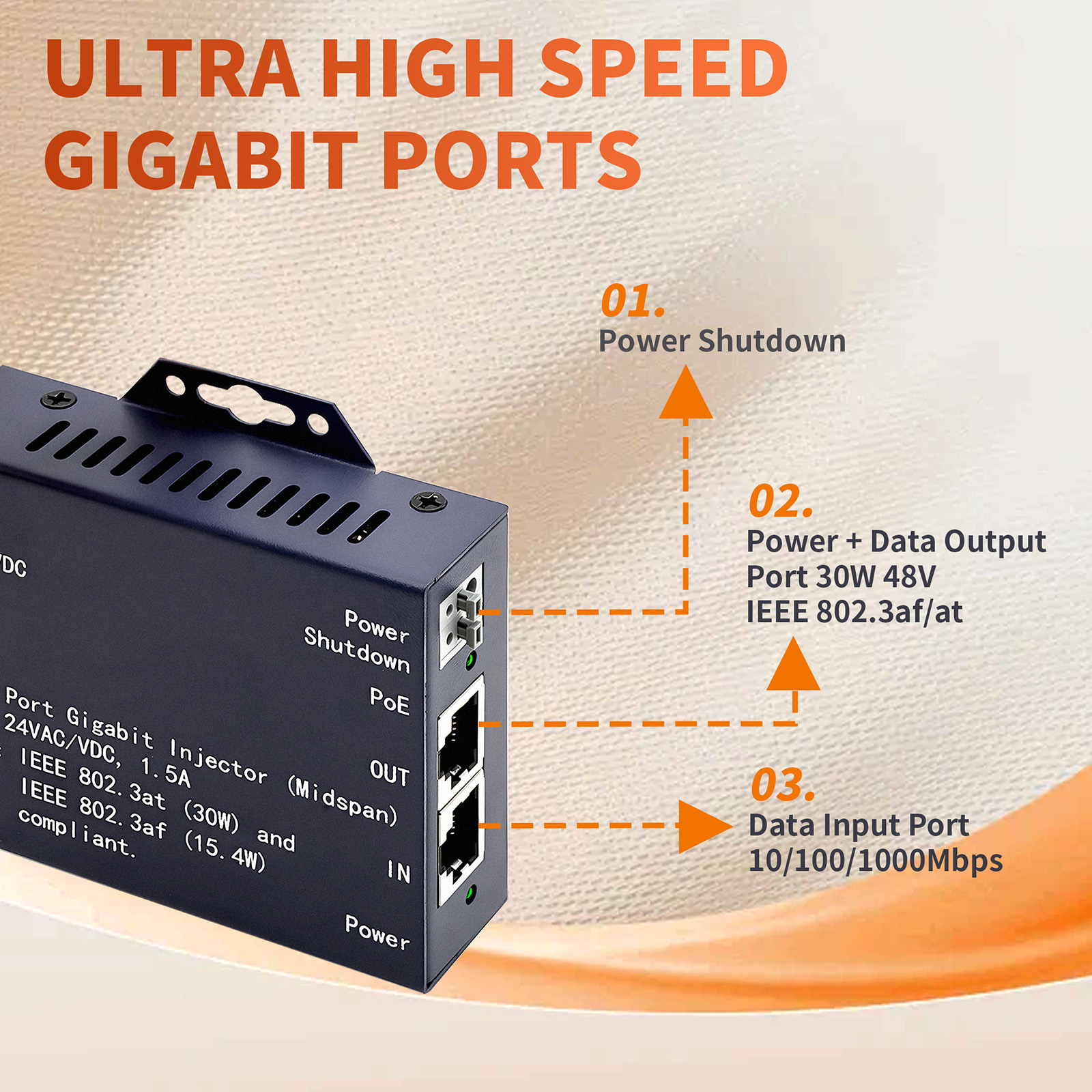

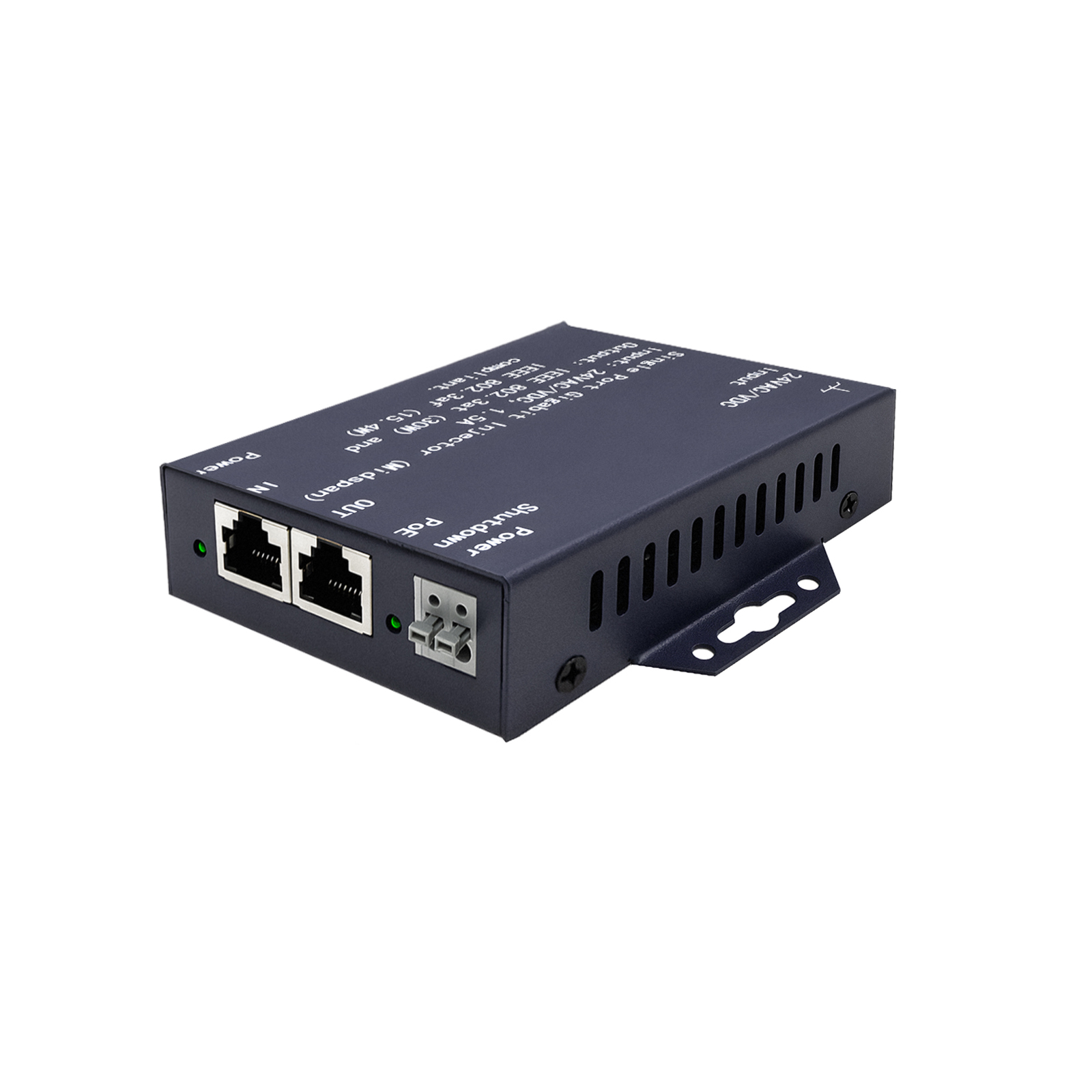

RV Trailer Solar Boost PoE Injector
- Single Channel, 1RJ45 Data Input, 1RJ45 PoE Output
- Output Support IEEE 802.3af/at
- With Power IN and PoE Out Indicator
- Metal casing, natural heat dissipation
- Desktop and Wall Mount Designed
- PoE Output can to manual shutdown
Description:
PoE-M911-B Power Over Ethernet (PoE) greatly simplifies the line deployment of IP cameras and wireless access points requiring only a single network cable to power and transmit signals.
Specifications:
| Item | Description |

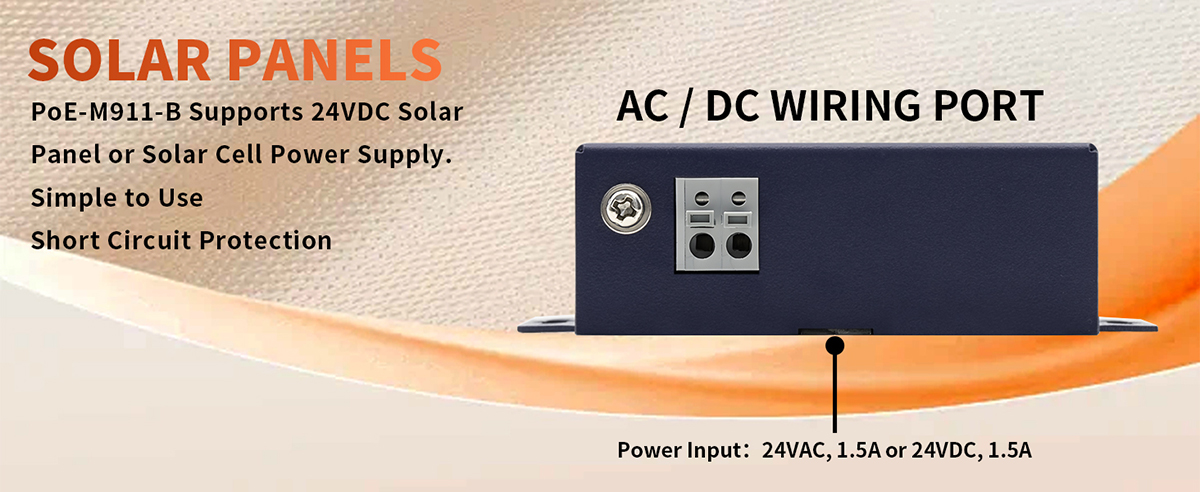

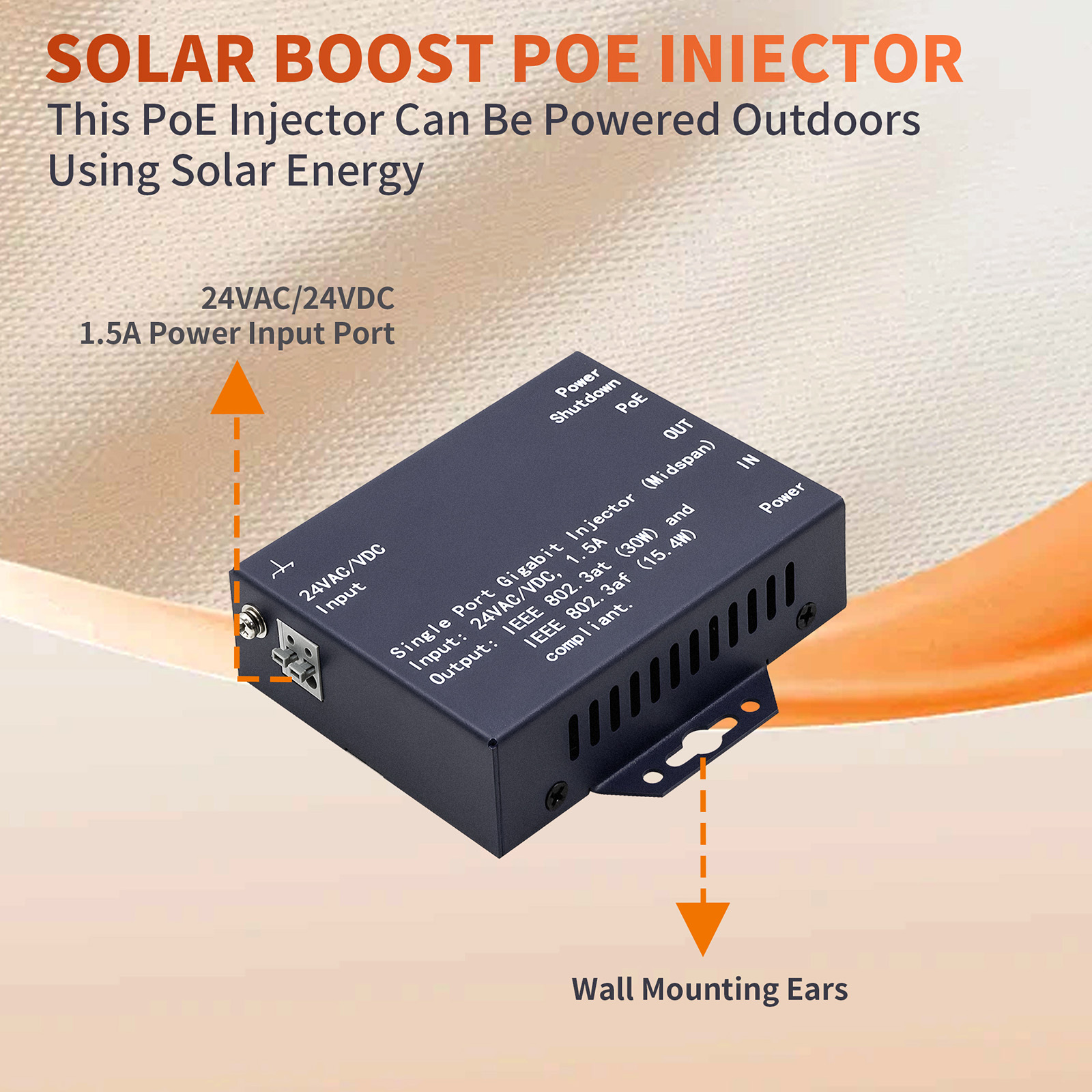

| Power Input | 24VAC, 1.5A or 24VDC, 1.5A |
| PoE Output | 1ch IEEE802.3af/at PoE, MAX:30w, Short circuit protection RJ-45 Power pin:12- 36+ |

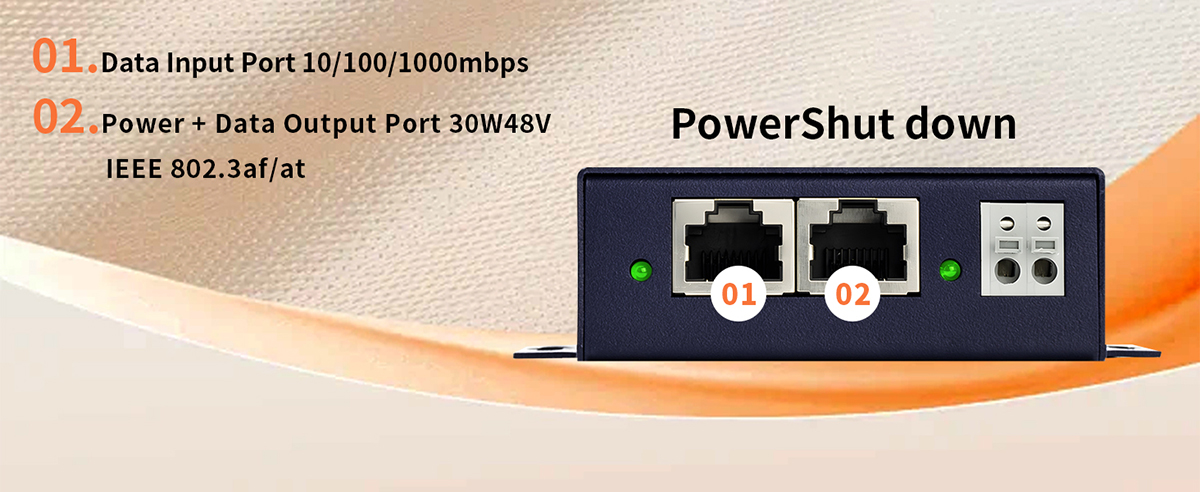

| Ethernet | Connectivity: RJ45, auto-crossover Wire type: 4-pair CAT5e Distance: up to 100mSpeed: 10/100/1000BaseT, half/full duplex, auto negotiation |
| Indicators (LED) | Power LED: Green on is Power In, off is Not Power In PoE PED: Green on is PoE on, off is PoE off |
| Features | Auto detection and protection of legacy Non-PoE cameras/devices PoE manual shutdown (High level (5-24VDC/12-24VAC), PoE OFF, low level (0V), PoE ON) Rugged metal case |

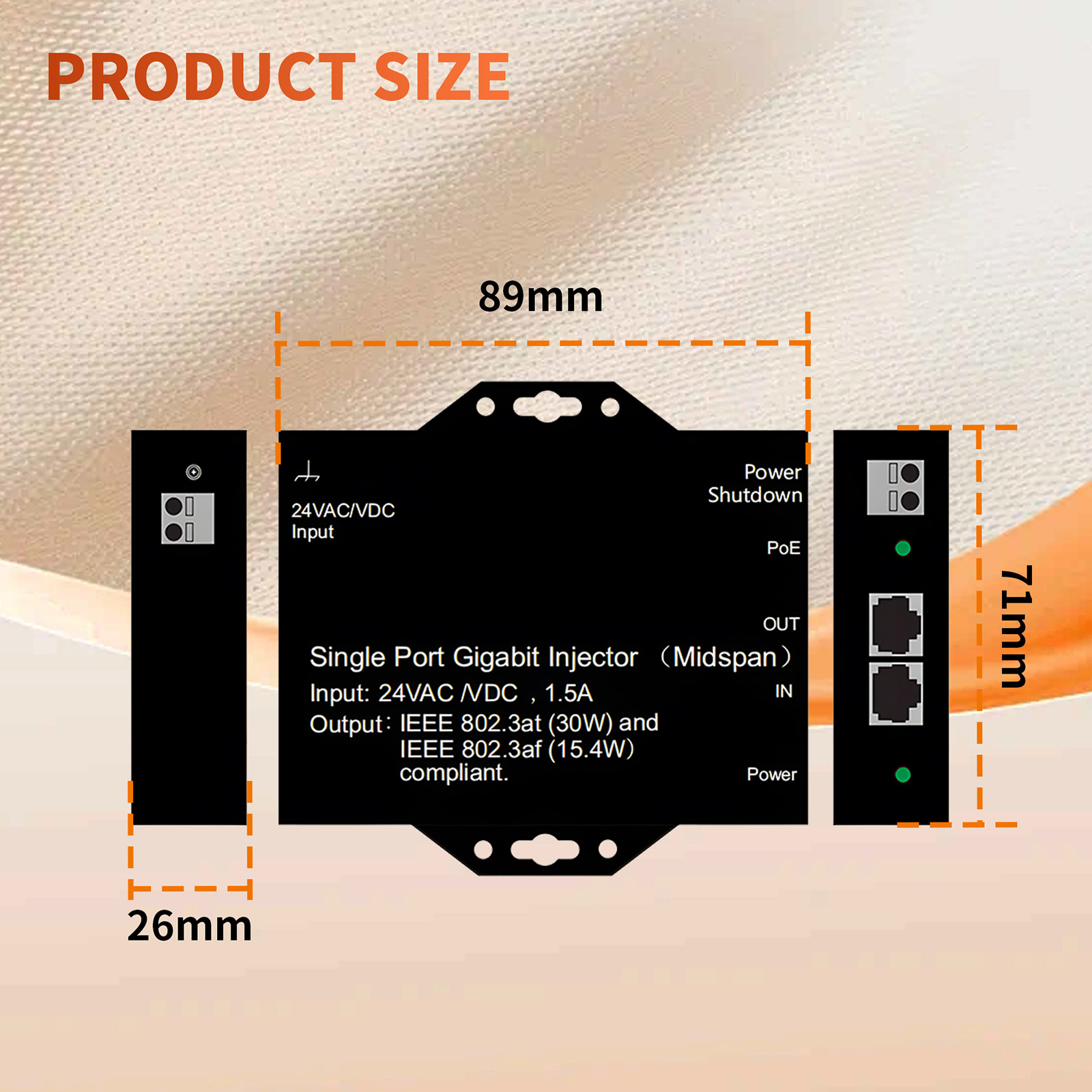

| Physical and Environmental | Dimensions (W x L x H) ：89mm x 71mm x 26mm Product Weight (approx.): 0.25 lbs. (0.11 kg) Shipping Weight (approx.): 0.3 lbs. (0.14 kg) |
| Environment | Operating Temperature 24VDC Input, 30W Output: 0ºC to 45ºC (32ºF to 113ºF), 24VAC Input, 30W Output: 0ºC to 37ºC (32ºF to 98.6ºF) Storage Temperature: -20ºC to 70ºC (-4º to 158ºF) Relative Humidity: 85% +/-5% Operating Altitude: -304.8 to 3,048m (-1,000 to 10,000 ft.) |

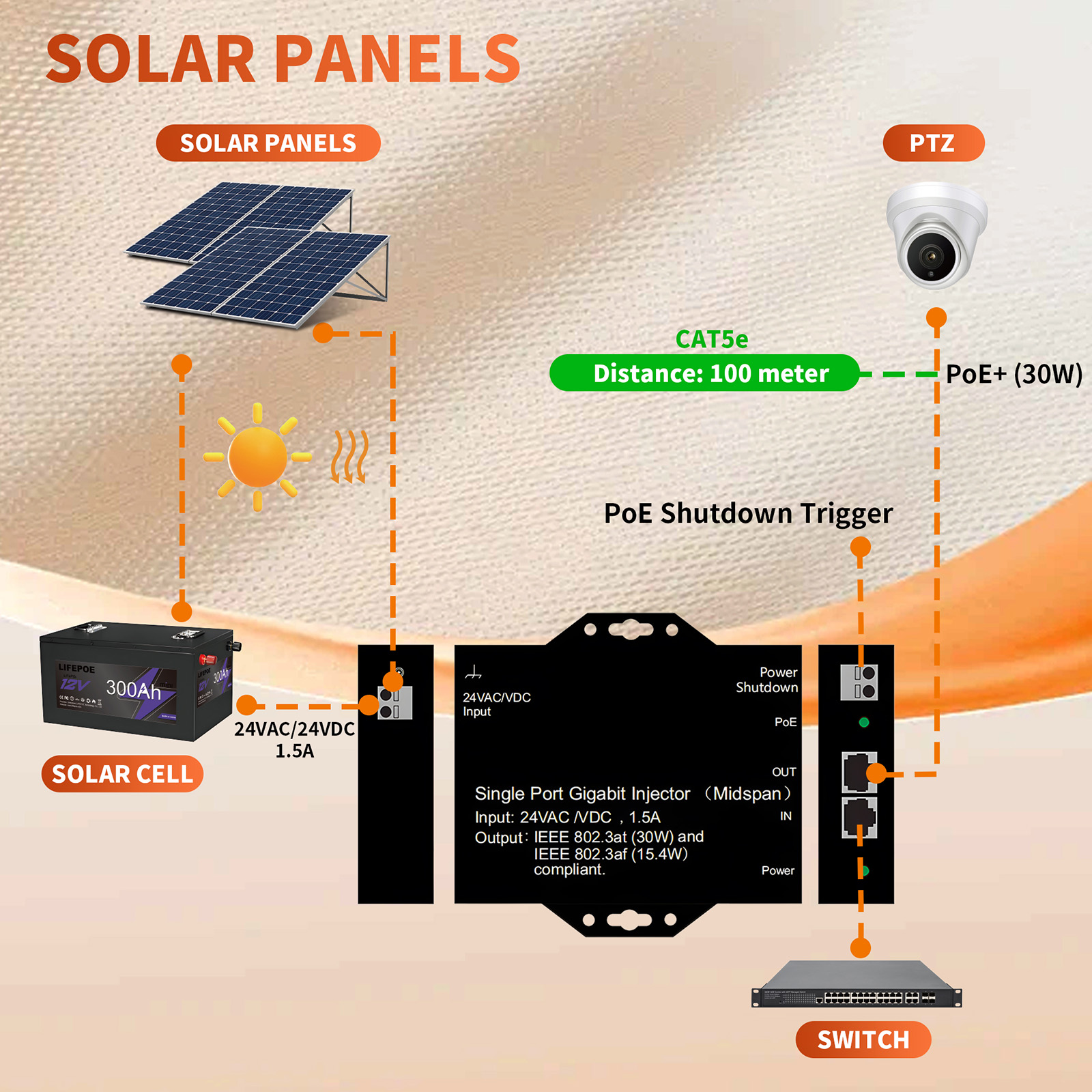

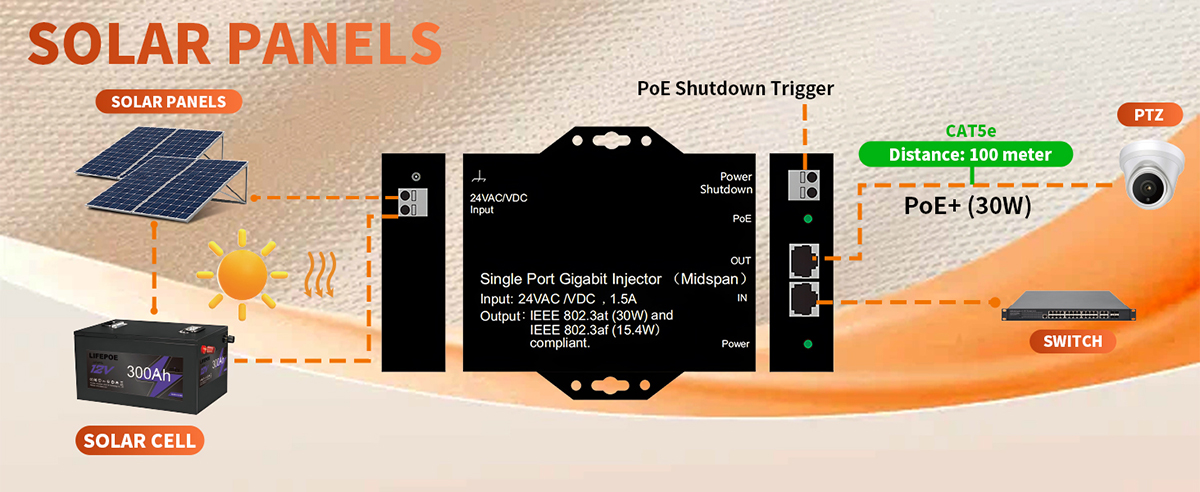

| Typical Applications | 1. Applied in scenarios that can provide AC or DC24V 2. Apply in scenarios that require extension and provide POE power to the extender 3. Application when the power source is solar energy |
