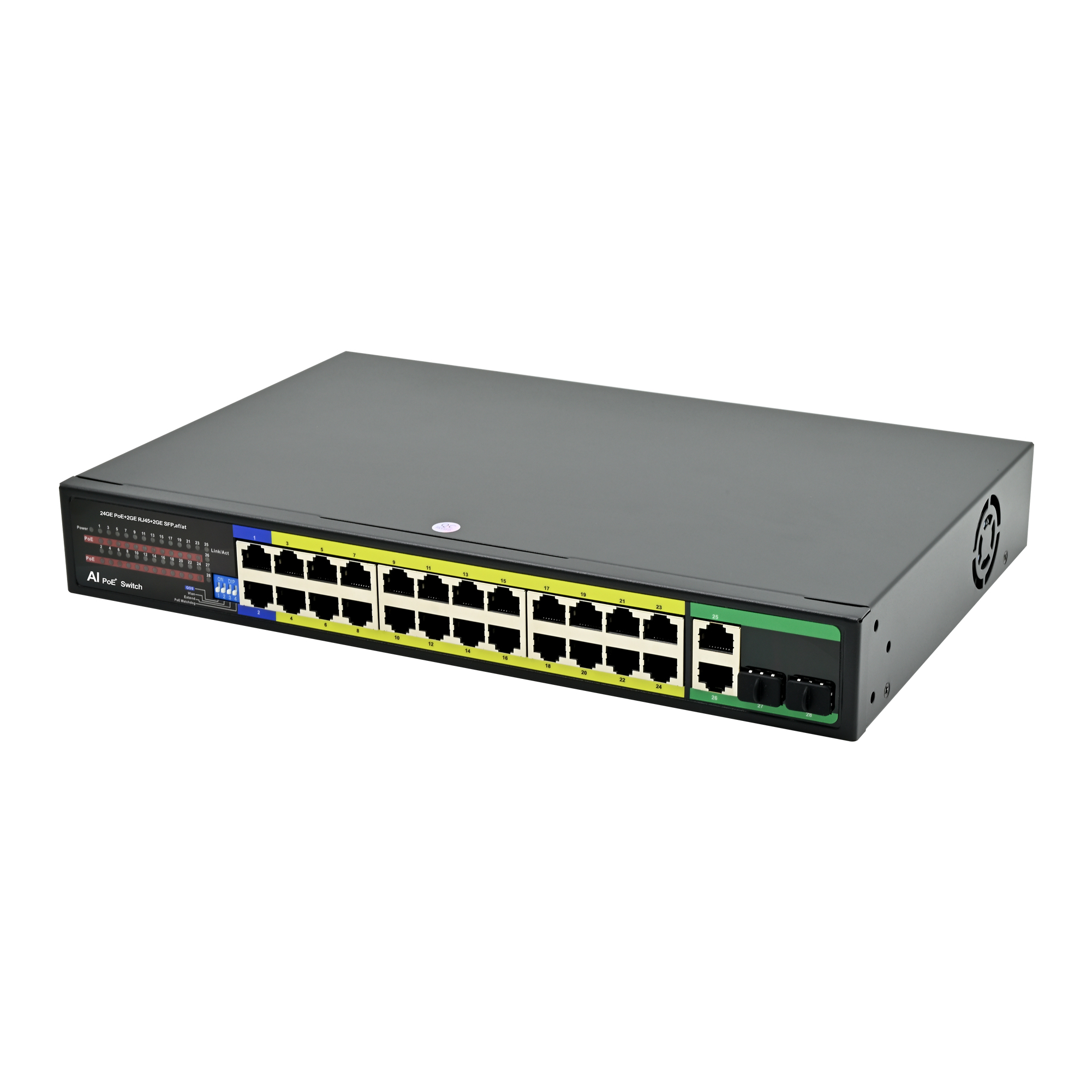

24GE + 2GE2GF AI Multifunction PoE Switch

WeChat

Sina Weibo

copy Link

Facebook

- AI Multifunction PoE Switch, Unmanaged
- PoE Port: 24 10/100/1000Mbps RJ45 Port
- Uplink: 4 Gigabit Port(2RJ45+2SFP)
- 4DIP: AI PoE Watchdog, VLAN, Extend, QOS
- AI PoE Watchdog: 24hour AI detection
- VLAN: PoE port are isolated from each other
- Extend: PoE port extend to 250meters
- QOS: 2 PoE ports to set the priority
- Support IEEE 802.3af/at, Single Port Max.30W
- 360W Built-in Power (Input 100-240VAC)

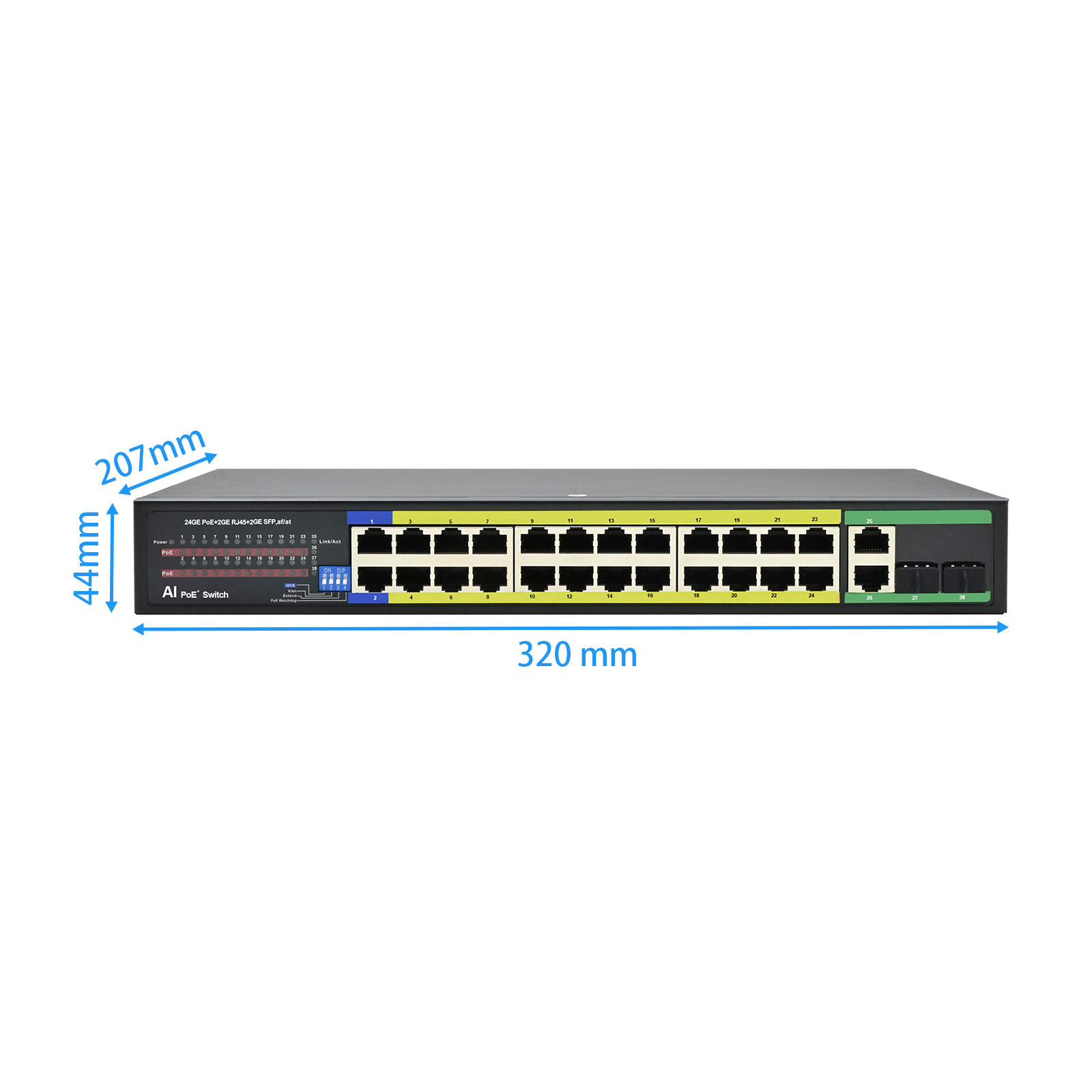

- Enclosure size: 320mm*207mm*44mm
- 6KV port surge

Brand CENTROPOWER

Model PoE-2628RF-24D-360W

Color Black

WhatsApp Contact

DetailSpecificationsDownloads

24GE + 2GE2GF AI Multifunction PoE Switch

Description:

28 Ports support 24 PoE Gigabit Ethernet Switch is a security monitoring EthernetSwitches are designed to Ethernet HD monitor security systems and Ethernet projectsThe product is fully integrated with the characteristics of the security monitoring.Providing fast packet forwarding capability, the product is fully gigabit transfer ratesprovide enough bandwidth to ensure clear images, smooth transmission. Provideenough bandwidth demand for high-definition video.

Features:

Conforms to lEEE802.3, IEEE 802.3i, IEEE 802.3u, IEEE802.3ab, IEEE 802.3z, IEEE802.3af/at
Provides 26 10/100/1000Base-T ports and 2 Gigabit SFP
Provides 24 PoE injector and 360W Built-in power supply
High back-plane bandwidth 56Gbps
IEEE802.3x Flow control

Specifications:

Item		Description
Power	Power supply	Built-in power supply
	Voltage Range	DC100-240V
	Switch Consumption	360W for 24 PoE
Ethernet	Speed	1~26 Port: 10/100/1000Mbps 27~28: Gigabit SFP
Ethernet	Transmission Distanc	100Meter(328ft)for RJ-45 2Km 20Km for SFP Port The optical module is optional
Network Switch	Ethernet Standard	lEEE802.3,802.3i, 802.3u,802.3ab, 802.3z,802.3af/at
	Switching capacity	56G
	Transfer Rate	14,880pps for 10Mbps
		148,800pps for 100Mbps
		148,8000pps for 1000Mbps
	MAC Address	8K MAC address table
LINK/ACT	On-Green	The port is connecting
	Blinks--	The port is receiving or transmitting data
	Off--	The port is not linked successfully with the device
POE	On-Green	PD is connected
	Off--	No PD is connected or power forwarding fails
	PoE pin assignmnet	V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6)
Environment	Working Temperature	0-40℃
	Storage Temperature	-40-70℃
	Humidity Non condesing	0~90%
Mechanical	Dimension	320 x 207 x 44mm
Mechanical	Color	Black
