Lightning-proof and Anti-interference 10-port PDU
share
·10-port output AC socket
·All sockets are controlled by one switch
·15A overload protector
·10KA Lightning protection
·EMI, RFI Anti-interference
·With Product status indication
·Application to AV filtering etc.
·All sockets are controlled by one switch
·15A overload protector
·10KA Lightning protection
·EMI, RFI Anti-interference
·With Product status indication
·Application to AV filtering etc.
DetailSpecificationsDownloads

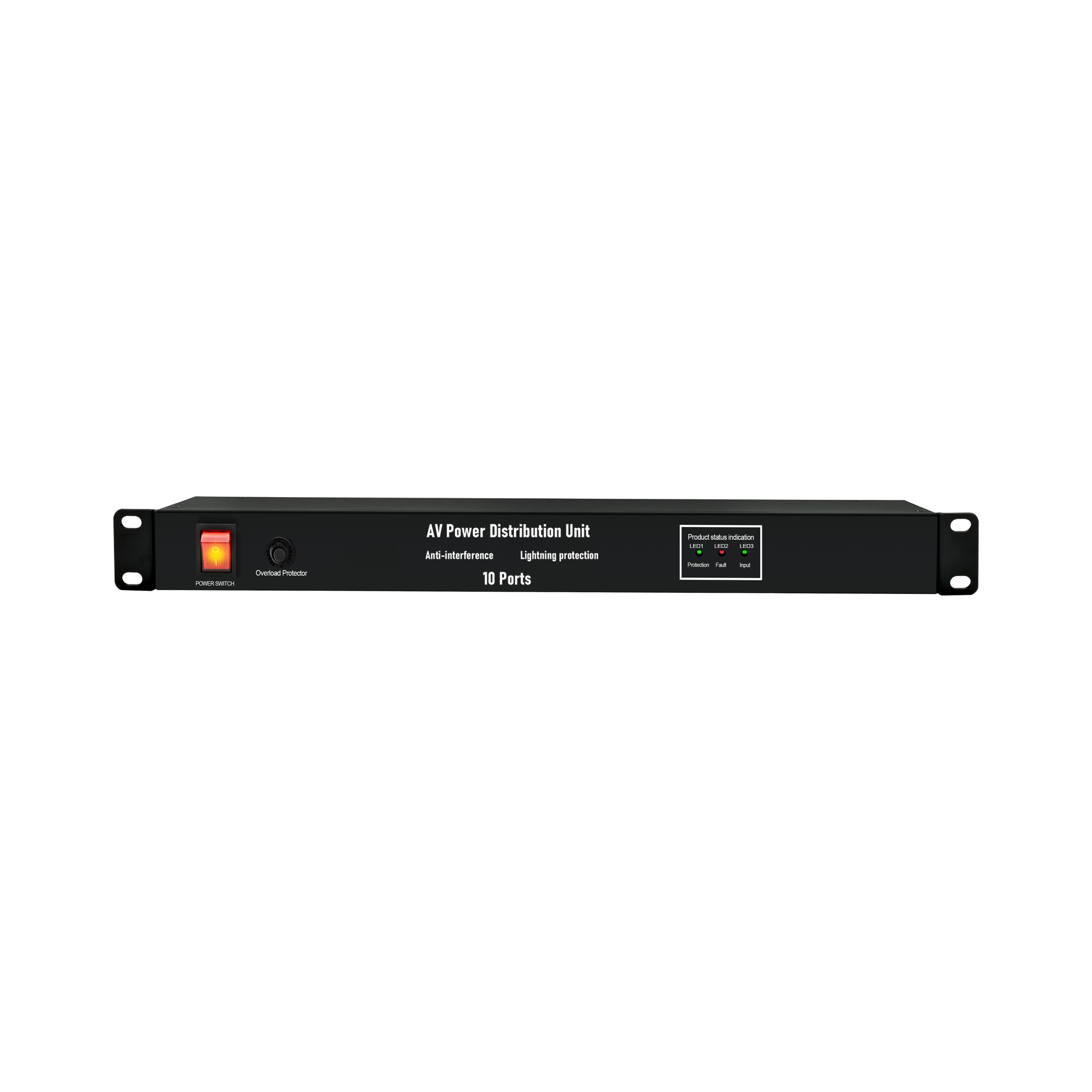

Lightning-proof and Anti-interference 10-port PDU
Description:

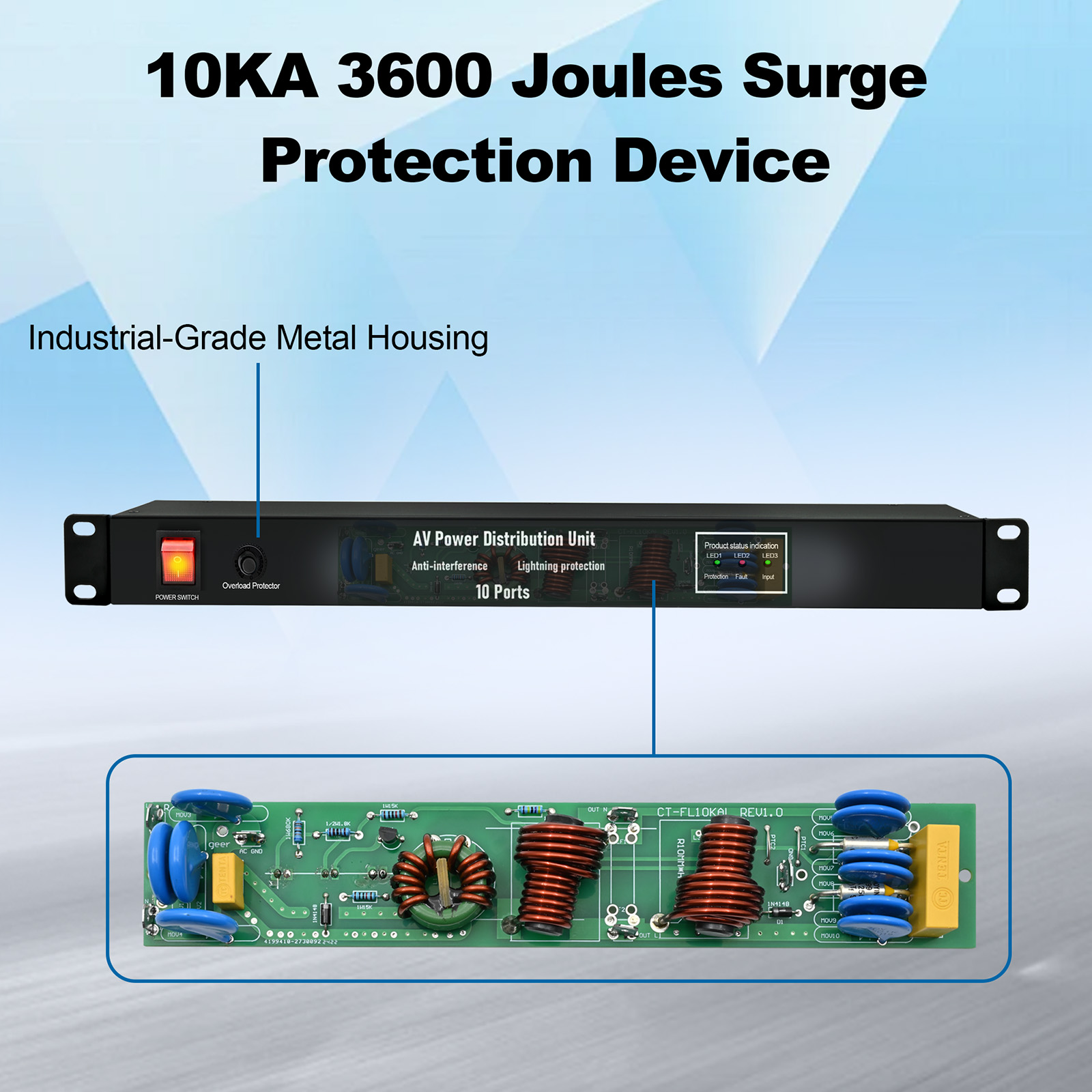

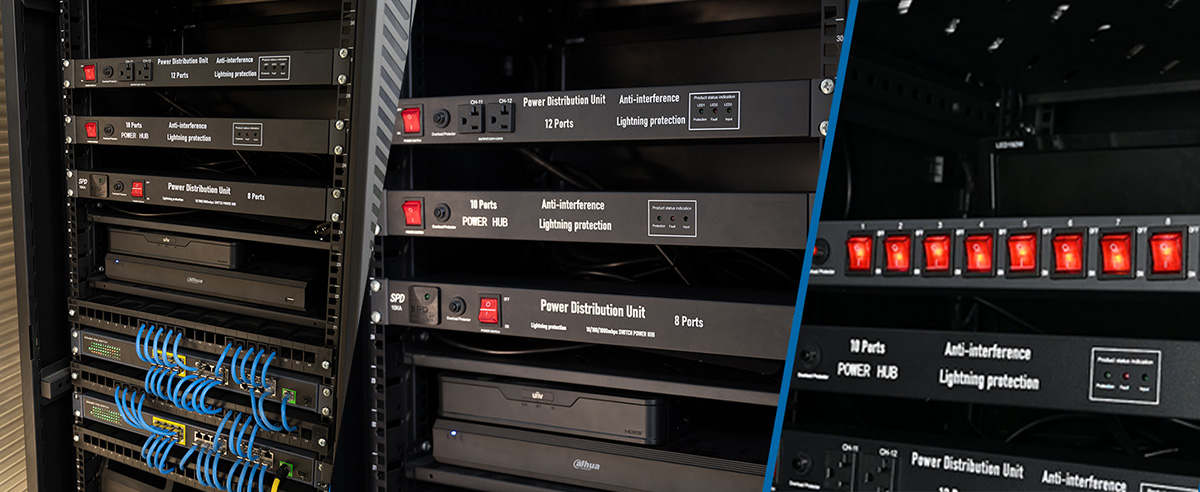

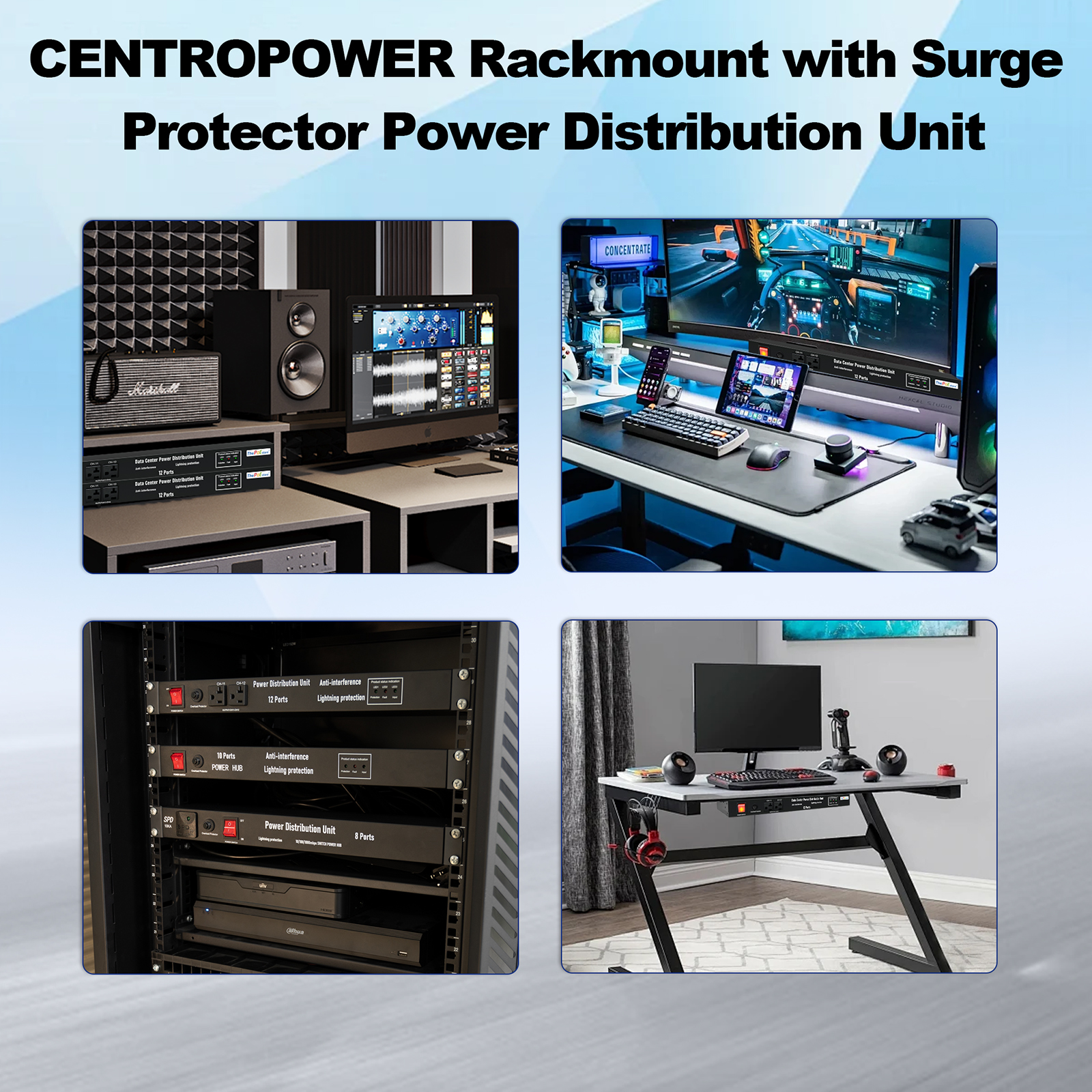

This is a lightning protection and anti-interference power distribution unit, built-in multifunction PCBA, which can be used in racks, computer rooms, AV equipment, etc.There are filter components in the product, which can filter out interfering elements when used in the power supply of audio and video equipment.
Features:
Application for Data center, AV filtering etc.
15A Over current protection
10KA Lightning protection
EMI,RFIAnti-interference
85'C Temperature protection

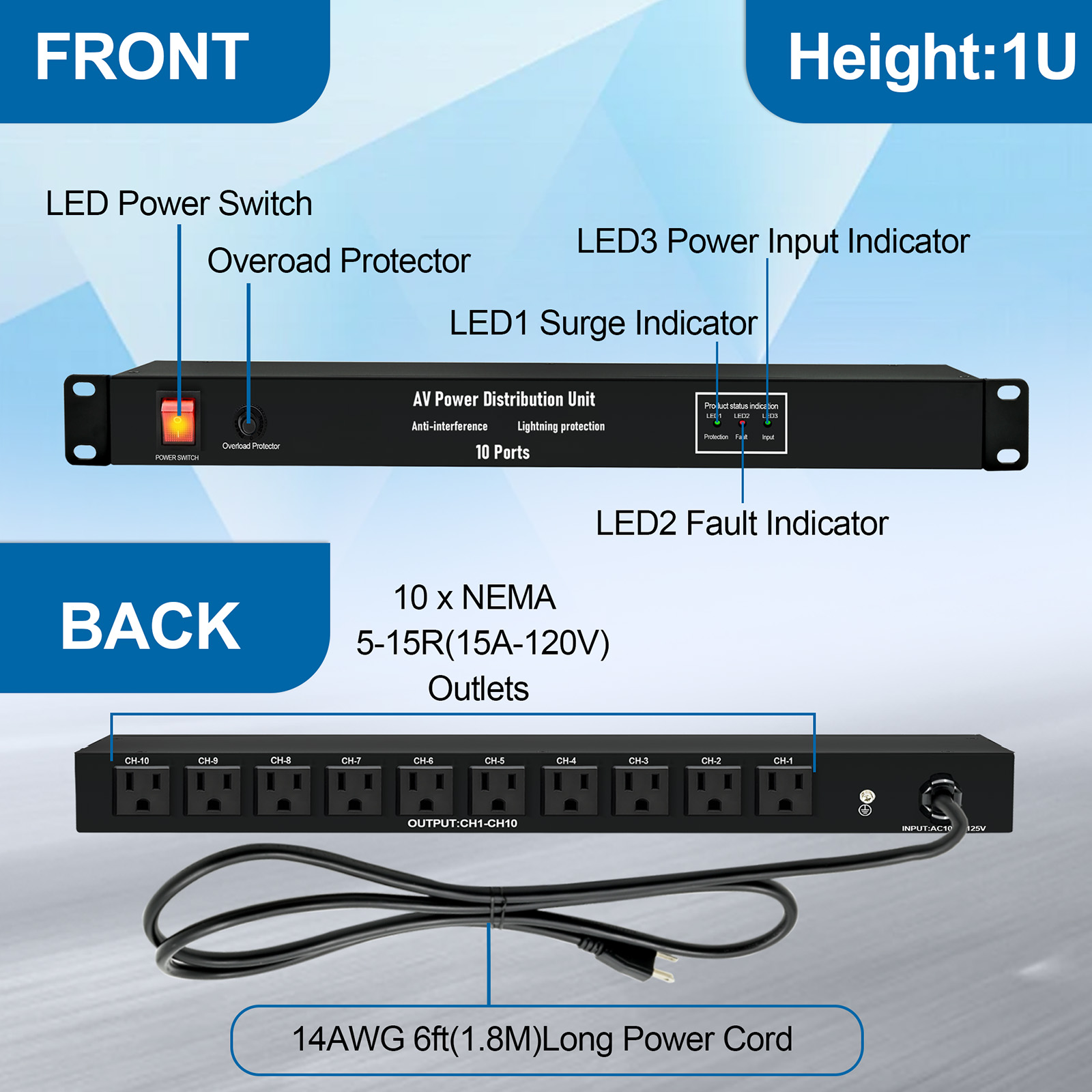

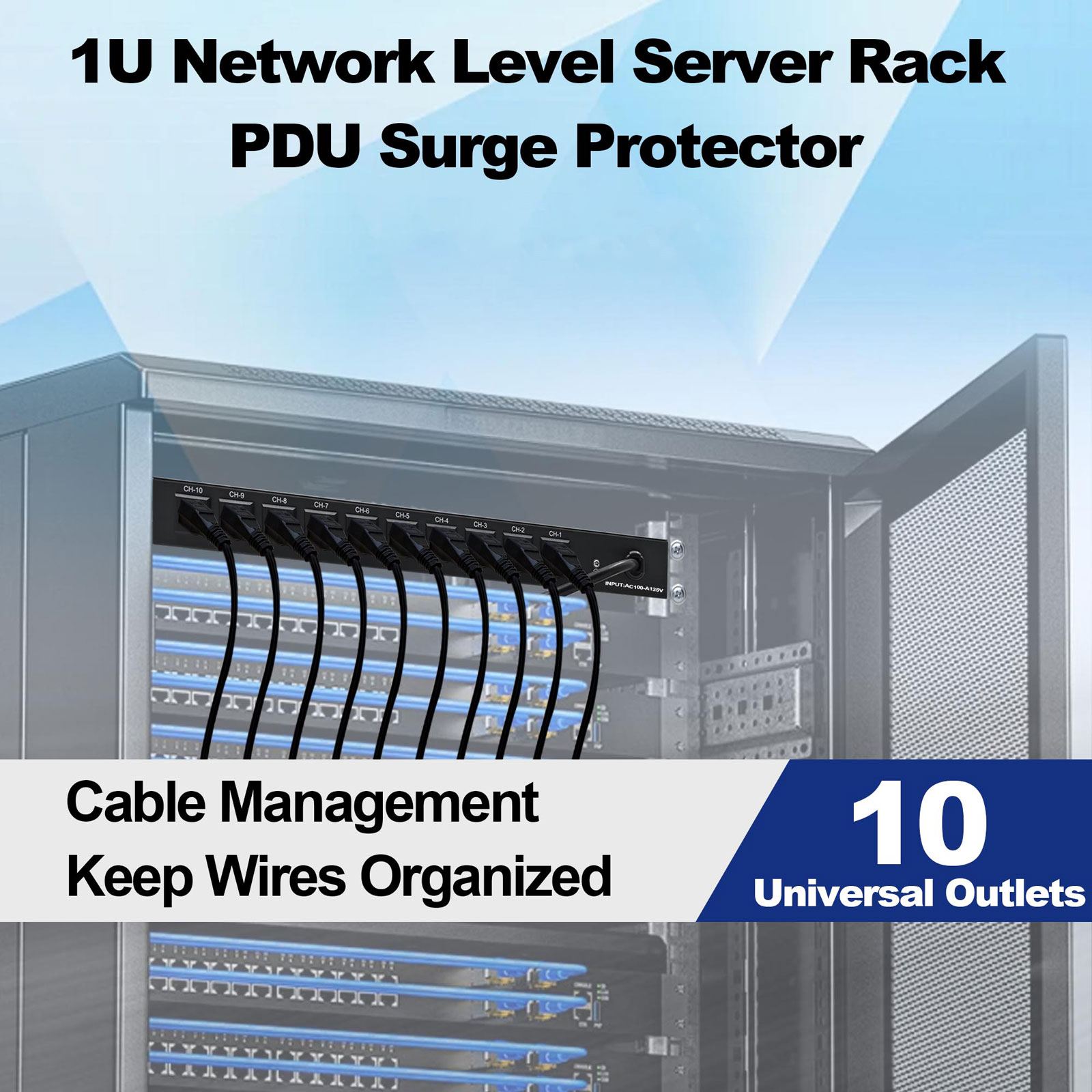

10 15A US AC sockets on the back
With Status indicator light

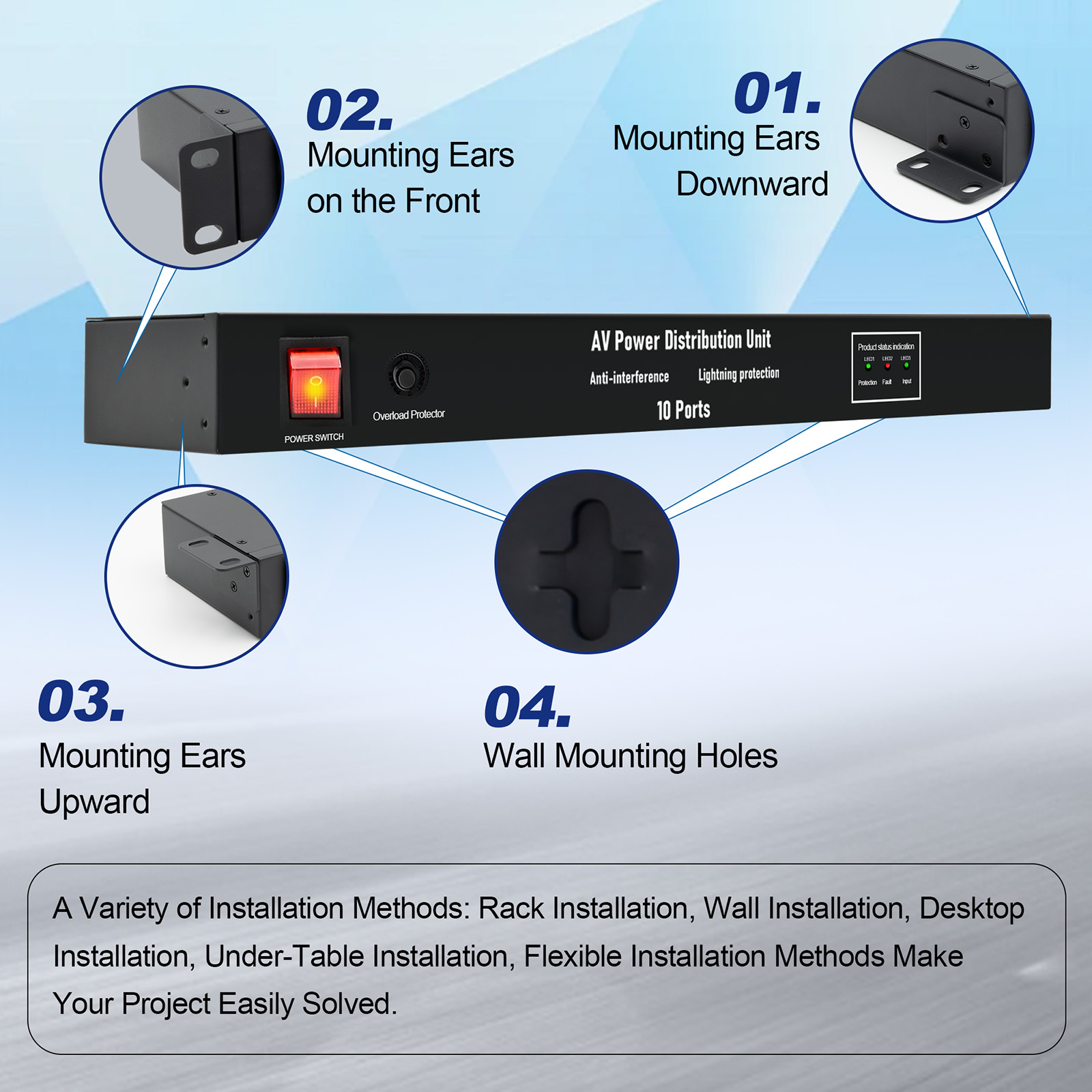

Multi-purpose mounting ear design
Specifications:
| Product | Power distribution unit |
| Input Voltage | AC100-240V, 60HZ |
| Input Cable | Configure as needed |
| Socket Type | NEMA 5-15R |
| Number of Socket | 10 Socket, One main control switch |
| Protection | Over current protection Lightning protection Anti interference, Temperature protection, SPD 10KA, 3600J |
| Status indicator light | All lights are always on when powered on, and the red light is off when there is a malfunction |
| Maximum Current | AC125 / 250V 15A |
| Product Size | 433*101*45mm |
| Enclosure | Metal shell gray black |
| Light | Status indicator light |
Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
