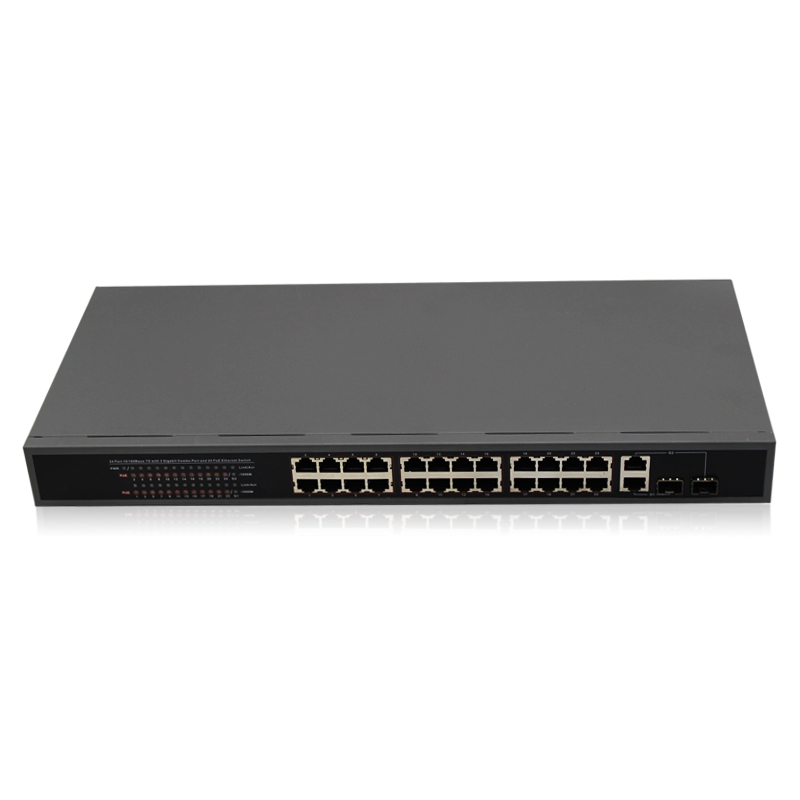

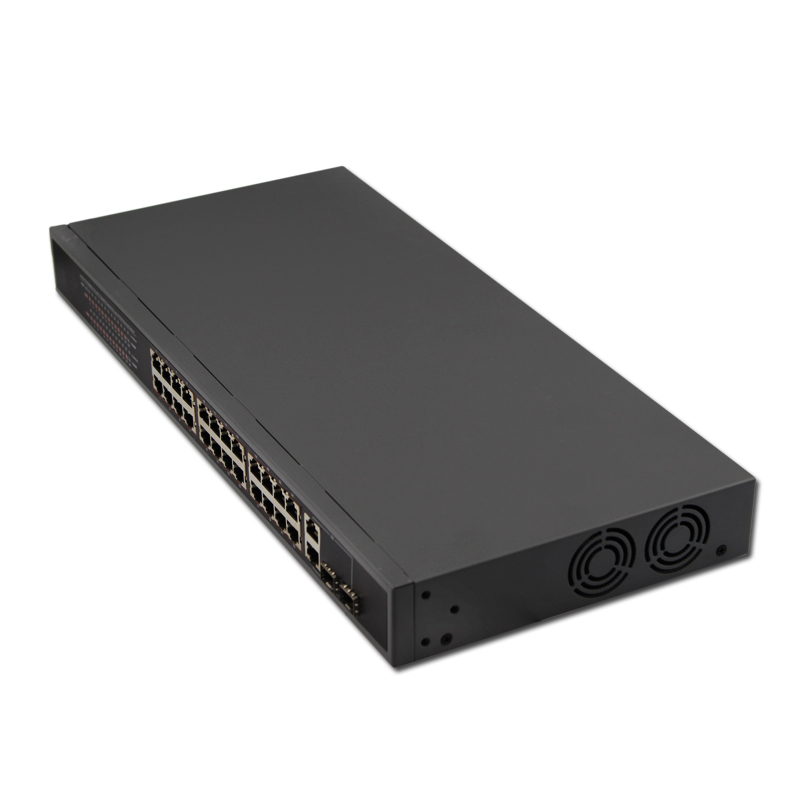

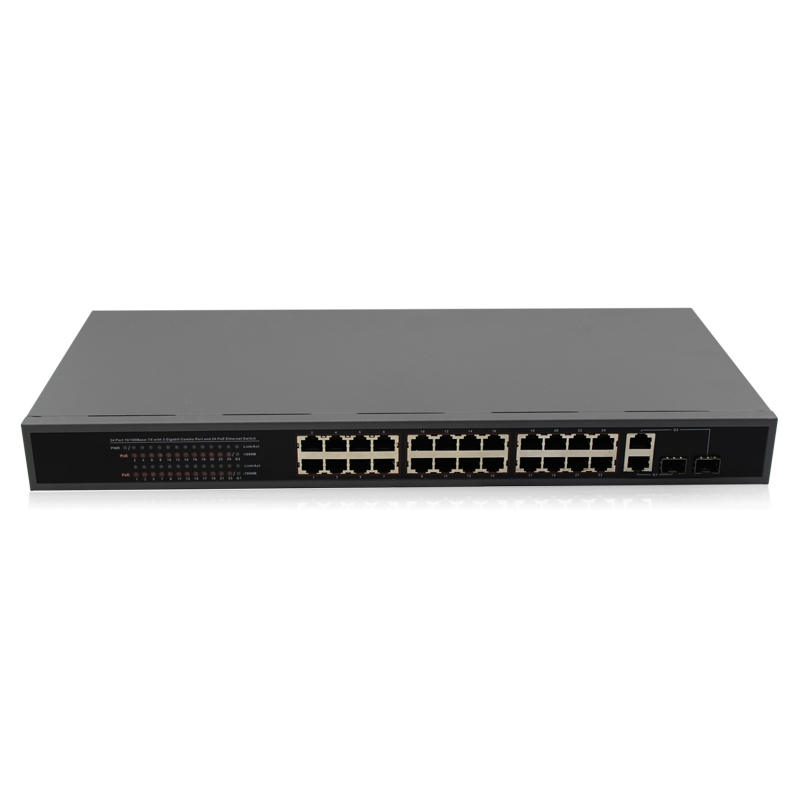

24RJ-45 10/100M ports+2 1000M SFP with 24 PoE Ports Unmanaged Switch

Brand CENTROPOWER
Model PoE-2026-24P-370W
Color Grey
Spec 24 PoE Ports Unmanaged Switch
0755-23200933
DetailFile

24RJ-45 10/100M ports+2 1000M SFP with 24 PoE Ports Unmanaged Switch


Description:

An unmanaged Fast-Ethernet switch, is designed for residential building in the corridor-level broadband switching equipment, for the edge of the access and LAN to provide high-quality network connections. Desk top style housing. It provides 8 10/100Base-TX ports. It provides 8 PoE Injector.

Features:

  • Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3af

  • Provides 16 10/100/1000Base-TX ports

  • Two Uplinks 10/100/1000M   Combo ports.

  • Provides 16 PoE injector and build in AC power

  • High back-plane bandwidth 8.8 Gbps

  • IEEE802.3x Flow control

  • Surge protection for power port and data ports

  • EMI standards complies with UL,FCC, CE class B

Specifications:

ItemDescription

Power

Power supplyExternal Power Adaptor
Voltage Range100~240VAC 50/60H
Consumption370W for 24PoE 1-24
EthernetSpeed

Port:10/100Mbps

G1 -G2.Gigabit Combo

Transmission Distance

1 OOMeter (328 ft) for RJ 45

2Km 20Km for SFP Port The optical module is optional

Network SwitchEthernet StandardIEEE 802.3/802 3u/802.3ab/802.3af/at
Switching capacity24+2G for 8. BG
Transfer Rate

14,880 pps for 10Mbps

148,800 pps for 100Mbps

148,8000 pps for 1000Mbps

MAC Address4K MAC address table
FunctionOnGreen200meters is start to work
LINK/ACTOnGreenThe port is connecting
Blinks-The port is receiving or transmitting data.
Off-   The port is not linked successfully with the device
POEOnOrangePD is connected
Off-No PD is connected or power forwarding fails
PoEpin assignmnetV+( Rj45 Pin 1, 2), V-(Rj45 Pin 3,6)
EnvironmentWorking Temperature0~40℃
Storage Temperature-40~70℃
Humidity Non condesing0~85 %
MechanicalDimension440 x 200 x 44mm
ColorGray
