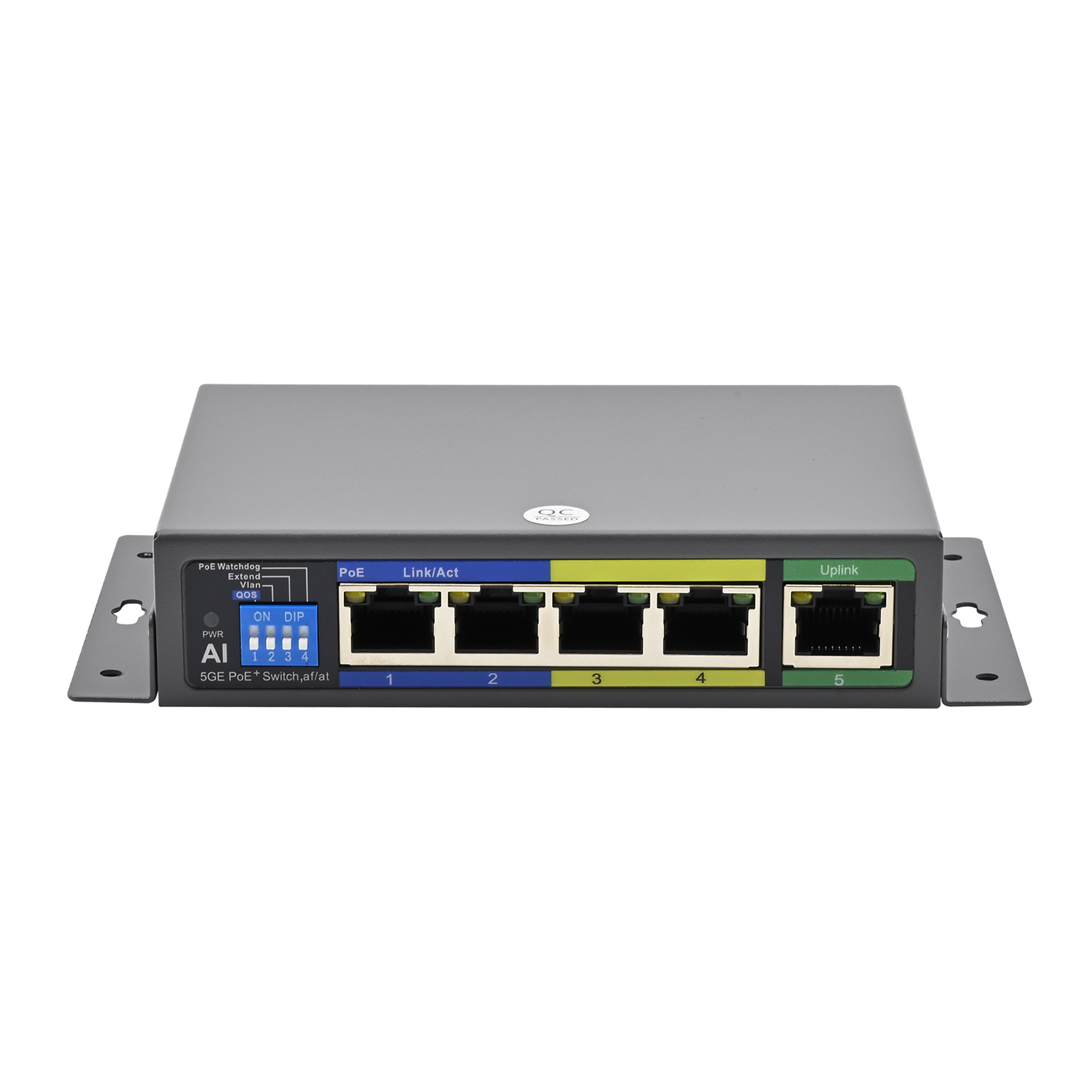

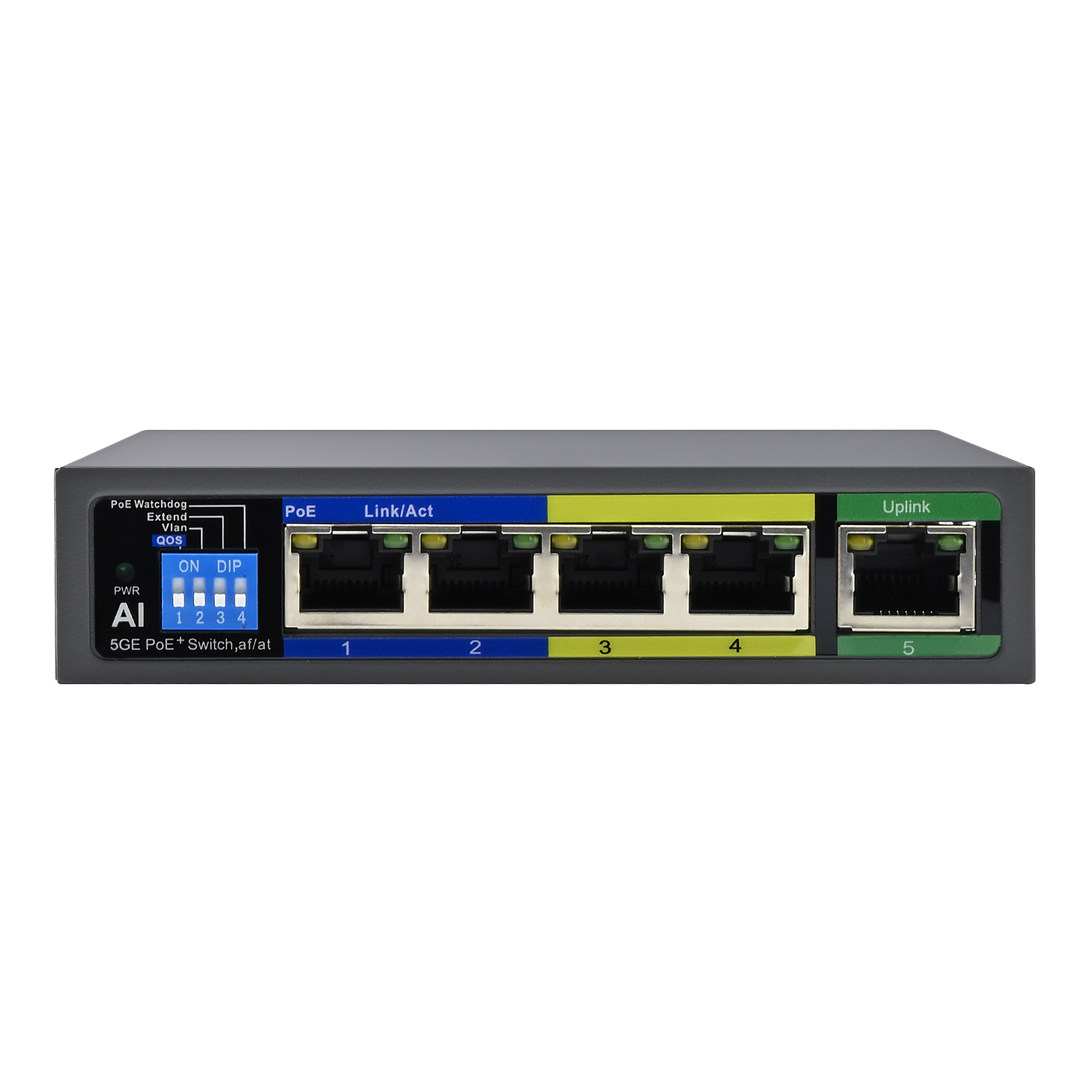

4Port AI Multifunction PoE Switch
- PoE Port: 4 10/100/1000Mbps RJ45 Port
- Uplink: 1 10/100Mbps or 10/100/1000Mbps RJ45
- 4DIP: AI PoE Watchdog, VLAN, Extend, QOS
- AI PoE Watchdog: 24hour AI detection
- VLAN: PoE port are isolated from each other
- Extend: PoE port extend to 250meters
- QOS: 2 PoE ports to set the priority
- Support IEEE 802.3af/at, Single Port Max.30W

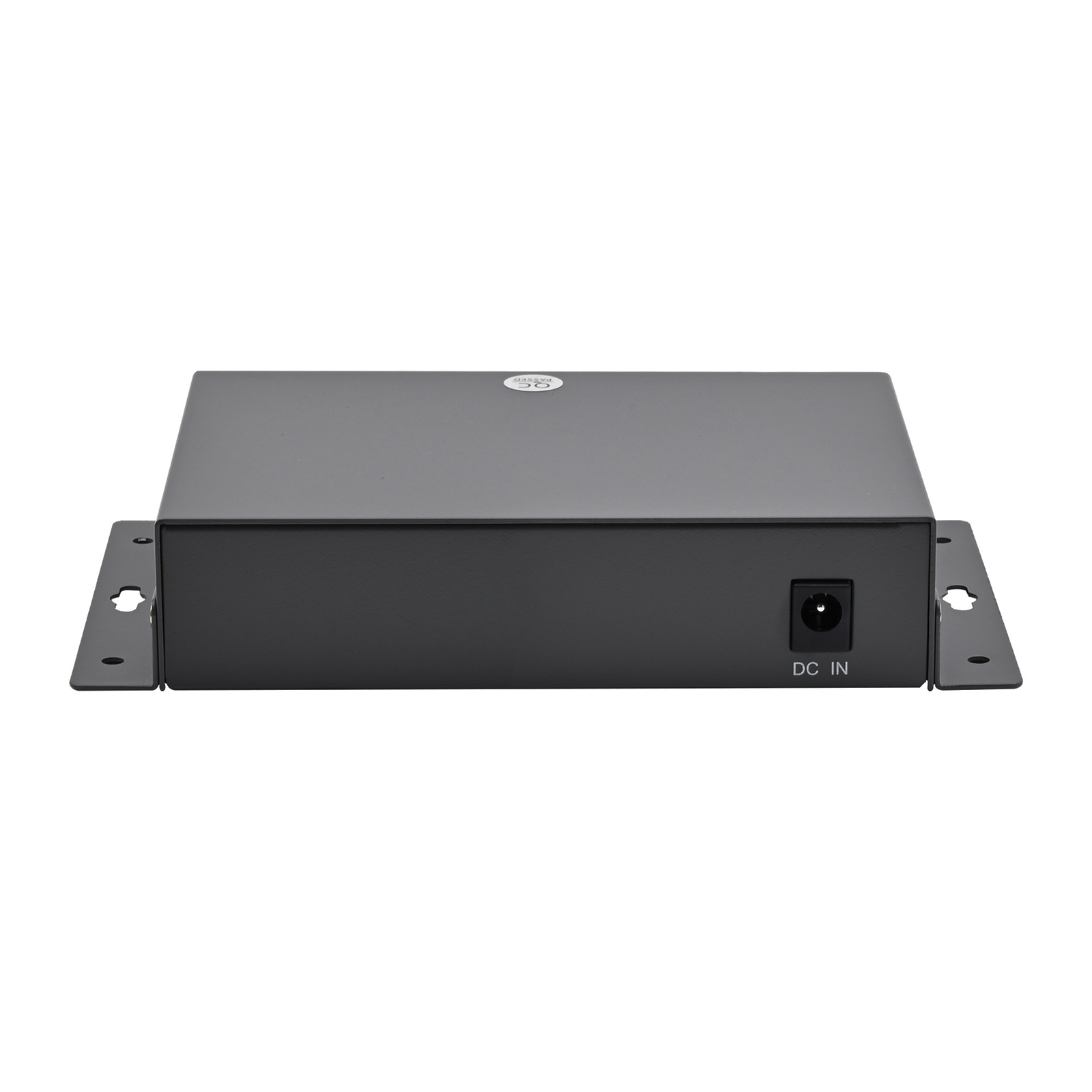

- With 65W Power Adaptor (Input 100-240VAC)

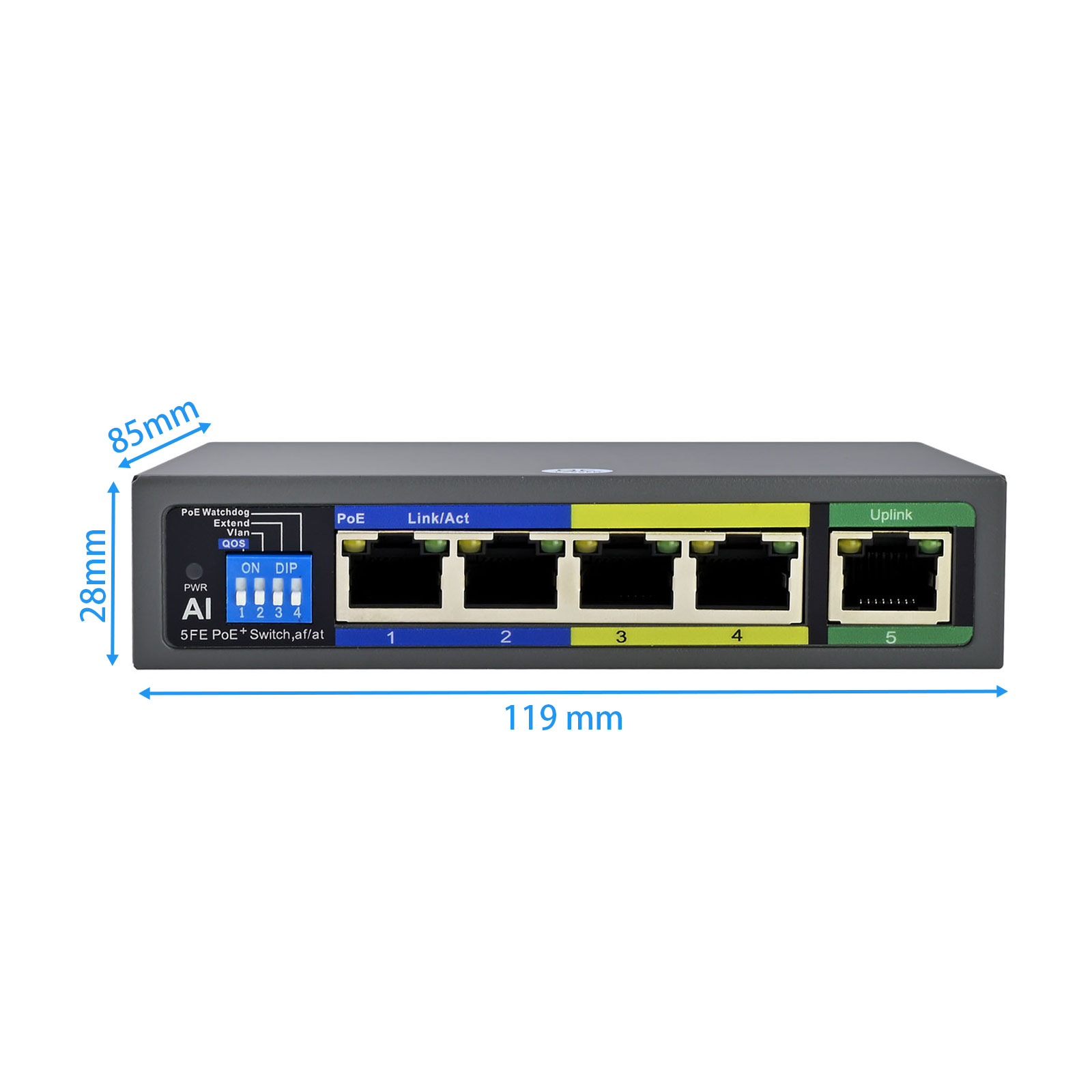

- Enclosure size: 119mm*85mm*28mm
- 4KV port surge
4GE + 1GE/4+1 AI Multifunction PoE Switch

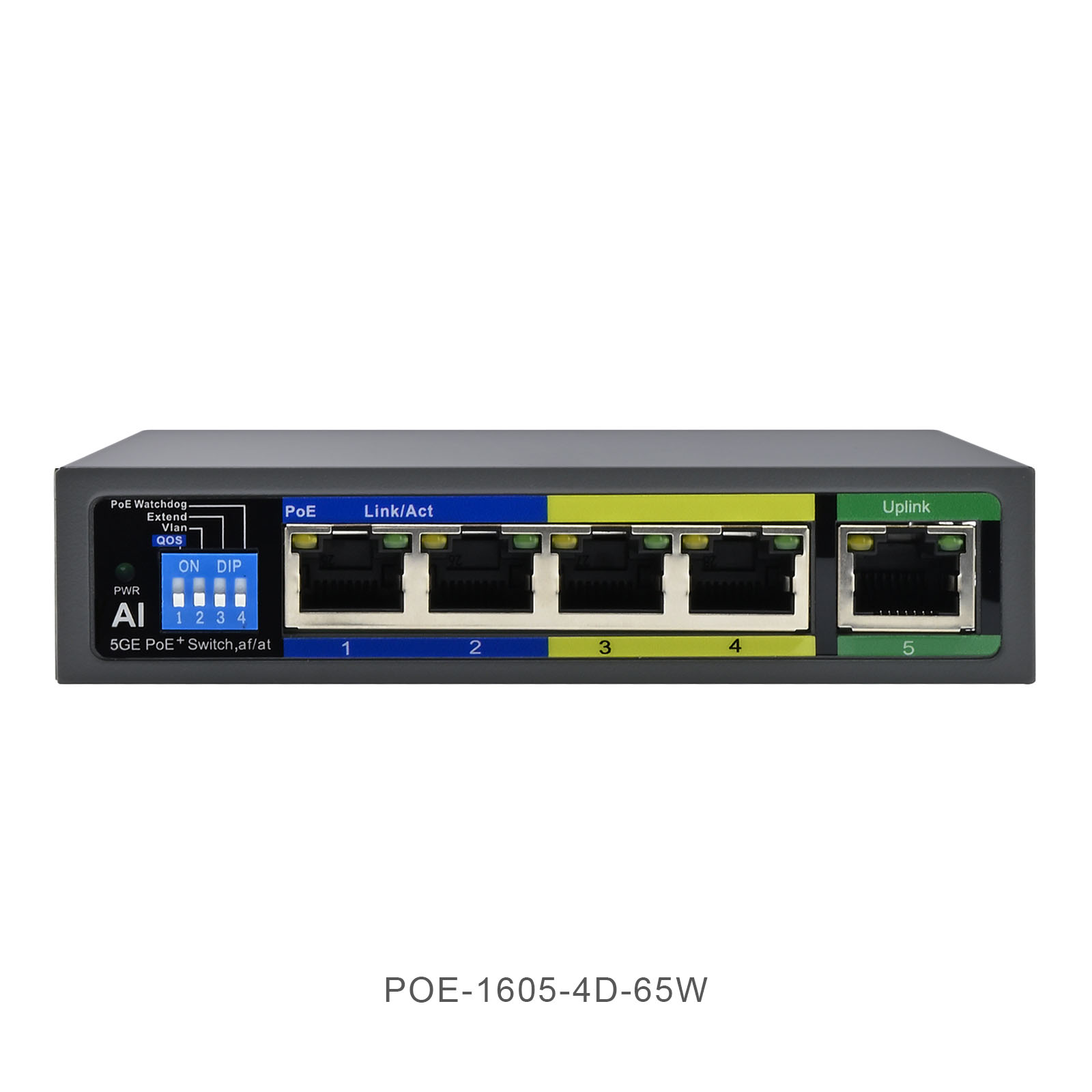

PoE-1605-4D-65W
Description:
5 Ports support 4 PoE Gigabit Ethernet Switch is a security monitoring Ethernet Switches are designed to Ethernet HD monitor security systems and Ethernet projects. The product is fully integrated with the characteristics of the security monitoring,providing fast packet forwarding capability, the product is fully gigabit transfer rates provide enough bandwidth to ensure clear images, smoothtransmission.Provide enough bandwidth demand for
high-definition video.
Features:
Conforms toIEEE802.3, IEEE 802.3u, IEEE 802.3ab,IEEE802.3af, IEEE802.3at
Provides 5 10/100/1000Base-T ports
Provides 4 PoE injector and 65W power adapter
High back-plane bandwidth 10Gbps
IEEE802.3x Flow control
Specifications:
| Item | Description | |
| Power | Power supply | External Power Adaptor |
| Voltage Range | DC48-57V | |
| Switch Consumption | <5W | |
| Ethernet | Speed | 1-5 Port: 10/100/1000Mbps |
Uplink: 10/100/1000Mbps | ||
| Transmission Distanc | 100Meter (328ft) | |
| Network Switch | Ethernet Standard | IEEE 802.3/802.3u/802.3ab/802.3af/at |
| Switching capacity | 10G | |
| Transfer Rate | 14,880pps for 10Mbps | |
| 148,800pps for 100Mbps | ||
| 148,8000pps for 1000Mbps | ||
| MAC Address | 2K MAC address table | |
| LINK/ACT | Blinks-- | The port is receiving or transmitting data |
| Off-- | The port is not linked successfully with the device | |
| POE | On-Green | PD is connected |
| Off-- | No PD is connected or power forwarding fails | |
| Capacity | 60W | |
| PoE pin assignmnet | V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6) | |
| Environment | Working Temperature | 0-40℃ |
| Storage Temperature | -40-70℃ | |
| Port surge | 4KV | |
| Humidity Non condesing | 0~90% | |
| Mechanical | Dimension | 119 x 85 x 28mm |
| Color | Gray | |

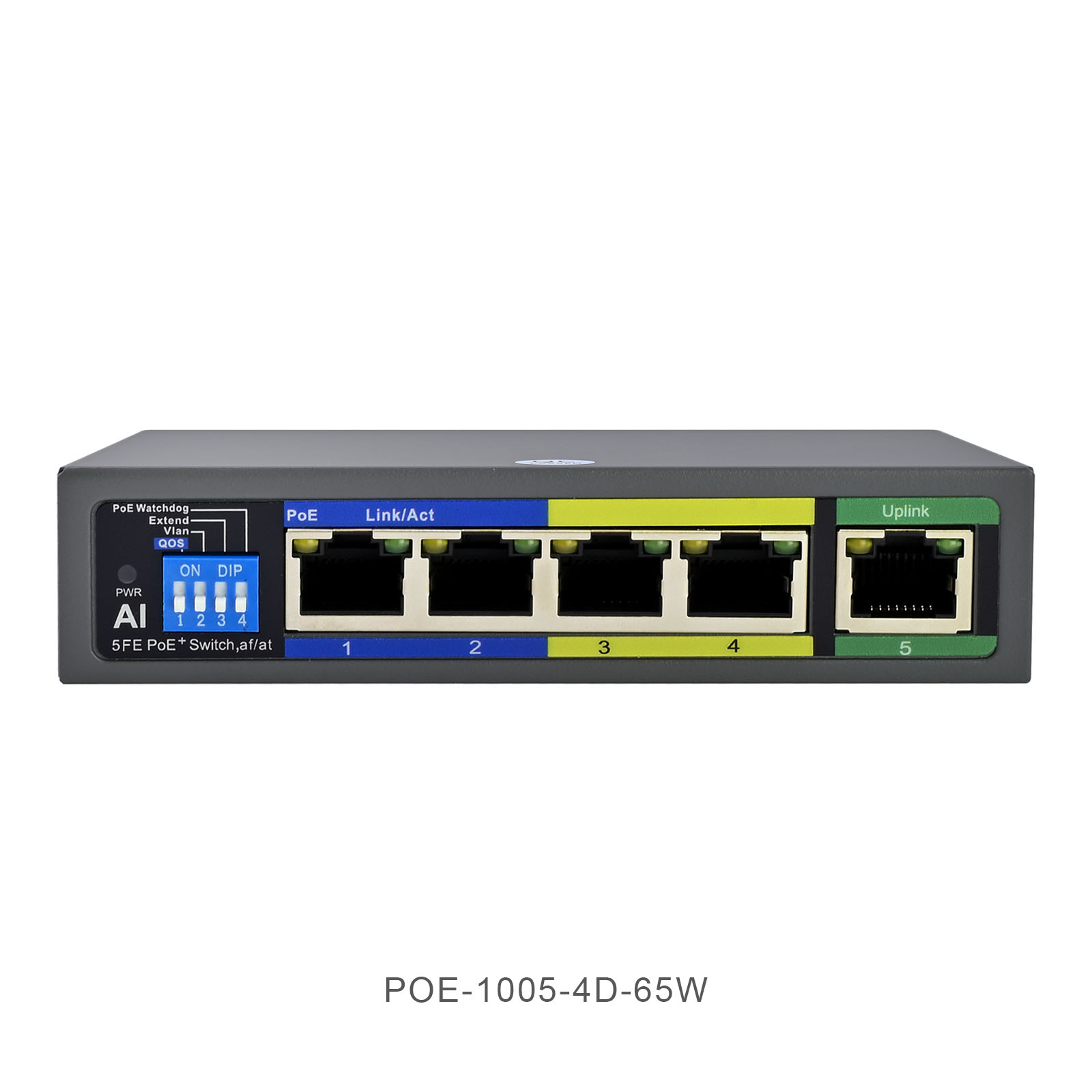

PoE-1005-4D-65W
Description:
4 ports PoE Ethernet Switch is a security surveillance Ethernet Switch which aims at Ethernethiah definit surveillance and Ethernet proiect security svstem Th, e product fully combines thecharacteristics of security surveillance, provides fast packet forwarding ability and abundantbackplane bandwidth, which ensures clear image and fuent transmission. The product supportsone key model, can achieve VLAN, control the Net storm, protect the information security, preventthe viral transmission and Ethernet attack, fully satisfy the Ethernet video security surveillancesystem and Ethernet project needs.
Features:
Conforms to lEEE802.3,IEEE802.3af,IEEE802.3at
Provides 5 x 10/100Base-TX ports
Provides 4 PoE injector and 60W power adapter
High back-plane bandwidt 1Gbps
IEEE802.3x Flow control
Surge protection for power port and data ports
Specifications:
| Item | Description | |
| Power | Power supply | External Power Adaptor |
| Voltage Range | DC48-57V | |
| Switch Consumption | <3W | |
| Ethernet | Speed | 1-4 Port: 10/100Mbps |
Uplink: 10/100Mbps | ||
| Transmission Distanc | 1-4port 100Meters with 100pbs 200Meters with 10Mbps Uplink:100Meter with 100Mpbs | |
| Network Switch | Ethernet Standard | IEEE 802.3/802.3u/802.3af/802.3at |
| Switching capacity | 1G | |
| Transfer Rate | 14,880pps for 10Mbps | |
| 148,800pps for 100Mbps | ||
| MAC Address | 2K MAC address table | |
| LINK/ACT | Blinks-- | The port is receiving or transmitting data |
| Off-- | The port is not linked successfully with the device | |
| POE | On-Green | PD is connected |
| Off-- | No PD is connected or power forwarding fails | |
| Capacity | 57W | |
| PoE pin assignmnet | V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6) | |
| Environment | Working Temperature | 0-40℃ |
| Storage Temperature | -40-70℃ | |
| Humidity Non condesing | 0~90% | |
| Mechanical | Dimension | 119 x 85 x 28mm |
| Color | Gray | |
