8Port AI Multifunction PoE Switch
- PoE Port: 8 10/100Mbps or 10/100/1000Mbps RJ45
- Uplink: 2 Gigabit RJ45 or 1GE1GF
- 4DIP: AI PoE Watchdog, VLAN, Extend, QOS
- AI PoE Watchdog: 24hour AI detection
- VLAN: PoE port are isolated from each other
- Extend: PoE port extend to 250meters
- QOS: 2 PoE ports to set the priority
- Support IEEE 802.3af/at, Single Port Max.30W
- With 125W Power Adaptor (Input 100-240VAC)
- Enclosure size: 190mm*100mm*28mm
- 4KV port surge
8 + 2 AI Multifunction PoE Switch

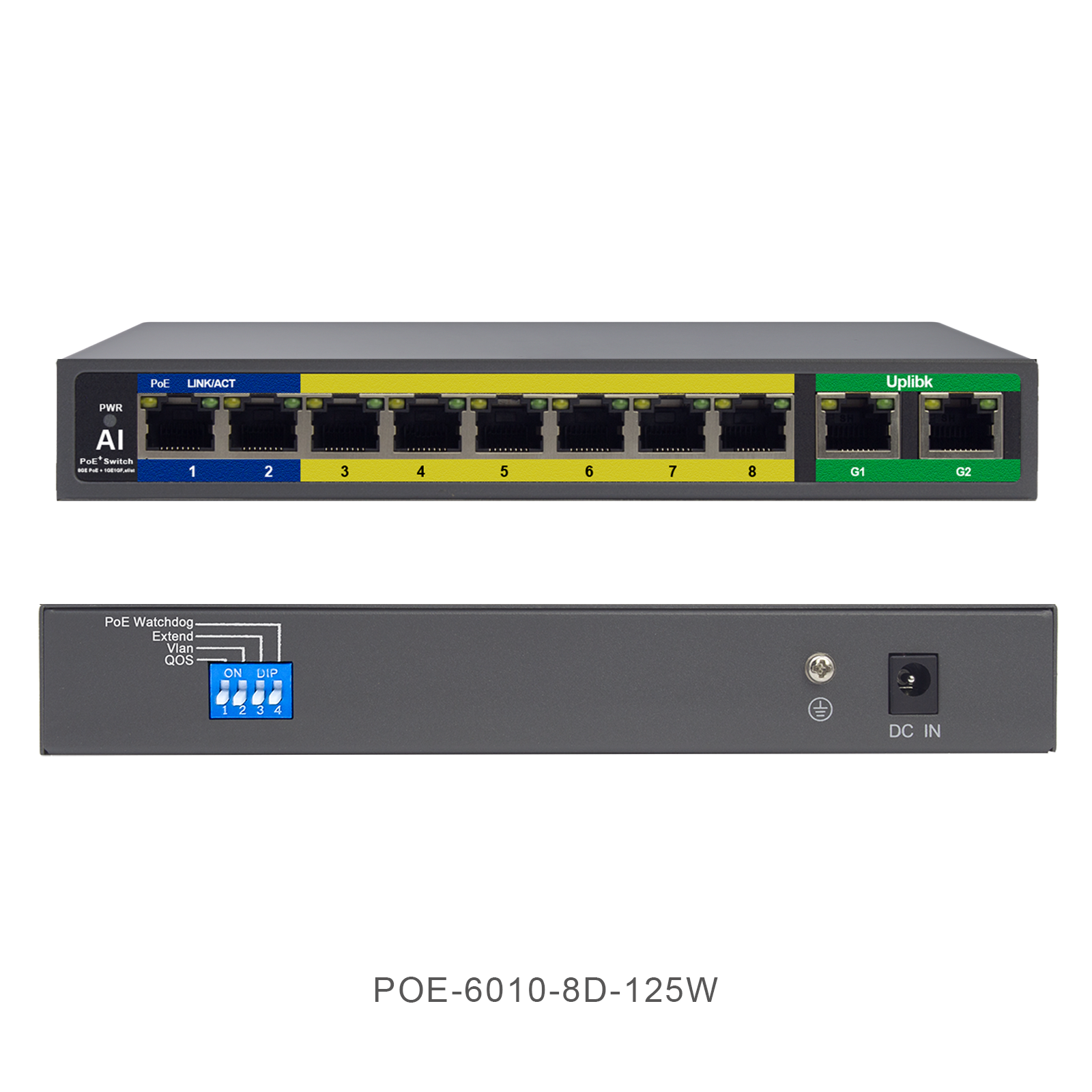

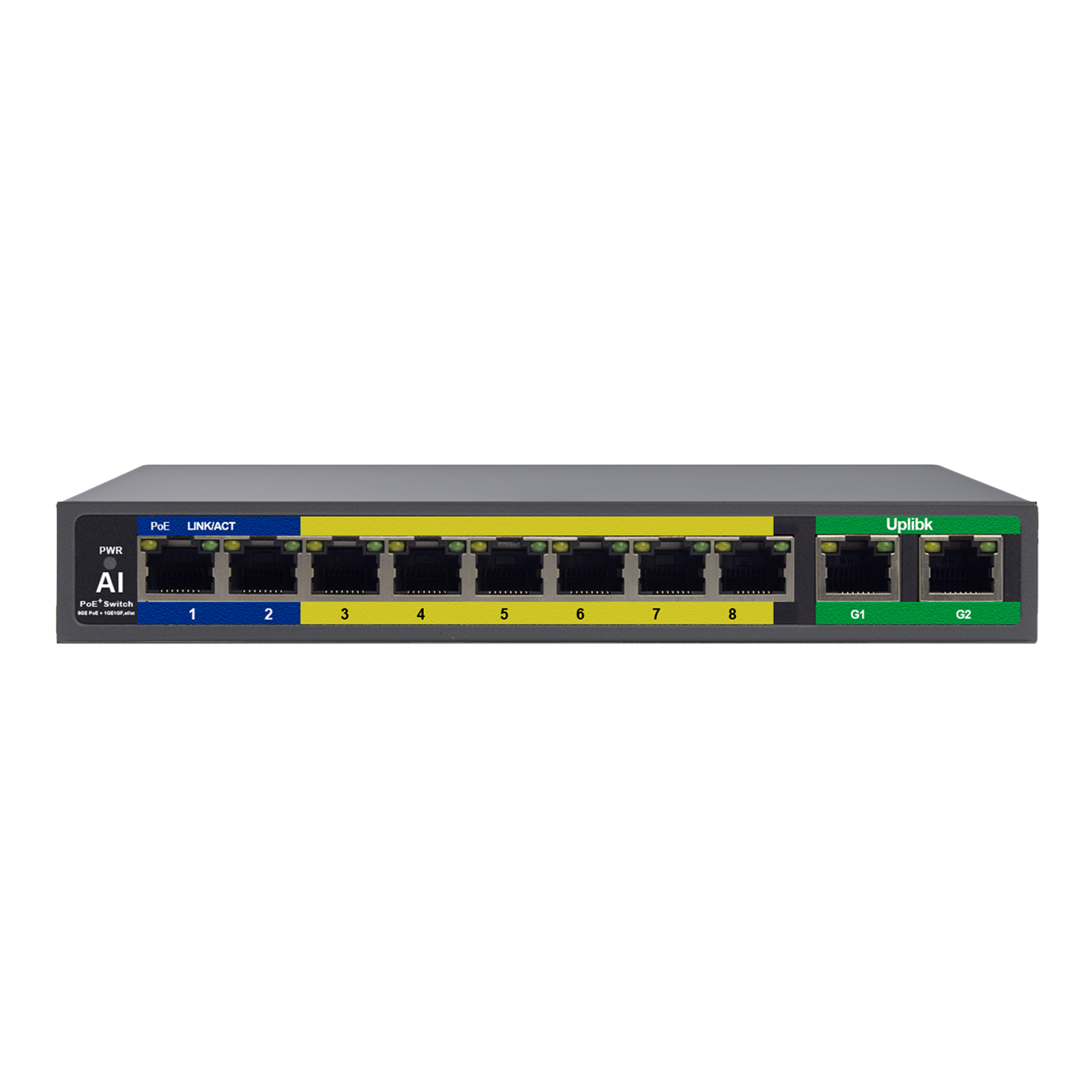

PoE-6010-8D-125W
Description:
8 ports 10/100Mbps + 2 10/100/1000Mbps with 8PoE Ethernet Switch is a security surveillanceEthernet Switch which aims at Ethemet high-def surveillance and Ethernet project security systemThe product fully combines the characteristics of security surveillance, provides fast packetforwarding ability and abundant backplane bandwidth, which ensures clear image and fluenttransmission. The product supports one key VLAN+ Extender model, Port1~8 working at 10MbpsTransmission distance can be extended to 250 m (with cable and camera related).
Features:
Conforms to lEEE802.3,IEEE 802.3u,IEEE802.3af, IEEE802.3at
Provides 8 10/100Base-TX ports and 2 10/100/1000 Base-T ports
Provides 8 PoE injector and 12oW power adapter
High back-plane bandwidth 5.6Gbps
IEEE802.3x Flow control
Surge protection for power port and data ports
Specifications:
| Item | Description | |
| Power | Power supply | External Power Adaptor |
| Voltage Range | DC48-57V | |
| Switch Consumption | <6W | |
| Ethernet | Speed | 1-8 Port: 10/100Mbps |
| Uplink: 10/100/1000Mbps | ||
| Transmission Distanc | 1~8 port 100Meters with 100Mbps, 200Meters with 10Mbps | |
Uplink: 100Meter with 1000Mpbs | ||
| Network Switch | Ethernet Standard | IEEE 802.3, IEEE 802.3i/u, IEEE 802.3ab, IEEE 802.3af/at |
| Switching capacity | 5.6G | |
| Transfer Rate | 14,880pps for 10Mbps | |
| 148,800pps for 100Mbps | ||
| 148,8000pps for 1000Mbps | ||
| MAC Address | 4K MAC address table | |
| G1, G2 | On-Green/Orange | The port is connecting, Orange is 10/100Mbps, Green is 1000Mbps |
| LINK/ACT | On-Green | The port is connecting |
| Blinks-- | The port is receiving or transmitting data | |
| Off-- | The port is not linked successfully with the device | |
| POE | On-Green | PD is connected |
| Off-- | No PD is connected or power forwarding fails | |
| PoE pin assignment | V+(RJ45 Pin 1,2), V-(RJ45 Pin 3.6) | |
| Capacity | 114W | |
| Environment | Working Temperature | 0-40℃ |
| Storage Temperature | -40-70℃ | |
| Humidity Non condensing | 0~90% | |

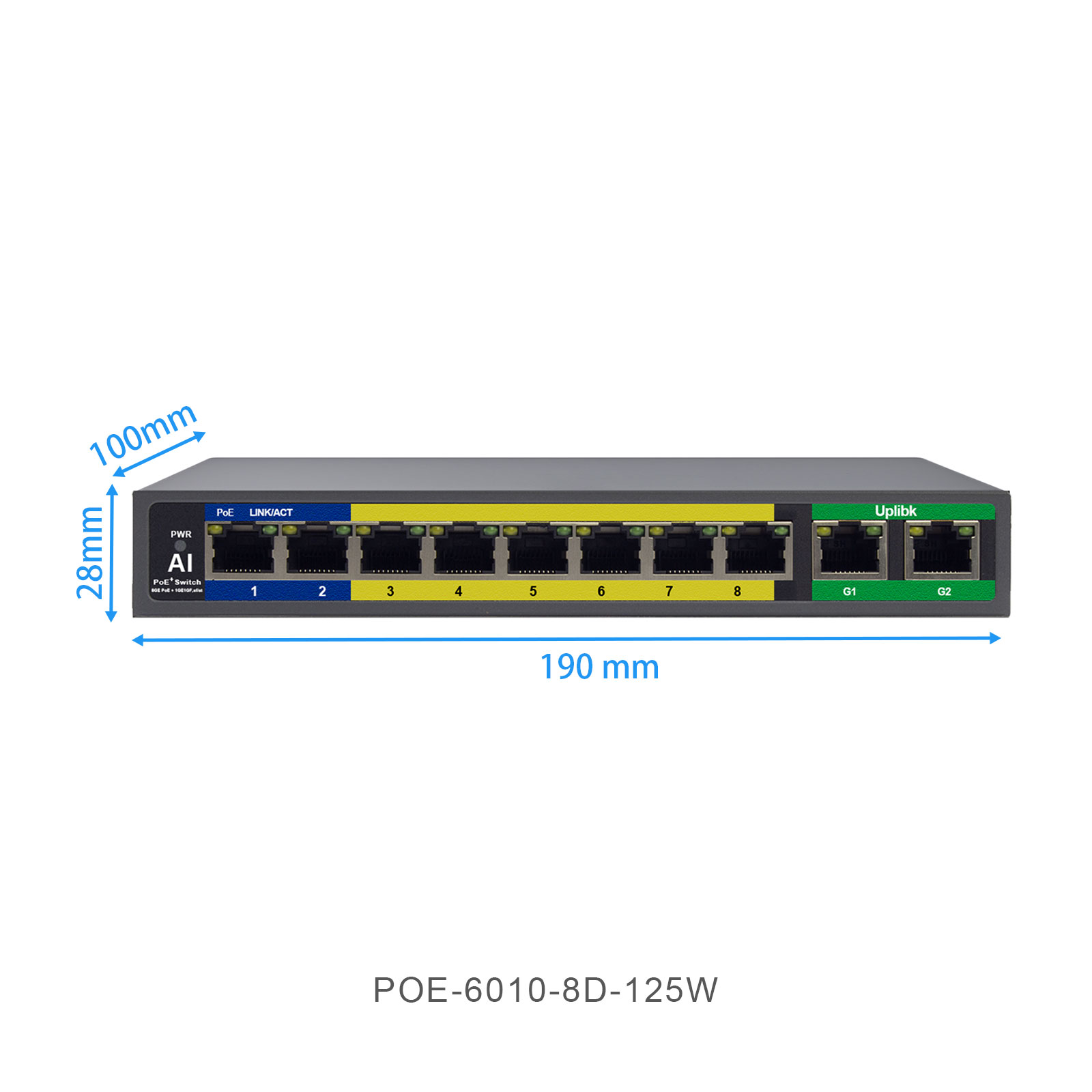

| Mechanical | Dimension | 190 x 100 x 28mm |
| Color | Gray | |

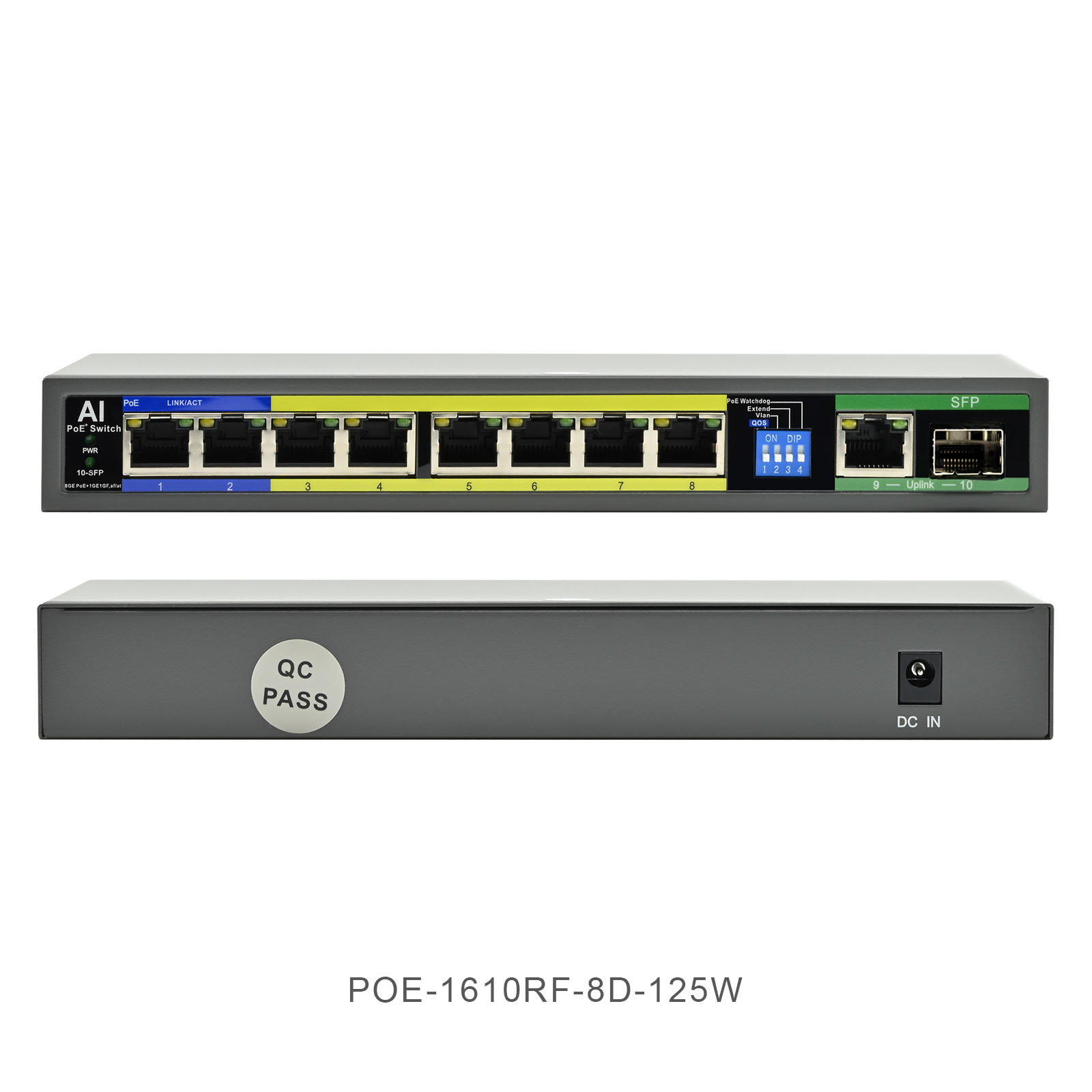

PoE-1610RF-8D-125W
Description:
9 ports 10/100/1000Mbps+1 Gigabit SFP with 8 PoE Ethernet Switch is a security monitoring Ethernet Switches are designed to Ethernet HD monitor security systems and Ethernet projects. Theproduct is fully integrated with the characteristics of the security monitoring,providing fast packet forwarding capability, the product is fully gigabit transfer rates provide enough bandwidth to ensure clear images, smooth transmission. Provide enough bandwidth demand for high-definition video.
Features:
Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab,IEEE802.3af, IEEE802.3at
9 10/100/1000Base-T ports +1 Gigabit SFP
Provides 8 PoE injector and 125W power adapter
High back-plane bandwidth 20Gbps
IEEE802.3x Flow control
Specifications:
| Item | Description | |
| Power | Power supply | External Power Adaptor |
| Voltage Range | DC48-57V | |
| Switch Consumption | <6W | |
| Ethernet | Speed | 1-8Port: 10/100/1000Mbps |
| 1TP+ 1SFP Uplink:1000Mbps | ||
| Network Switch | Ethernet Standard | IEEE 802.3x/IEEE 802.3/802.3u/802.3ab/802.3af/at |
| Switching capacity | 20G | |
| Transfer Rate | 14,880pps for 10Mbps | |
| 148,800pps for 100Mbps | ||
| 148,8000pps for 1000Mbps | ||
| MAC Address | 4K MAC address table | |
| LINK/ACT | On-Green | The port is connecting |
| Blinks-- | The port is receiving or transmitting data | |
| Off-- | The port is not linked successfully with the device | |
| POE | On-Green | PD is connected |
| Off-- | No PD is connected or power forwarding fails | |
| Capacity | 119W | |
| Environment | Working Temperature | 0-40℃ |
| Storage Temperature | -40-70℃ | |

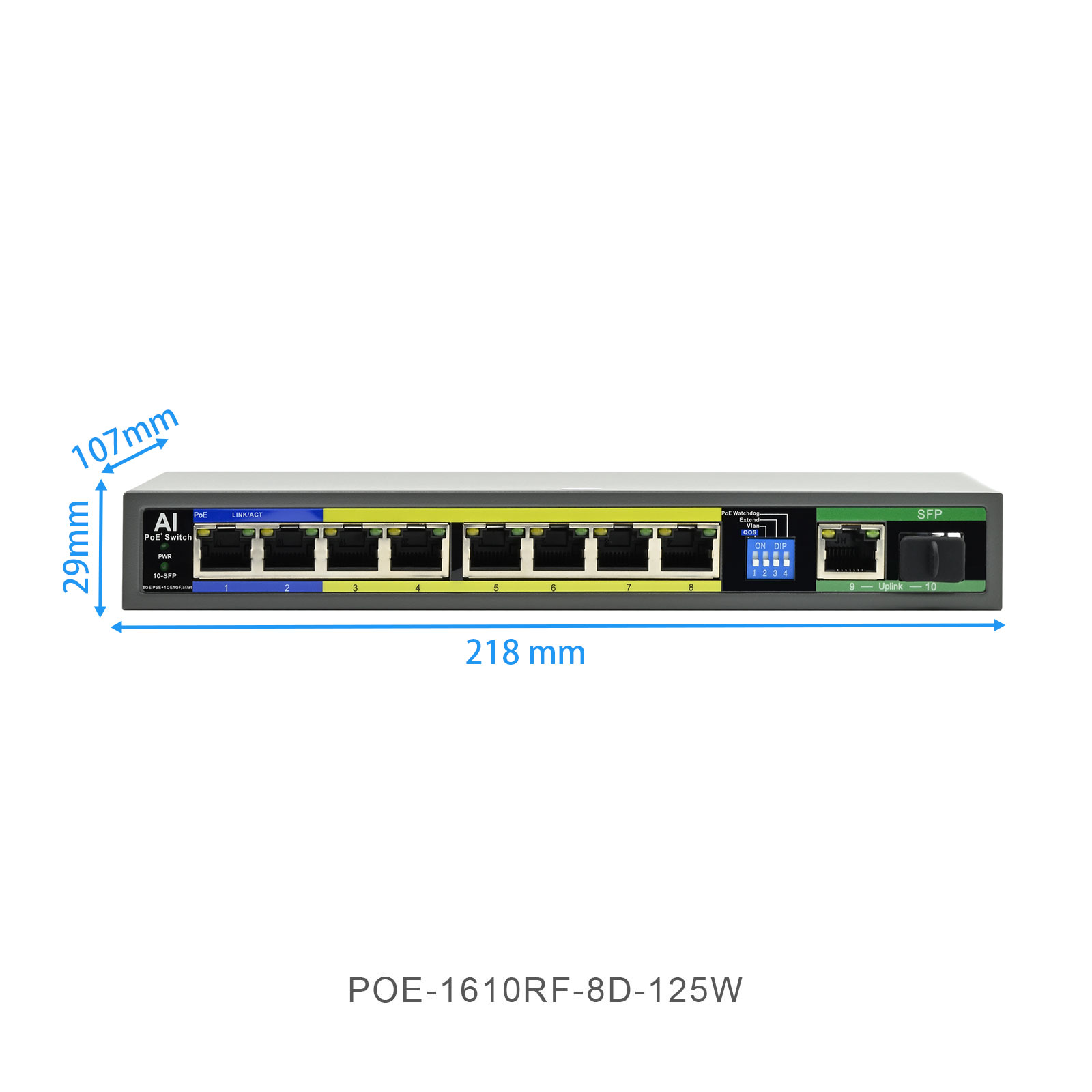

| Mechanical | Dimension | 218 x 107 x 29mm |
| Color | Gray | |
