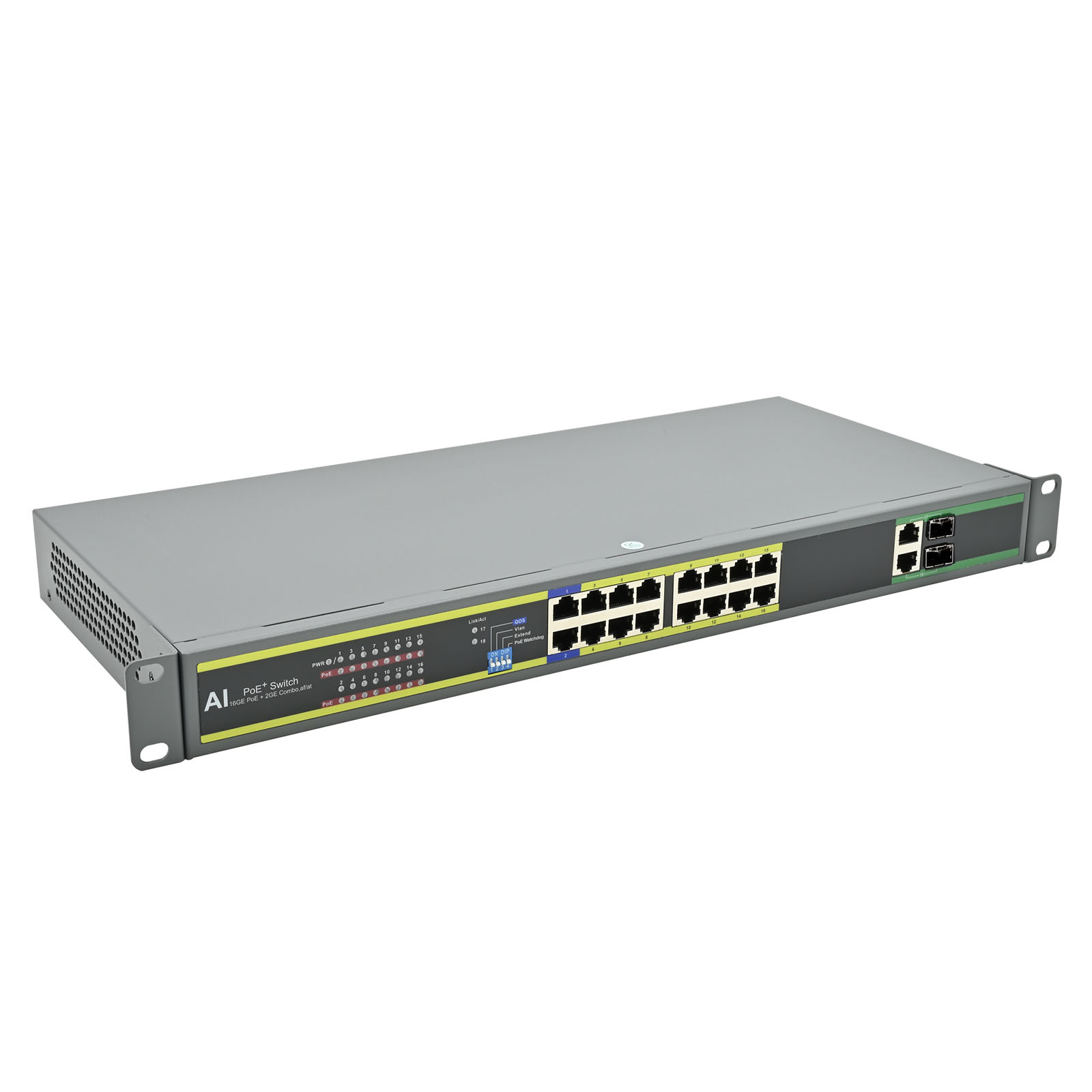

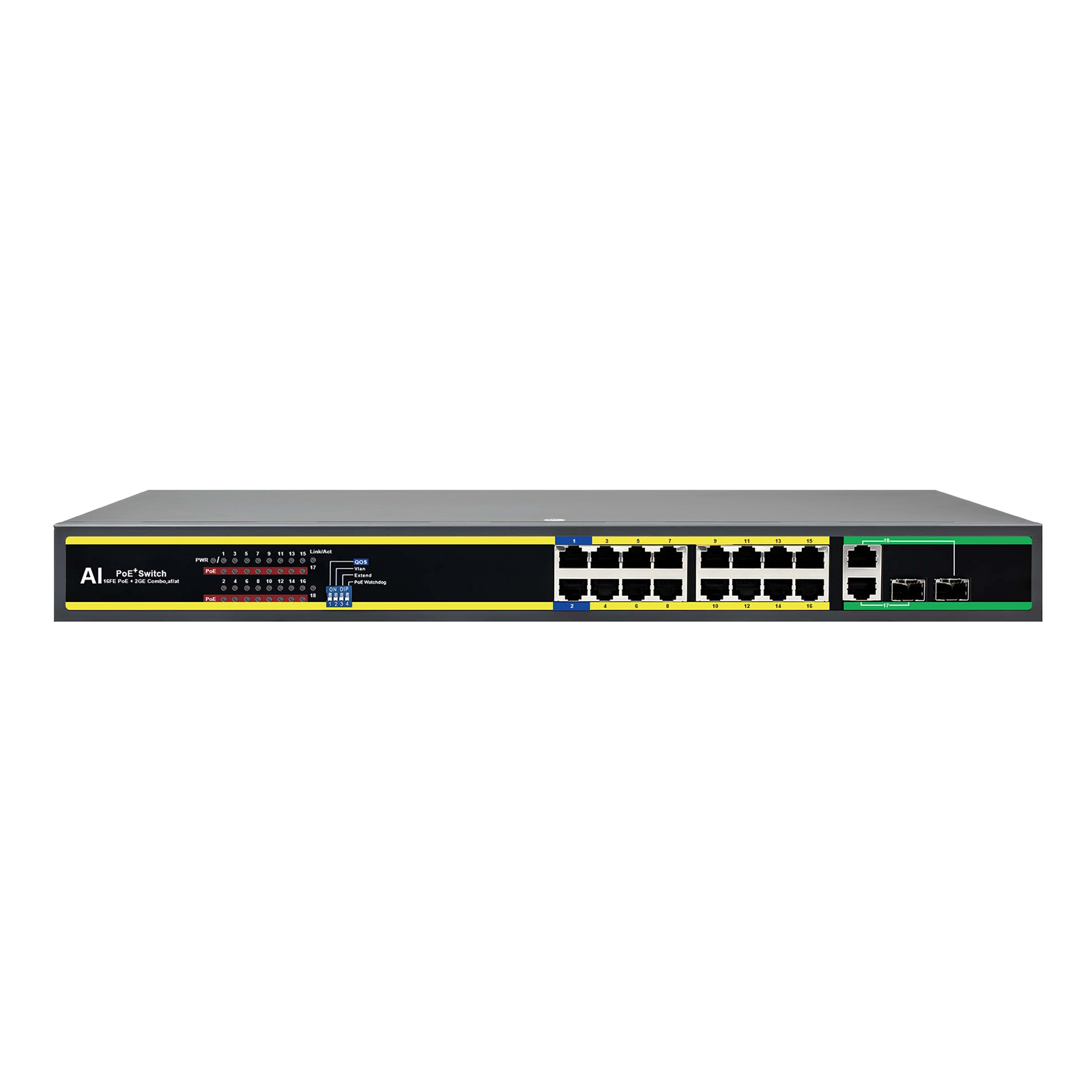

16Port AI Multifunction PoE Switch
- PoE Port: 16 10/100Mbps or 10/100/1000Mbps RJ45
- Uplink: 2 Gigabit Combo Port
- 4DIP: AI PoE Watchdog, VLAN, Extend, QOS
- AI PoE Watchdog: 24hour AI detection
- VLAN: PoE port are isolated from each other
- Extend: PoE port extend to 250meters
- QOS: 2 PoE ports to set the priority
- Support IEEE 802.3af/at, Single Port Max.30W
- Built-in Power (Input 100-240VAC)

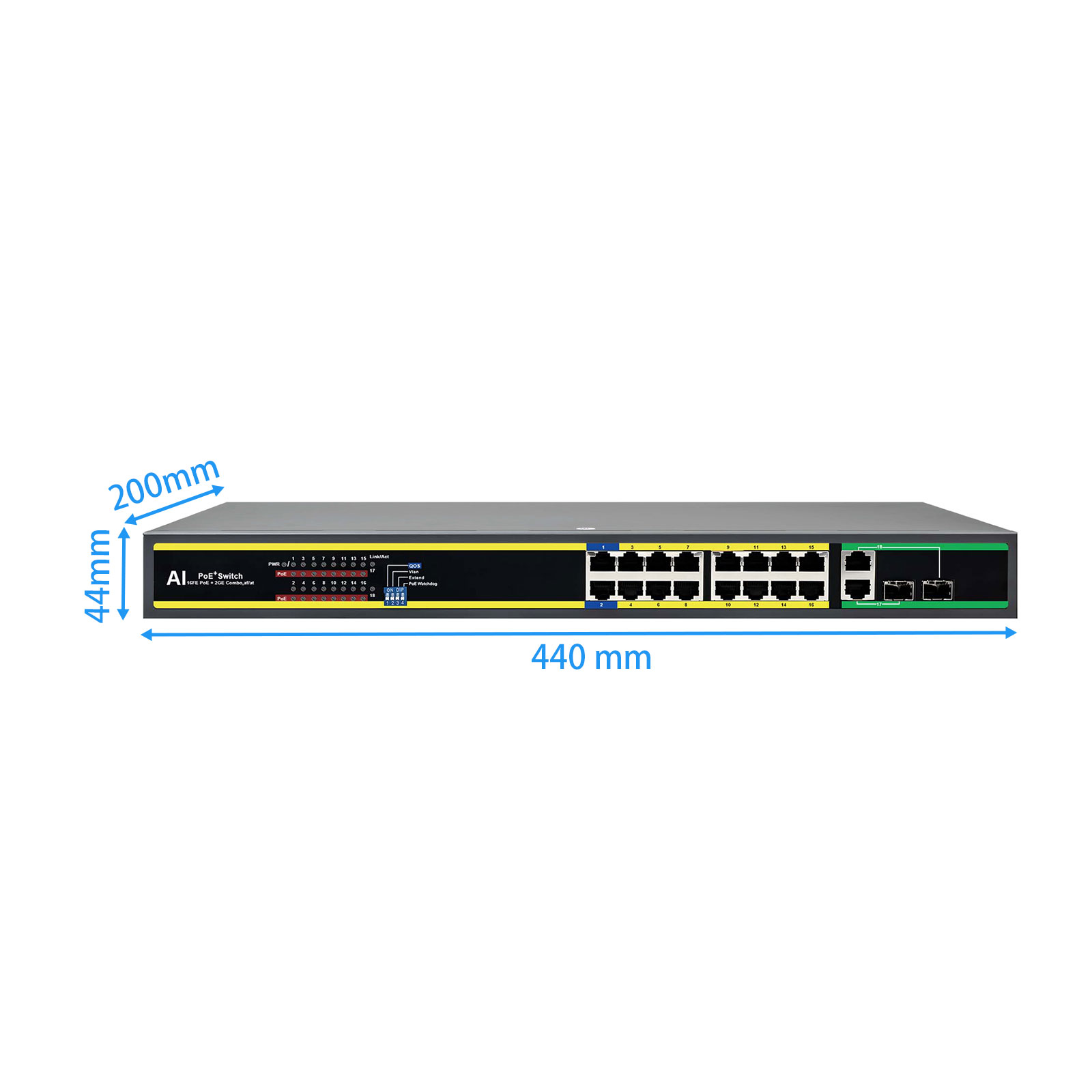

- Enclosure size: 440mm*200mm*44mm
- 6KV port surge
16 + 2 AI Multifunction PoE Switch

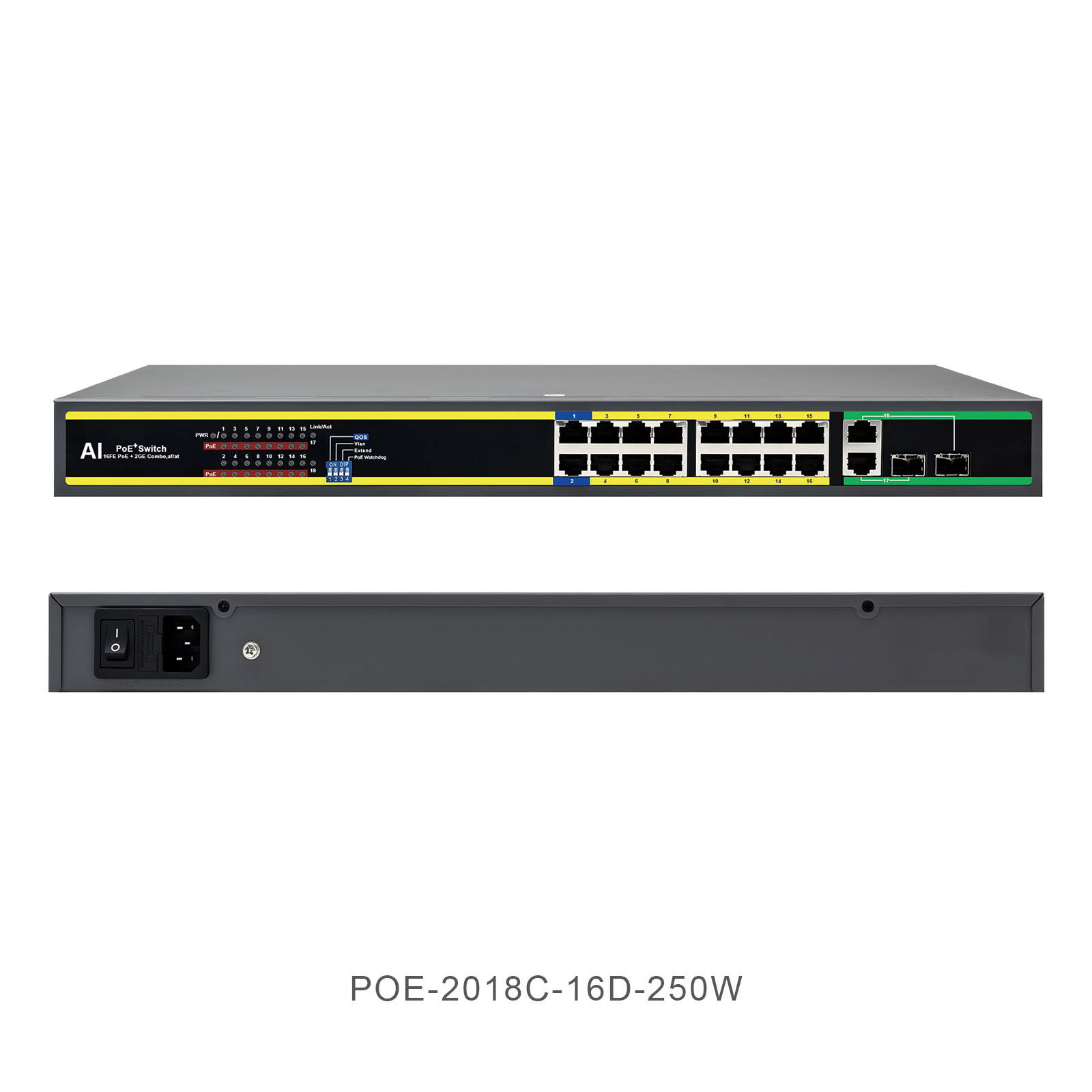

PoE-2018C-16D-250W
Description:
16 Ports support 16 PoE Gigabit Ethernet Switchis asecurity monitoring Ethernet Switches are designed to Ethernet HD monitor security systems and Ethernet projects.The product is fullyintegrated with the characteristics ofthe security monitoringprovi-ding fast packet forwarding capability, the product is fully gigabit transferrates p -ovide enough bandwidth to ensure clearimages, smooth transmission.Provide en-ough bandwidth demand for high-definition video.
Features:
Conforms to IEEE802.3, IEEE 802.3i, IEEE 802.3u, IEEE802.3ab, IEEE 802.3z,IEEE802.3af/at
Provides 16 10/100/1000Base-T ports and 2 Gigabit Combo
Provides 16 PoE injector and 250W Built-in power supply
High back-plane bandwidth 36Gbps
EEE802.3xFlow control
Specifications:
| Item | Description | |
| Power | Power supply | Built-in power supply |
| Voltage Range | DC100-240V | |
| Consumption | 250W for 16 PoE | |
| Ethernet | Speed | 1~16 Port: 10/100/1000Mbps 17~18: Gigabit Combo |
| Transmission Distanc | 100Meter(328ft)for RJ-45 2Km 20Km for SFP Port The optical module is optional | |
| Network Switch | Ethernet Standard | IEEE 802.3/IEEE 802.3i/802.3u/802.3ab/802.3z/802.3af/at |
| Switching capacity | 36G | |
| Transfer Rate | 14,880pps for 10Mbps | |
| 148,800pps for 100Mbps | ||
| 148,8000pps for 1000Mbps | ||
| MAC Address | 8K MAC address table | |
| LINK/ACT | On-Green | The port is connecting |
| Blinks-- | The port is receiving or transmitting data | |
| Off-- | The port is not linked successfully with the device | |
| POE | On-Green | PD is connected |
| Off-- | No PD is connected or power forwarding fails | |
| PoE pin assignmnet | V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6) | |
| Environment | Working Temperature | 0-40℃ |
| Storage Temperature | -40-70℃ | |
| Humidity Non condesing | 0~90% | |
| Mechanical | Dimension | 440x200x44mm |
| Color | Gray | |

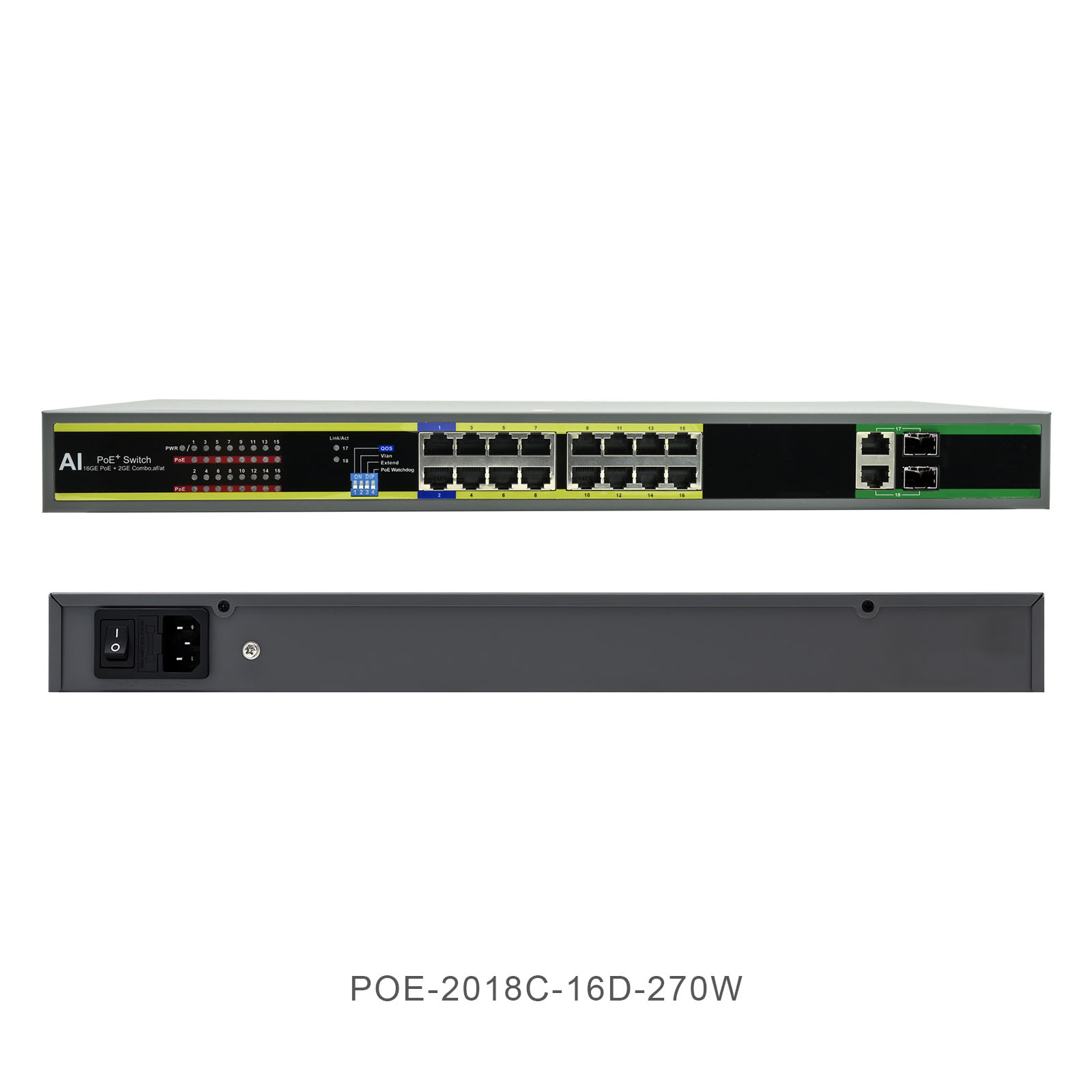

PoE-2018C-16D-270W
Description:
16 Ports support 16 PoE Gigabit EthernetSwitch is asecurity monitoring EthernetSwitches are designed to Ethernet HD monitor security systems and Ethernet projectsThe product is fullyintegrated with the characteristics ofthe security monitoring,provi-ding fast packet forwarding capability, the product is fully gigabit transferrates p rovide enough bandwidth to ensure clearimages,smooth transmission.Provide en-ough bandwidth demand for high-definition video.
Features:
Conforms to IEEE802.3, IEEE 802.3i, IEEE 802.3u,IEEE802.3ab, IEEE 802.3z，IEEE802.3af/at
Provides 16 10/10011000Base-T ports and 2 Gigabit Combo
Provides 16 PoE injector and 270W Built-in power supply
High back-plane bandwidth 36Gbps
IEEE802.3x Flow control
Specifications:
| Item | Description | |
| Power | Power supply | Built-in power supply |
| Voltage Range | DC100-240V | |
| Switch Consumption | 270W for 16 PoE | |
| Ethernet | Speed | 1~16 Port: 10/100/1000Mbps 17~18: Gigabit Combo |
100Meter(328ft)for RJ-45 2Km 20Km for SFP Port The optical module is optional | ||
| Network Switch | Ethernet Standard | IEEE802.3, IEEE 802.3i, IEEE 802.3u,IEEE802.3ab, IEEE 802.3z，IEEE802.3af/at |
| Switching capacity | 36G | |
| Transfer Rate | 14,880pps for 10Mbps | |
| 148,800pps for 100Mbps | ||
| 148,8000pps for 1000Mbps | ||
| MAC Address | 8K MAC address table | |
| LINK/ACT | On-Green | The port is connecting |
| Blinks-- | The port is receiving or transmitting data | |
| Off-- | The port is not linked successfully with the device | |
| POE | On-Green | PD is connected |
| Off-- | No PD is connected or power forwarding fails | |
| PoE pin assignmnet | V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6) | |
| Environment | Working Temperature | 0-40℃ |
| Storage Temperature | -40-70℃ | |
| Port surge | 6KV | |
| Humidity Non condesing | 0~90% | |
| Mechanical | Dimension | 440x200x44mm |
| Color | Gray | |
