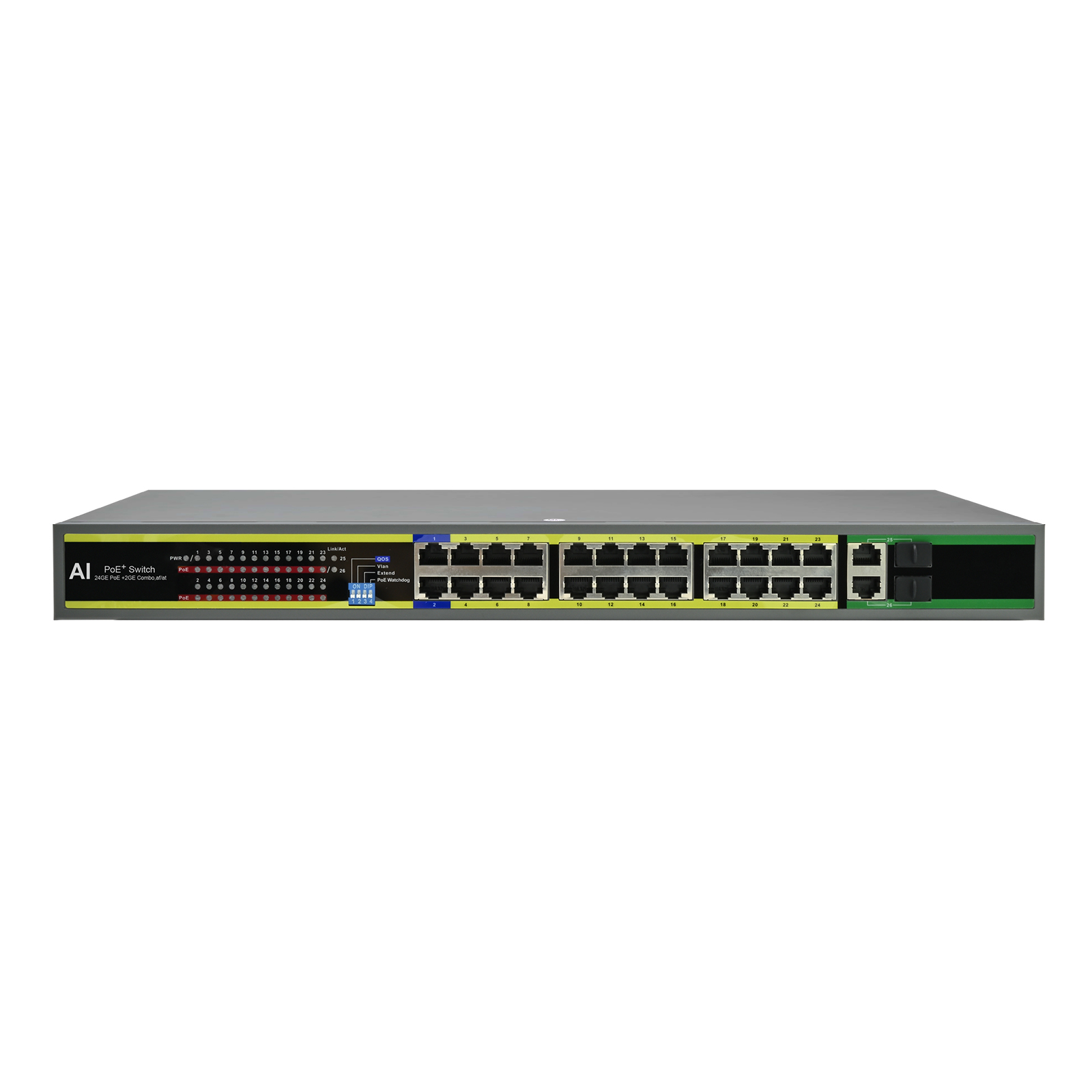

24Port AI Multifunction PoE Switch
- PoE Port: 24 10/100Mbps or 10/100/1000Mbps RJ45
- Uplink: 2 Gigabit Combo Port (2 RJ45/SFP)
- 4DIP: AI PoE Watchdog, VLAN, Extend, QOS
- AI PoE Watchdog: 24hour AI detection
- VLAN: PoE port are isolated from each other
- Extend: PoE port extend to 250meters
- QOS: 2 PoE ports to set the priority
- Support IEEE 802.3af/at, Single Port Max.30W
- 400W Built-in Power (Input 100-240VAC)

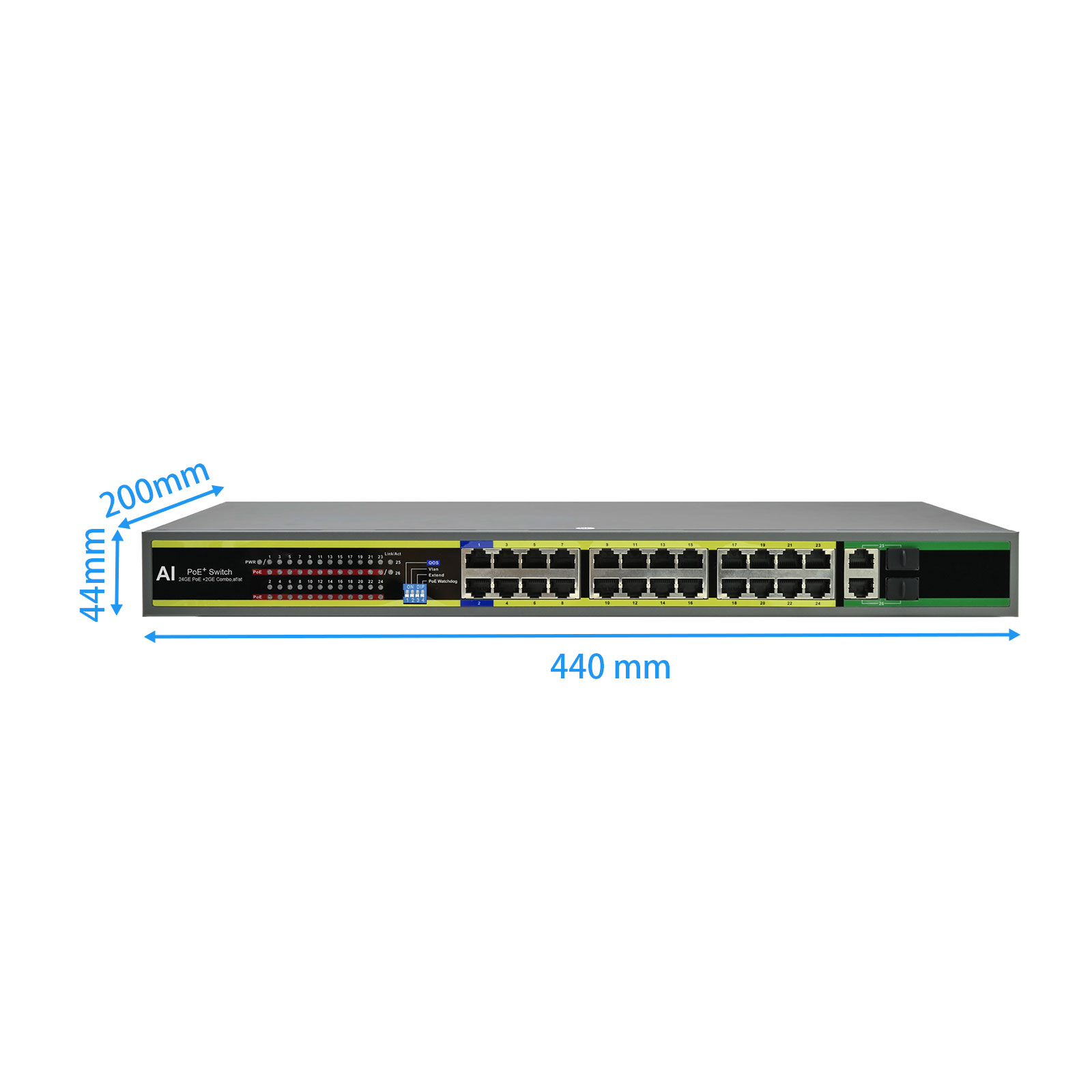

- Enclosure size: 440mm*200mm*44mm
- 6KV port surge
24 PoE Port AI Muitlfunction Switch

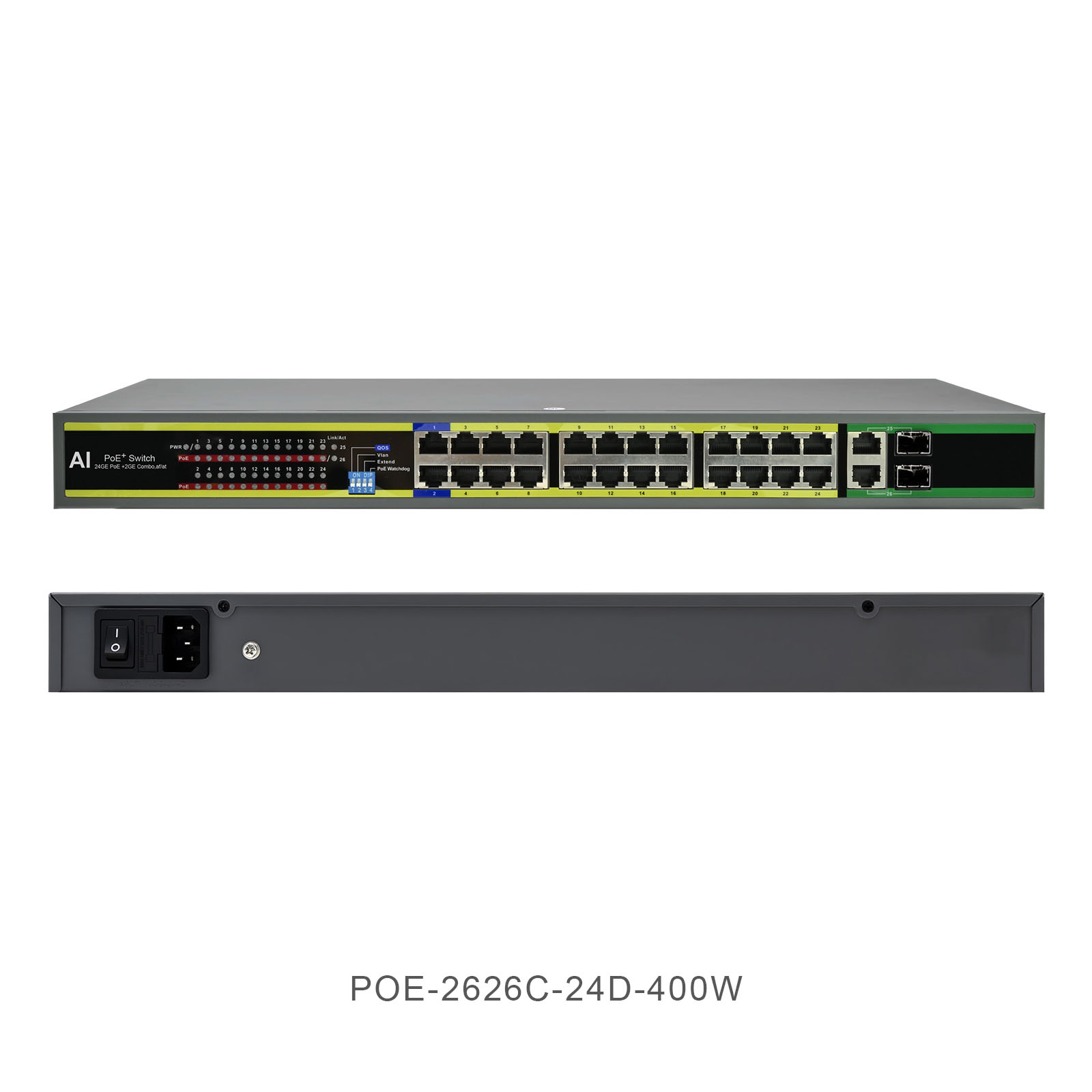

PoE-2626C-24D-400W
Description:
24 Ports support 24 PoE Ethernet Switch is a security monitoring Ethernet Switches are designed to Ethernet HD monitor security systems and Ethernet projects.
Features:
The switch supports one key function conversion, currently supports five modes, normal mode, VLAN mode, Extend mode.
- The switch supports one key function conversion, currently supports five modes, normal mode, VLAN mode, Extend mode, WATCHDOG mode, QOS mode
- Normal: Normal mode, no special function (Normal mode all switch down)VLAN : 1-24 port will not communicate with each other only communicate with uplink port. It will control the Net storm, protect the information security.
- Extension: the 1-24 ports communicate with each other and with the uplink ports; the 1-24 ports can transmit 250 m with Cat5e / 6 cable or better
- WATCHDOG:WATCHDOG The network port has a link but for 2-3 minutes with no data transmission, restart the POE port. Originally has already had LINK but disconnected for 2-3 minutes without link, restart the POE port.
- QOS: QOS is the specified port with port data priority, priority is higher than other ports, other ports data priority is equal. For example, 8 ports and 1-2 ports specify the priority, then the data forwarding of these two ports has a higher priority than the other ports, so the data of these two ports are preferentially forwarded
Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab,IEEE802.3af, IEEE802.3at
- Provides 24 10/100/1000Base-T ports and 2 Gigabit Combo
- Provides 24 PoE injecto「 and 400W Built-in power supply
- High back-plane bandwidth 52 Gbps
- IEEE802.3x Flow control
Specifications:
| Item | Description |
| PoE Ports | 24 |
| Special Functions of the built-in MCU | |
QOS | √ |
| PoE Watchdog | √ |
| Extend | √ |
| VLAN | √ |
| Input voltage | 100V～240V AC，50/60Hz |
| Power consumption | 400W |
| Operating temperature | 0℃～40℃. |
| Storage temperature | -40℃～70℃. |
| Relative humidity | 0~90% |
| Switching capacity | 52G |
| MAC address table | 8K |
| Traffic control | IEEE 802.3x full-duplex flow control |
| PoE Standard | IEE802.3af, IEEE802.3at, per port 30W(MAX) |
Surge Protection | 6 KV: IEC61000-4-5 |
| PoE port | 24 10/100/1000Mbps RJ45 |
| PoE pin assignment | V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6) |

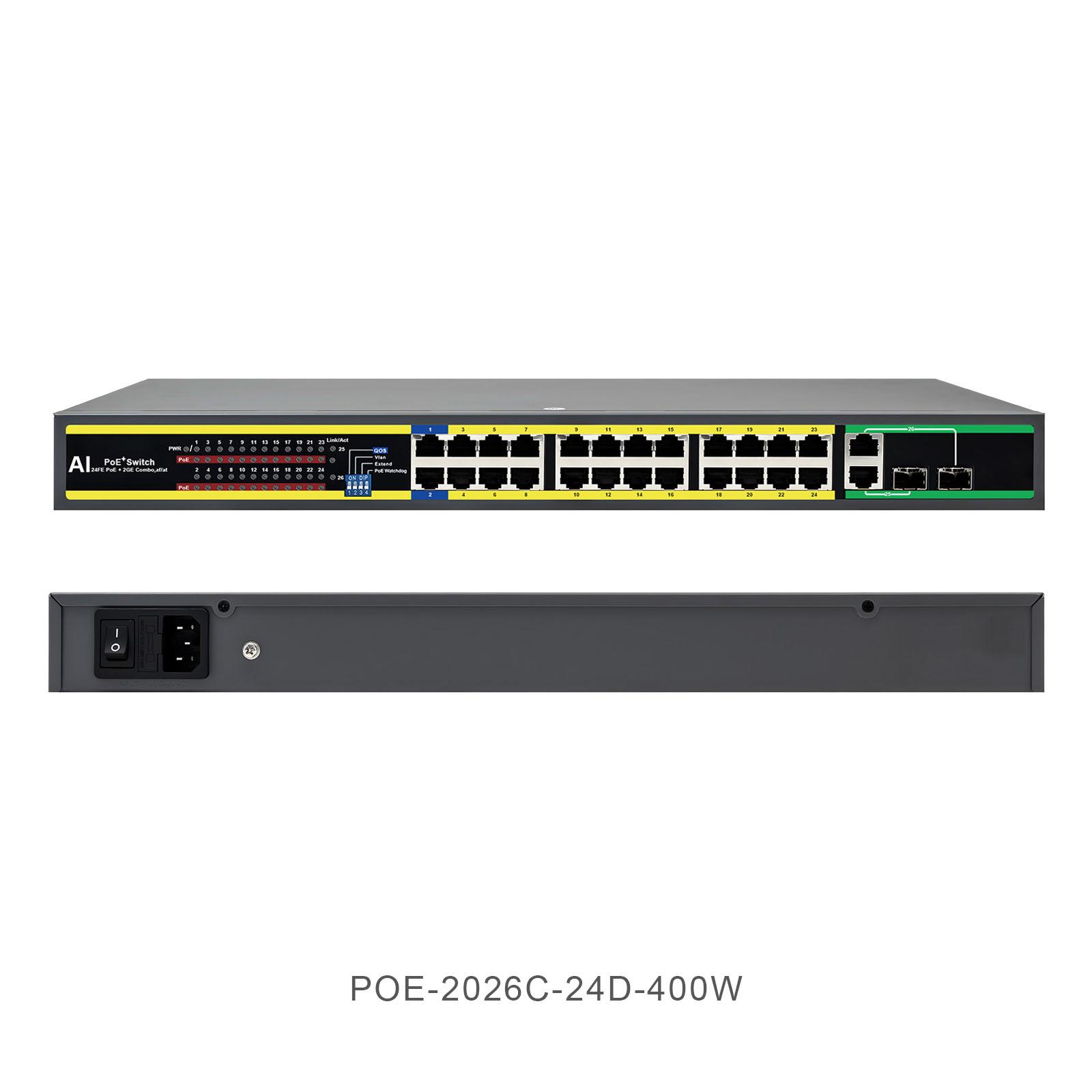

PoE-2026C-24D-400W
Description:
24 Ports support 24 PoE Gigabit Ethernet Switchis asecurity monitoring Ethernet Switches are designed to Ethernet HD monitor security systems and Ethernet projects.The product is fully integrated with the characteristics of the security monitoring,provi -ding fast packet forwarding capability, the product is fully gigabit transferrates p-rovide enough bandwidth to ensure clearimages, smooth transmissionProvide en ough bandwidth demand for high-definition video.
Features:
Conforms to lEEE802.3, IEEE 802.3u, IEEE 802.3ab,IEEE802.3af, IEEE802.3at
Provides 24 10/100/1000Base-Tports and 2 Gigabit Combo
Provides 24 PoE injector and 400W Built-in power supply
High back-plane bandwidth 52 Gbps
IEEE802.3x Flow control
Specifications:
| Item | Description | |
| Power | Power supply | Built-in power supply |
| Voltage Range | DC100-240V | |
| Switch Consumption | 400W for 24 PoE | |
| Ethernet | Speed | 1~24 Port: 10/100/1000Mbps 25~26: Gigabit Combo |
| Transmission Distanc | 100Meter(328ft)for RJ-45 2Km 20Km for SFP Port The optical module is optional | |
| Network Switch | Ethernet Standard | IEEE 802.3/802.3u/802.3ab/802.3af/at |
| Switching capacity | 52G | |
| Transfer Rate | 14,880pps for 10Mbps | |
| 148,800pps for 100Mbps | ||
| 148,8000pps for 1000Mbps | ||
| MAC Address | 8K MAC address table | |
| LINK/ACT | On-Green | The port is connecting |
| Blinks-- | The port is receiving or transmitting data | |
| Off-- | The port is not linked successfully with the device | |
| POE | On-Green | PD is connected |
| Off-- | No PD is connected or power forwarding fails | |
| PoE pin assignmnet | V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6) | |
| Environment | Working Temperature | 0-40℃ |
| Storage Temperature | -40-70℃ | |
| Port surge | 6KV | |
| Humidity Non condesing | 0~90% | |
| Mechanical | Dimension | 440x200x44mm |
| Color | Gray | |
