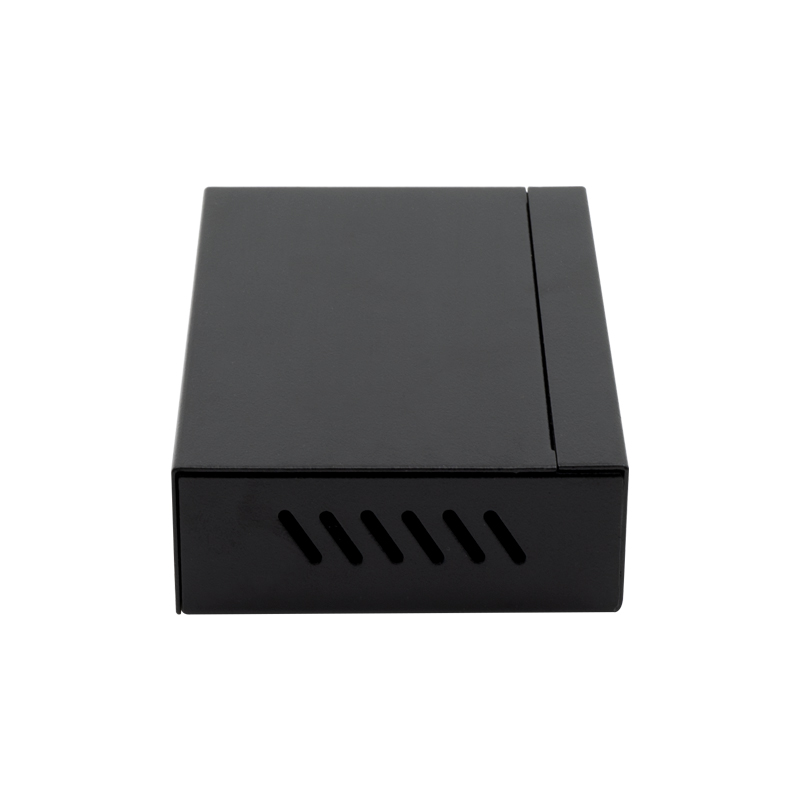

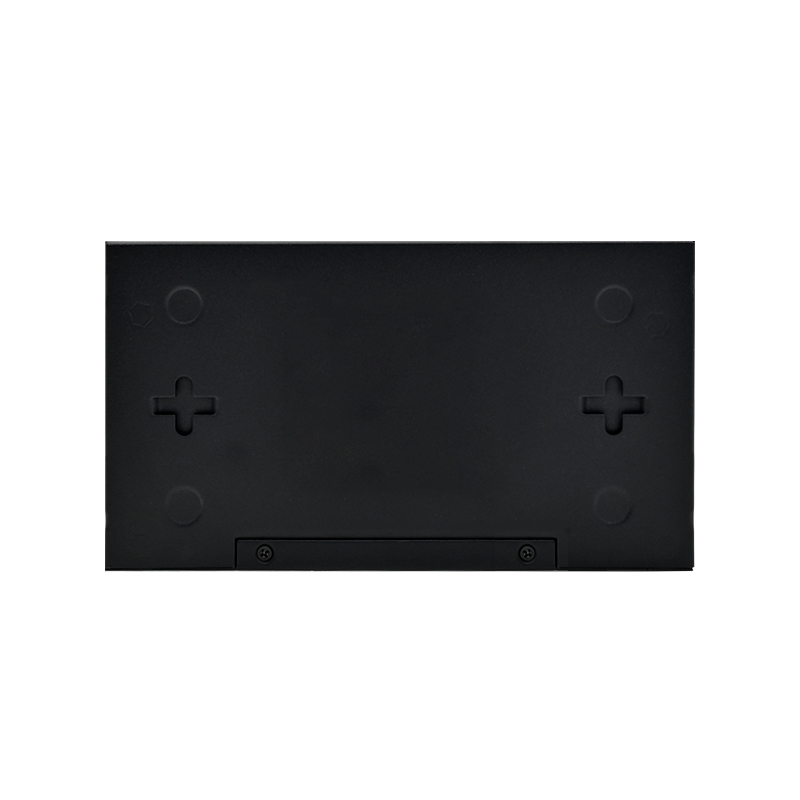

5 Port Ethernet Switch
5 Port Ethernet Switch
Net-1005-4E
Description：
The Network Switch is g custom mode 10M/100M Ethernet Switch. This device issuitable for network data exchange transmission soeciclizeofor,the switch is equipped with 5 ports ,The product utlizes professional chips to increaseoackplane bandwidth andbuffer parameters,The product adopts an industrial design and utlizes fanless heat dissipation,making mainten-ance efficientand wiring reasonable.
Features：
In accordance withIEEE 802,3i,IEEE 802.3u,IEEE802.3ab
Supports port auto MDl/MDIX
Supports Monitor Mode and Network Mode switching
All ports support line speed switching and jumbo frame transmission
Zero configuration feature, automatically supplies power to adapted devices
Panelindicator lights monitor working states and help troubleshooting
Specifications:
| Item | Description |
| Power Indicator Light | Red Light on：Normal Off：Not Powered Green Light On：Normal connection equipment Port Light Flashing：Normalcommunication Port Light Blinking:evice no network connection |

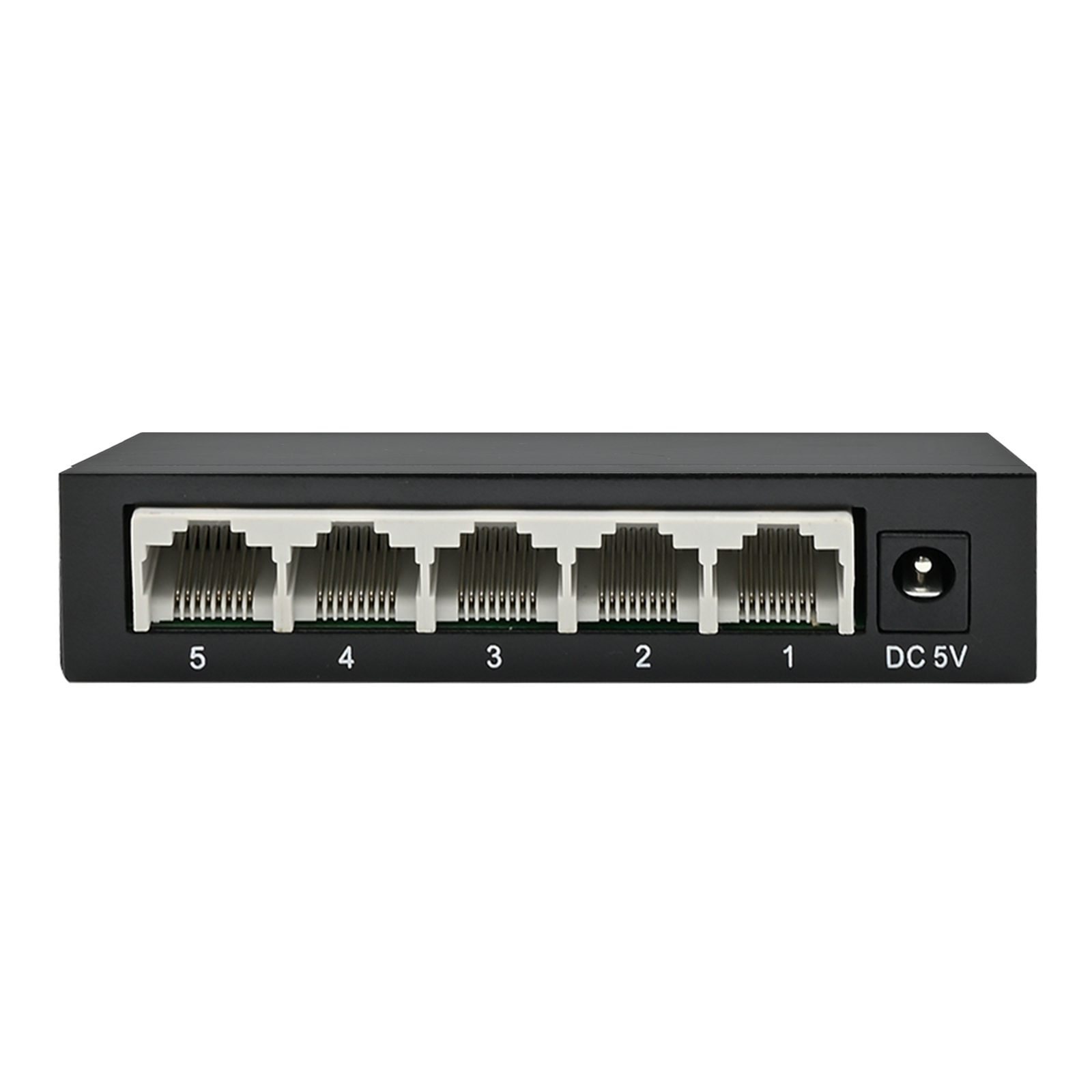

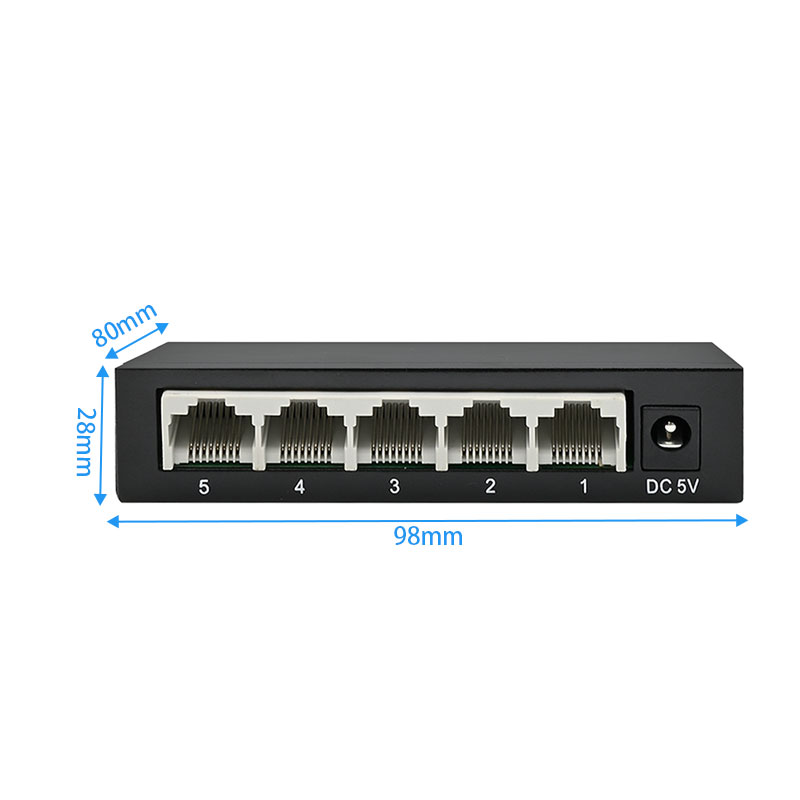

| Fixed Port | 5 Port 10/100Mbps/RJ45 |
| Internet Protocol | IEEE 802.3I/IEEE 802.3X/IEEE802.3U/IEEE802.3ab/IEEE802.1q |
| Package Forwarding Rate | 10M Port max 14880pps 100M port max 148800pps |
| Lightning Series | 2KV |
| Input voltage | DC 5V |
| Wattage | 4W |
| Working Temperature | 0°C-40℃ |
| Working Humidity | 10%-90% Non-condensation |
| Heat Dissipation | Natural Dissipation |
Net-1605-4P
Description：
The Network Switch is g custom mode 10M/100M/1000M Ethernet Switch. This device issuitable for network data exchange transmission soeciclizeofor,the switch is equipped with 5 ports ,The product utlizes professional chips to increaseoackplane bandwidth andbuffer parameters,The product adopts an industrial design and utlizes fanless heat dissipation,making mainten-ance efficientand wiring reasonable.
Features：
In accordance withIEEE 802,3i,IEEE 802.3u,IEEE802.3ab
Supports port auto MDl/MDIX
Supports Monitor Mode and Network Mode switching
All ports support line speed switching and jumbo frame transmission
Zero configuration feature, automatically supplies power to adapted devices
Panelindicator lights monitor working states and help troubleshooting
Specifications:
| Item | Description |
| Power Indicator Light | Red Light on：Normal Off：Not Powered Green Light On：Normal connection equipment Port Light Flashing：Normalcommunication Port Light Blinking:evice no network connection |
| Fixed Port | 5 Port 10/100Mbps/RJ45 |
| Internet Protocol | IEEE 802.3I/IEEE 802.3X/IEEE802.3U/IEEE802.3ab/IEEE802.1q |
| Package Forwarding Rate | 10M Port max 14880pps 100M port max 148800pps 1000M port max1488000pps |
| Lightning Series | 2KV |
| Input voltage | DC 5V |
| Wattage | 4W |
| Working Temperature | 0°C-40℃ |
| Working Humidity | 10%-90% Non-condensation |
| Heat Dissipation | Natural Dissipation |
