12V/24V 20A Maximum Power Point Tracking

Description:

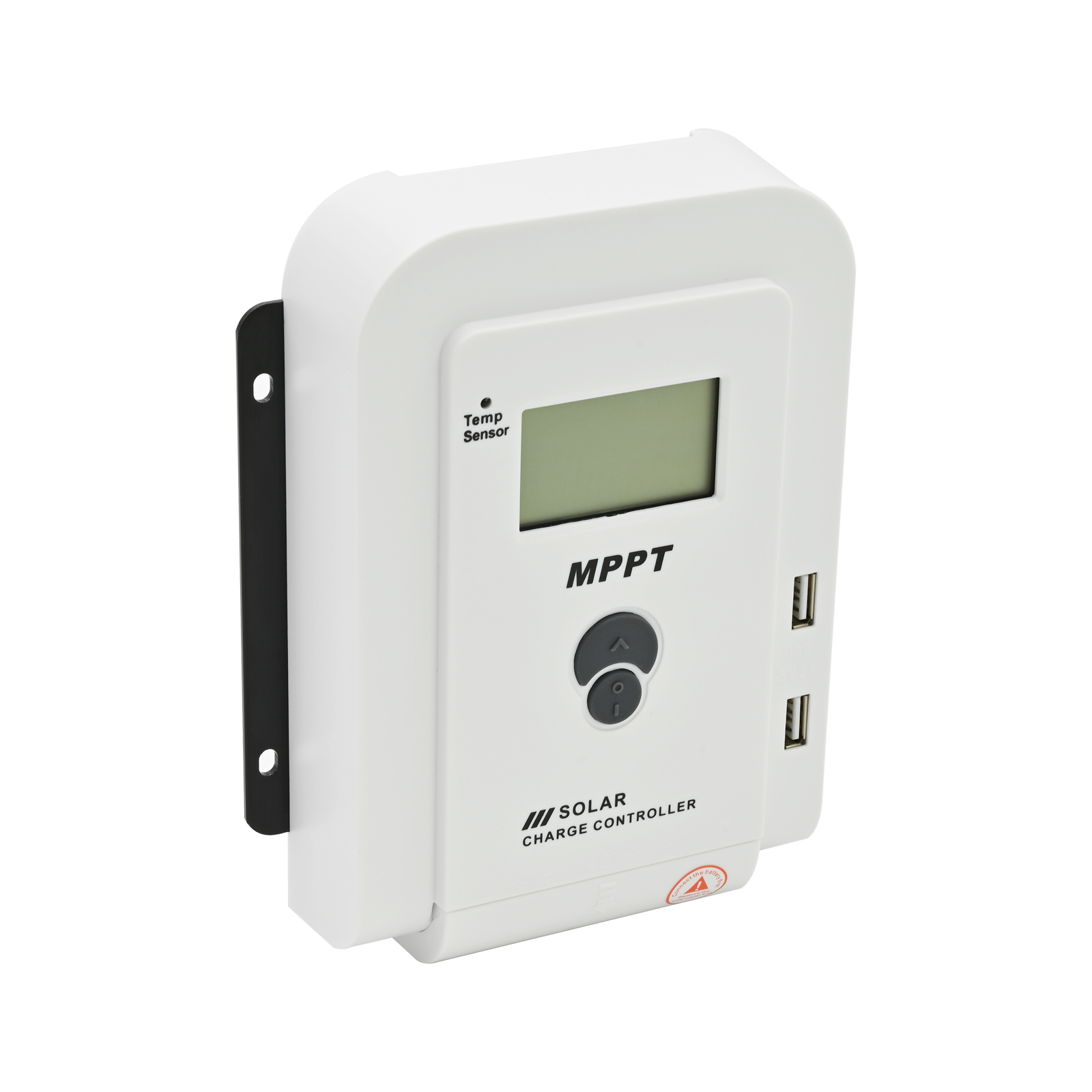

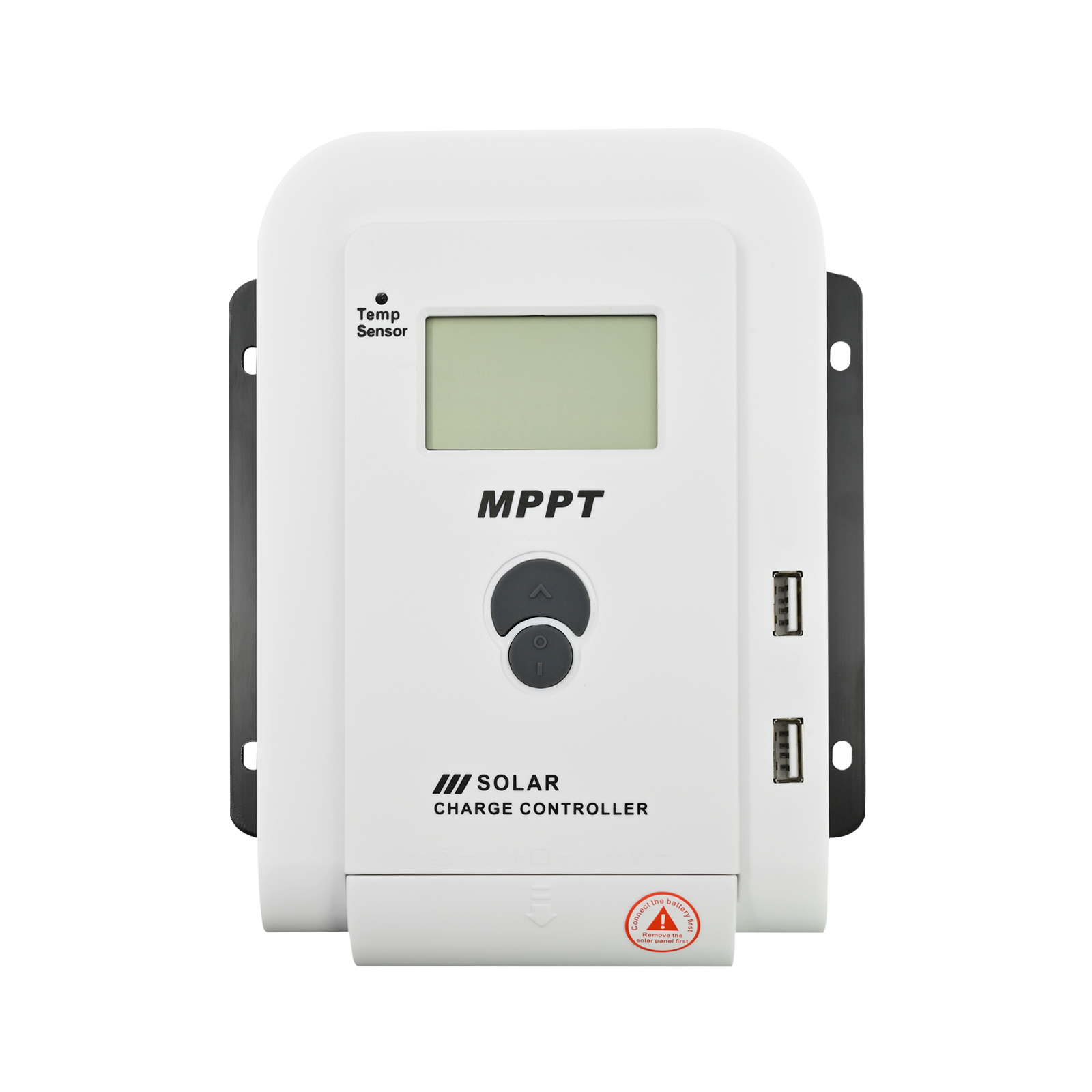

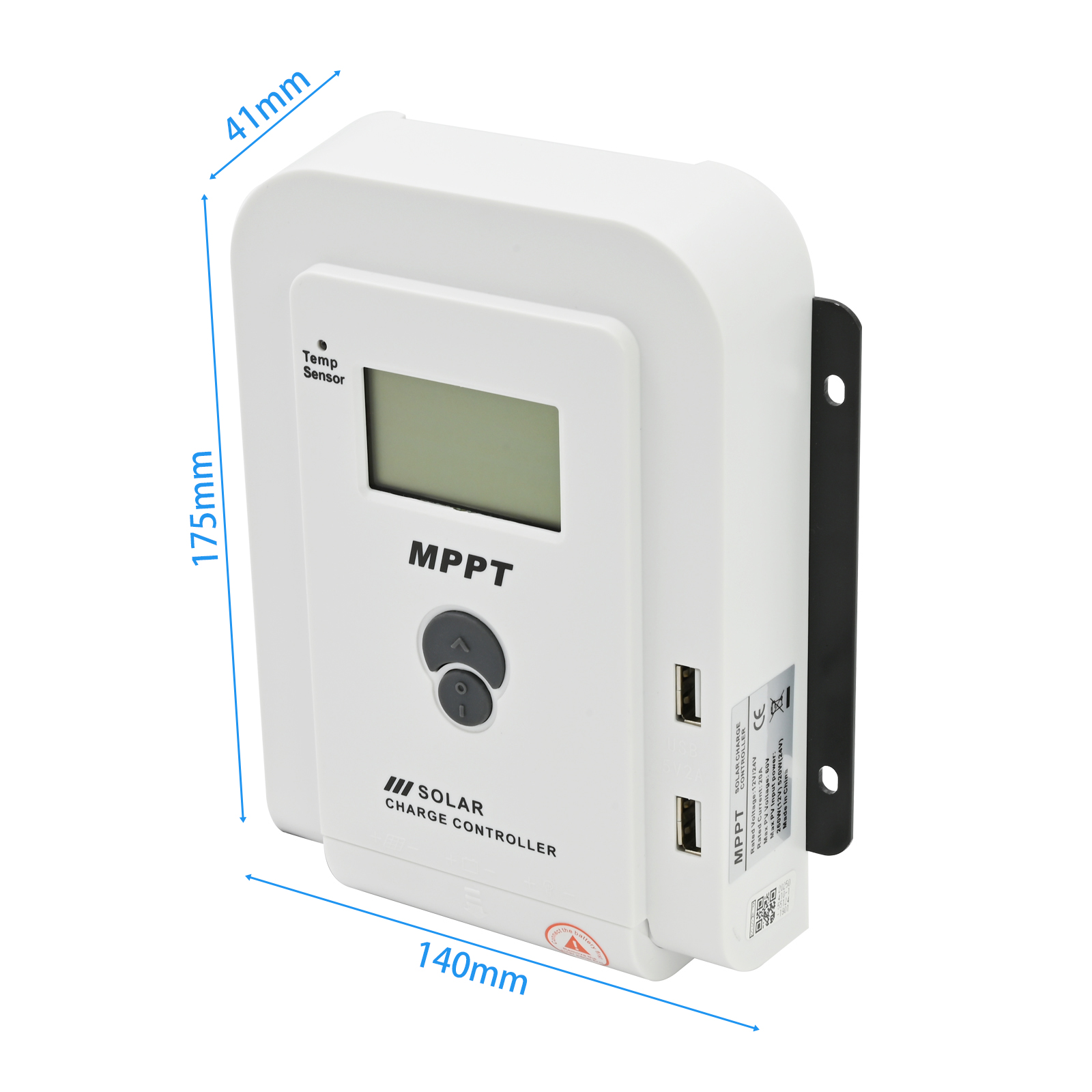

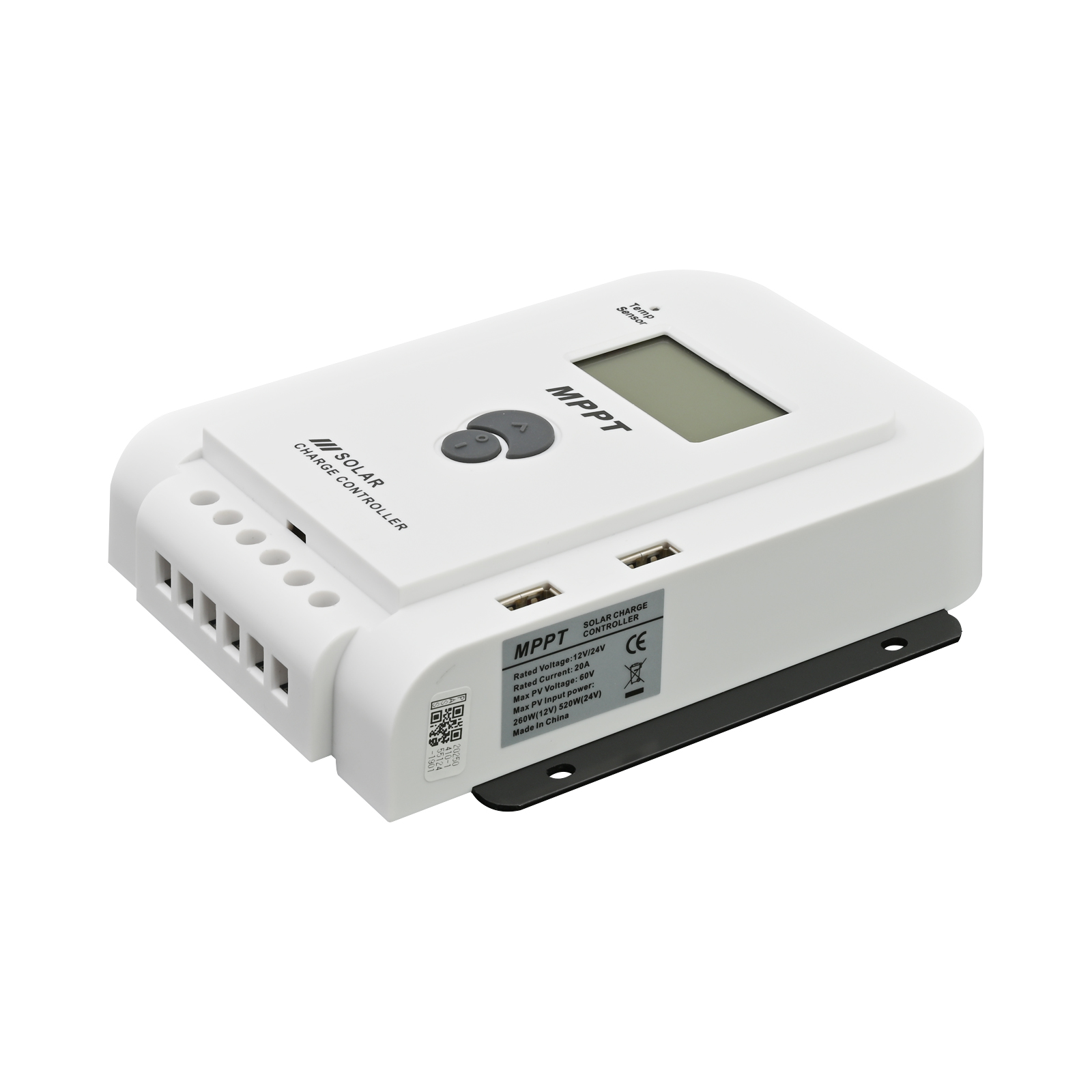

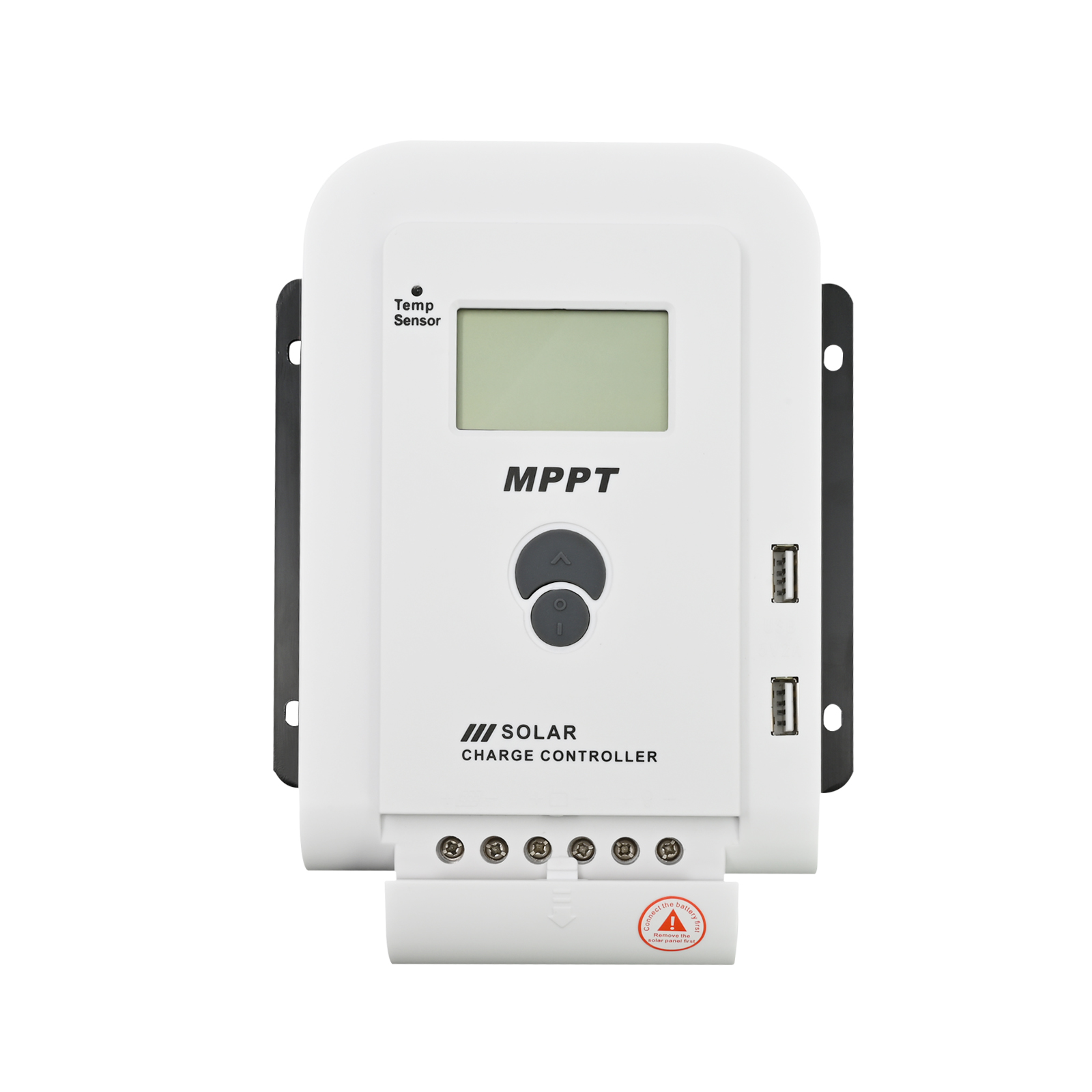

PS-MPT-20ARE is a 12V/24V 20A Maximum Power Point Tracking device. It has a V-0 flame retardant shell and temperature compensation, with a maximum AC power output of 260/520W, a rated discharge current of 10A, and a charging control mode of MPPT. Equipped with LED display screen.

Specifications:

Item		Describe
Maximum PV open circuit voltage		<60V
System voltage		12V/24V Auto
Rated charge Current		10A	20A
PV maximum input power	12V	130W	260W
	24V	260W	520W
Rated Discharge current		10A
Charging control mode		MPPT
Float charge		13.8V/27.6V
Absorption charge		14.4V/28.8V
Equalization charge		14.6V/29.2V
Load disconnection(LVD)		10.8V/21.6V
Load reconnection(LVR)		12.6V/25.2V
Working temperature range		-20~+55°C
Temperature Compensation		-24mV/°C for 12V system
Battery Type		GEL,SLD,FLD Lithium batteries customization
Load control mode		24 hours work light control. light and timing control reverseliaht control
Communication mode		WiFi or Bluetooth optional
