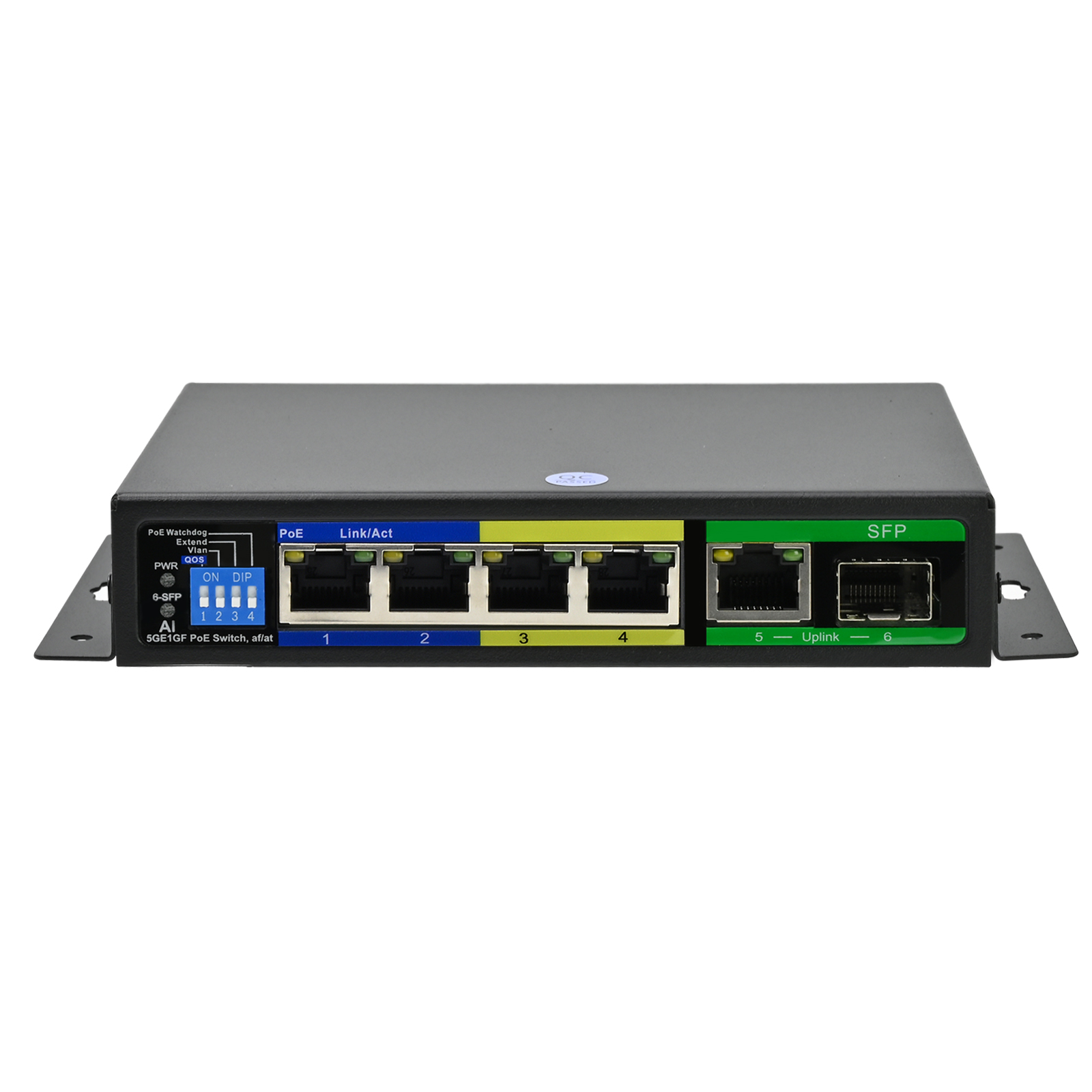

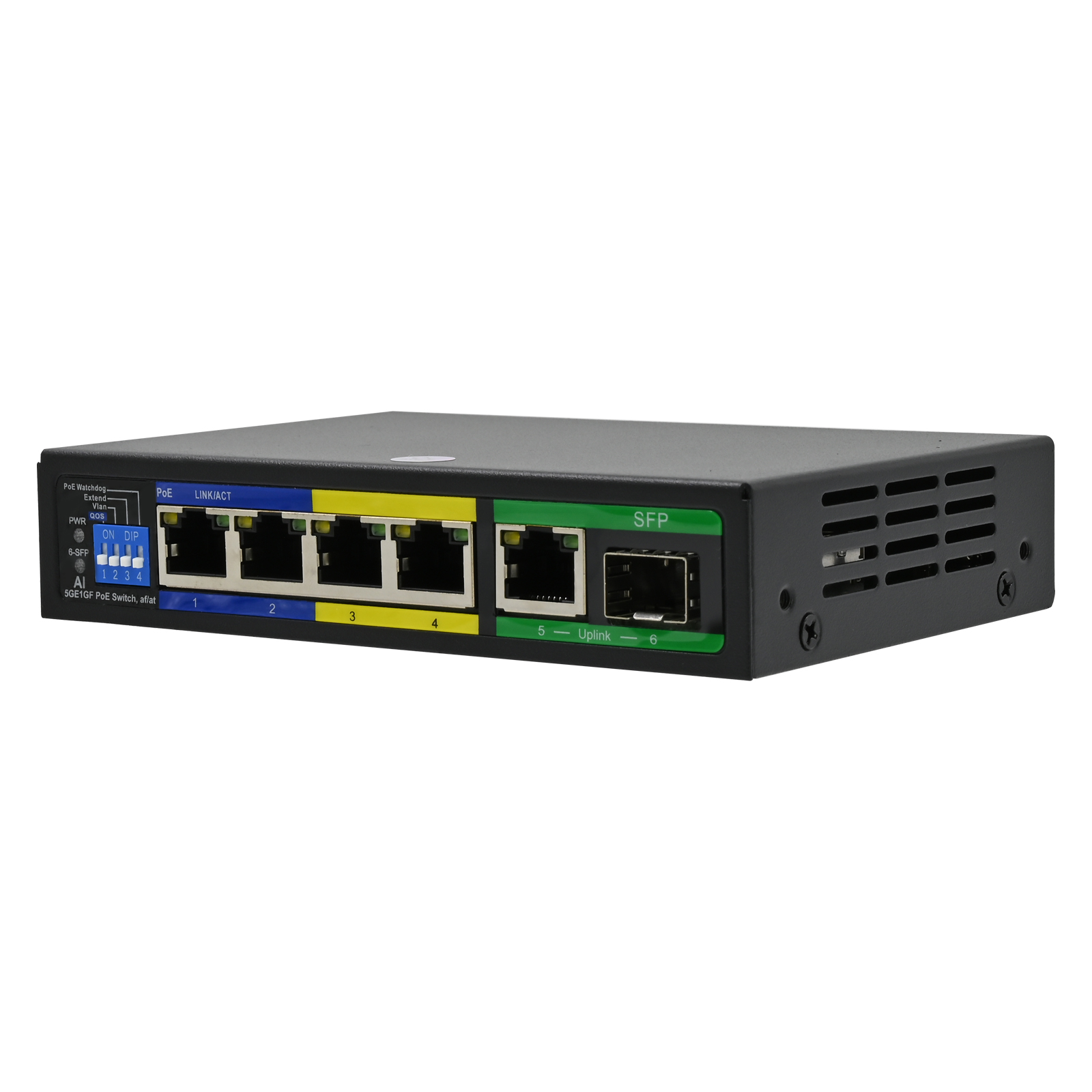

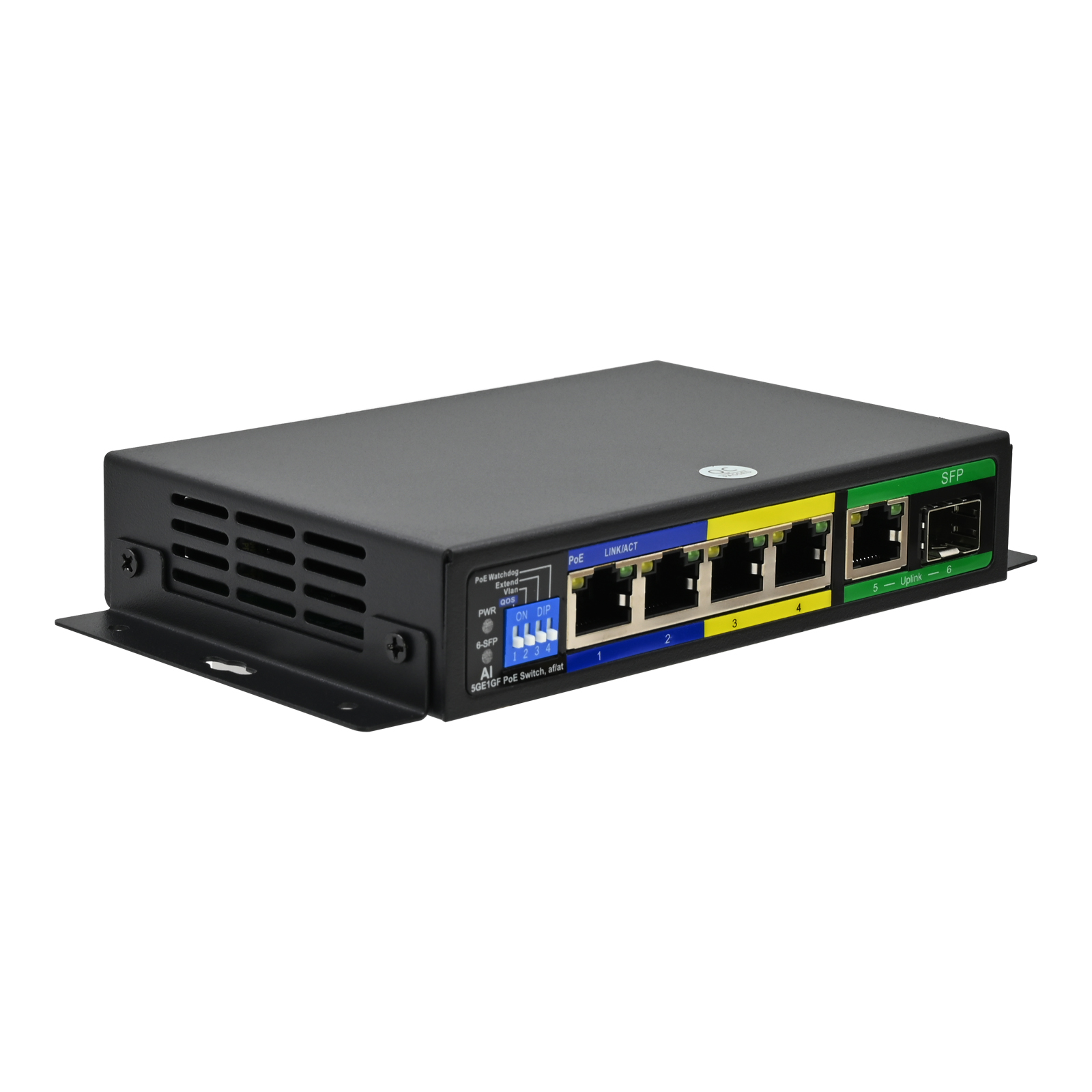

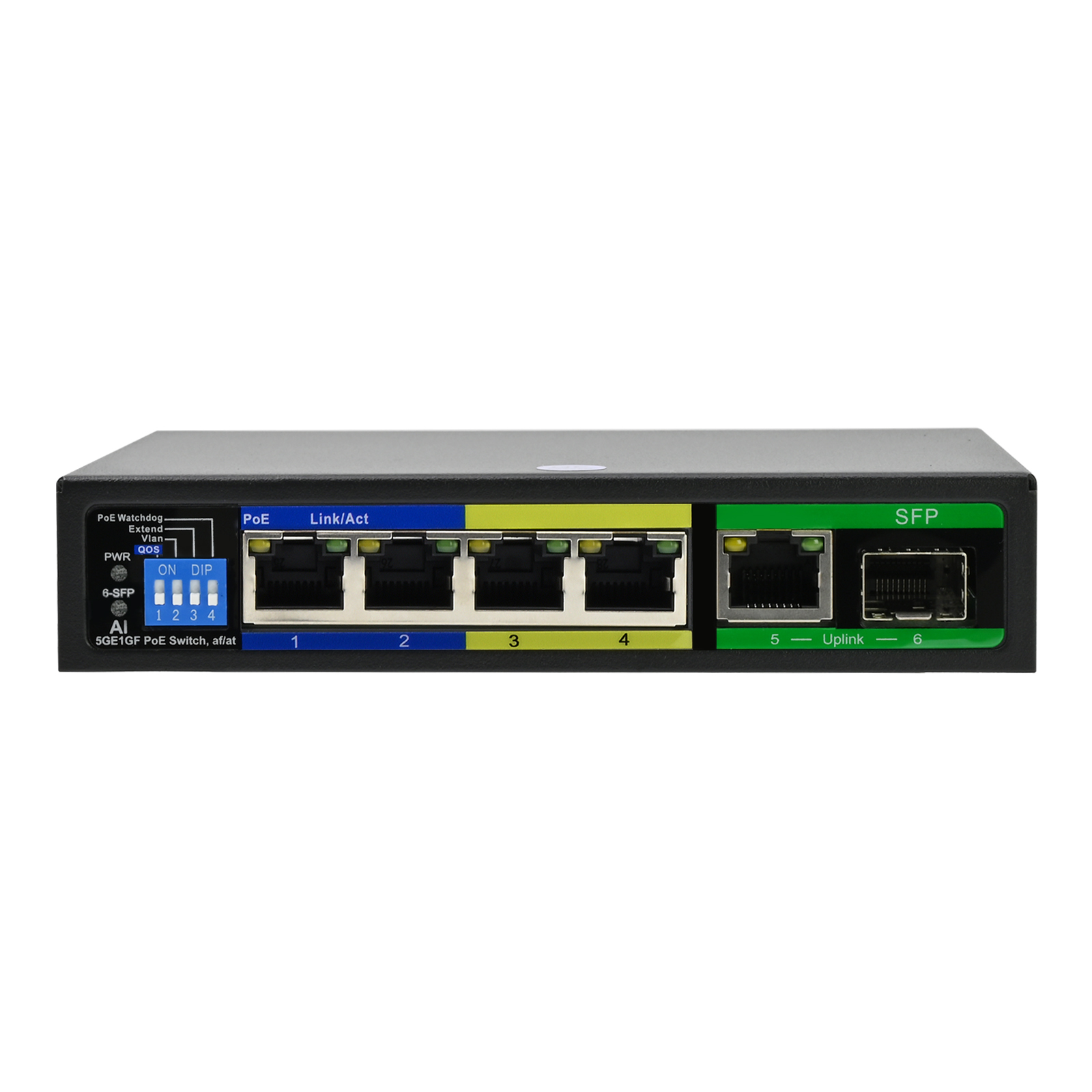

4 Ports Gigabit PoE Switch+1SFP
4 Ports Gigabit PoE Switch+1SFP
Description:
The 4 Ports Gigabit PoE Switch is fully integrated to support security monitoring, providinghigh-performance packet forwarding and Gigabit Ethernet transfer rates. Adaptive ports use the appropriate bandwidth to ensure clear images and smooth transmission for any application, including high definition video recording or streaming. The Al DlP switch enables PoE Watchdog, QOS, Extend and VLAN modes to further increase performance and
security.
Features:
The Al DlP switch includes four modes:
VLAN: Ports 1-4 do not communicate with each other, they communicate only with uplink ports This controls broadcast storm and strengthens security.
Extend: Ports 1-4 communicate with each other and with uplink ports. Ports 1-4 can transmit upto 250m with Cat5e/6 rated cable or higher.
PoE Watchdog: lf a linked network port receives no data for 2-3 minutes, PoE Watchdog cuts andrestores power to that port, causing the linked device, such as an lP camera, to restart.
QOS: QOS is the specified port with port data priority, priority is higher than other ports, other portsdata priority is equal. 1-2 ports specify the priority, then the data forwarding of these two ports hasa higher priority than the other ports, so the data of these two ports are preferentially forwardedConforms tOIEEE802.3, IEEE 802.3, IEEE 802.3U,IEEE802.3ab,
IEEE 802.3Z,IEEE802.3af/at
Provides 5 10/100/1000Base-T ports and 1 Gigabit SFP
Provides 4 PoE injector and 65W power adaptor
High back-plane bandwidth 12 Gbps
IEEE802.3x Flow control
Surge protection for power port and data ports
Specifications:
| Item | Description | |
| Power | Power supply | External Power Adaptor |
| Voltage Range | DC48-57V | |
| PoE Budget | 65W for PoE | |
| Ethernet | Speed | 1-5 Port: 10/100/1000Mbps |
Port 6: Gigabit SFP | ||
| Transmission Distanc | RJ45: 328 ft.(100 meters) SFP Port: Transmission distances vary with type of SFP module usedSFP module not included. | |
| Network Switch | Ethernet Standard | IEEE 802.3/802.3i/802.3u/802.3ab/802.3z/802.3af/802.3at |
| Switching capacity | 12Gpbs | |
| Transfer Rate | 14,880pps for 10Mbps | |
| 148,800pps for 100Mbps | ||
| 148,8000pps for 1000Mbps | ||
| MAC Address | 2K MAC address table | |
| LINK/ACT | Blinks-- | The port is receiving or transmitting data |
| Off-- | The port is not linked successfully with the device | |
Special Features | PoE Watchdog | PoE Watchdog monitors the connection between the PoE port and lP camera olother powered device. lf no data transmission is detected for 2-3 minutes, PoEWatchdog reboots the affected port. |
| QOS | QOS is the specified port with port data priority, priority is higher than other ports,other ports data priority is equal. 1-2 ports specify the priority, then the dataforwarding of these two ports has a higher priority than the other ports, so the dataof these two ports are preferentially forwarded. | |
| Extend | Downlink port speeds slow to 10 Mbps, enabling a transmission distance of up to820 feet (250 meters). | |
| VLAN | VLAN isolates traffic for downlink ports to avoid snooping/tampering. In this mode,downlink ports will not communicate with each other and will only communicate withuplink ports. | |
| POE | On-Green | PD is connected |
| Off-- | Power device is not connected or power forwarding fails | |
| PoE pin assignmnet | V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6) | |
| Environment | Working Temperature | 0°C~40°C(32°F~104°F) |
| Storage Temperature | -40°C~70°C(-40°F~158°F) | |
| Humidity Non condesing | 0~90% | |
| Mechanical | Dimension | 139 x 91.5x 29mm |
