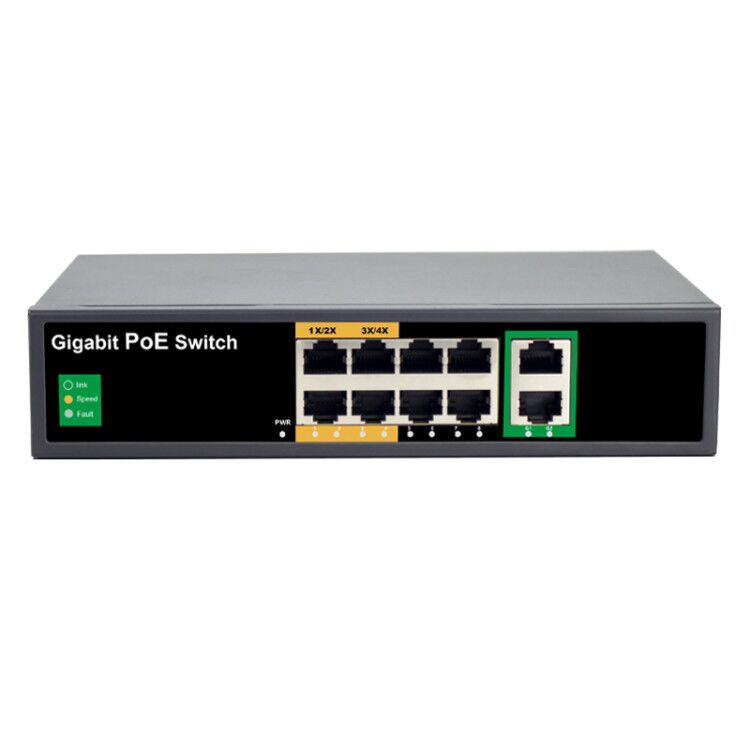

Model PoE-6010-8E-125W
Color Black
Spec 8 ports 10/100Mbps RJ45 with PoE + 2 10/100Mbps RJ45 Uplink, unmanaged. Built-in 125W power, support IEEE 802.3af/at, 10Mbps 250meters

8 10/100Mbps PoE port + 2 Gigabit uplink


10/100Mbps port of the features IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) that combine up to 125-watt PoE budget on the whole system, It is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / speed dome network cameras multi channel (802.11a/b/g/n) wireless LAN accesspoints and other network devices by doubling PoE power, more than the current conventional 802.3af PoE.


  • Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX

  • 8-Port 10/100Mbps supports 52V DC power to PoE Powered Device

  • 2-Port Gigabit Mbps RJ45 interface for uplink

  • Complies with IEEE 802.3af/802.3at Power over Ethernet End-Span PSE

  • Up to 8 IEEE 802.3af devices powered

  • Supports PoE Power up to 15.4 watts for each PoE port

  • Up to 4 IEEE 802.3at devices powered

  • Supports PoE Power up to 30 watts for each PoE port

  • 125-watt PoE budget

  • Auto detects powered device (PD)

  • Circuit protection prevents power interference between ports

  • Remote power feeding up to 100m

  • Hardware based 10/100Mbps auto-negotiation and auto MDI/MDI-X

  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates

  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation

  • Integrates address look-up engine, supporting 2K absolute MAC addresses

  • 2M packet buffer

  • 10K Jumbo frame supports at 1000Mbps duplex mode

  • IEEE 802.1Q VLAN packet transparency support

  • Automatic address learning and address aging

  • Made of metal, desktop size and wall-mount design


Port description8FE(PoE)+2GE
POE port numbersRJ45*8
POE port rate10/100Mbps
UP LINK port numbersRJ45*2
UP LINK port rate


Full Power125W
MAC Address capacity2K
Packet forwarding rate4.1164Mpps
LINK/ACTOnGreenThe port is connecting
Blinks-The port is receiving or transmittin gdata
Off-The port is not linked successfully with the device
POEPoE pin assignmnetV+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6)
EnvironmentWorking Temperature-10~40℃
Storage Temperature-40~70℃
Humidity Non condesing0~90%

Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
