10 ports 10/100M with 8 POE Ports 2X 10/100M Uplink Unmanaged Desktop Switch
Description:
The PoE-2010-8E-125W with the super long range switch could enrich data transmission up to 200 Meters and with Vlan feature,
is designed for residential building in the corridor_level broadband switching equipment, for the edge of the access and LAN to provide
high-quality network connections.
Features:
The Max distance of power supply is 300 meters
10 10/100M adaptive RJ45 port, 4 port with PoE function.
Each port supports auto MDI/MDIX and auto negotiation.
Store and forwarding, support port isolation.
Support two lightning of uplink port.
Support IEEE 802.3x Full-Duplex and Backpressure Half-Duplex.
Support IEEE802.3af/at standards, can provide 15.4W/30W per port.
Automatic detection and recognition PD device which in accordance with IEEE 802.3af/at and power supply for the device.
Intelligent power management, if the electrical equipment power exceeds the normal power output,the system will cut off power supply
of the port, after 1,2 minutes, it will reexamination and power supply.
Low power consumption, no fan design, natural heat.
Specification:
Item | Description | ||
Power | Power Supply | External Power Adaptor | |
Voltage Range | 100~240VAC 50/60H | ||
Switch Consumption | 123.2W for POE | ||
Ethernet |
Speed | 1-8 Port:10/100Mbps Uplink:100Mbps | |
Transmission Distance | 1-8port 100Meters with 100Mpbs 200Meters with 10Mbps Uplink:100Meter with 100Mpbs | ||
Network Switch | Ethenet Standard | IEEE. 802/3 802.3u /802. 3af/af | |
Switching capacity | 2G | ||
Transfer Rate | 14,880 pps for 10Mbps | ||
MACAddress | 2K MAC address table | ||
Function | On | Green | 200meters is start to work |
LINK/ACT | On | Green | The port is connectin.g |
Blinks | - | The port is receiving or transmitting data. | |
Off | - | The port is not linked successfully with the de. vice | |
PoE
| On | Orange | PD is connected |
Off | - | No PD is connected or power forwarding fails | |
Working Environment | Working Temperature | -10~45 | |
Storage Temperature | -40℃~70℃ | ||
Humidity Non condesing | 0~85 % | ||
Mechanical | Dimension L *W* H | 200*118*44mm | |
Color | Black | ||

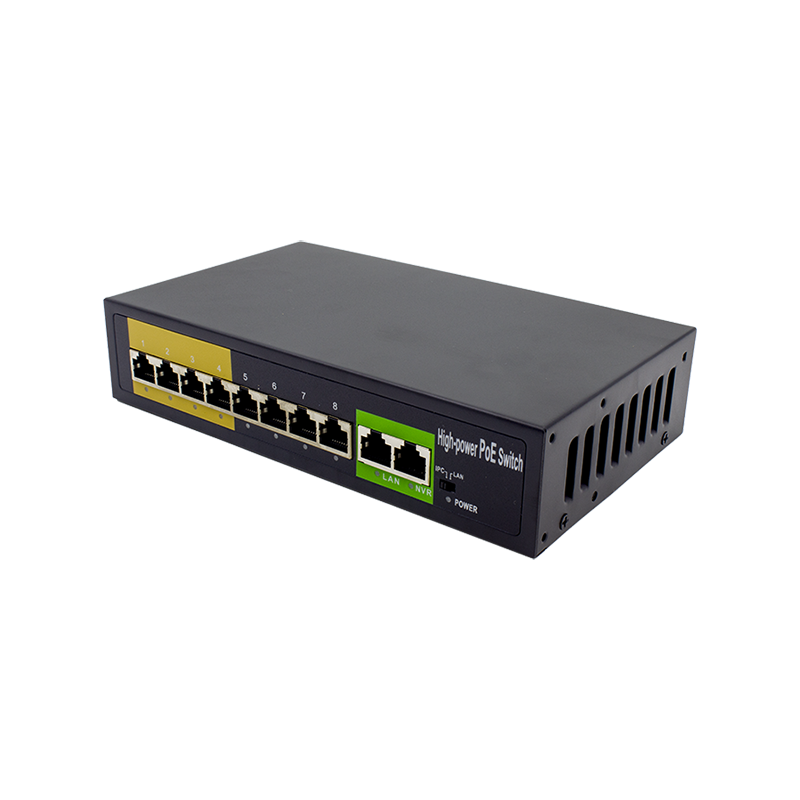

Product Image：
Application:
