8 Port 10/100Base-TX with 2 Gigabit Combo Port and 8PoE Ethernet Switch
8Port 10/100Base-TX with 2 Gigabit Combo Port and 8PoE Ethernet Switch
Description：
8 Port 10/100Mbps + 2 Gigabit combo with 8 PoE Ethernet Switch is a security surveillanceEthernet Switch which aims at Ethernet high defi surveillance and Ethernet project security system The product fully combines.
the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clearimage and fuent transmission.
Feature:
Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3z, IEEE802.3af, IEEE802.3at
Provid 8 10/100Base-TX ports 2 Gigabit Combo
Provides 8 PoE injector and 130W power adapter
High back-plane bandwidt 5.6 Gbps
IEEE802.3x Flow control
Surge protection for power port and data ports
Specifications:
| Item | Description | ||
Power | Power supply | External Power Adaptor | |
| Voltage Range | DC48V~52V | ||
| Switch Consumption | ＜6W | ||
| Ethernet | Speed | 1-8 Port:10/100Mbps Uplink:2xGigabit Combo | |
| Transmission Distance | 1-8port 100Meters with 100Mpbs Uplink:2 Gigabit Combo | ||
| Network Switch | Ethernet Standard | EEE 802 3 802 3u 802 3af at | |
| Switching capacity | 5.6G | ||
| Transfer Rate | 14,880 pps for 10Mbps 148,800 pps for 100Mbps | ||
| MAC Address | 4K MAC address table | ||
| G1,G2-Cmobo | On | Green | The port is connecting |
| LINK/ACT | On | Green | The port is connecting |
| Blinks | - | The port is receiving or transmitting data. | |
| Off | - | The port is not linked successfully with the de. vice | |
| POE | On | Green | PD is connected |
| Off | - | No PD is connected or power forwarding fails | |
| Environment | Working Temperature | -40~70℃ | |
| Storage Temperature | -40~75℃ | ||
| Humidity Non condesing | 10~85% | ||

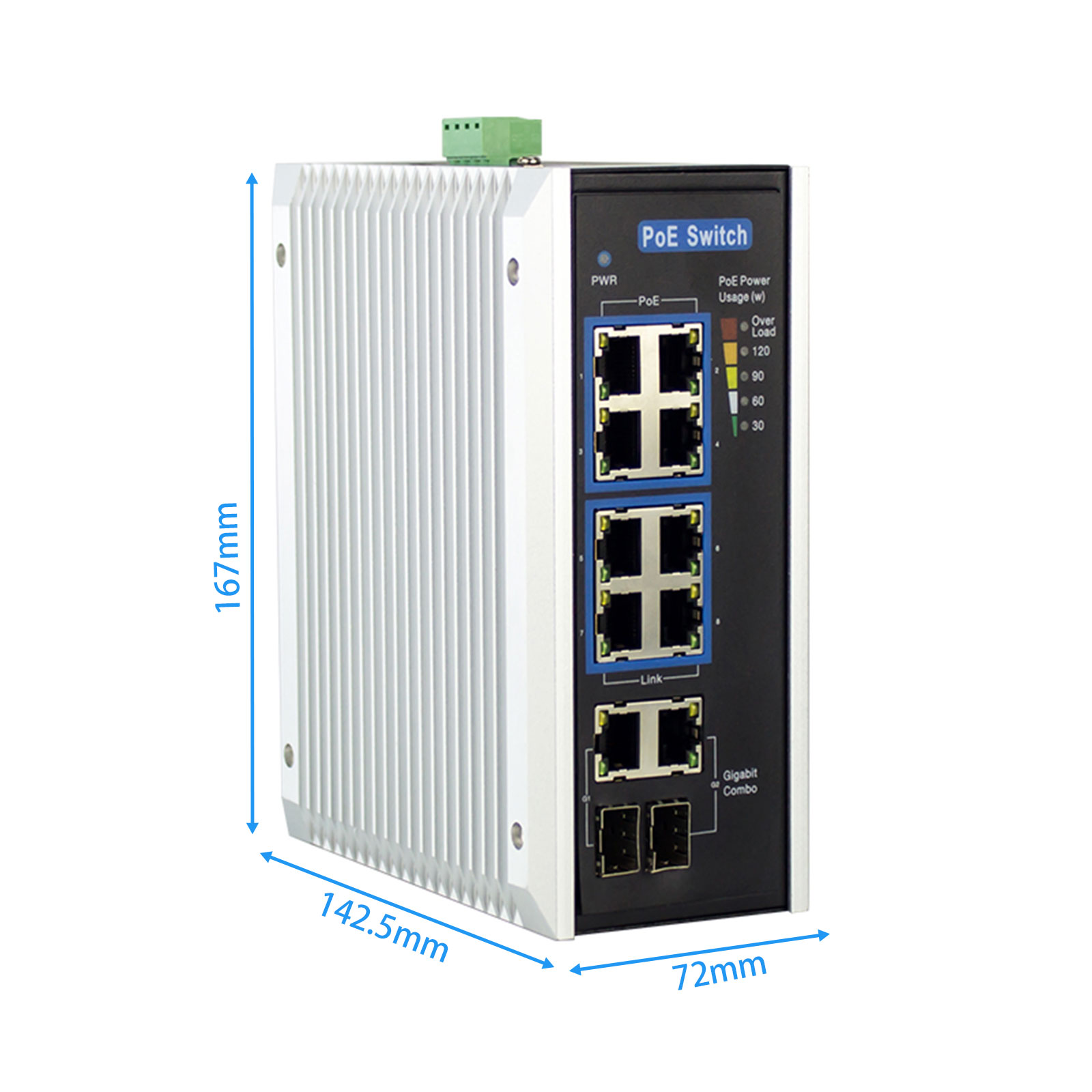

| Mechanical | Dimension | 167x72x142.5mm | |
| Color | White + Black | ||
