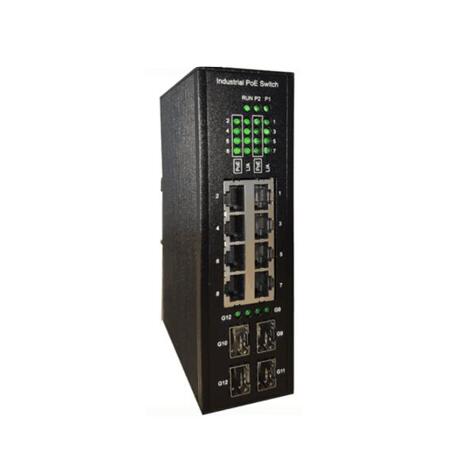

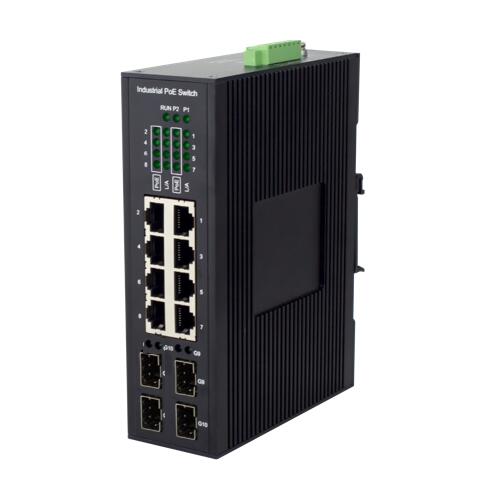

Industrial Managed 8(GE PoE+) + 4 Gigabit SFP Gigabit Switch

Brand CENTROPOWER
Model PoE-7312-8I+
Color Grey
Spec 8POE+4SFP Gigabit Full-Managed Industral Switch
0755-23200933
DetailFile

Din-Rail&Wall Mount 8POE+4SFP Gigabit Full-Managed Industral Switch

Description:

The industrial Gigabit PoE Switch is a standard Gigabit PoE+ managed Ethernet switch with 8 compatible 10/100/1000BaseT(X),follow IEEE802.3af&at/802.3at ,and 4 Gigabit SFP slot. Port1~8 support IEEE802.3af&at.The switch is highly flexible, and the SFP fiber port (after accessing the optical module) transmits data to the control center at a distance of up to 120 kilometers and has high immunity to electromagnetic interference.Support multiple management functions, including STP/RSTP/MSTP/EAPS, Trunk, Mirror, PoE power management, PoE devicesAutomatic detection, PoE status paramet-er display, PoE power on and off, IGMP, VLAN,QoS, RMON, bandwidth management, and port mirroring.

Features:

  • Follow IEEE802.3, IEEE 802.3u, IEEE802. 3ab, IEEE 802. 3z Ethernet standard

  • Follow IEEE802.3af, IEEE802.3at

  • Provides 8 10/100/1000-TX RJ 45 + 4 Gigabit SFP optical slots

  • Support 8 PoE

  • Backplane bandwidth 24Gbps

  • Harsh industrial application design

  • Support for Layer 2 management

Specifications:

ItemDescription
Port8 个10/100 /1000Base-TX+4GE SFP,1x console
LEDPower,RUN(system ), PoE(Power supply), Link/ Act(data) LED.
InputDC48~5 4V

Power supply (ex ternal power supply, optional)

Optional 125W
operating temperature-40℃~70℃.
storage temperature-40℃~80℃.
Working humidity10%~90% (No condensation).
Heat dissipation methodFanless, metal case cooling
Backplane bandwidth24G.
MAC address8K.
Flow control protocolIEEE 802.3x full-duplex flow control.
PoE
PoE -Port8 10/10 0/1000 Base-TX ports.
PoE standardIEE802 .3af, IEEE802 .3at,IEEE802 .3 for 4pair
Poe PinV- (RJ 45 Pin 1, 2 ), V+ (RJ 45 Pin3, 6).

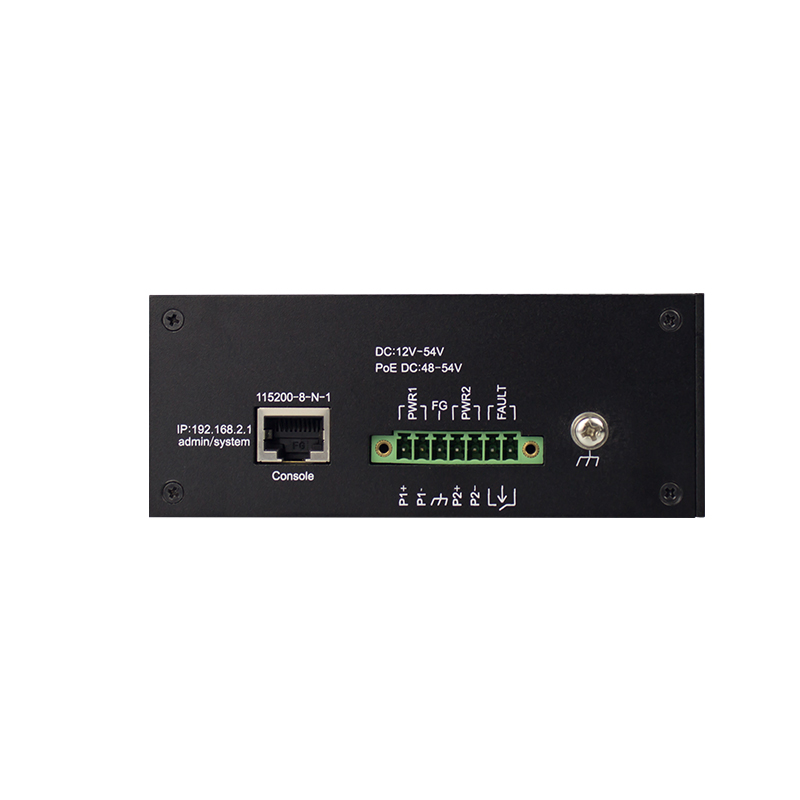

The default management parameters
Console115200-8-N-1
Ip address(web or telnet )192.168.2.1
userAdmin
passwordSystem







Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
