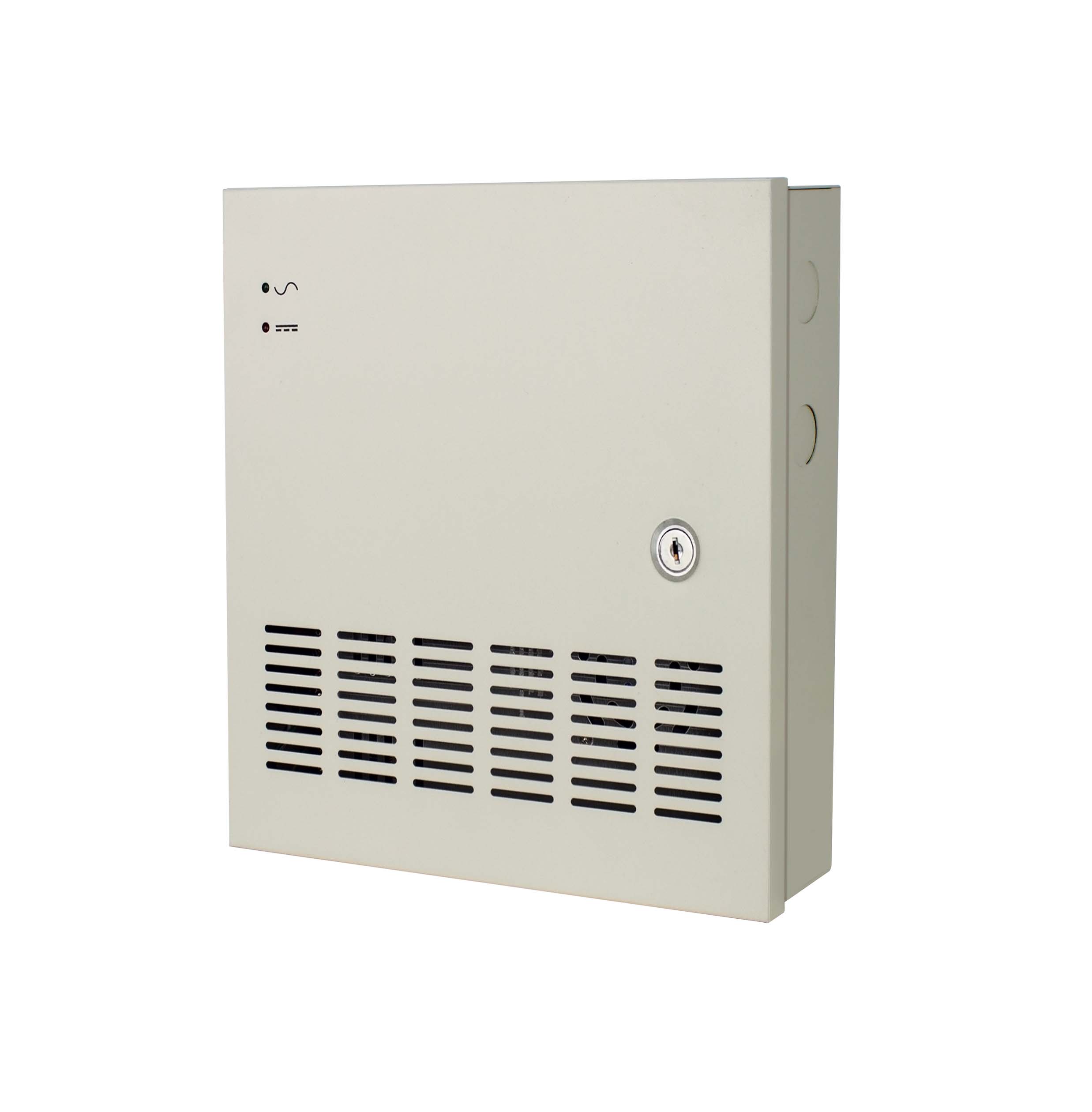

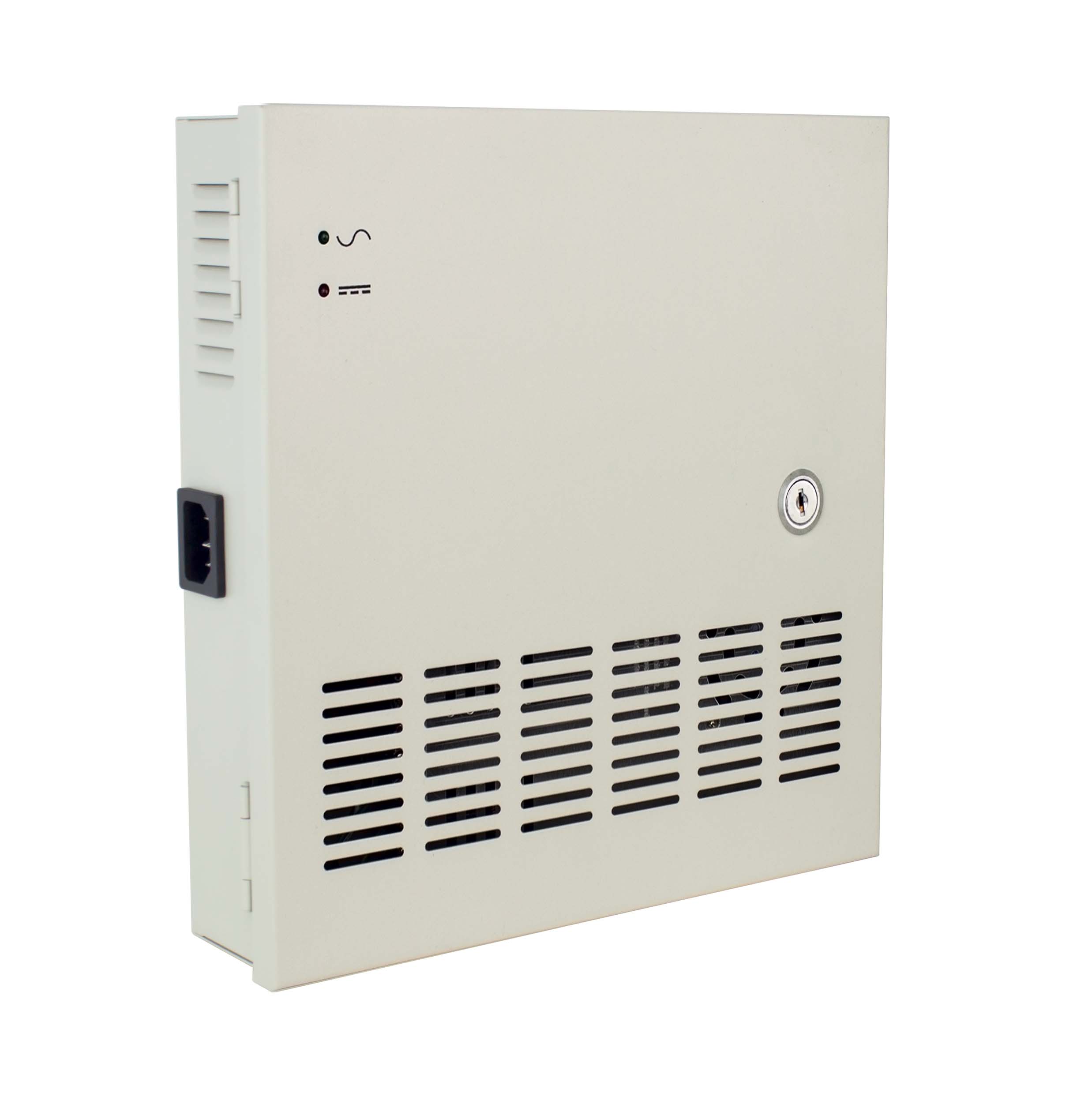

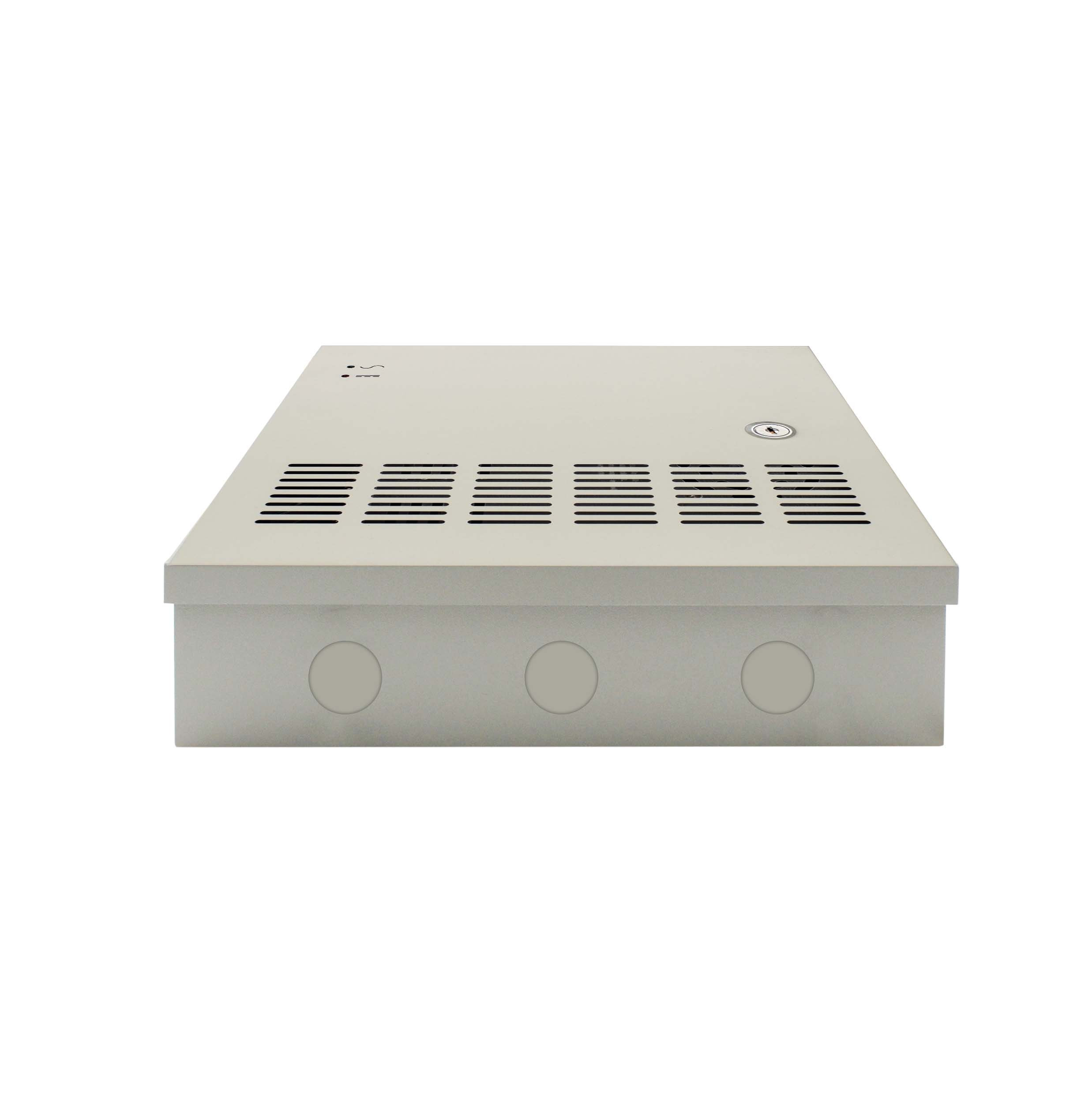

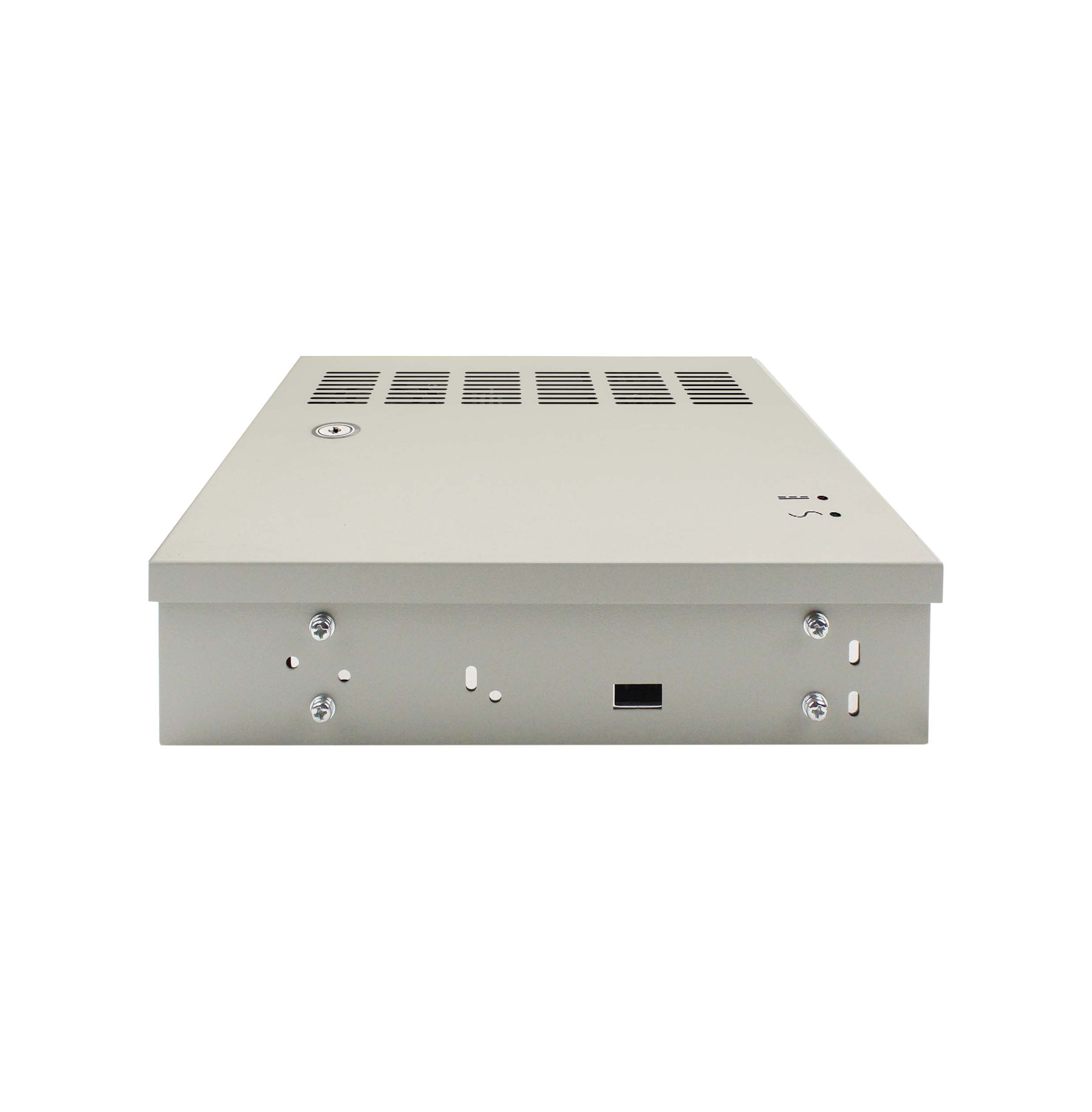

DC 12V 30A（MAX） 9 Channel Power Supply Box

share
WeChat
Sina Weibo
QQ
copy Link
Facebook
X
LinkedIn
Whatsapp
Brand CENTROPOWER
Model PS-DC30A09E
Color White or Blue or Black
+86 0755 23200933
DetailSpecificationsDownloads

DC 12V 30A（MAX） 9 Channel Power Supply Box


Feature:

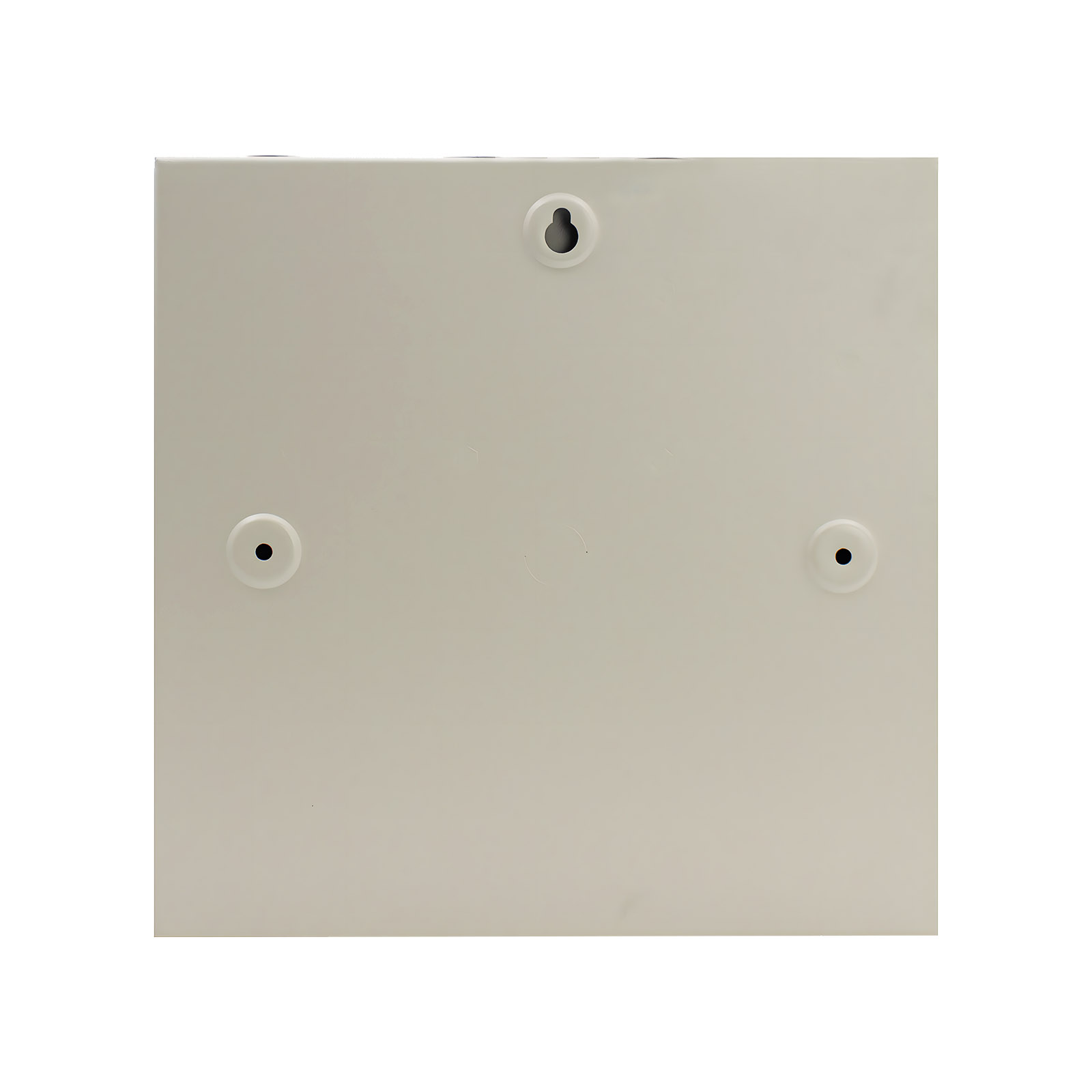

  • Wall type baking finished shell, easy installation.

  • Output voltage adjustable 11-15V.

  • Short circuit Protection, Over Voltage Protection,Over Current Protection, Over Temp Protection.

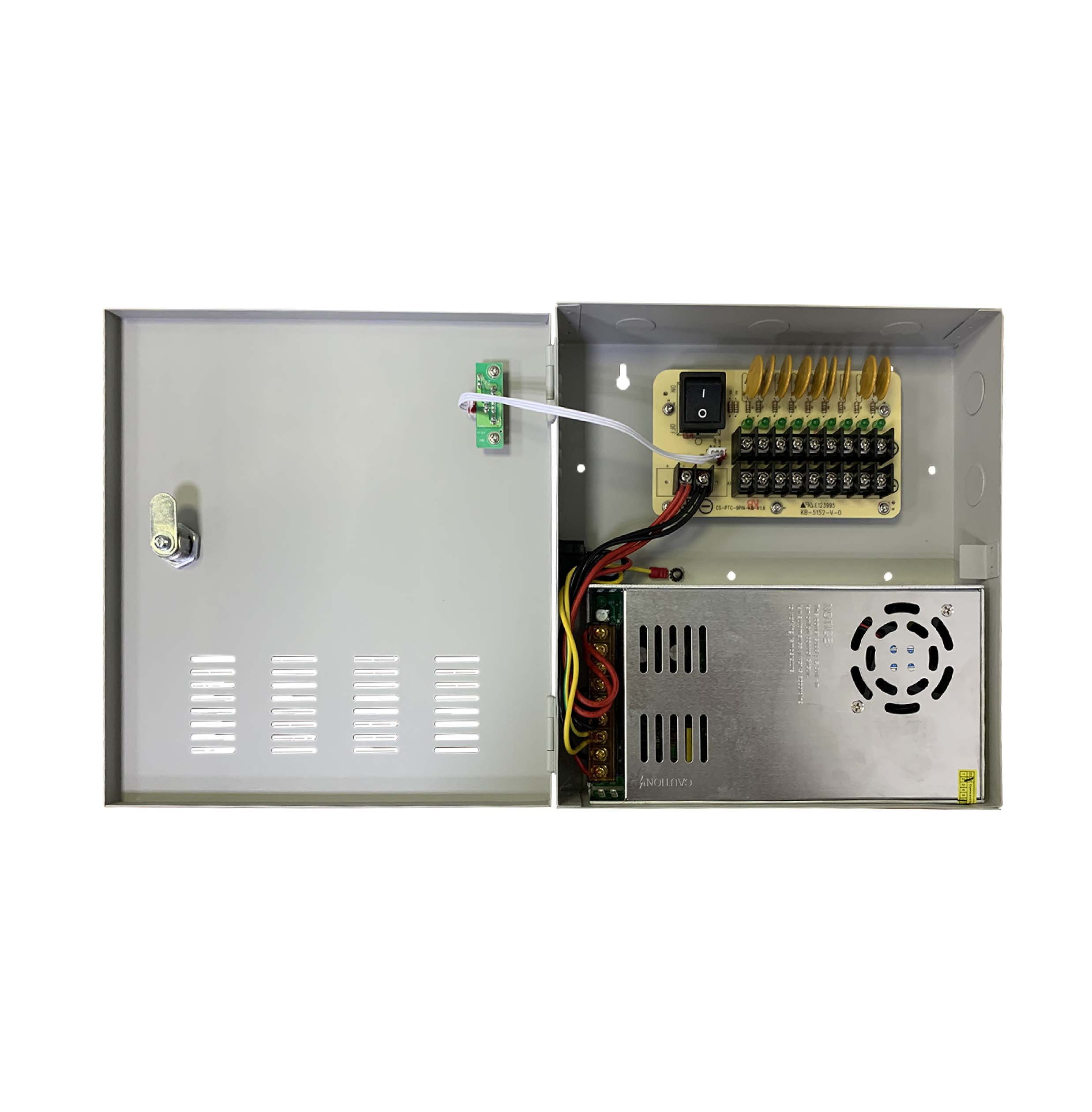

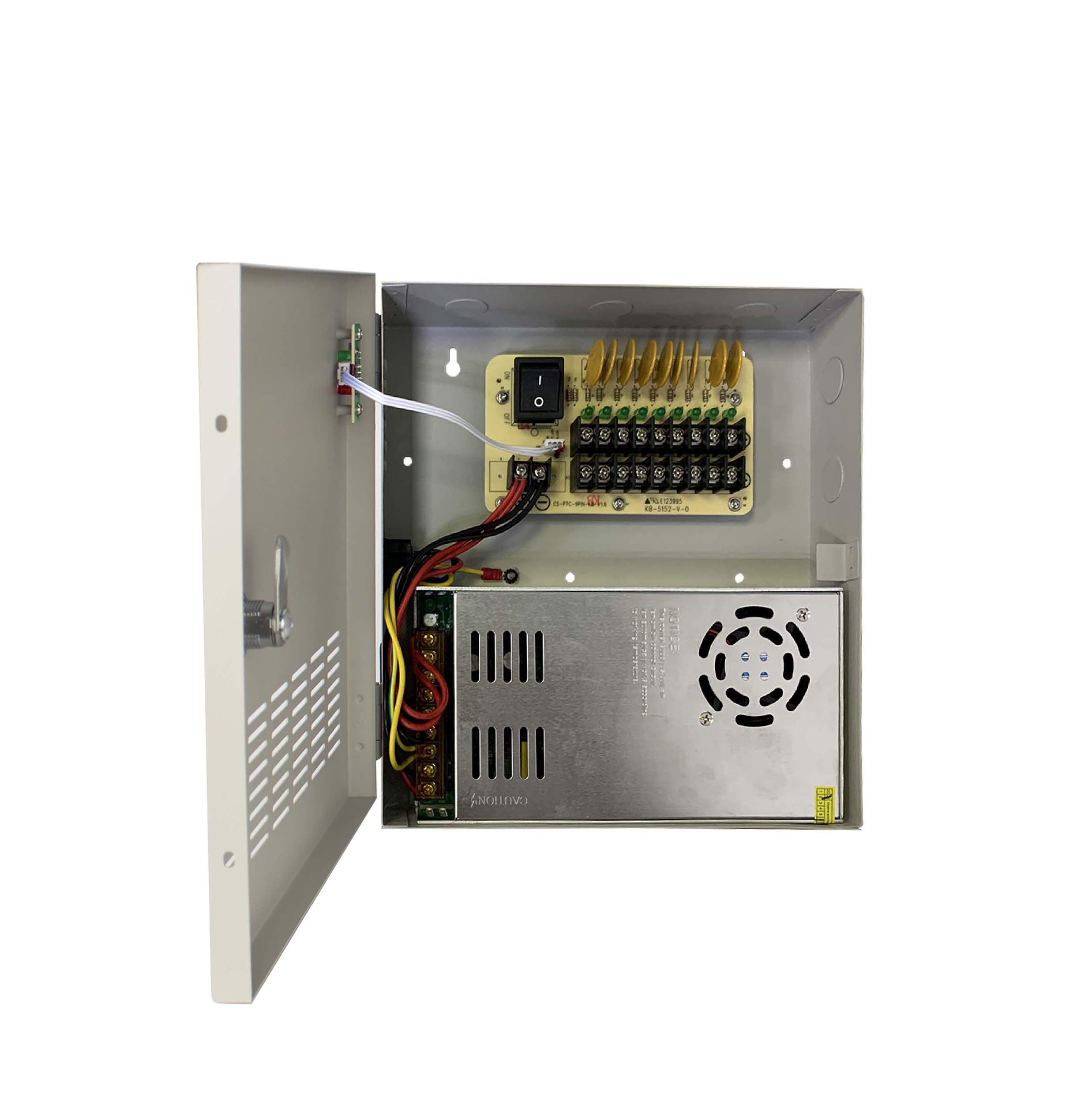

  • PTC output protection for each port.

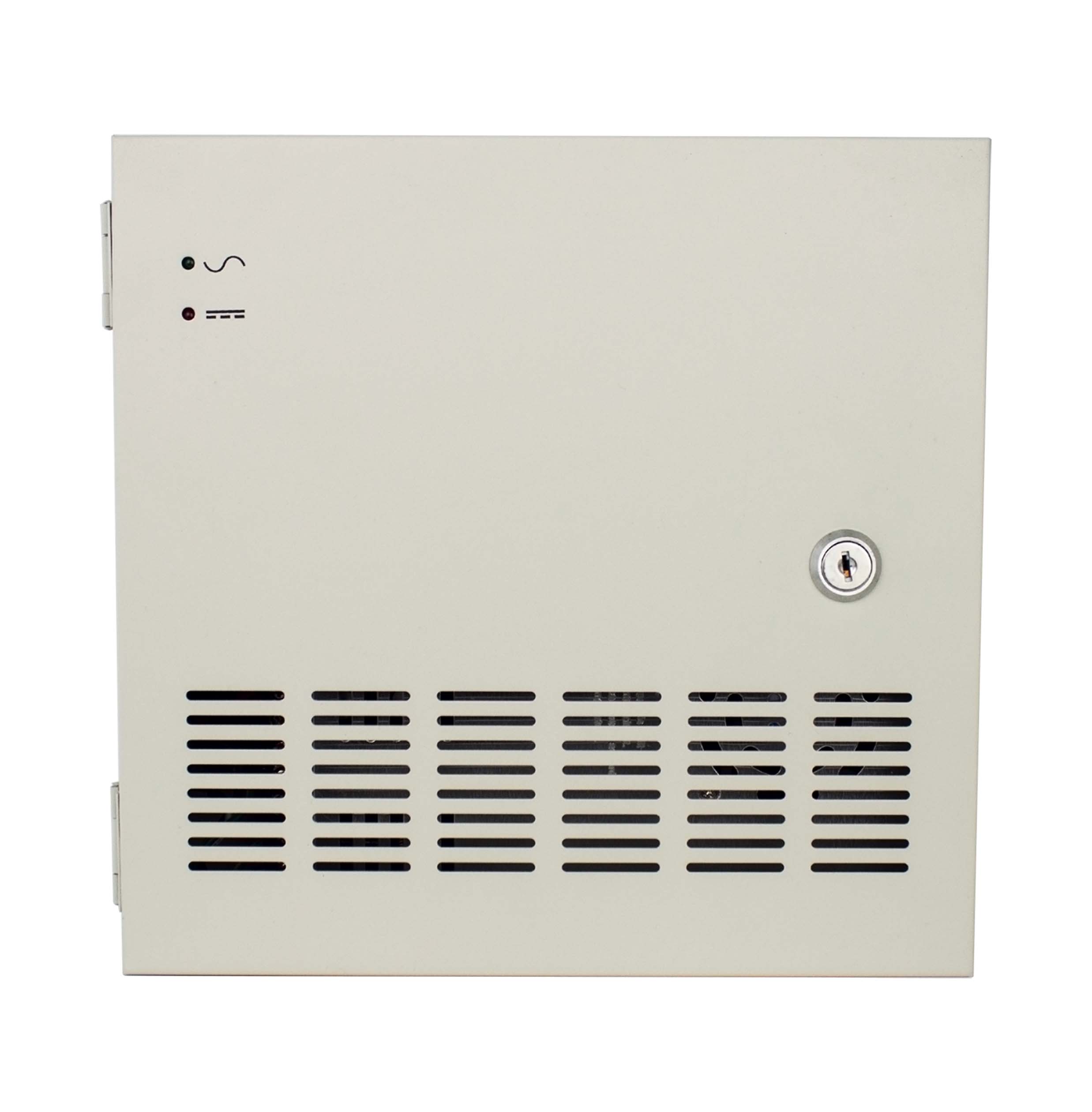

  • External LED indicator for each output.

  • 100% full load burn-in test, High efficiency, Longservice life, high reliability

Specifications:

Model NumberPS-DC30A09E
ltemCCTV Power Supply Box
Input VoltageAC110 or 220V, 5A 50/60HZ
Output

DC 12V 30A（MAX）9 Channel

Output protectionShort circuit protection with auto-reset once short removed
Over temperature protection
Over current protection
Overload protection
Over voltage protection
Under voltage protection
Efficiency≥82%
Fuse TypePTC Fuse
Fuse Rating2500mA
Operating Temperature-10~40℃
Carton Dimension44*29*28.5cm
Carton Weight5 pcs/carton

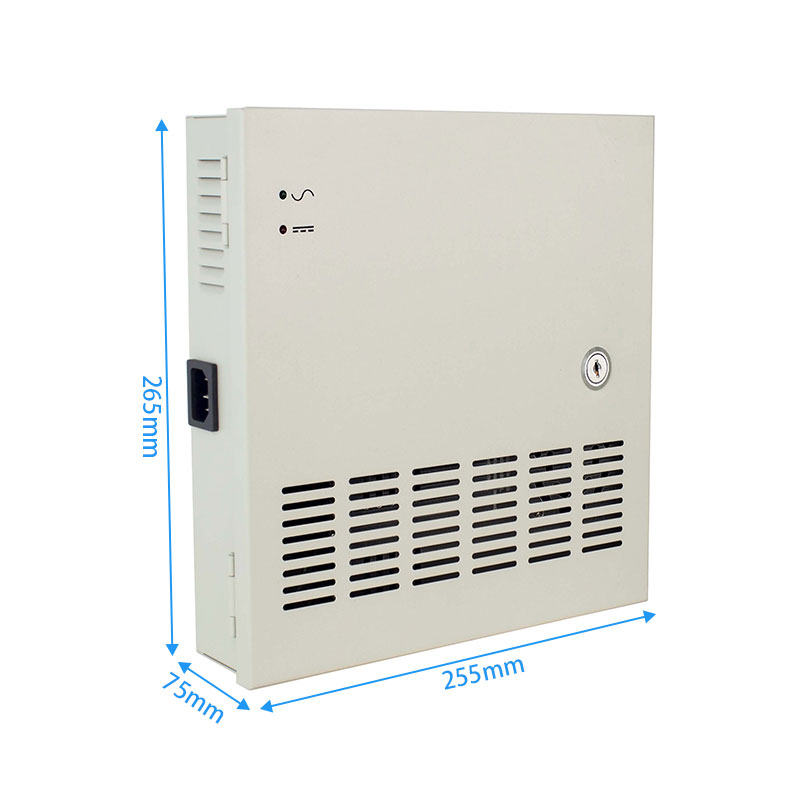

Size265*255*75mm
ColorWhite or Blue or Black
Load regulationA ±5%
life10000 hours







Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
