DC12V 20A/30A 18CH PTC FUSE Power Supply Box
share
DetailSpecificationsDownloads
DC12V 20A/30A 18CH PTC FUSE Power Supply Box
Feature:
Universal AC Input Range.
DC outputs are regulated and fitered.
Shortcircuit /Over Voltage/Over Current/Over Temp Protection.
Class 2 PTC output protection for eachport
Individual status LED indicator for each output
Specifications:
| Item | Description | |
| Model Number | PS-DC20A18U | PS-DC30A18U |
| Input Voltage | AC110 or 220V 50/60HZ | |
| Output Voltage | DC 12V 20A 18Channel | DC 12V 30A 18Channel |
| Efficiency | ≥82% | |
| Fuse Type | PTC Fuse | |
| Fuse Rating | 1.2A | 1.6A |
| Operating Temperature | -10~40℃ | |
| Carton Dimension | 535x225x290mm | |
| Carton Weight | 5pcs/carton | |

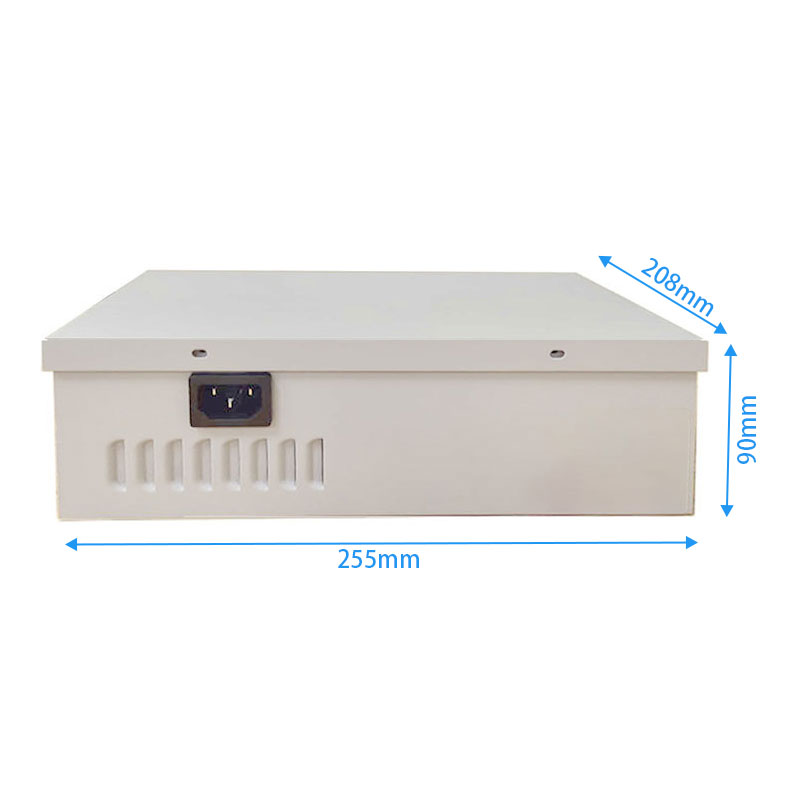

| Size/Net Weight | 255x208x90mm | |
| Color | White | |
| Application | CCTV Camera, IPCamera, PTZ, IR Illuminator, Video process,DVR, Access Control , etc. | |
Q1: Are you a factory?
A: Yes, we are a POE Switches & Power Supply factory.
Q2: How many years is your products warranty?
A: Regular 1 year.
Q3: Do you accept OEM?
A: Sure, we accept OEM.
Q4: What is your delivery time and payment term?
A: We will reply the specific delivery time according to your order qty. Usually 7~10days. We accept T/T, Paypal and Western Union payment method.
Q5: Do you have any certification?
A: Yes, we have UL, FCC, CE, RoHS right now. If you need other certifications in large quantities order, we can apply it for you.
