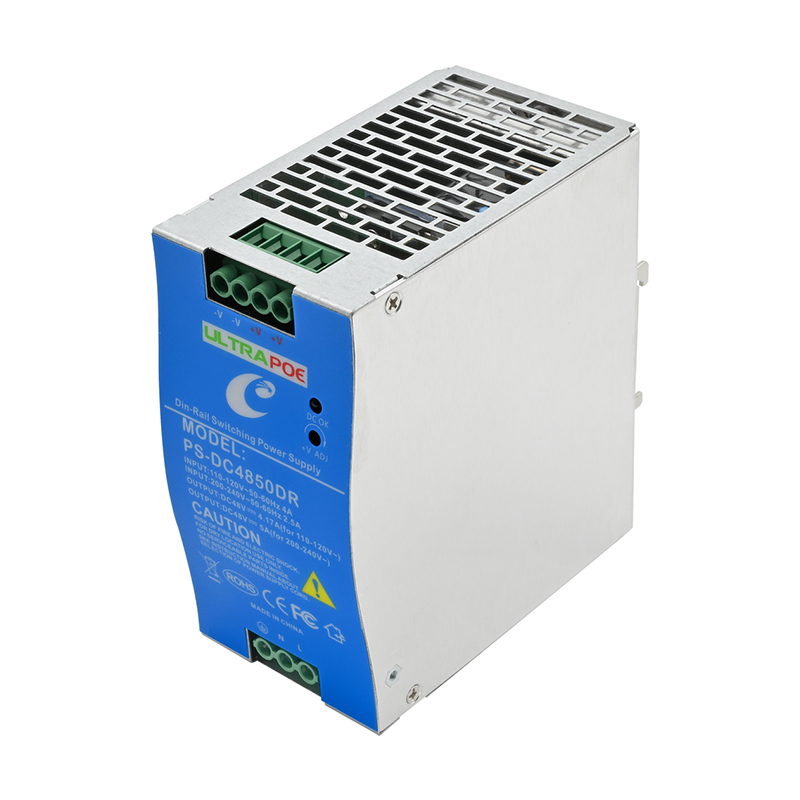

DC48V 5A Industrial Switching Power Supply

Description：

PS-DC4850DR is a DC48V industrial power, application for PoE Switch, communication equipment, wireless base stations, data centers, and industrial automation equipment, among others.

Feature:

Input AC 100-240V, 50-60Hz
105℃ long-life electrolytic capacitor is adopted
Short circuit / overvoltage / overcurrent / over temperature protection

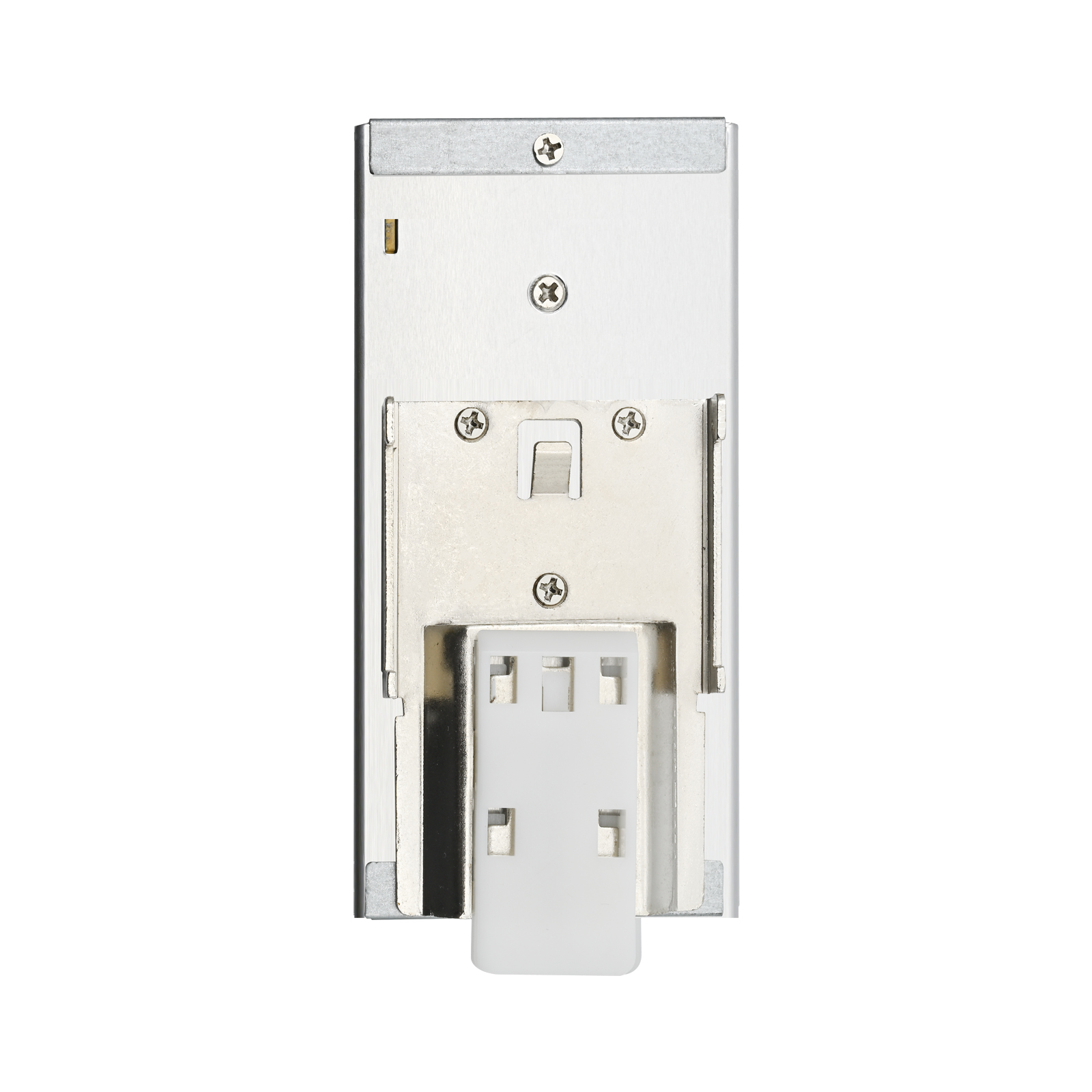

Flexible installation method, guide rail installation, fixed installation, and easier operation
Output adjustable: DC 48V to 57V
The maximum working temperature is -20°C to 70°C

Specifications:

Item		Description
Power Input	Input 1	AC 110-120V, 50-60Hz 4A
Power Input	Input 2	AC 200-240V, 50-60Hz 2.5A
Power Output	Output Voltage	DC 48V to 57V, ±5, adjustable
	Output Current	4.17A (for 110-120VAC input)5A (for 200-240VAC input)
	Output Channels Number	2 Channels
	Output protection	Short circuit protection with auto-reset once short removed Overvoltage protection Over temperature protection Over current protection
	Efficiency	>80%
	MTBF	>10000 hours
Environmental	Operating temperature	-20°C to 70°C
	Storage temperature	-40°C to 85°C
	Operating humidity	10% to 90% relative humidity, non-condensing
	Storage humidity	5% to 90% relative humidity, non-condensing
